All specifications are approximations and are subject to verification.
“Machine is in good running condition. Low hours, It is equipped with 15″ Chuck, Tool Presetter, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”
| Make | Haas |
| Model No. | SL30B |
| Year | 2007 |
| Condition | Used-Good |
Haas SL-30B CNC Equipped With:
- Haas 32Bit CNC Control
- 15″ 3 Jaw Hydraulic Chuck
- Tool Setter
- A2-8 Spindle with 4″ Bore
- Coolant System
- Foot Switch
- USB Drive
- 12 Station Automatic Turret
- Chip Conveyor
Haas SL-30B CNC Specifications:
- Capacity:
- Max Turning Diameter: 17.0″
- Max Turning Length: 34.0″
- Max Bar Capacity: 4.0″
- Swing Over Bed: 30.0″
Travels:
- X Axis Travel: 11.3″
- Z Axis Travel: 34.0 “
- Rapid Traverse X Axis: 710 IPM
- Rapid Traverse Z Axis: 710 IPM
Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 4.02″
- Spindle Speed: 24 – 2400 RPM
- Spindle Motor: 40 HP
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 150″ X 90″ X 90 ” High
- Overall Dimensions: 190″ X 90″ X 90″ High with Chip Conveyor
- Weight: 16,000 lbs

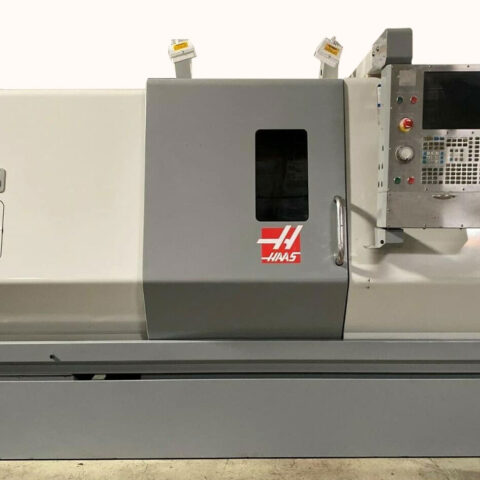

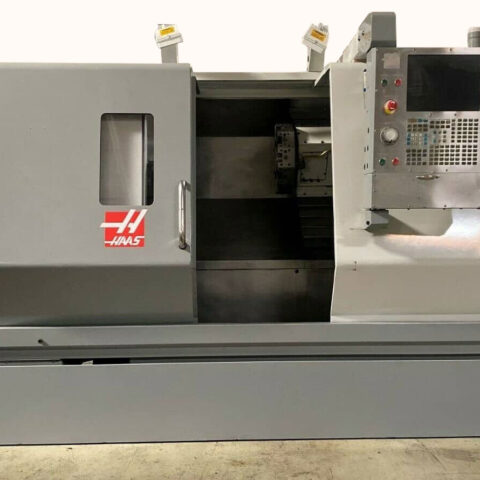

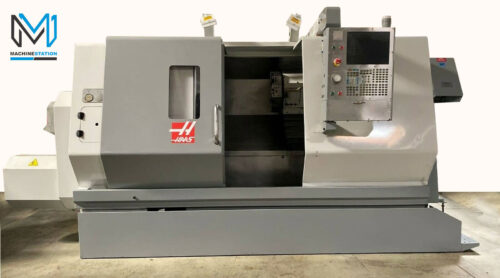

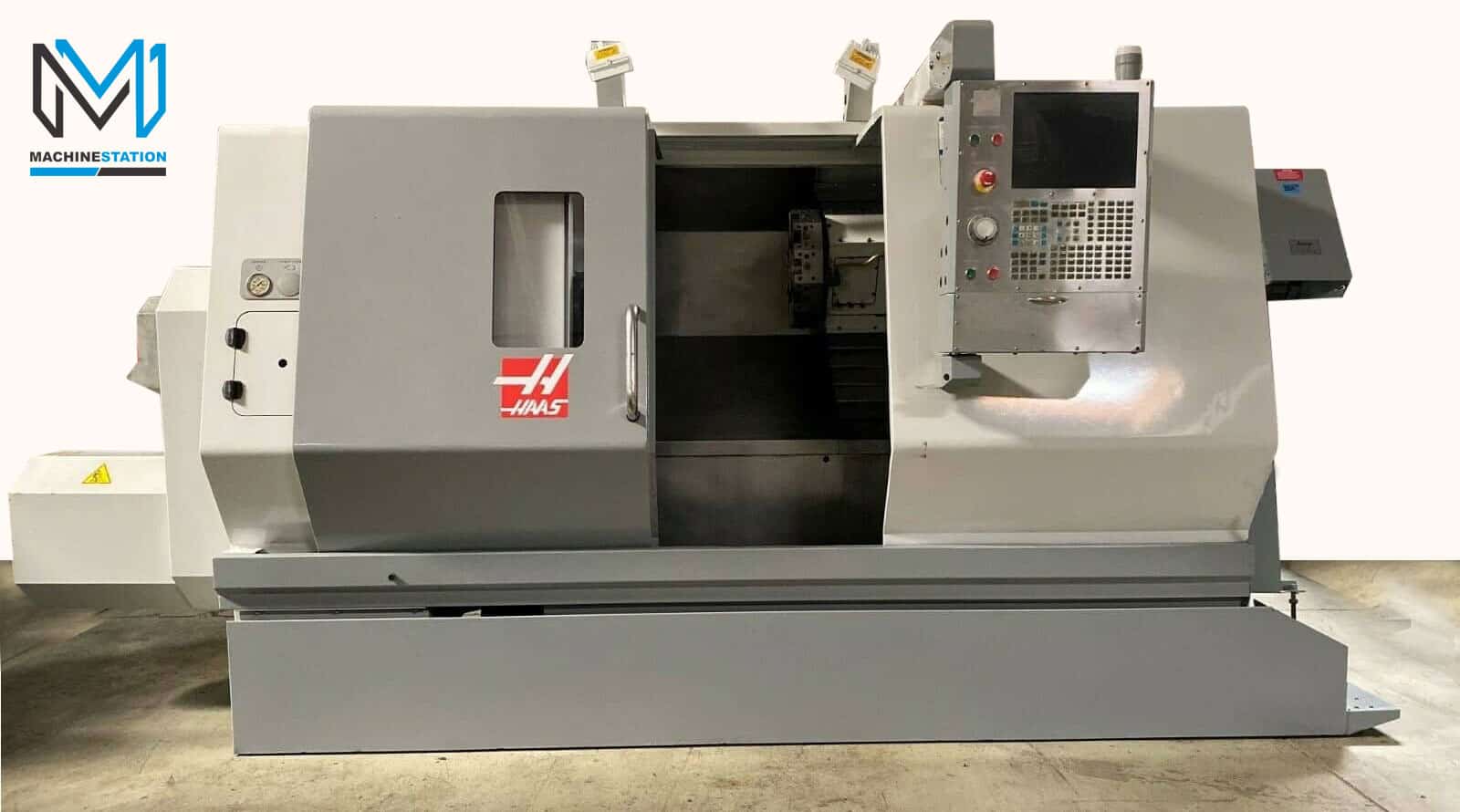

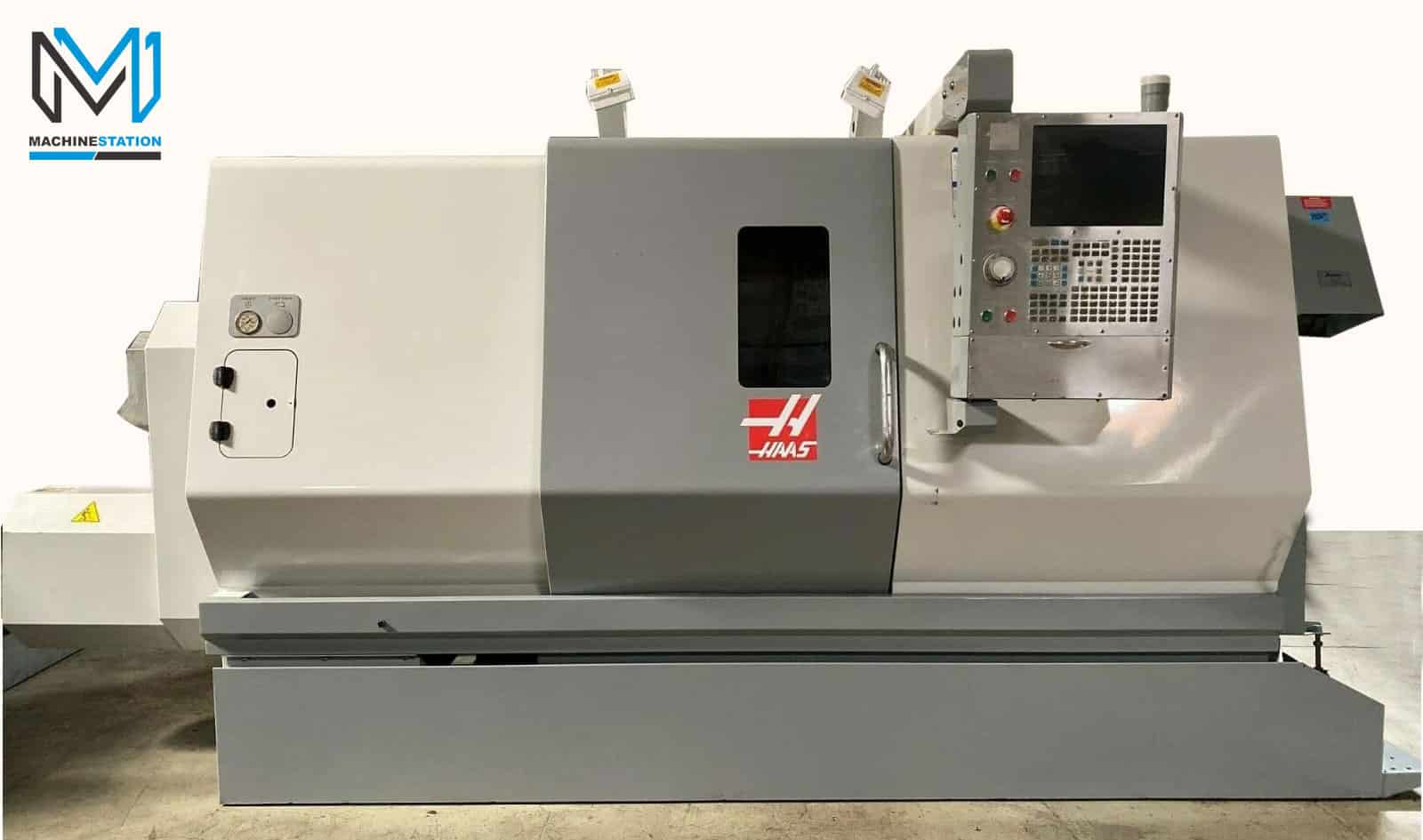

Comes as shown in pictures….
