*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | SL-30T |
| Year: | 2002 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 12-Station Turret |
| 10″ 3-Jaw Chuck |
| Tailstock |
| Auger-Style Chip Conveyor |
| Fully Enclosed Machining Area |

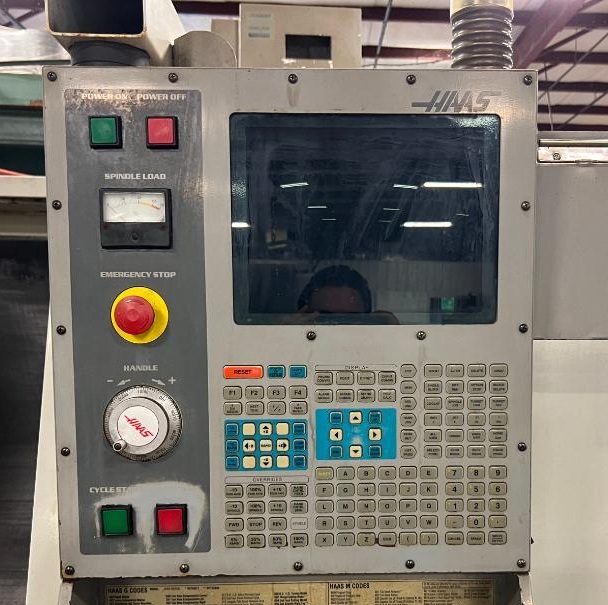

| Operator Control Panel with Handwheel |
| Foot Pedal Controls |
| Capacity: |
|---|
| Maximum Turning Diameter: 15″ |
| Maximum Turning Length: 30″ |
| Travels: |
|---|
| X-Axis Travel: 11.3″ |
| Z-Axis Travel: 34″ |
| Rapid Traverse Rate: 710 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 3,400 RPM |
| Spindle Drive Power: 30 HP |
| Chuck: 10″ 3-Jaw Chuck |
| Turret: |
|---|
| Turret Type: Automatic Tool Turret |
| Tool Positions: 12 Stations |

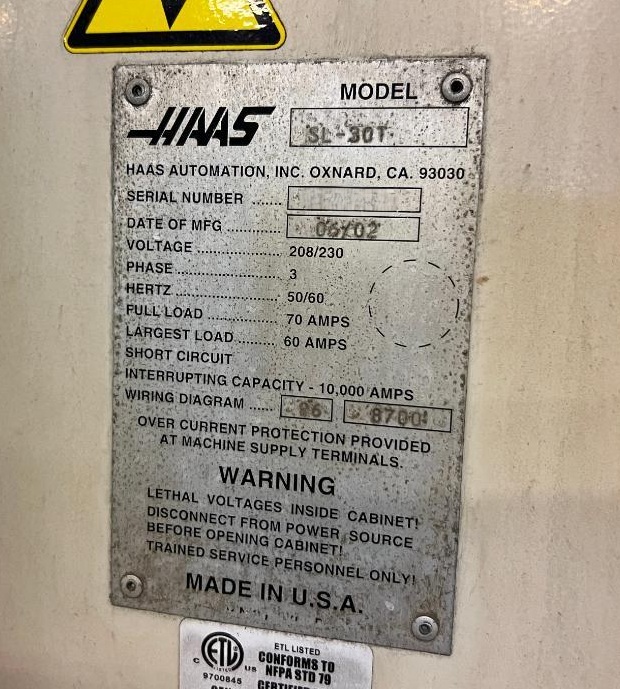

| Electrical: |
|---|
| Voltage: 208/230 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Pull Load: 70 Amps |
| General: |
|---|
| Machine Dimensions (Approx.): 170″ L × 90″ W × 98″ H |
| Machine Weight (Approx.): 13,500 lbs. |
