*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112732 |
| Make: | Haas |

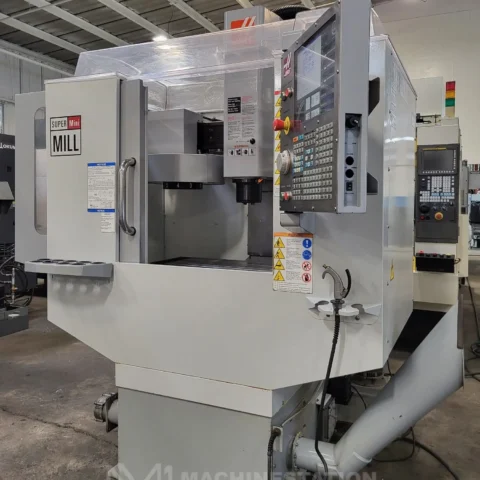

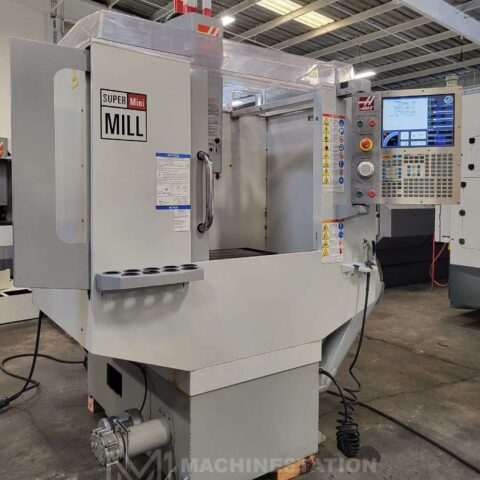

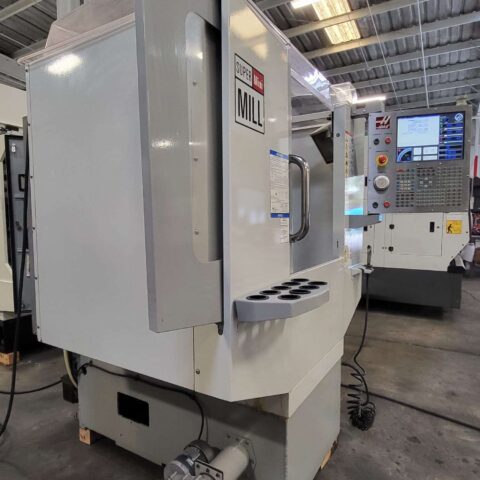

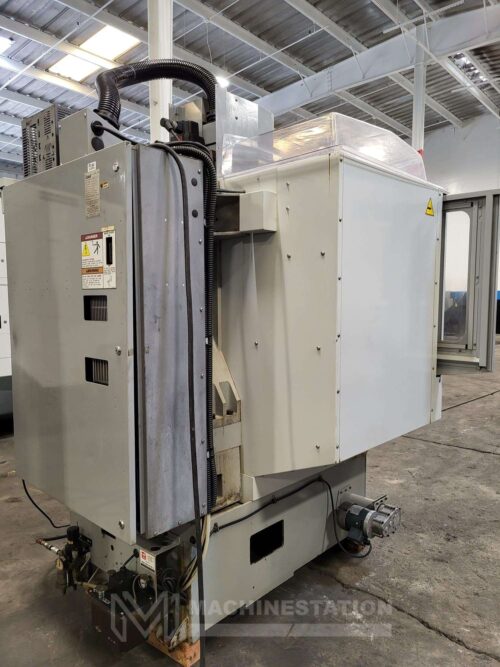

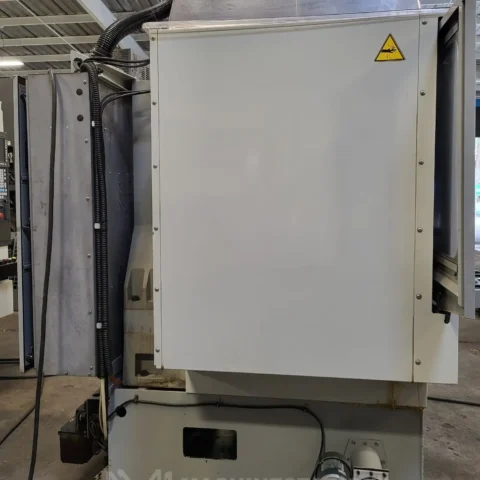

| Model: | Super Mini Mill |
| Year: | 2008 |
| Features: |
|---|

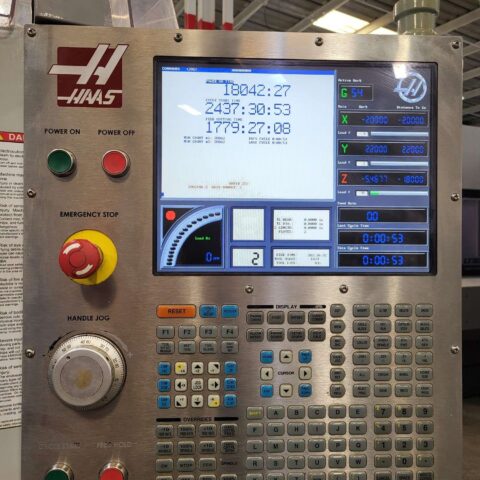

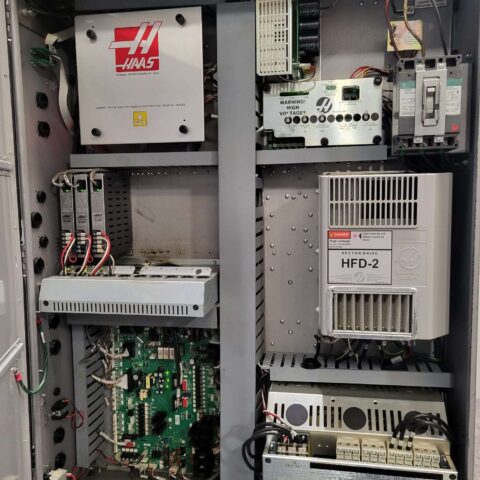

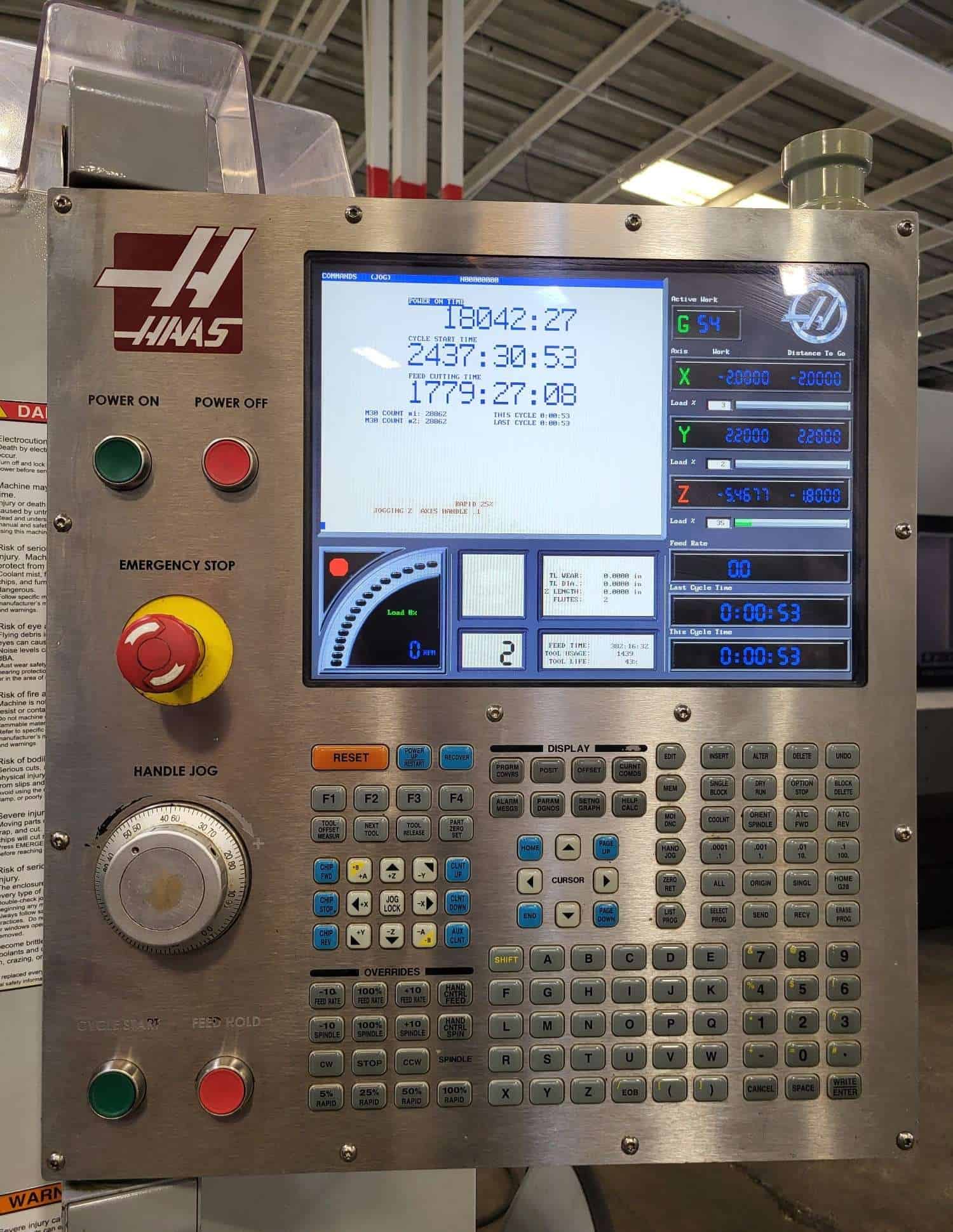

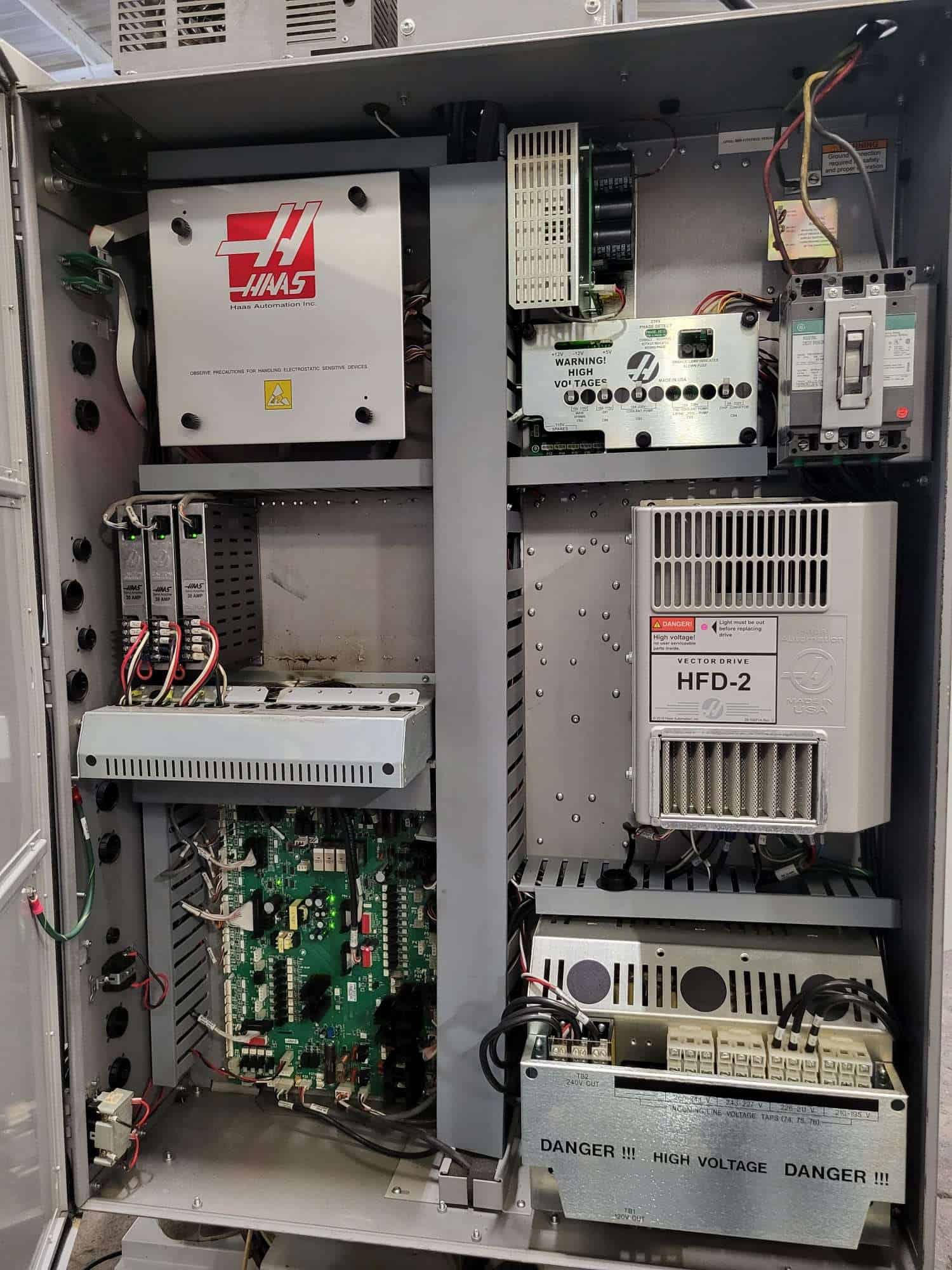

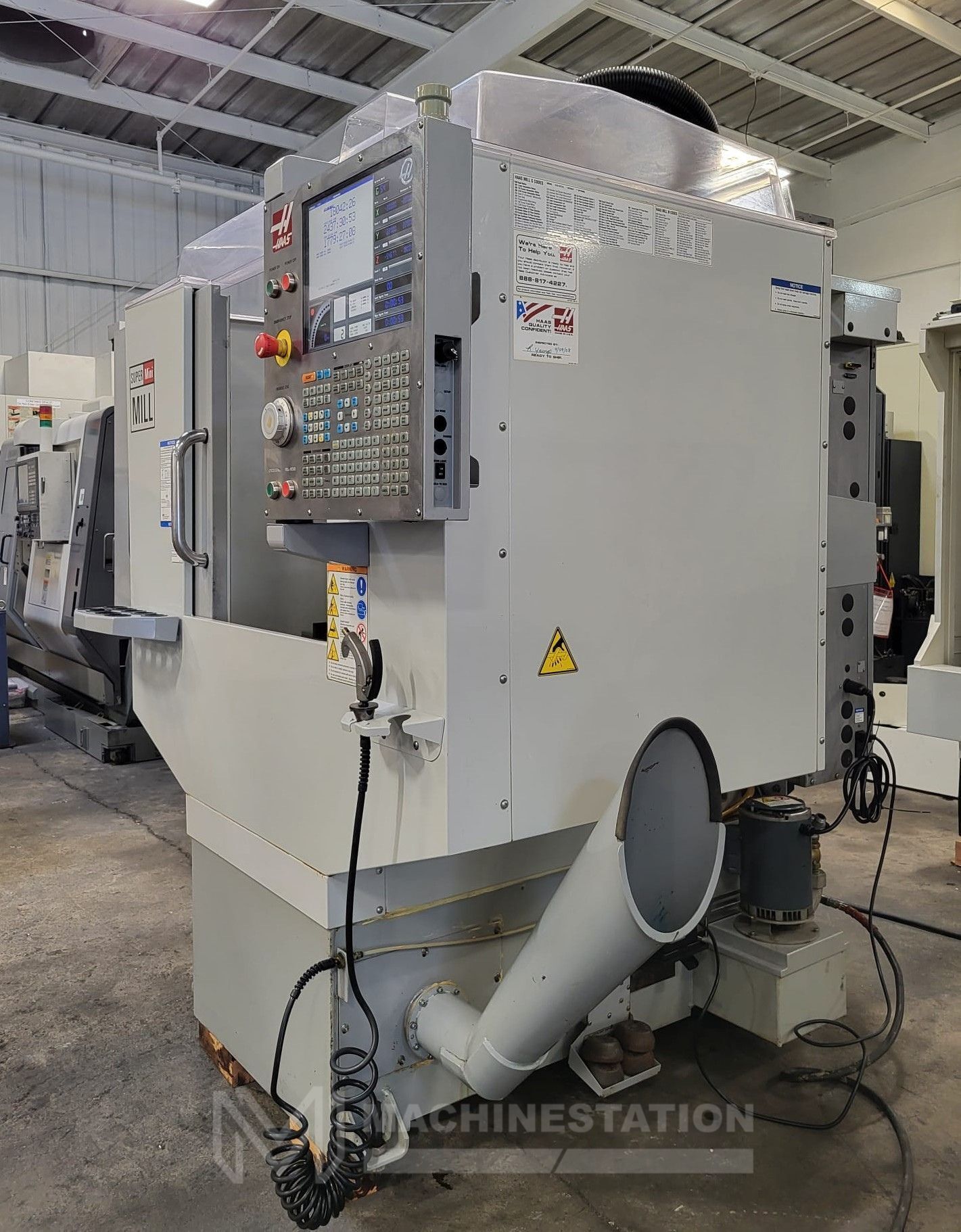

| Haas CNC Control |
| 10,000 RPM Spindle |

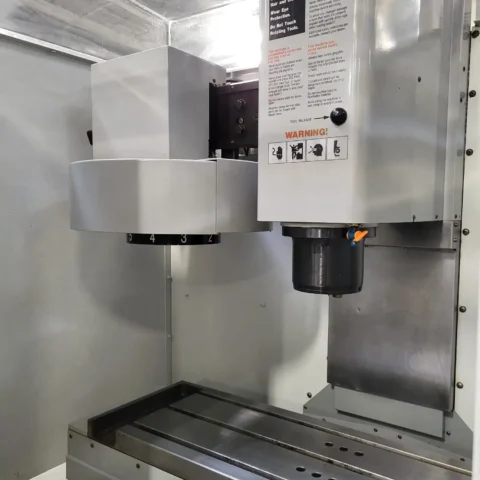

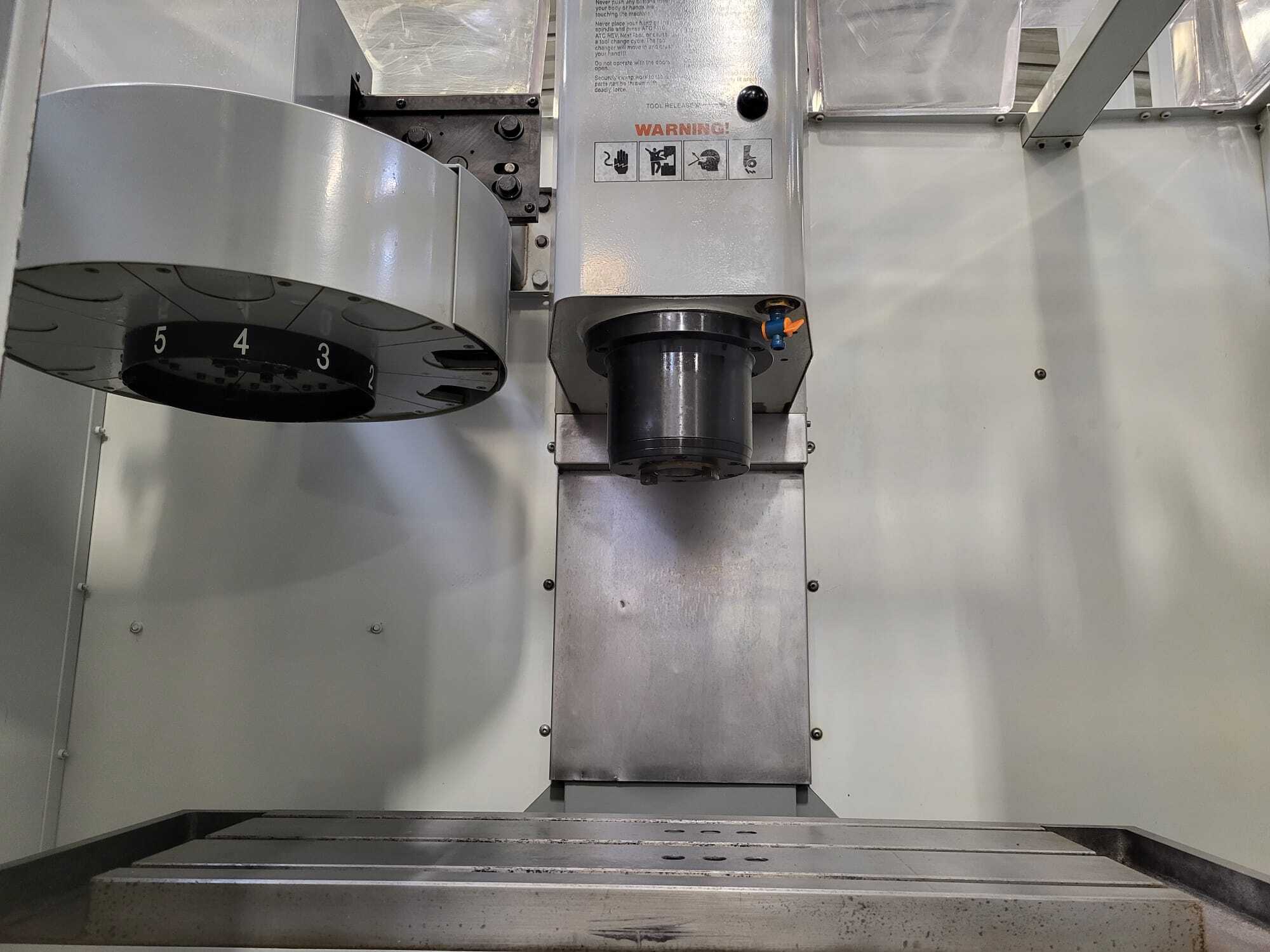

| 10 Station Automatic Tool Changer |
| CAT-40 Taper |

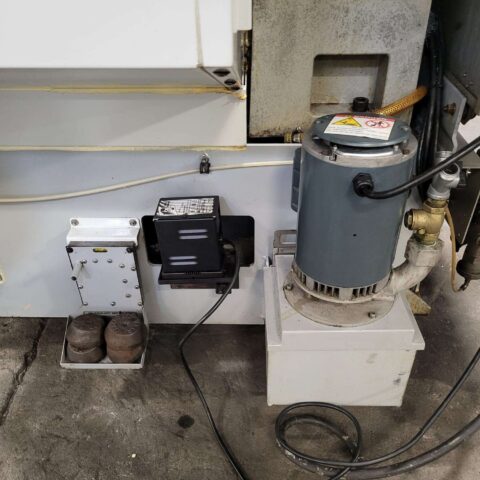

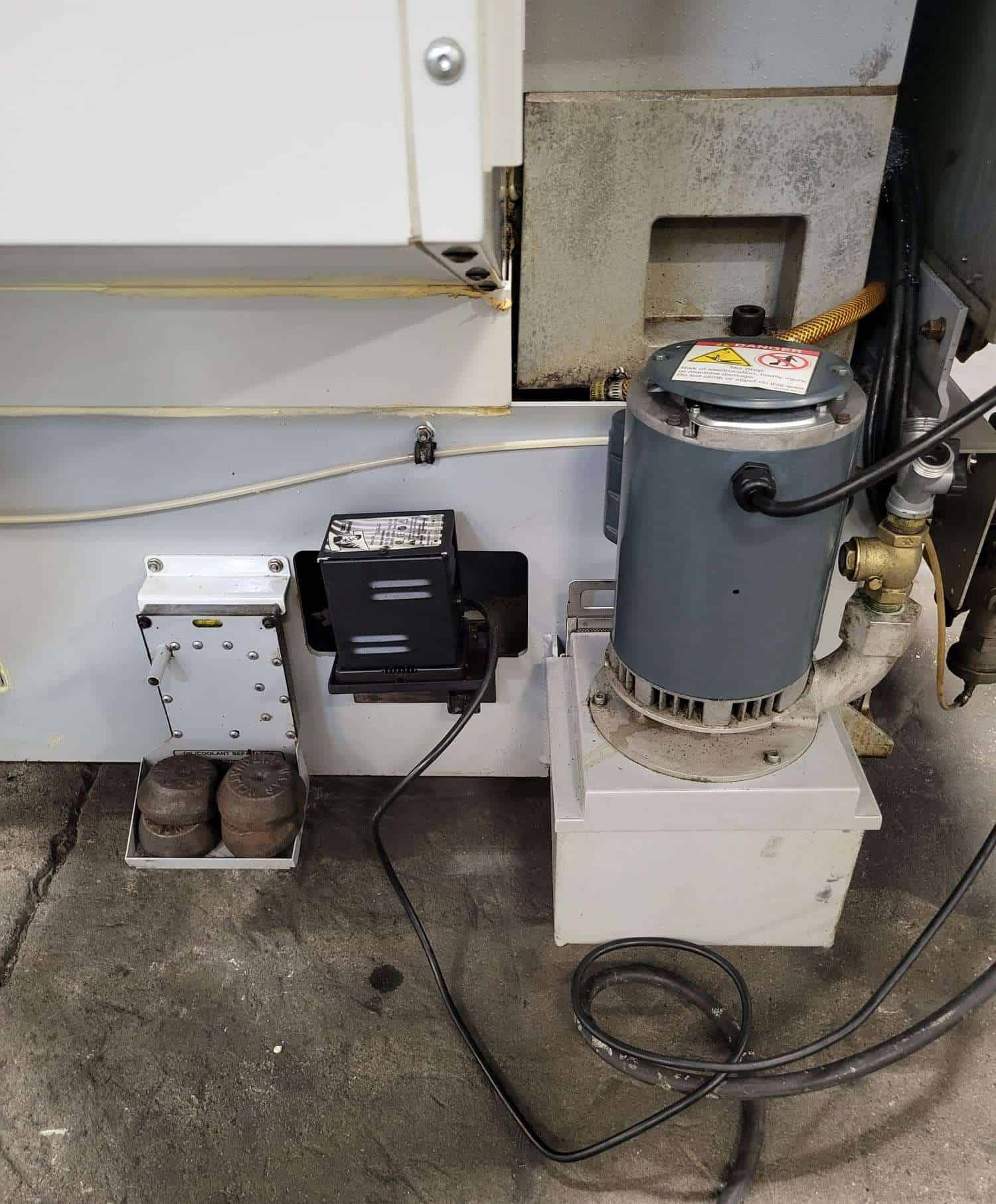

| Coolant System |

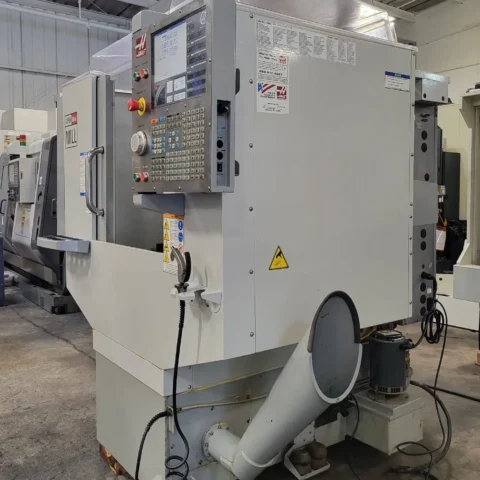

| Chip Auger |
| USB Port & RS-232 Port |
| Levelling Pads |
| Work Light |
| Books & Manuals |
| Machine Top Acrylic Covers |
| Travels: |
|---|
| X-Axis: 16″ |
| Y-Axis: 12″ |
| Z-Axis: 10″ |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 14″ |

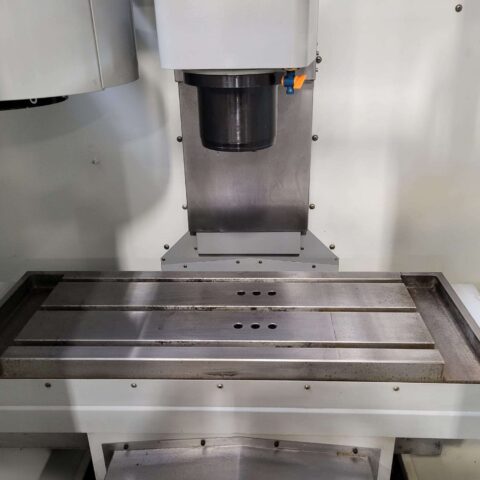

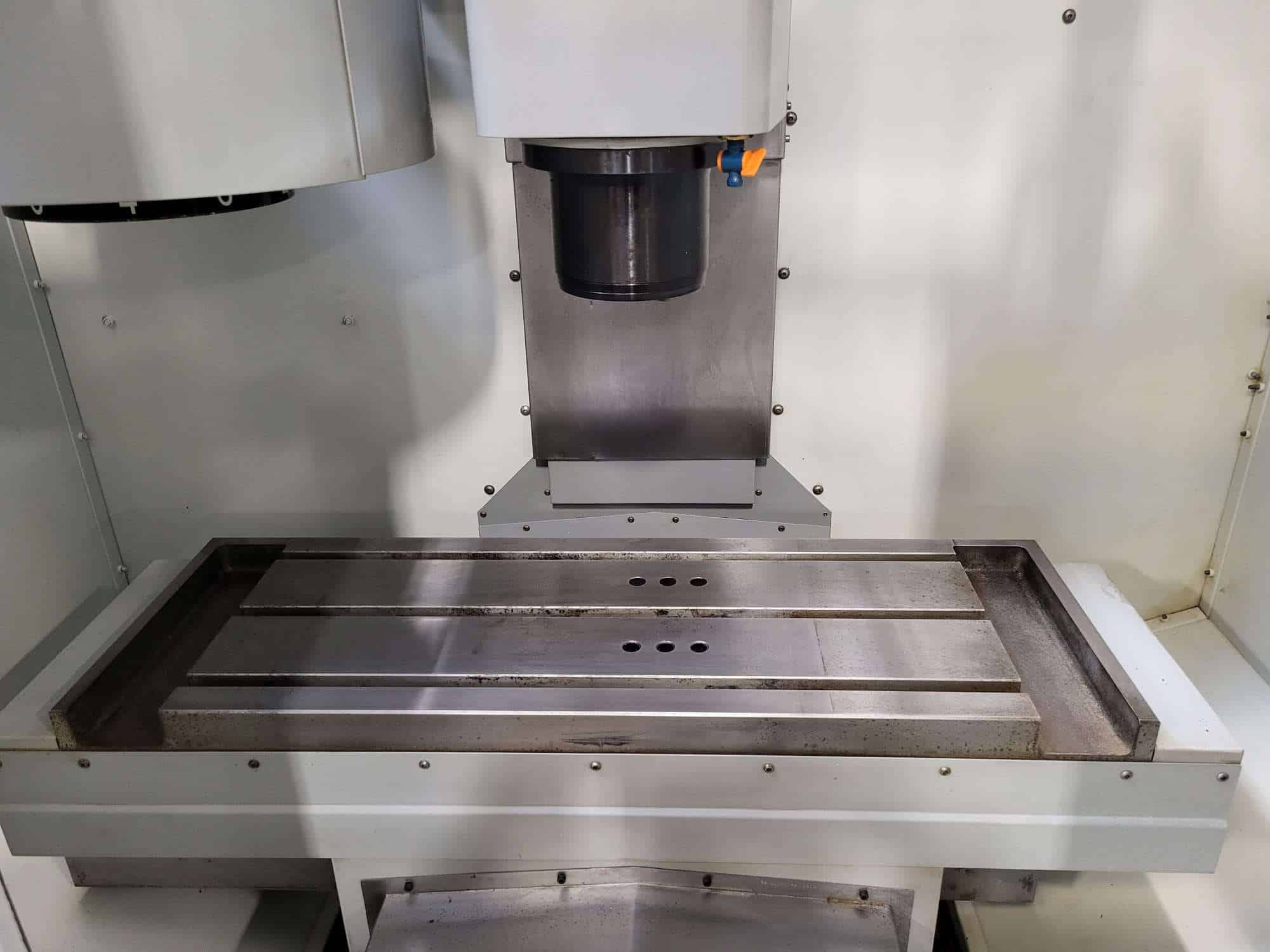

| Table: |
|---|
| Length: 36.0″ |
| Width: 12.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |

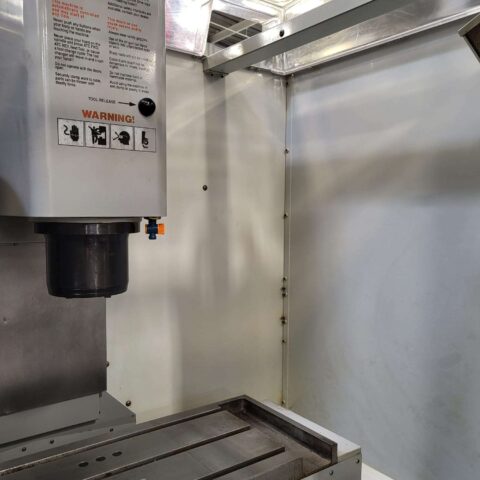

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 15 HP |

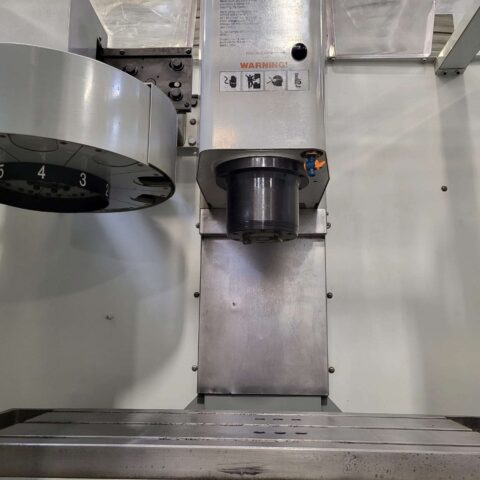

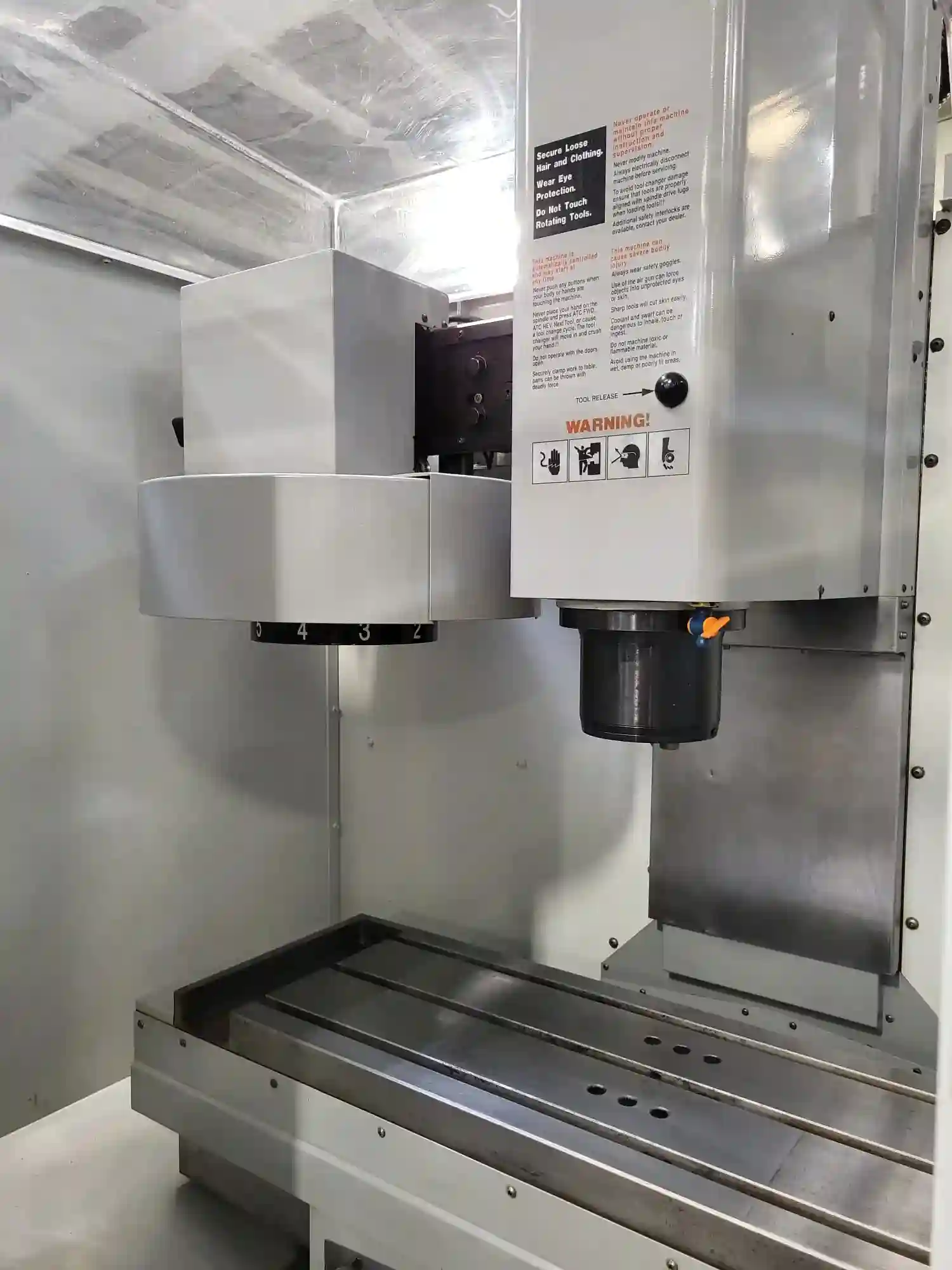

| Automatic Tool Changer: |
|---|
| Capacity: 10 Station Umbrella Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Tool Changing Time: 2.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

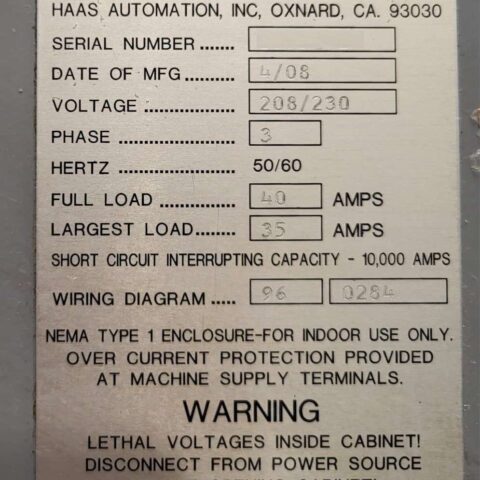

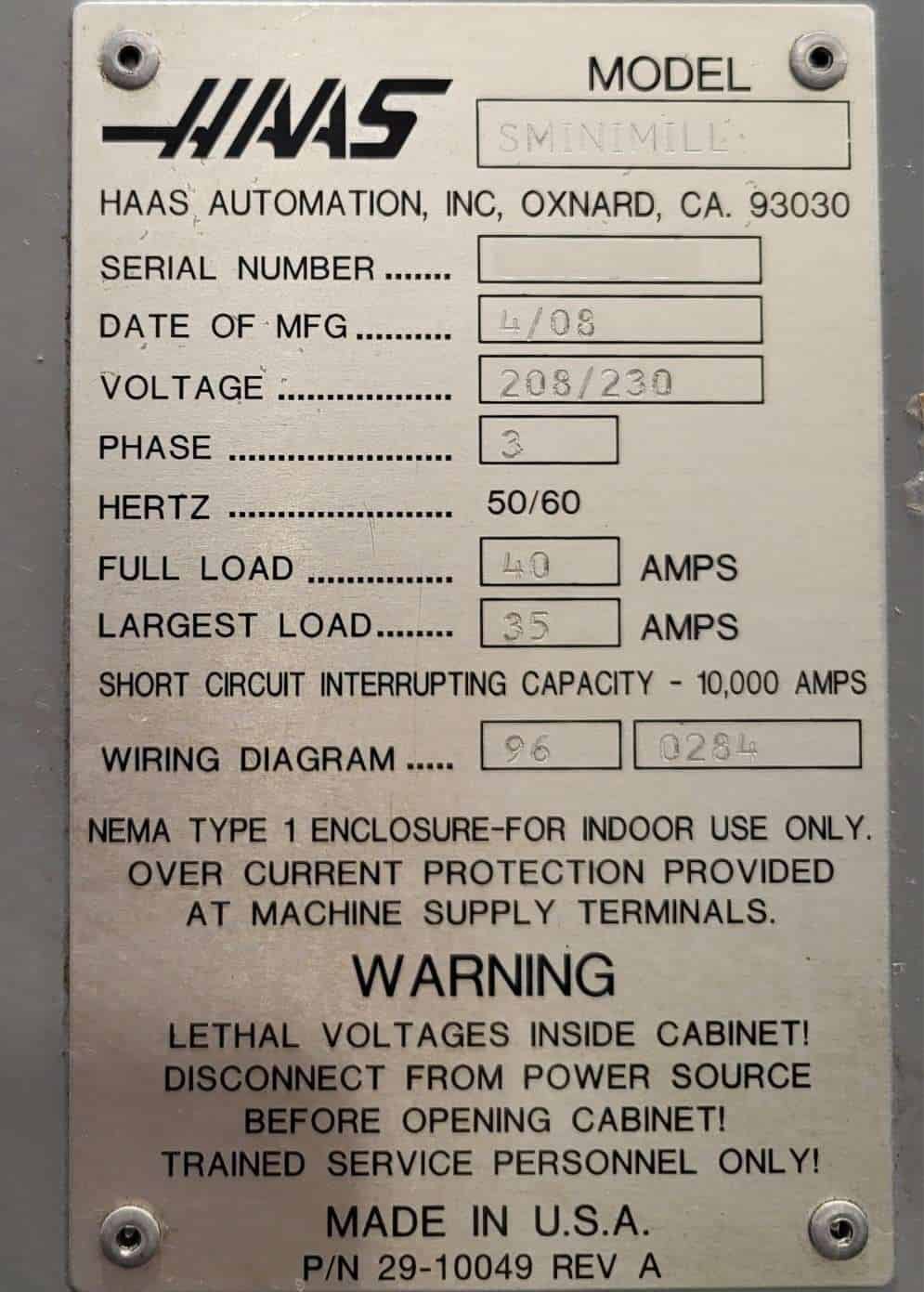

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 64″ x 100″ High Approx. |
| Weight: 4000 lbs. Approx. |
