*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | Super VF-4SS |
| Year: | 2008 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| Haas CNC Control |
| 24-Station Side Mount Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 12,000 RPM Inline Direct Drive Spindle |
| Rigid Tapping |
| High Speed Tool Changer |
| Programmable Coolant Nozzle |
| Chip Auger |
| Coolant System |
| USB Port |
| Fully Enclosed Splash Guarding |
| 1400 IPM Rapids |
| Table: |
|---|
| Table Size: 52″ x 18″ |
| Max Table Load: 3,500 LBS |
| T-Slots: 5 |
| T-Slot Width: 5/8″ |
| T-Slot Centers: 3.54″ |
| Travels: |
|---|
| X-Axis Travel: 50″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 25″ |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 12,000 RPM |
| Spindle Type: Inline Direct Drive |
| Spindle Motor: 30 HP |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 24 Stations |
| ATC Type: Side Mount Automatic Tool Changer |
| Tool Change Type: High Speed |
| Max Tool Weight: 12 LBS |
| Max Tool Diameter: 3″ |
| Max Tool Length: 11″ |
| Feed Rates: |
|---|
| Rapid Traverse Rate: 1400 IPM |
| Cutting Feed Rate: Approx. 833 IPM |

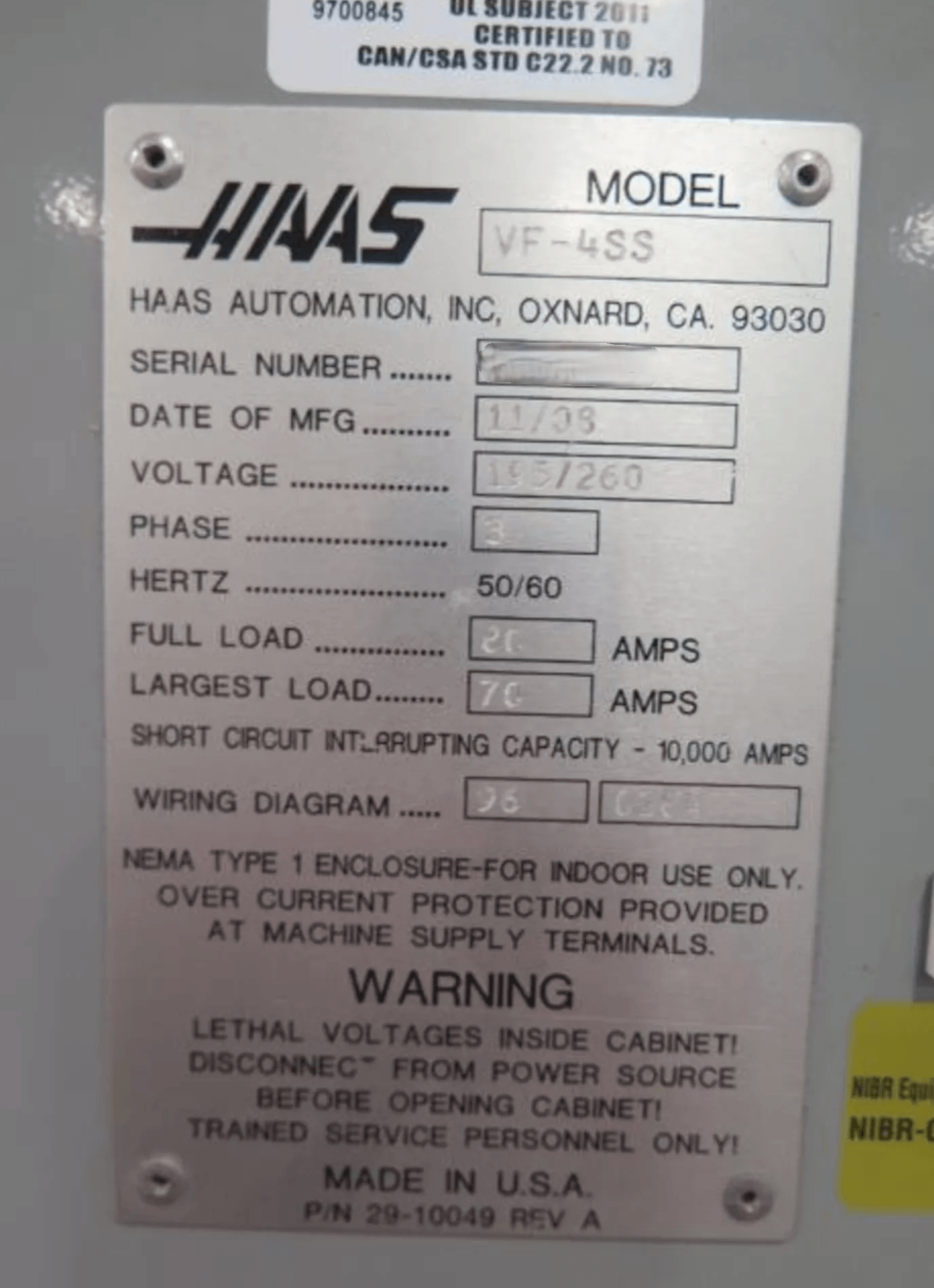

| Electrical: |
|---|
| Power Requirement: 195-260V / 3-Phase |
| Frequency: 50/60 Hz |
| Full Load Current: 20 Amps |
| Largest Load Current: 70 Amps |
| General: |
|---|
| Machine Dimensions: Approx. 135″ x 102″ x 110″ |
| Machine Weight: Approx. 13,500 LBS |
