*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

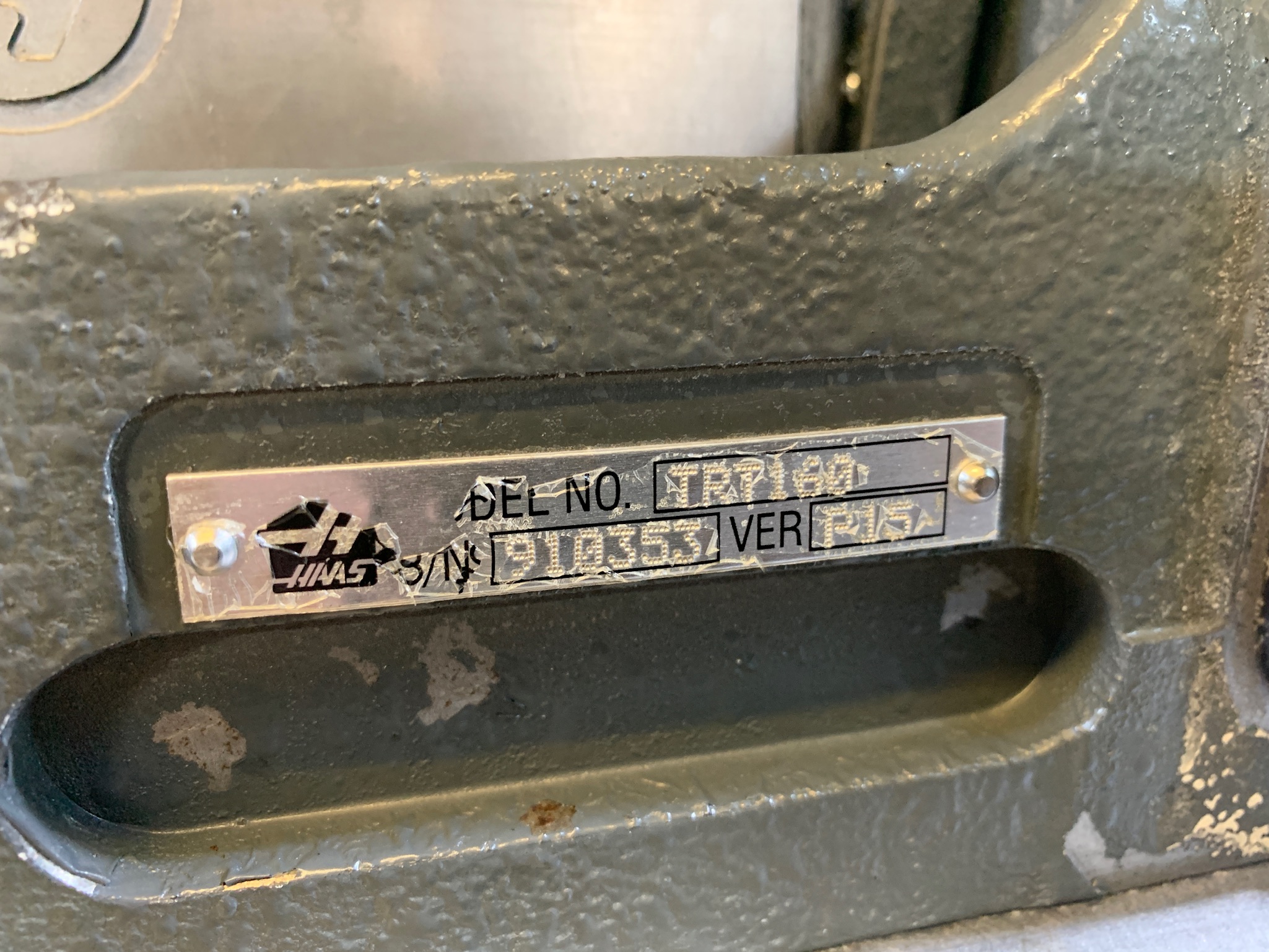

| Make: | Haas |
| Model: | TRT-160 |
| Year: | 2019 |
| Equipped With: |
|---|
| Haas Dual-Axis Tilting Rotary Table |
| 160 mm Rotary Platter |
| A-Axis Tilting Motion |
| B-Axis Rotary Motion |
| Integrated Pneumatic Brake System |
| Direct Integration with Compatible Haas CNC Machines |
| Custom Drilled/Tapped Fixture Platter |
| Platter: |
|---|
| Platter Diameter: 6.30″ |
| Maximum Weight on Platter: 55 lbs |
| Maximum Part Swing: 10.5″ |
| Hole Pattern: 6-Bolt |
| A-Axis – Tilt: |
|---|
| Maximum Travel: ±120° |
| Maximum Speed: 104°/sec |
| Continuous Torque: 210 ft-lbs |
| Brake Torque @ 100 PSI: 200 ft-lbs |
| Gear Ratio: 90:1 |
| Backlash: 30 arc-sec |
| B-Axis – Rotary: |
|---|
| Maximum Rotation per Step: 999.999° |
| Maximum Speed: 104°/sec |
| Continuous Torque: 112 ft-lbs |
| Brake Torque @ 100 PSI: 100 ft-lbs |
| Gear Ratio: 63:1 |
| Backlash: 30 arc-sec |
| General: |
|---|
| Machine Dimensions (Approx.): 28″ × 17″ × 19″ |
| Table Weight (Approx.): 266 lbs |
