*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-2BYT |
| Year: | 2007 |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Haas CNC Control |
| Features: |
|---|
| Haas CNC Control |
| Extended Y-Axis Travel |
| 10,000 RPM Spindle |
| 2-Speed Gear Drive |

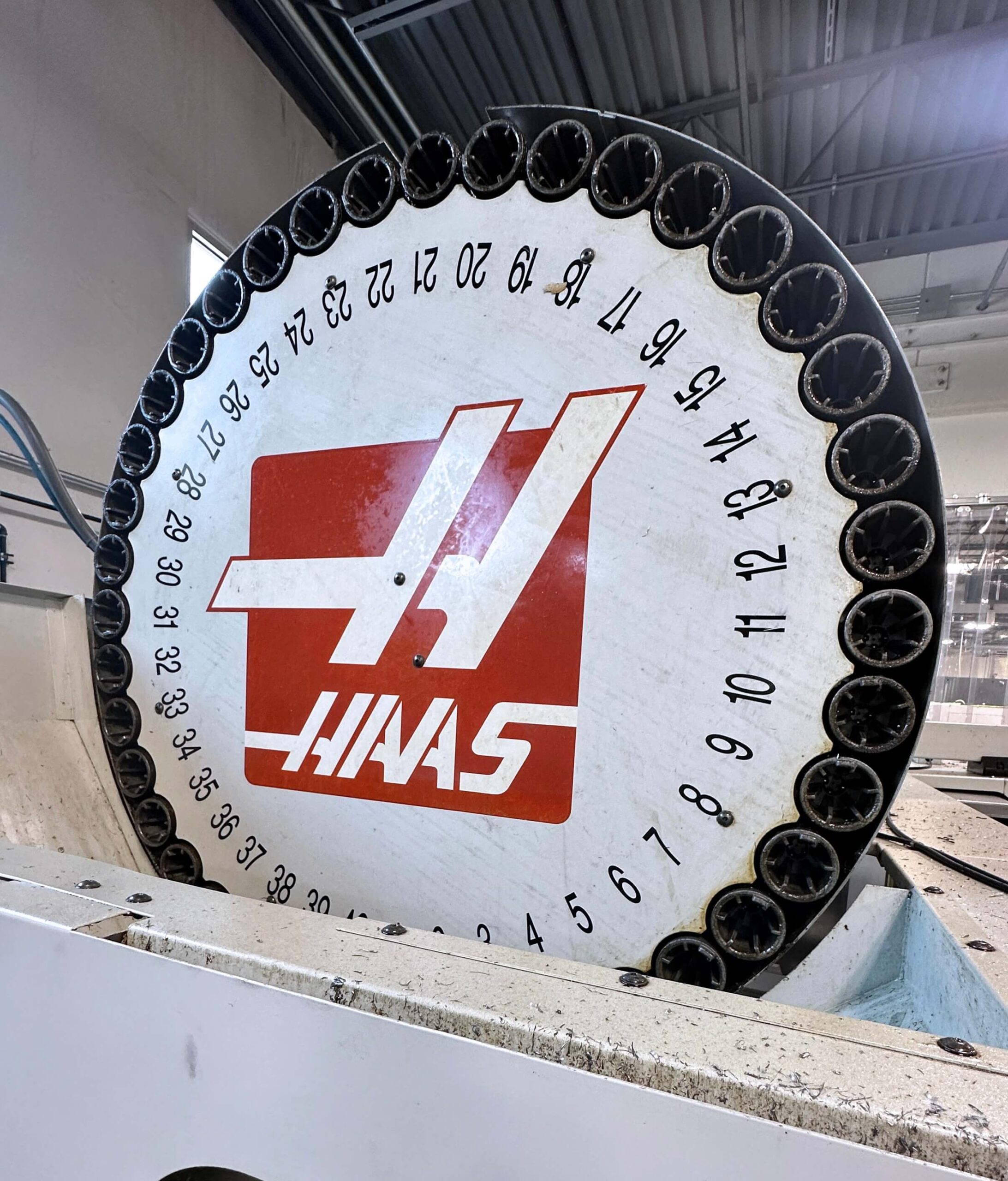

| 40-Position Side-Mount Automatic Tool Changer |
| Remote Jog Handle |
| Chip Auger |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 20″ |
| Spindle Nose to Table, Maximum: 24″ |
| Spindle Nose to Table, Minimum: 4″ |
| Maximum Feedrate: 1,000 IPM |
| Table: |
|---|
| Table Length: 36″ |
| Table Width: 18″ |
| Maximum Table Load: 3,000 lbs |
| T-Slot Width: 0.63″ |
| T-Slot Center Distance: 4.92″ |
| Number of T-Slots: 3 |
| Spindle: |
|---|
| Spindle Motor: 20 HP |
| Maximum Spindle Speed: 10,000 RPM |
| Spindle Taper: CT40 |
| Drive Type: 2-Speed Gear Drive |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Side-Mount |
| Tool Changer Capacity: 40 Positions |
| General: |
|---|
| Air Requirement: 4 SCFM @ 100 PSI |
| Machine Weight (Approx.): 8,000 lbs |
| Overall Dimensions (Approx.): 90″ × 86″ × 95″ |
