Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
-
Features:

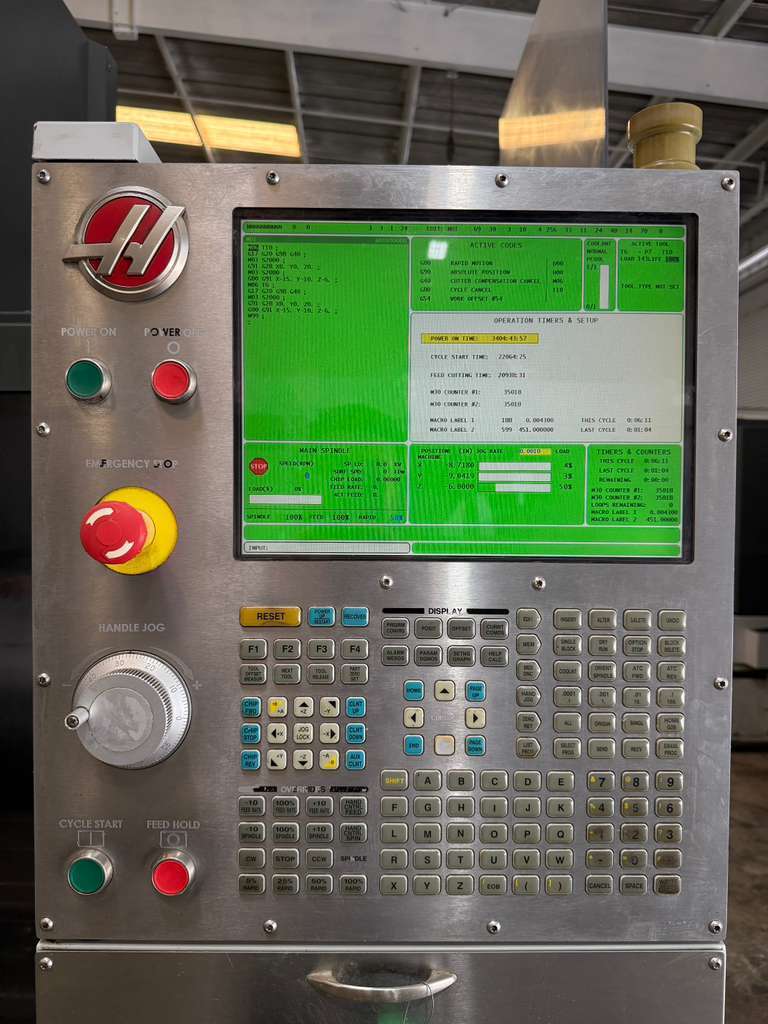

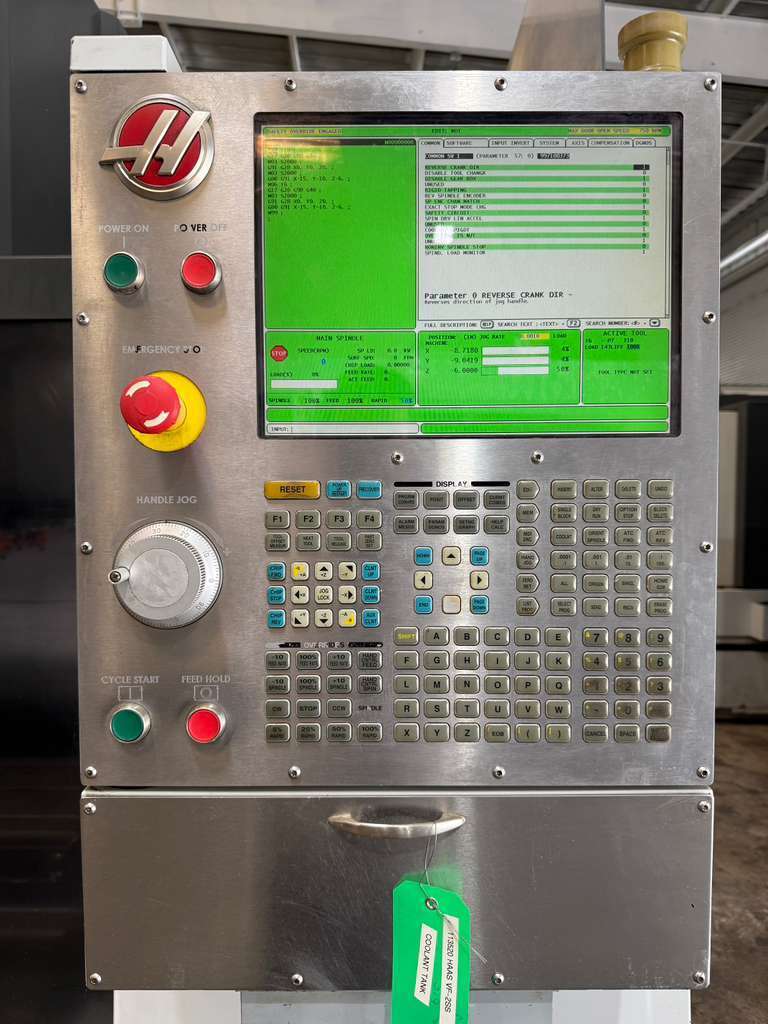

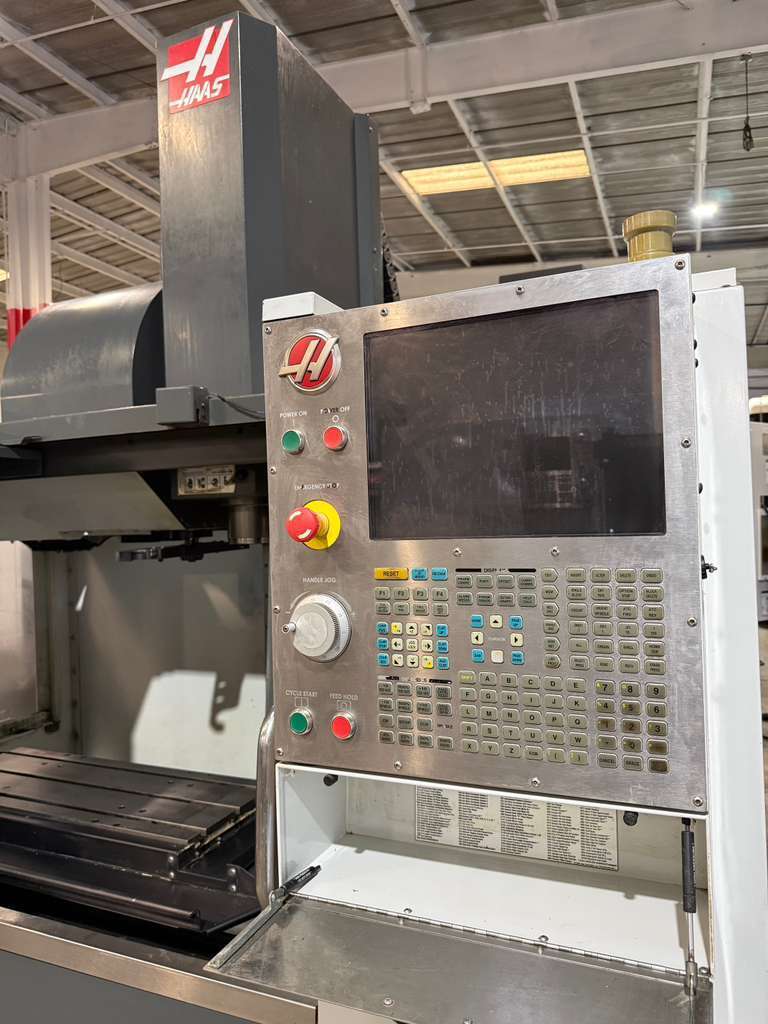

- Haas CNC Control

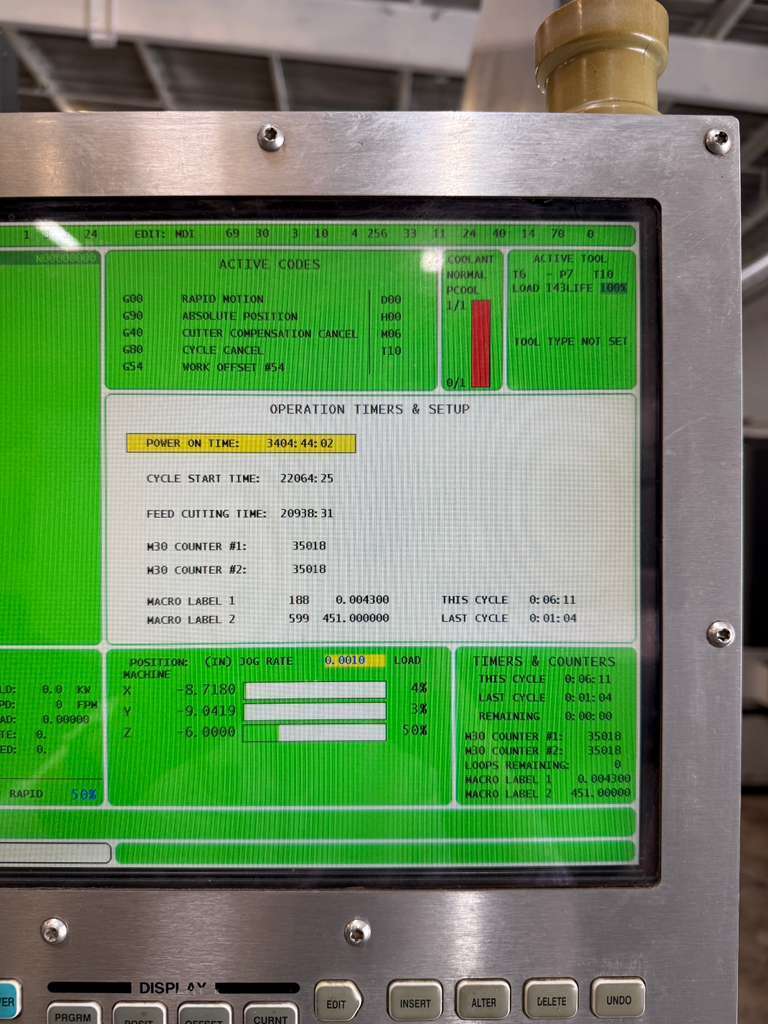

- 20,938 Hours Cutting Time

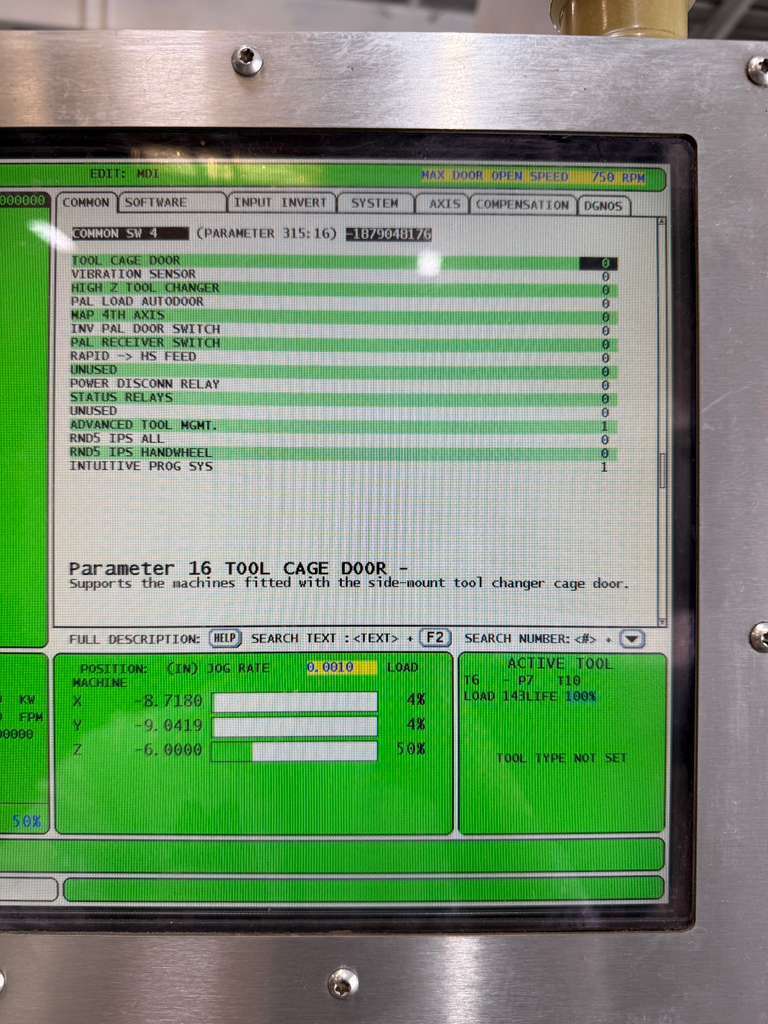

- Advance Tool Management
- Rotation and Scaling
- Macros
- Quick Code
- 1400 IPM Fast Rapid

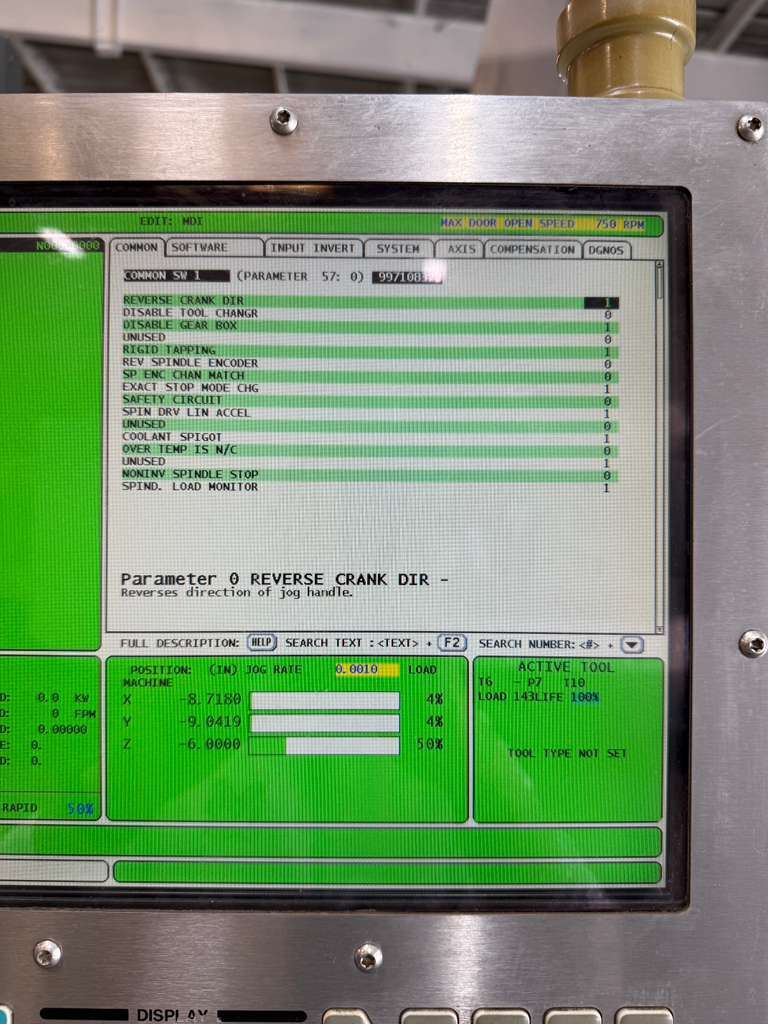

- Rigid Tapping
- Spindle Orientation
- Floppy Enabled
- DNC Enabled
- Extended Memory Enabled

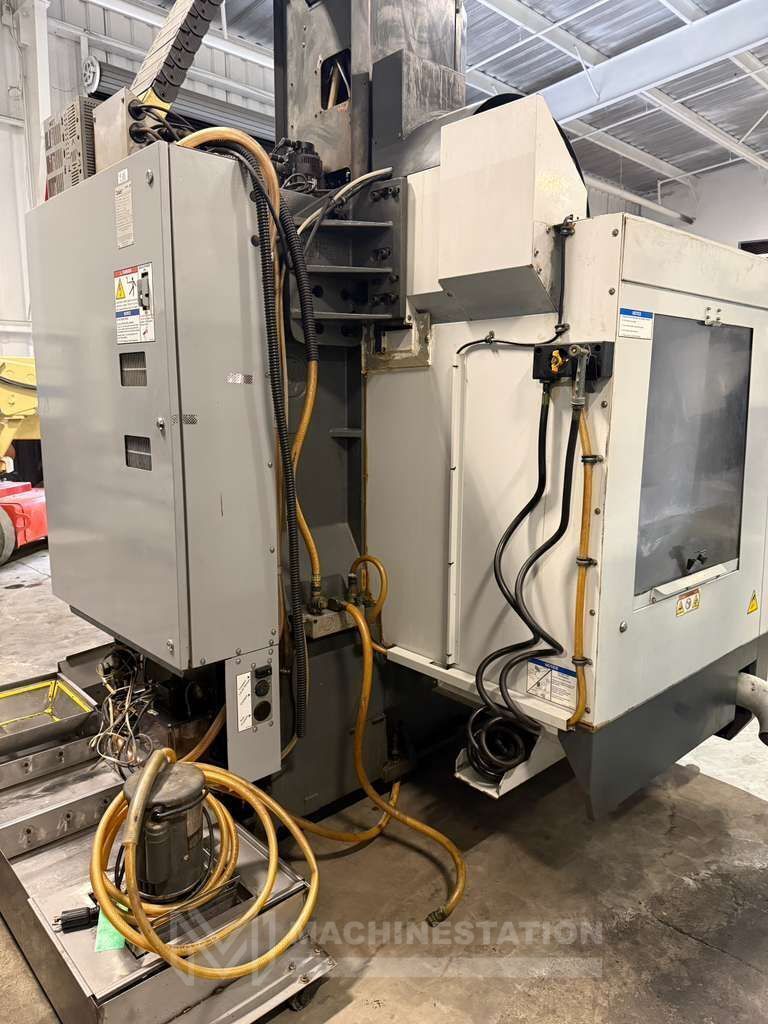

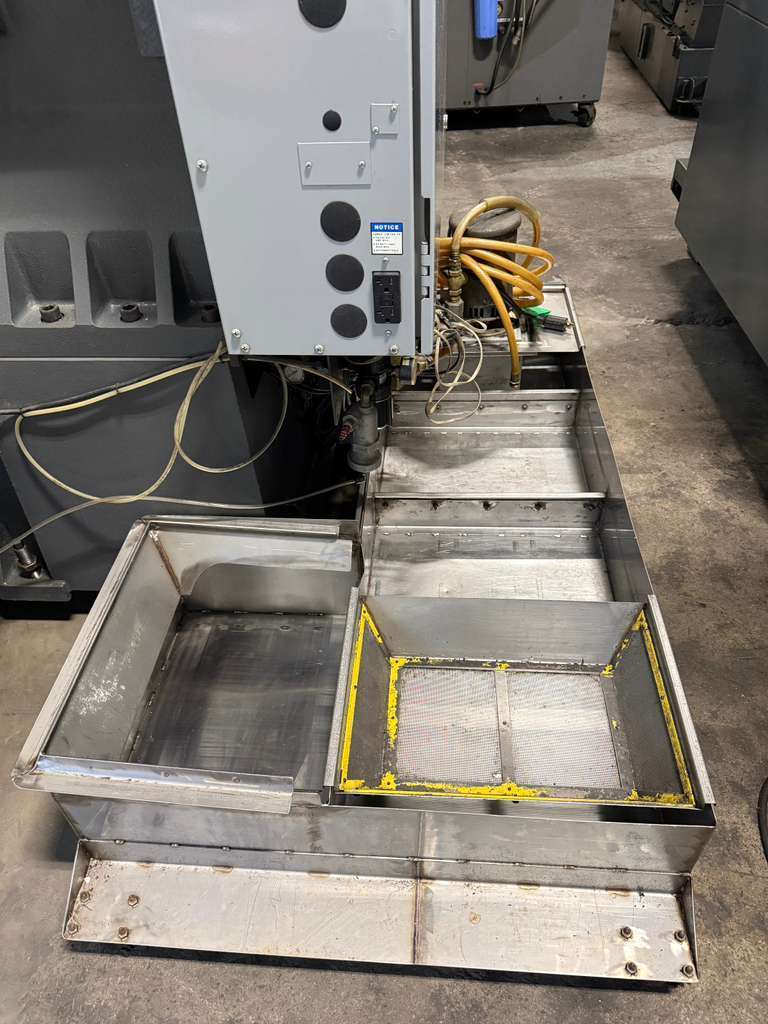

- Coolant System
-

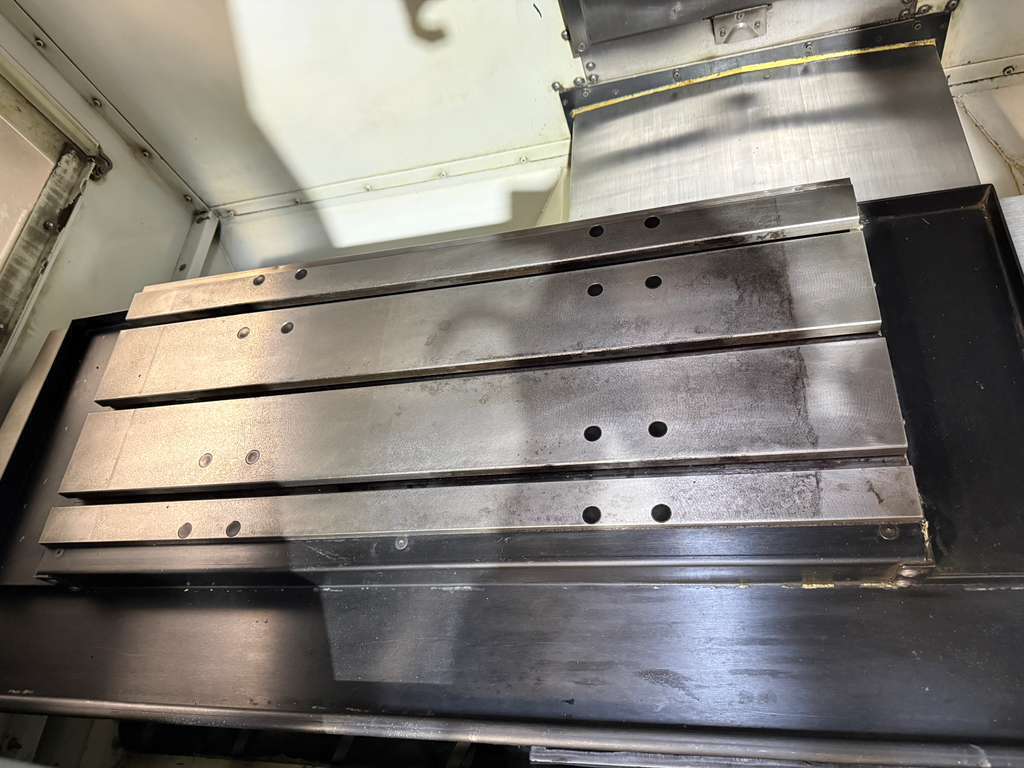

Table:
- Length: 36.0″
- Width: 14.0″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
-
Travel:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 883 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″
-
Automatic Tool Changer:
- Capacity: 24 Station
- Max Tool Weight: 12 lbs
- Max Tool Diameter (full): 2.5″
- Max Tool Diameter (adjacent empty): 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.8 Seconds
-

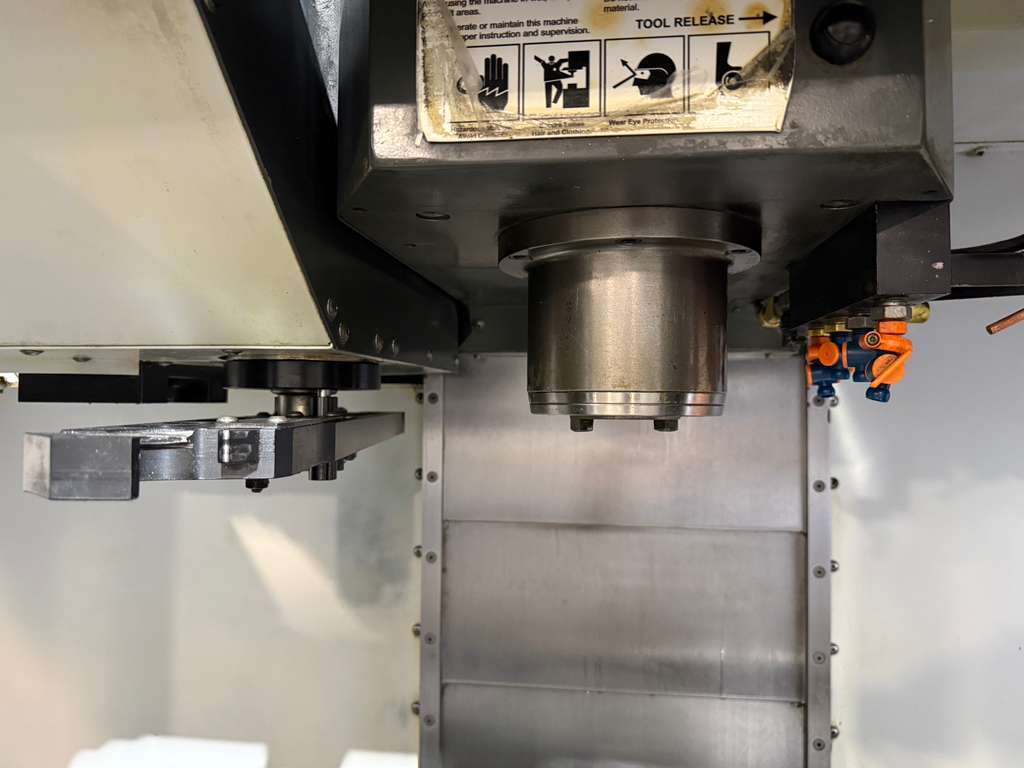

Spindle:
- Taper Size: CAT-40
- Speed Range: 12000 RPM
- Spindle Power: 40 HP
- Vector Drive Max Torque: 90 ft-lb @ 2000 RPM
-
General:
- Air Required: 100 psi, 4 scfm

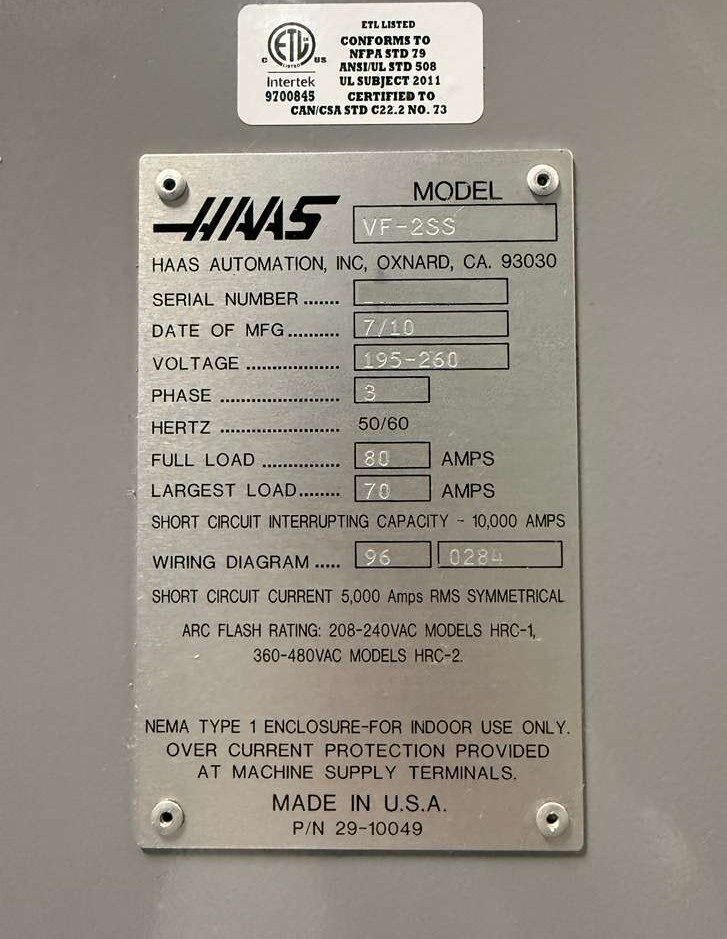

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 101″ x 99″ x 101″ High
- Weight: 8380 lbs
