*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

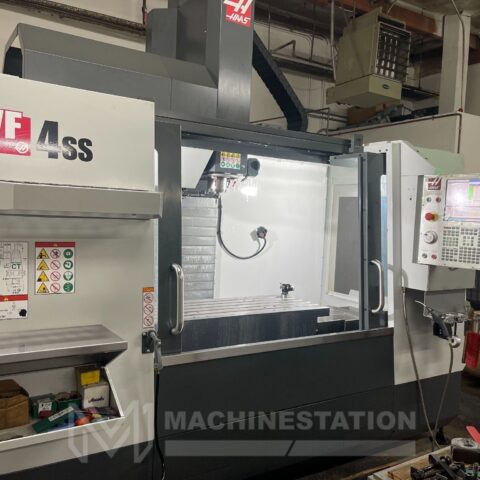

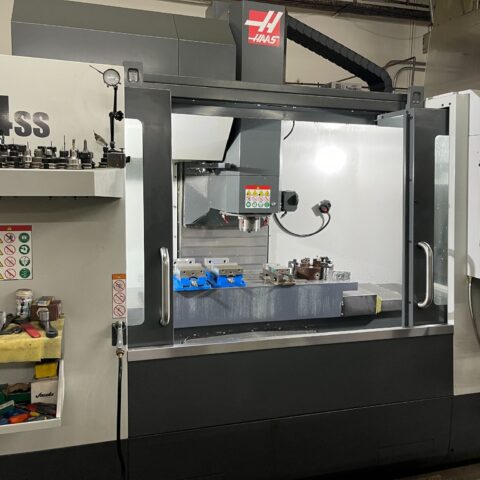

| Make: | HAAS |
| Model: | VF4SS |
| Year: | 2021 |
| Features: |
|---|

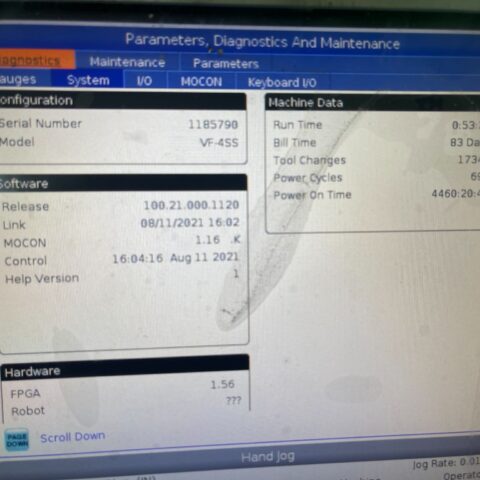

| Haas CNC Control |
| 12000 RPM Inline Direct Drive Spindle |
| WIPS-R Renishaw Probing System Ready |
| Probe Riser Block (Upgraded $495 value Included) |
| 24 Station Super Speed Side Mount Tool changer |
| Through Spindle Coolant Ready (Upgraded $4195 value Included) |
| Programmable Coolant Nozzle (Upgraded $2095 value Included) |
| 1400 IPM Fast Rapid |
| High Speed Machining (Upgraded $3495 value Included) |
| Chip Strainer |
| Chip Tray Filter Kit |
| Low-Volt Transformer |
| Rigid Tapping |
| Telescopic way covers |
| Chip Auger (Upgraded $3695 value Included) |
| Travels: |
|---|
| X-Axis: 50.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates Axis: 1400 IPM |
| Cutting Feed Rates: 833 IPM |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

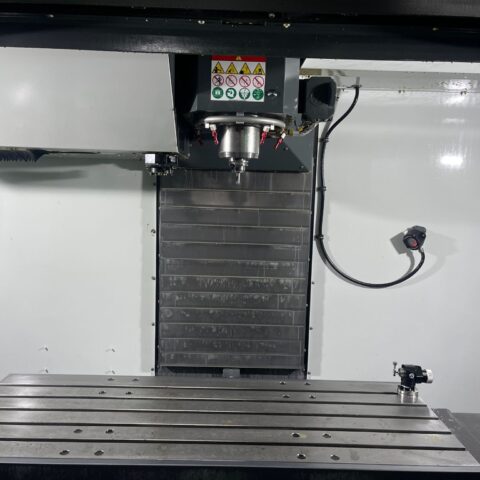

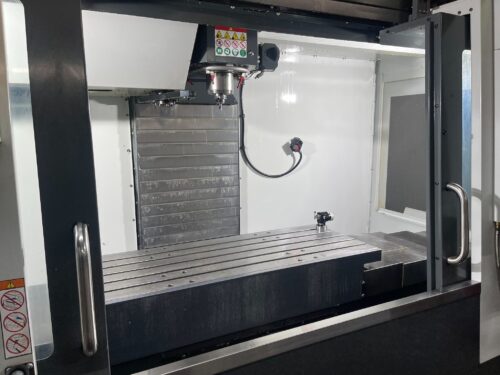

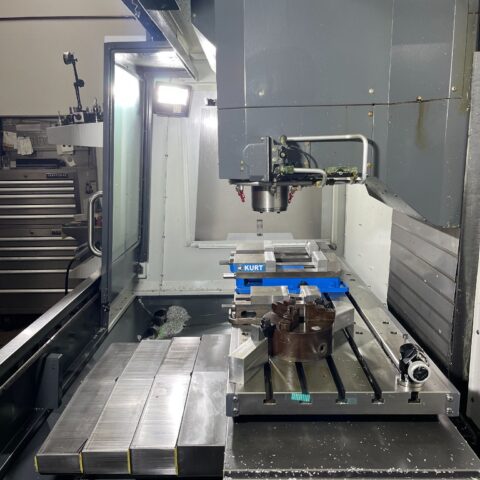

| Table |
|---|
| Length: 52.0″ |
| Width: 19.5″ |
| Max Weight on Table: 1750 lbs |

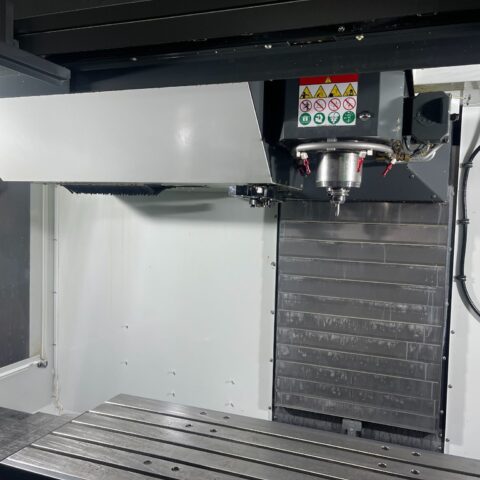

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13.0″ |
| Tool Changing Time : 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 131″ x 102 x 109” High |
| Weight: 13,500 lbs |
