Haas VF-5XT/40 CNC Vertical Machining Center
SKU
11576
Make/Model
Haas VF-5XT/40
Year
2017
Video
On Request
Out of stock
| SKU: | 11576 |
| Make/Model: | Haas VF-5XT/40 |
| Year: | 2017 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-5XT/40 |
| Year: | 2017 |
| Machine Type: | CNC Vertical Machining Center |

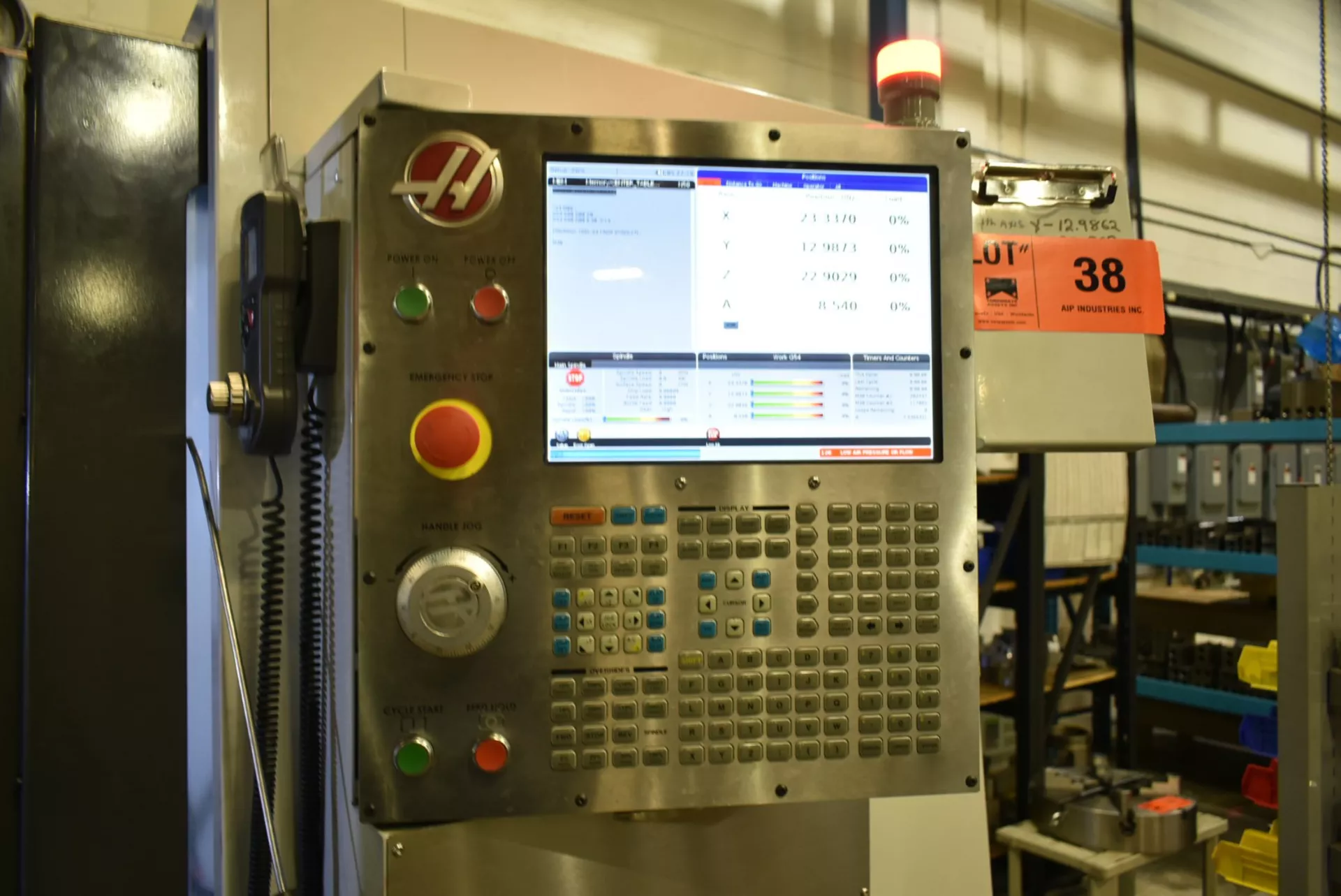

| Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| 4th Axis Ready |

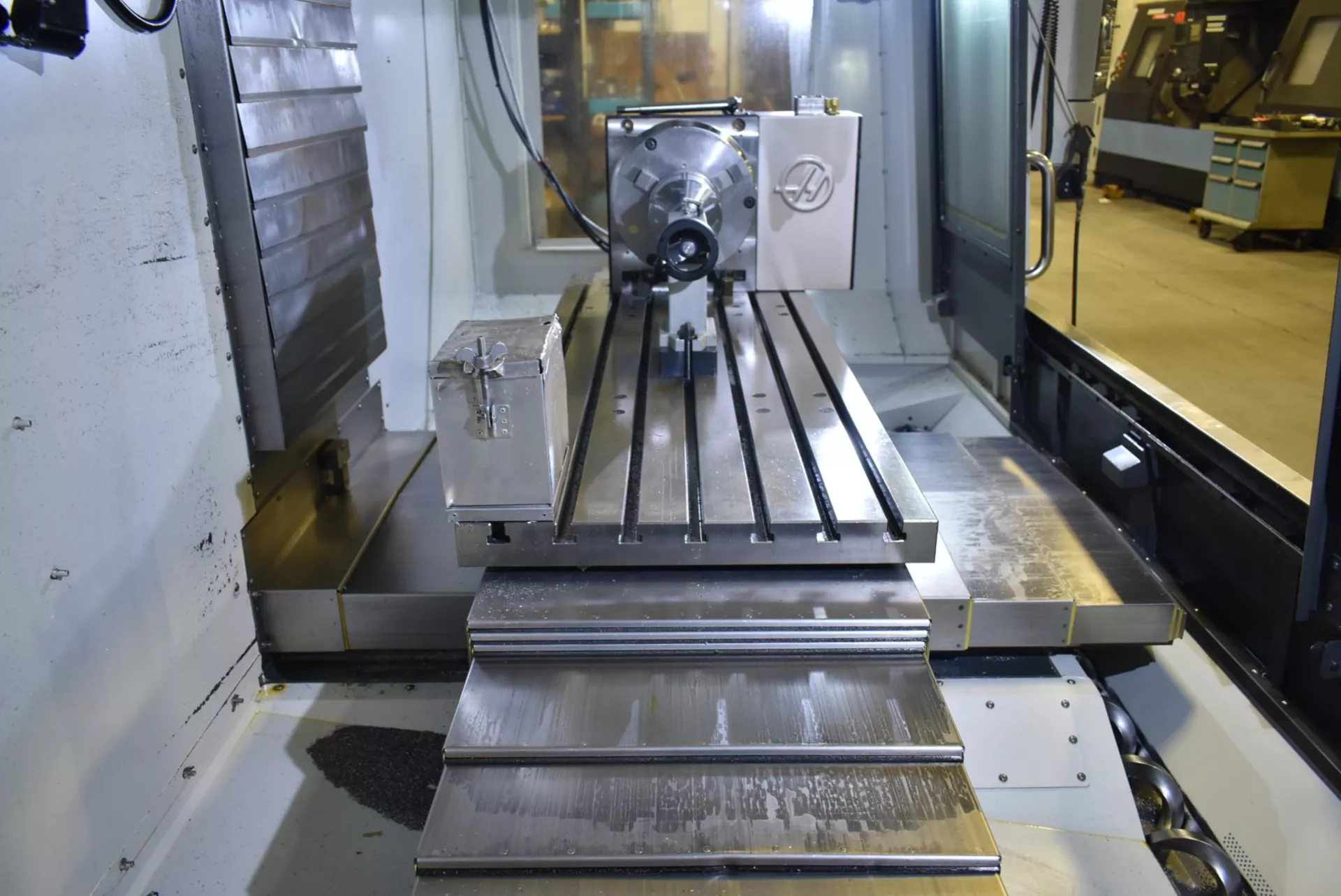

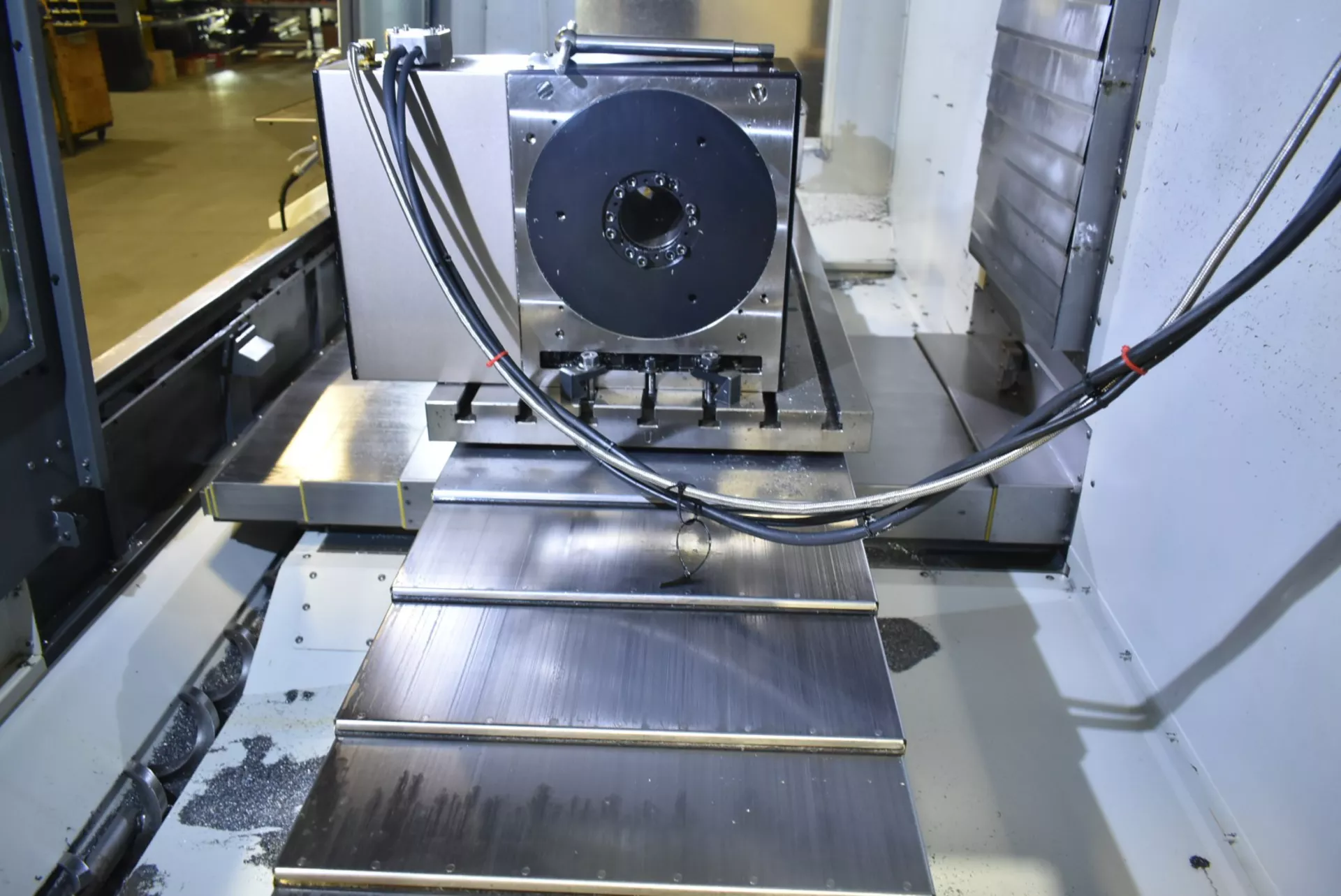

| Haas Rotary Table (Shown) |
| Renishaw Wireless Probing System |
| 24-Position Automatic Tool Changer |
| Programmable Coolant Nozzle |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Remote Electronic Handwheel |
| Table: |
|---|
| Table Size: 62″ x 23″ |
| T-Slots: 5 |
| Maximum Table Load: 4,000 Lbs |
| Travels: |
|---|
| X-Axis Travel: 60″ |
| Y-Axis Travel: 26″ |
| Z-Axis Travel: 25″ |
| Spindle: |
|---|
| Spindle Motor: 30 HP |
| Spindle Speed: 8,100 RPM |
| Spindle Taper: CAT 40 |
| Spindle Nose to Table: 4″ – 29″ |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 24 Tools |
| Tool Changer Type: Side Mount Automatic Tool Changer |
| Maximum Tool Diameter: 3.5″ |
| Maximum Tool Weight: 12 Lbs |
| Feedrates: |
|---|
| Rapid Traverse Rate (X/Y/Z): 1,000 IPM |
| Cutting Feed Rate: 650 IPM |
| General: |
|---|
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| Overall Dimensions: Approx. 165″ x 125″ x 125″ |
| Machine Weight: Approx. 15,500 Lbs |
| Equipped With: |
|---|
| Haas CNC Control |
| 4th Axis Ready |
| Haas Rotary Table (Shown) |
| Renishaw Wireless Probing System |
| 24-Position Automatic Tool Changer |
| Programmable Coolant Nozzle |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Remote Electronic Handwheel |
| Table: |
|---|
| Table Size: 1,575 mm x 584 mm |
| T-Slots: 5 |
| Maximum Table Load: 4,000 Lbs |
| Travels: |
|---|
| X-Axis Travel: 1,524 mm |
| Y-Axis Travel: 660 mm |
| Z-Axis Travel: 635 mm |
| Spindle: |
|---|
| Spindle Motor: 30 HP |
| Spindle Speed: 8,100 RPM |
| Spindle Taper: CAT 40 |
| Spindle Nose to Table: 102 mm - 737 mm |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 24 Tools |
| Tool Changer Type: Side Mount Automatic Tool Changer |
| Maximum Tool Diameter: 89 mm |
| Maximum Tool Weight: 12 Lbs |
| Feedrates: |
|---|
| Rapid Traverse Rate (X/Y/Z): 1,000 IPM |
| Cutting Feed Rate: 650 IPM |
| General: |
|---|
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| Overall Dimensions: Approx. 4,191 mm x 3,175 mm x 3,175 mm |
| Machine Weight: Approx. 15,500 Lbs |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | Haas |
| Model | VF-5XT/40 |
