All specifications are approximations and are subject to verification.

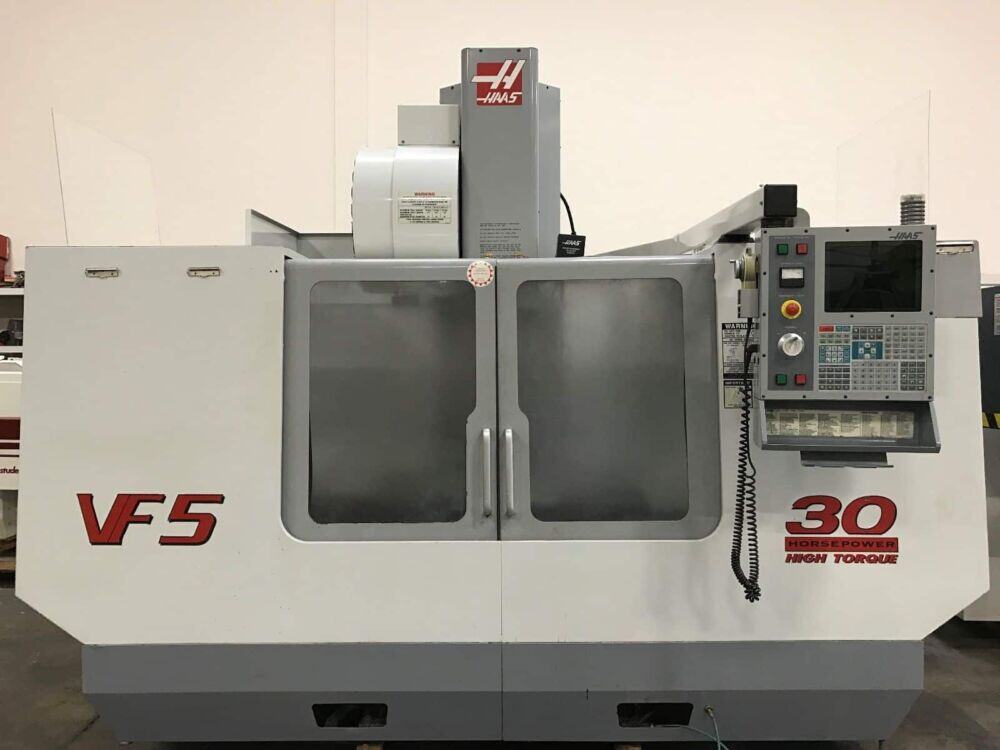

This One Owner Haas Vf5 has 10000rpm, thru coolant spindle, 24 tool side mount tool changer, 4th Axis Ready, 1MB Memory and New X Axis Ballscrew ($4000). On our Floor now, fully powered / tested & is in Great working condition.
-
HAAS VF5 VERTICAL MACHINING CENTER Features:
- 30HP High Torque Spindle Motor
- Through-Spindle Coolant system
- 4th Axis Ready ( drives and wiring installed )
- 1 MB Program Memory
- Remote Jog Handle
- Rigid Tapping
- High Speed Machining
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis
- 24 automatic Side Mount tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- High Intensity Lighting
- 95-gallon flood Coolant system
- New X Axis BallScrew Installed in Nov-16 for $4000 Cost.
-
HAAS VF5 Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 26″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 IPM
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
-
Table:
- Length: 52″
- Width: 23″
- Number of Std T-Slots: 7
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-
Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 10000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 3.0 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 136″ x 100″ x 105″ High
- Weight: 16000 lbs
