All specifications are approximations and are subject to verification.
-
Features:

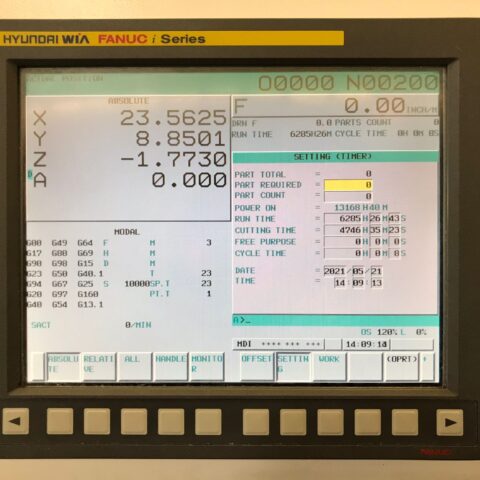

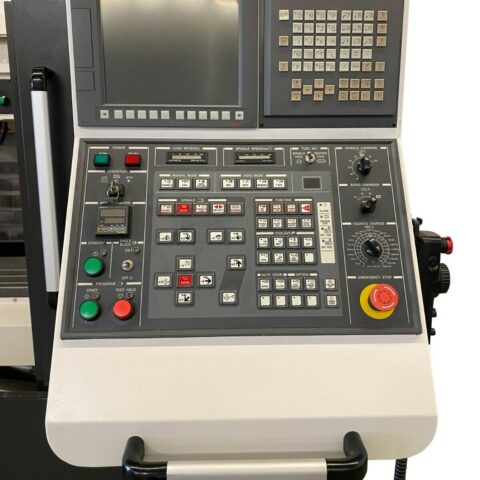

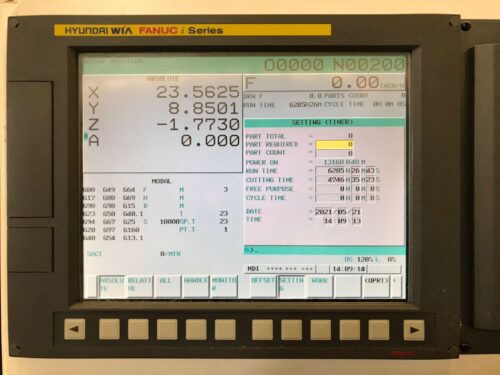

- Fanuc i series CNC Control
- Thru Spindle Coolant
- Wired for 4th Axis
- 30HP High Torque 10,000 RPM Spindle
- Roller guide Ways for High Speed Cutting
- PCMCIA Card Slot
- USB Interface
- MPG Control
- 24 Automatic tool changer
- Rigid Tapping
- Spindle Orientation
- Spindle Chiller

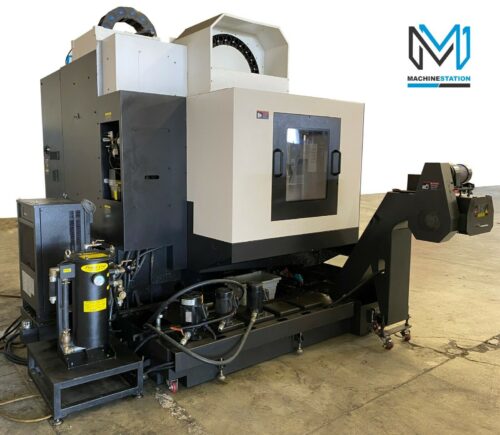

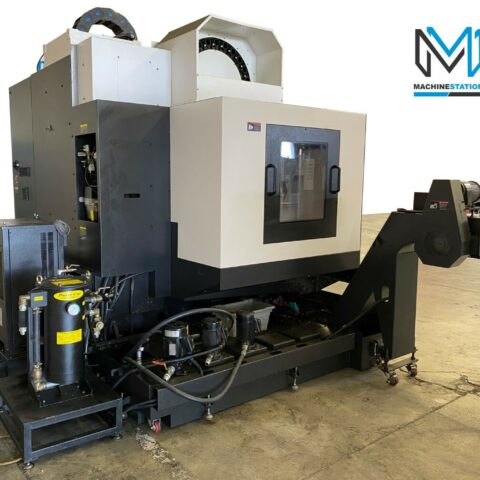

- Chip Conveyor
- Coolant Filteration
- High Pressure Coolant
- Fanuc Manuals
-
Specifications:
- Travels:
- X-Axis: 42.1″
- Y-Axis: 20.4″
- Z-Axis: 25.1″
- Rapid Traverse Rates: 1417 Inch Per Minute
- Cutting Feed Rates: 1181 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″
-

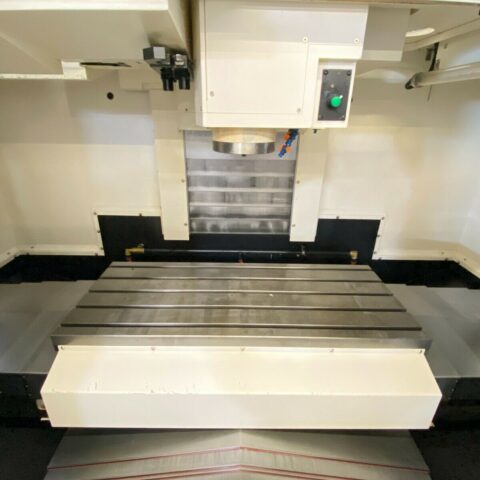

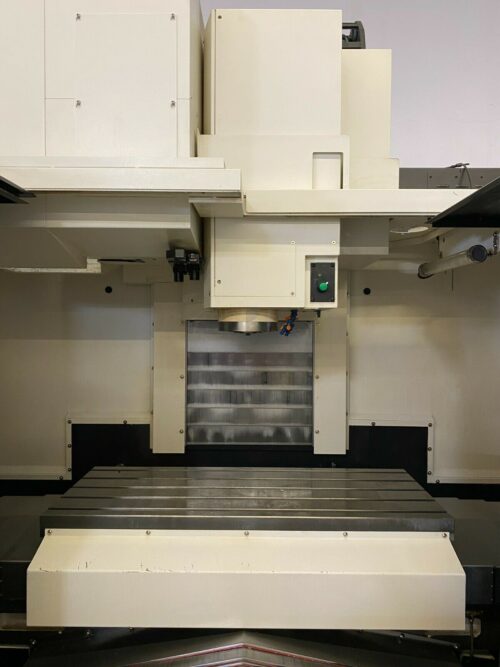

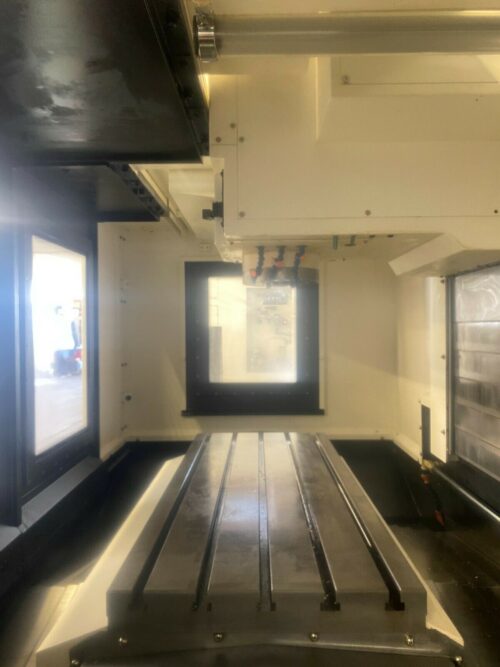

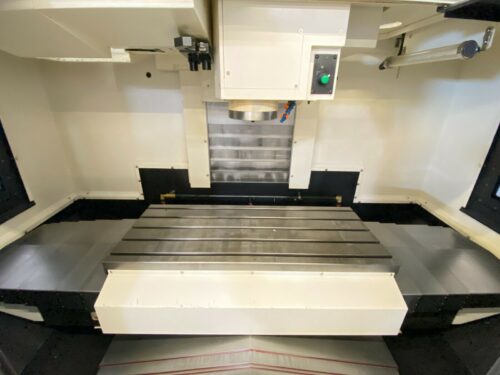

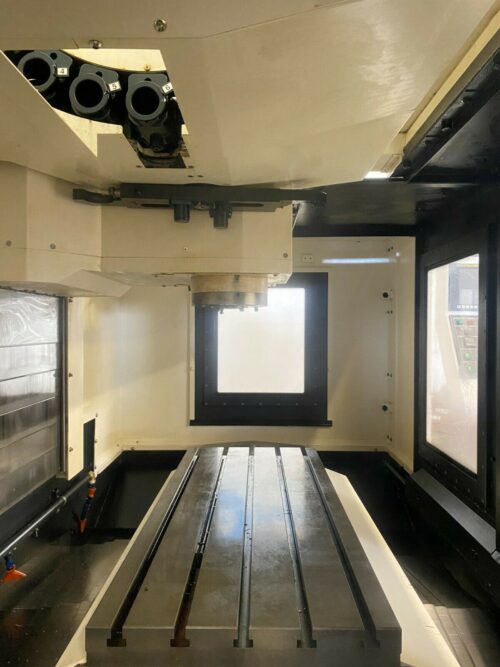

Table:
- Length: 47.2″
- Width: 19.7″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
-

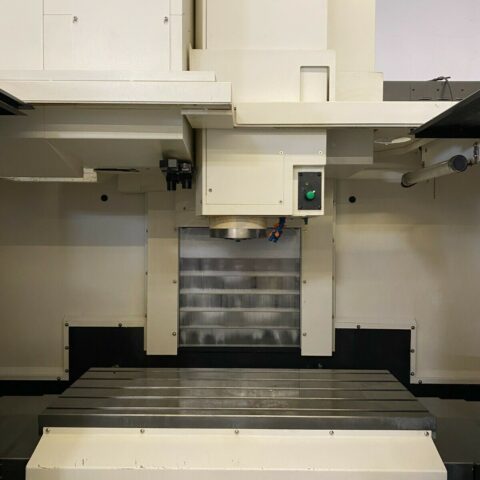

Spindle:
- Taper Size: CAT-40
- Speed Range: 10,000 RPM
- Spindle Power: 30 HP
-
Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Dia: 5.9″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.5 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

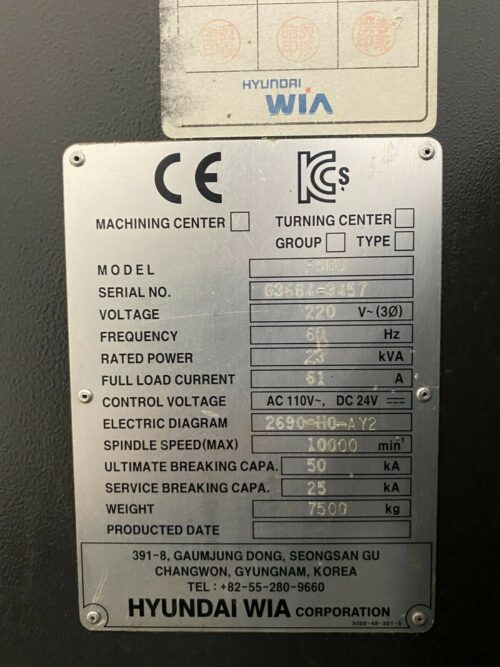

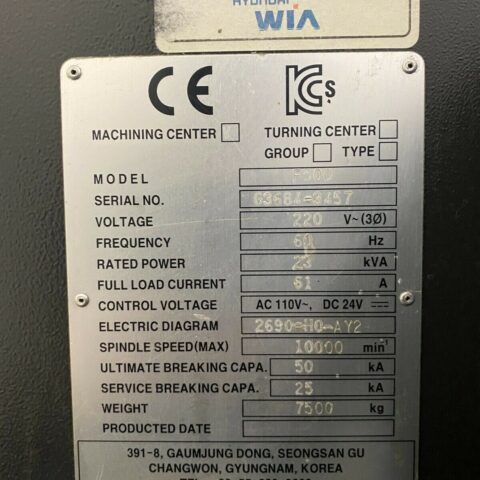

- Power: 220v / 25 kva / 3-Phase
- Overall Dimensions: 158″ x 100″ x 118″ High
- Weight: 17000 lbs
