*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai WIA |
| Model: | F400 |
| Year: | 2014 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc i-Series |
| Features: |
|---|
| Fanuc i-Series CNC Control |
| 12,000 RPM Spindle |
| CAT-40 Spindle Taper |
| 24-Station Side-Mount Automatic Tool Changer |
| 290 PSI High-Pressure Through-Spindle Coolant |
| Coolant Box Ways |
| Rigid Tapping |
| Spindle Chiller |
| Remote Jog Handle |
| Air Gun |
| 20 HP Spindle Motor |
| Coolant Tank and Pump |
| Chip Auger |
| Table and Capacity: |
|---|
| Table Size: 39.37″ × 18.11″ |
| Maximum Table Load: 1,322 lbs |
| Distance from Spindle Nose to Table: 5.1″–25.6″ |
| Distance from Spindle Center to Column: 18.7″ |
| Travels: |
|---|
| X-Axis Travel: 31.4″ |
| Y-Axis Travel: 18.11″ |
| Z-Axis Travel: 20.47″ |
| X/Y/Z-Axis Rapid Traverse: 1,260 IPM |
| Cutting Feed Rate: 394 IPM |
| Spindle: |
|---|
| Spindle Type: Vertical |
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Motor Power: 20 HP |
| Through-Spindle Coolant: Yes |
| Through-Spindle Coolant Pressure: 290 PSI |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Side-Mount ATC |
| Tool Changer Capacity: 24 Stations |
| Tool Taper: CAT-40 |
| Maximum Tool Diameter: 3.5″ |
| Maximum Tool Diameter: 5.9″ |
| Maximum Tool Length: 11.8″ |
| Maximum Tool Weight: 17.6 lbs |
| General: |
|---|

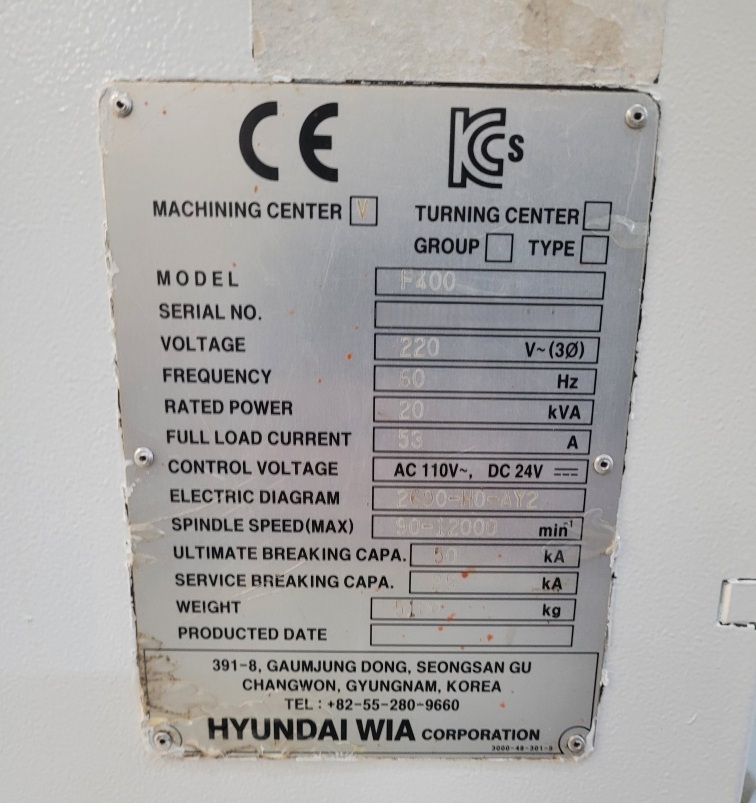

| Power Source: 220v / 3-Phase / 50 Hz |
| Machine Weight (Approx.): 11,243 lbs |
| Machine Dimensions (Approx.): 96.5″ L × 82.7″ W × 111.5″ H |
