*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2022 |

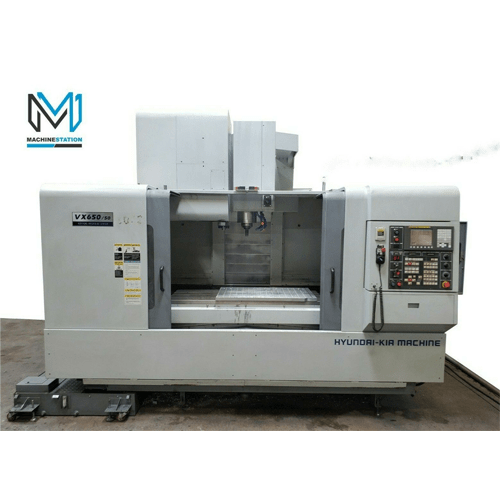

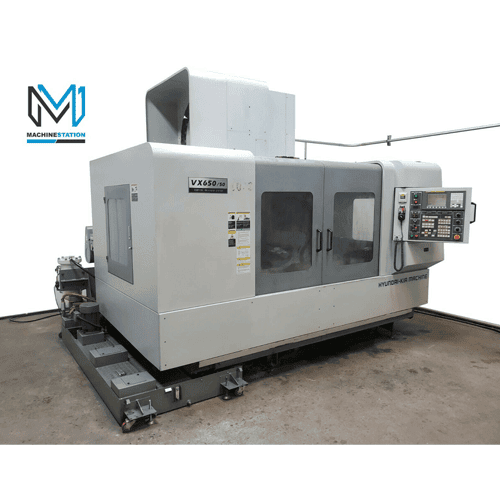

| Make: | Hyundai Wia |
| Model: | VX-650/50 |

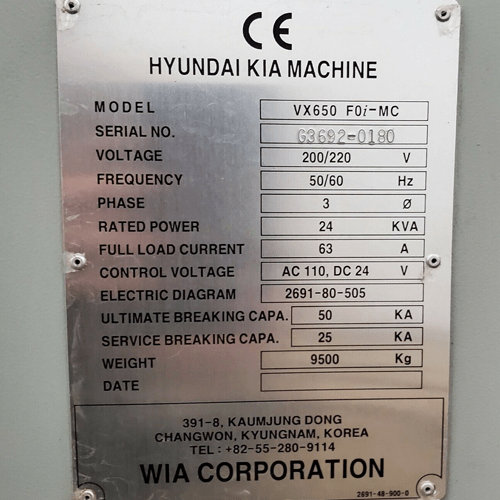

| Serial: | AV5E32170180 |
| Year: | 03/2007 |
| Condition: | Very Good |

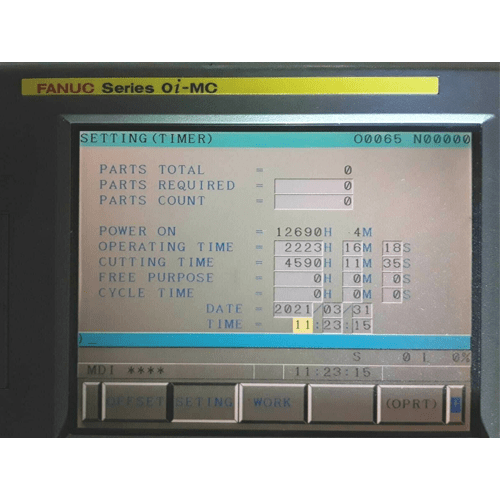

| Cutting Hours: | 4590 |
| Features: |
|---|

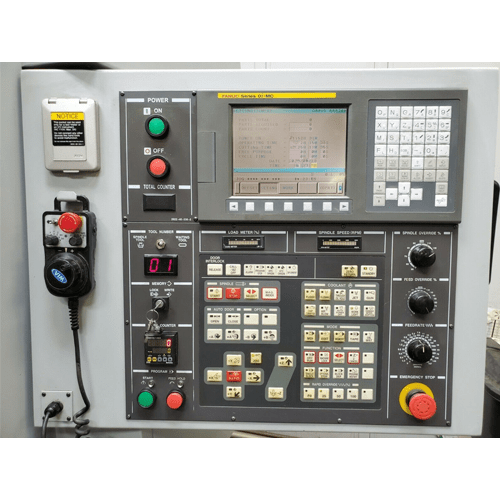

| Fanuc 0i-MB CNC Control |
| Thru Spindle Coolant |
| Wired for 4th Axis |
| 35 HP High Torque Spindle Motor |
| 50 Taper 6000 RPM Geared Head Spindle |
| Roller guide Ways for High Speed Cutting |
| PCMCIA Card Slot |
| MPG Control |
| 24 Automatic tool changer |
| Rigid Tapping |
| Spindle Orientation |
| Spindle Chiller |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 55.1″ |
| Y-Axis: 26.4″ |
| Z-Axis: 25.8″ |
| Rapid Traverse Rates: 1417 Inch Per Minute |
| Cutting Feed Rates: 1181 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |

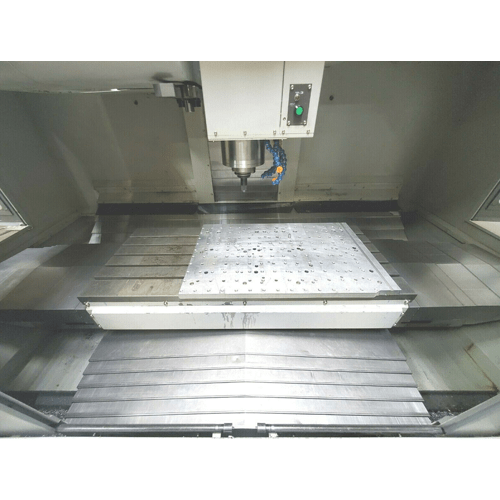

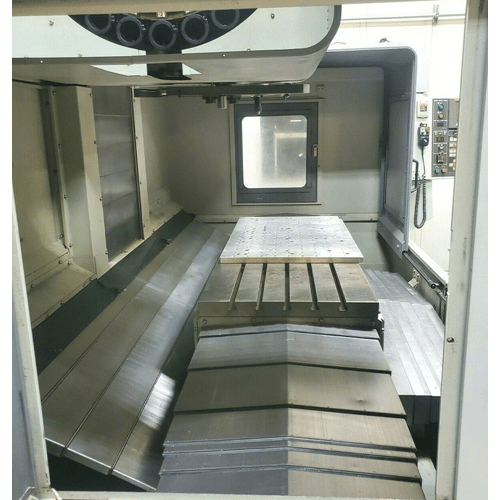

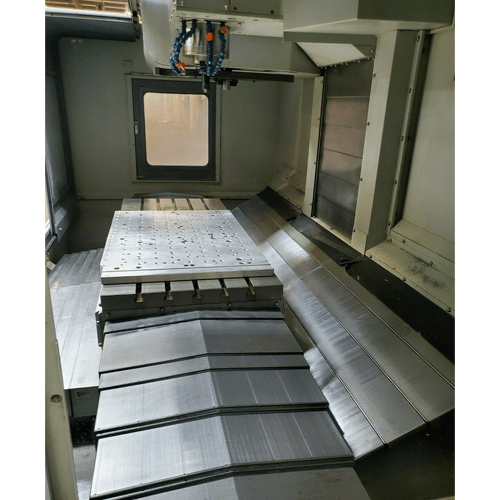

| Table: |
|---|
| Length: 63.2″ |
| Width: 25.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |

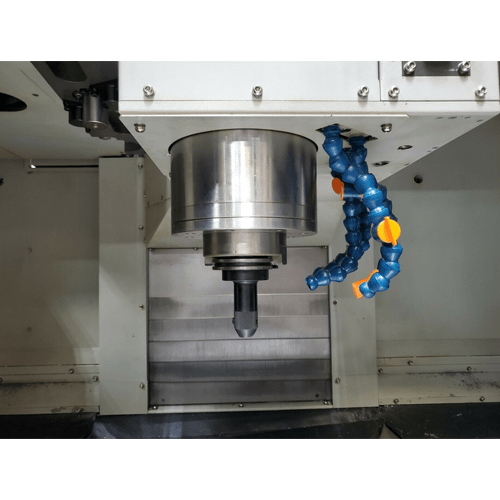

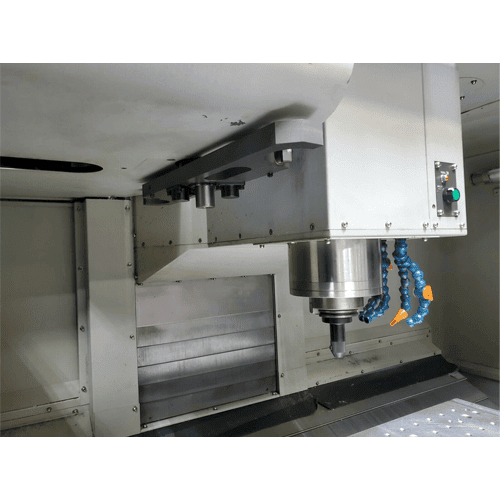

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6000 RPM |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 33 lbs |
| Max Tool Dia: 7.9″ |
| Max Tool Length: 13.8″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

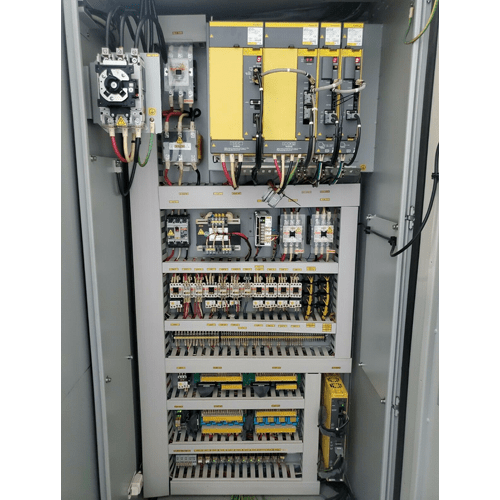

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 158″ x 100″ x 118″ High |
| Weight: 21000 lbs |
