Sold
Jinn Fa JCL-60TSM CNC Turning Center (2004) – Twin Spindle
Out of stock
| SKU: | 11411 |
| Make/Model: | Jinn Fa JCL-60TSM |
| Year: | 2004 |
| Control: | Fanuc 0i-TB |
| Condition: | Used |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Jinn Fa |
| Model No.: | JCL-60TSM |
| Year of Manufacture: | 2004 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

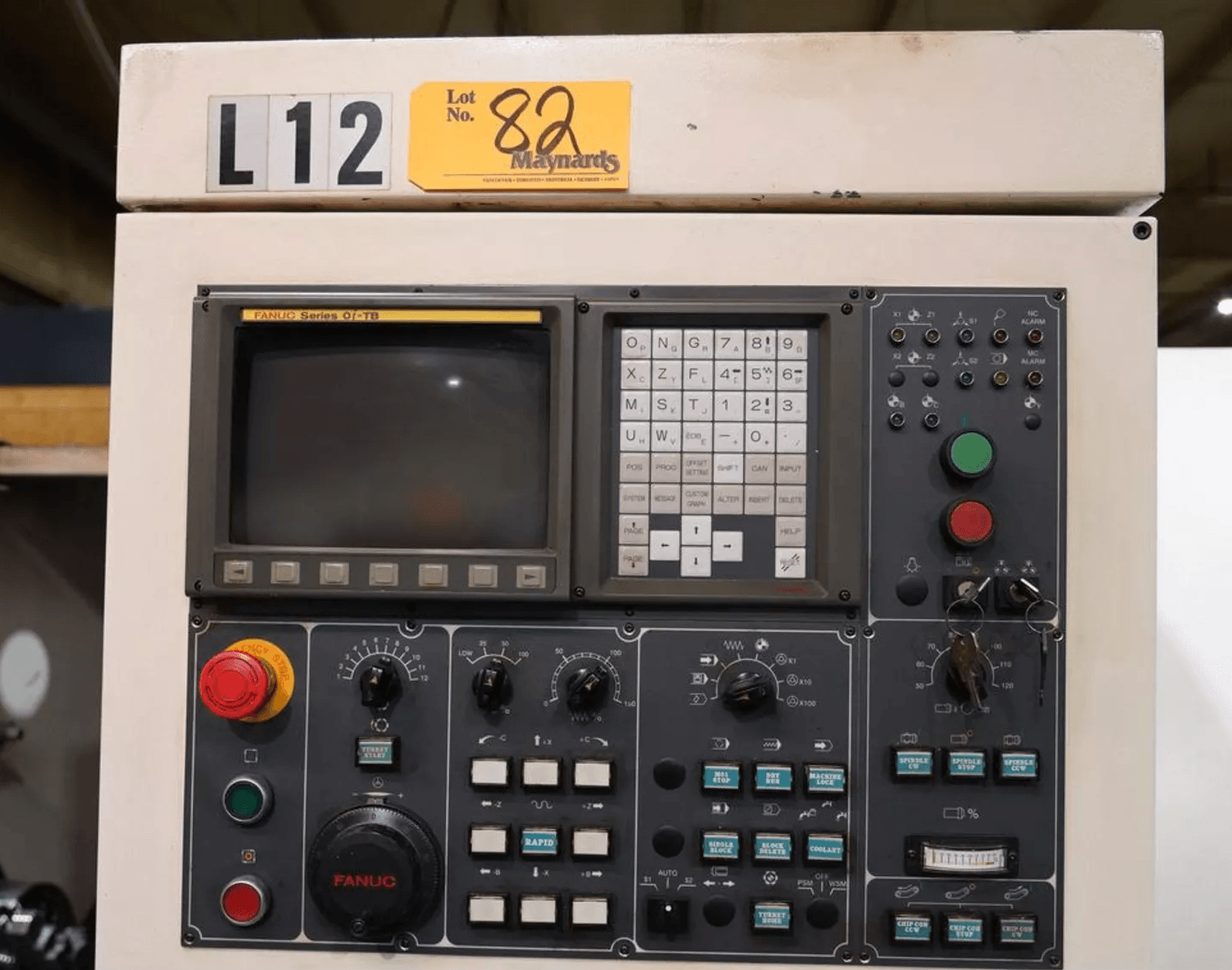

| Control: | Fanuc Series 0i-TB |
| Country of Origin: | Taiwan |
| Equipped With: |
|---|

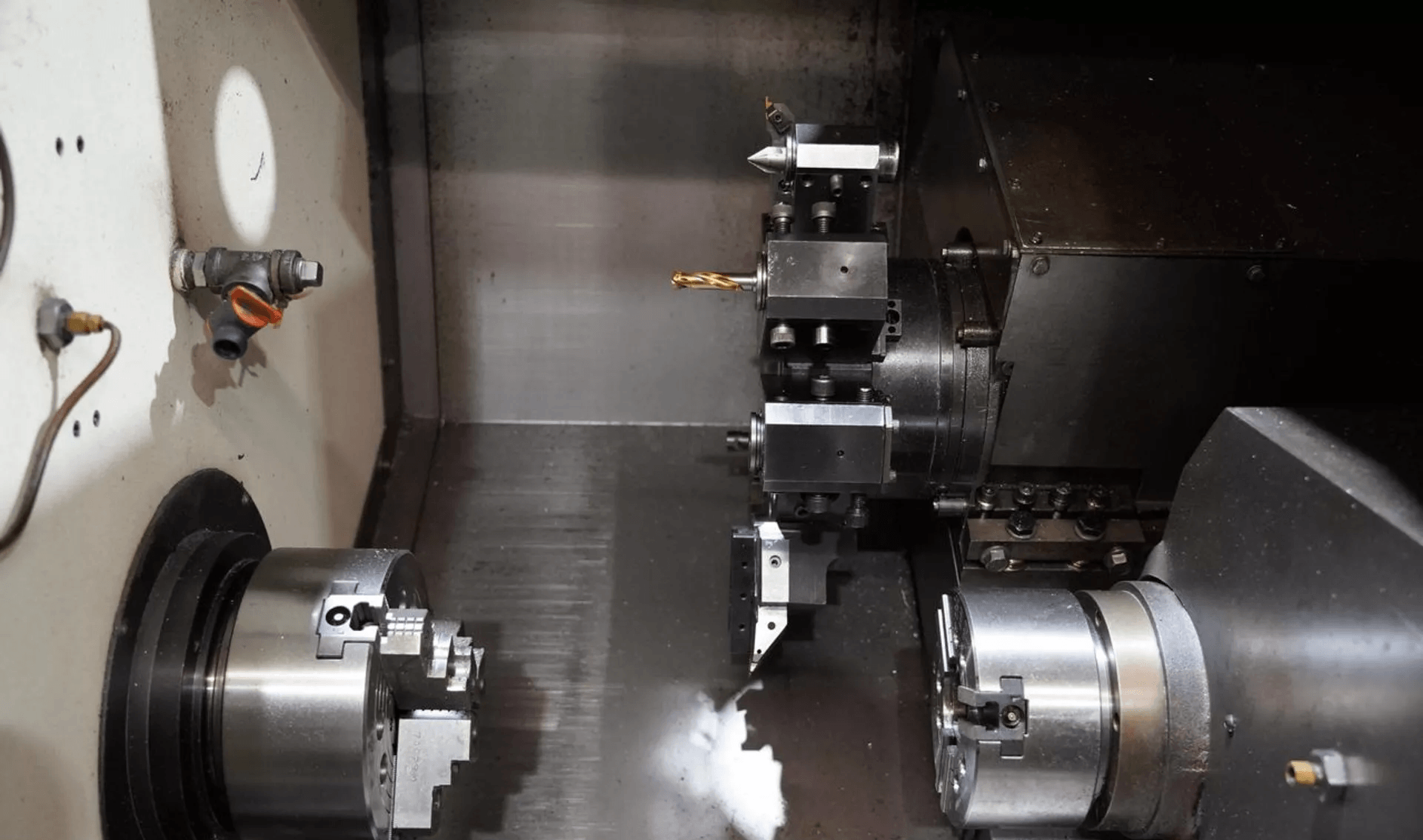

| Main & Sub Spindle Configuration |
| 12-Station Turret |
| Fanuc 0i-TB CNC Control |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Main Chuck Size: 8″ |
| Sub Spindle Chuck Size: 7″ |
| Max Swing: 23.228″ |
| Max Turning Diameter: 15.551″ |
| Bar Capacity: 2.36″ |
| Travels: |
|---|
| X-Axis Travel: 5.31″ |
| Z-Axis Travel: 11.02″ |
| Spindle: |
|---|
| Main Spindle Speed: 3,500 RPM |
| Spindle Motor: 15 HP |
| Tooling: |
|---|
| Turret Capacity: 12 Stations |
| Feed Rates: |
|---|
| Rapid Traverse (X): 625 IPM |
| Rapid Traverse (Z): 787 IPM |
| General: |
|---|
| Number of Axes: 3 |
| Power Source: 220V / 3 Phase / 50/60 Hz |
| Machine Dimensions (L x W x H): 100″ x 65″ x 70″ (Approx.) |
| Machine Weight: 8,000 lbs (Approx.) |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | JCL-60TSM |
