All specifications are approximations and are subject to verification.

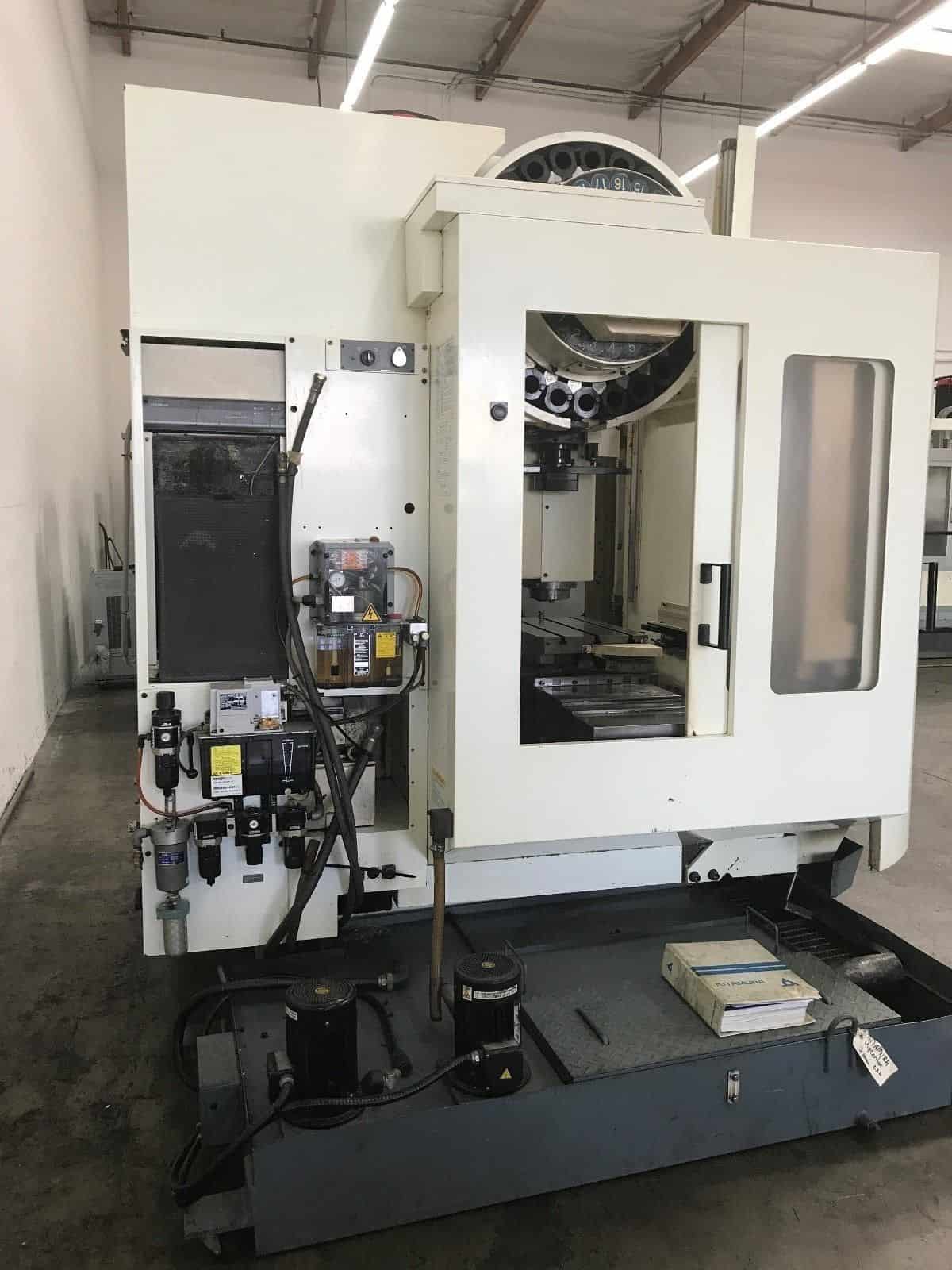

“This One Owner Machine has very low Cutting Hours, 15000rpm, Pallet Changer, 24 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
-

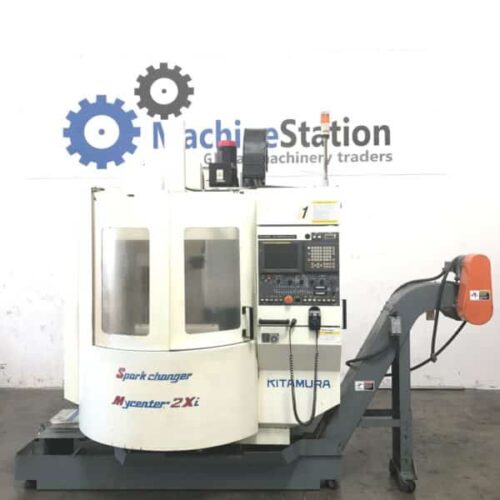

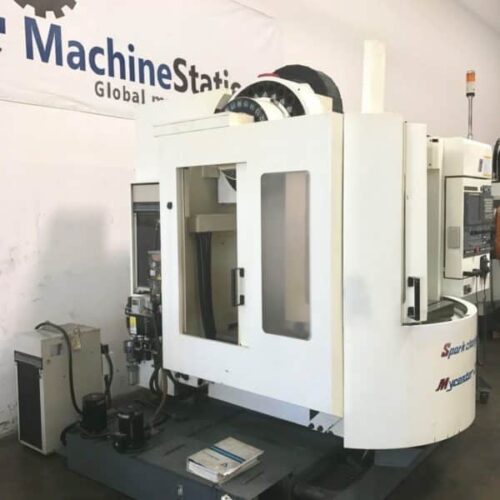

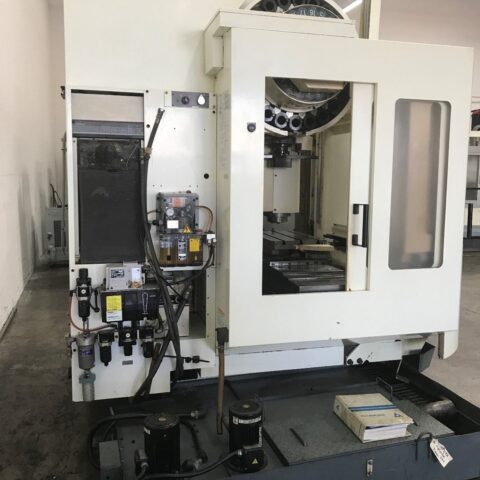

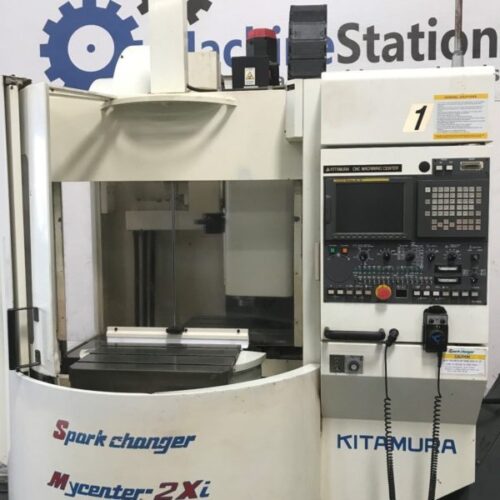

KITAMURA MYCENTER 2Xi SPARKCHANGER Features:

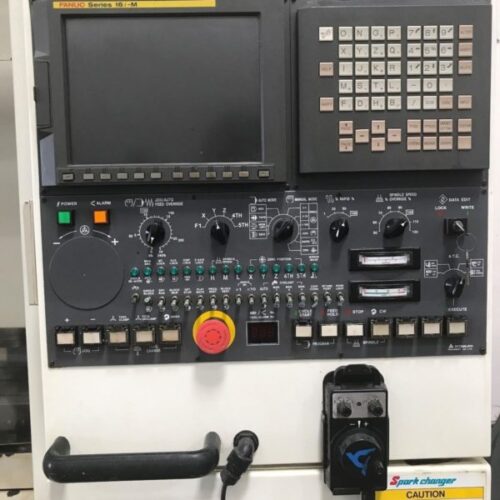

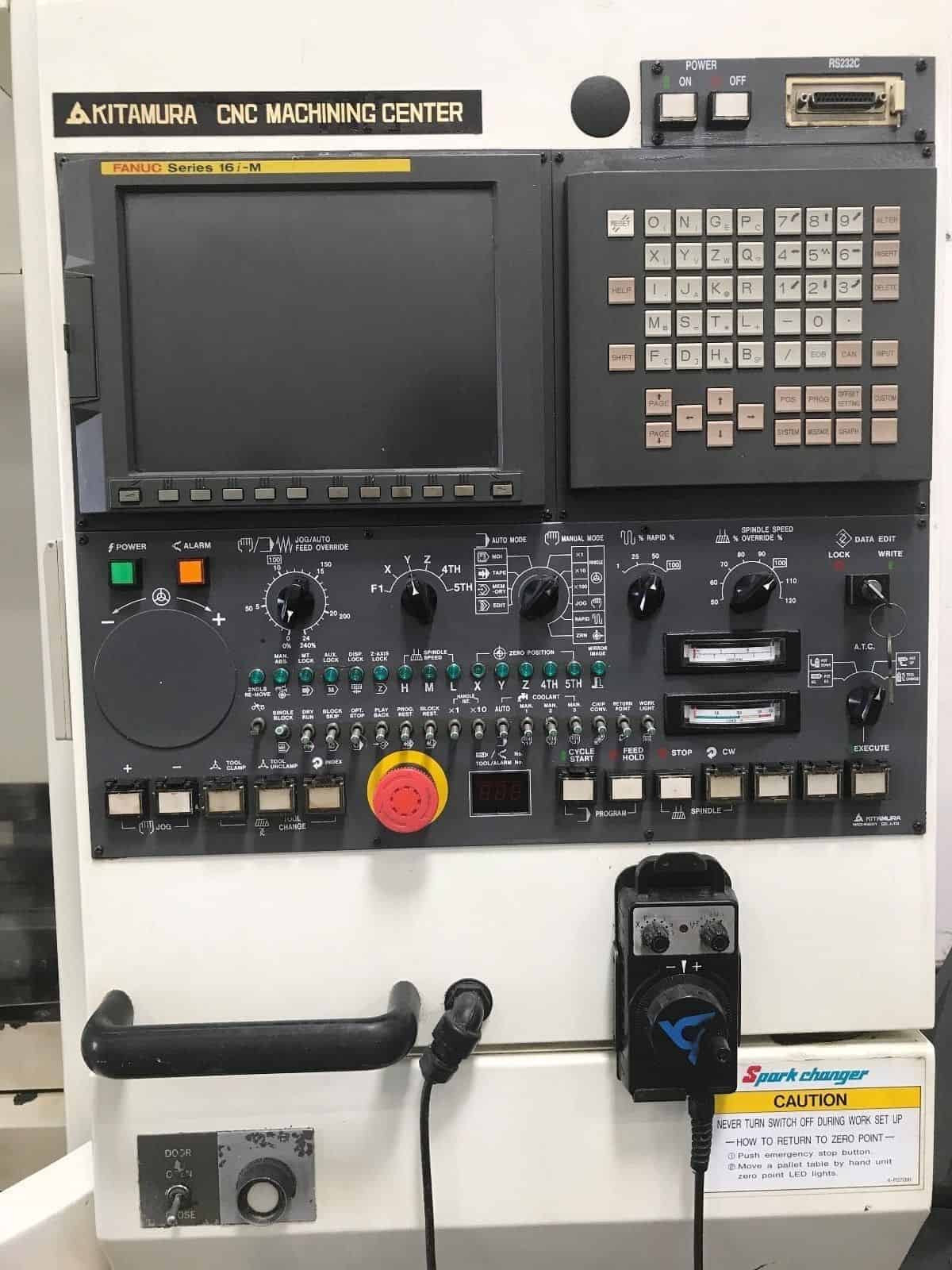

- Fanuc 16iM CNC Control
- 24 Tools Side Mount High Speed Tool Changer
- High precision 15,000 RPM Spindle

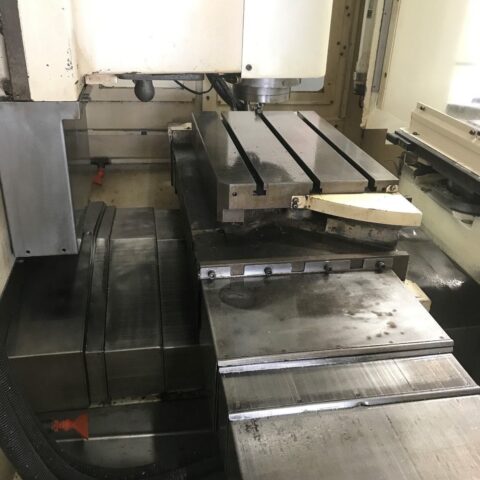

- 180° Rotary Type Pallet Changer
- Manual Pulse Generator (MPG)
- PCMCIA Card Slot
- 128 MB Memory
- Box Way Construction All Axis
- Powerful 15 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank

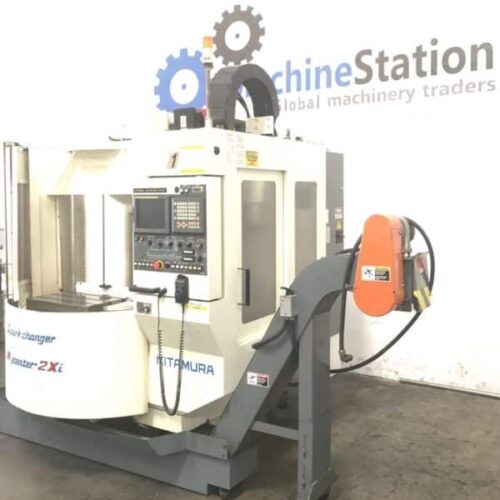

- Chip Conveyor
- Work light
- Original Books and Manuals
-
KITAMURA MYCENTER 2Xi SPARKCHANGER Specifications:
- Travels:
- X-Axis: 20.1″
- Y-Axis: 14″
- Z-Axis: 18.1″
- Spindle Nose to Table (Min.- Max.): 2.3″ – 20.6″
- Column to Table Center: 9.9″ – 23.9″
-

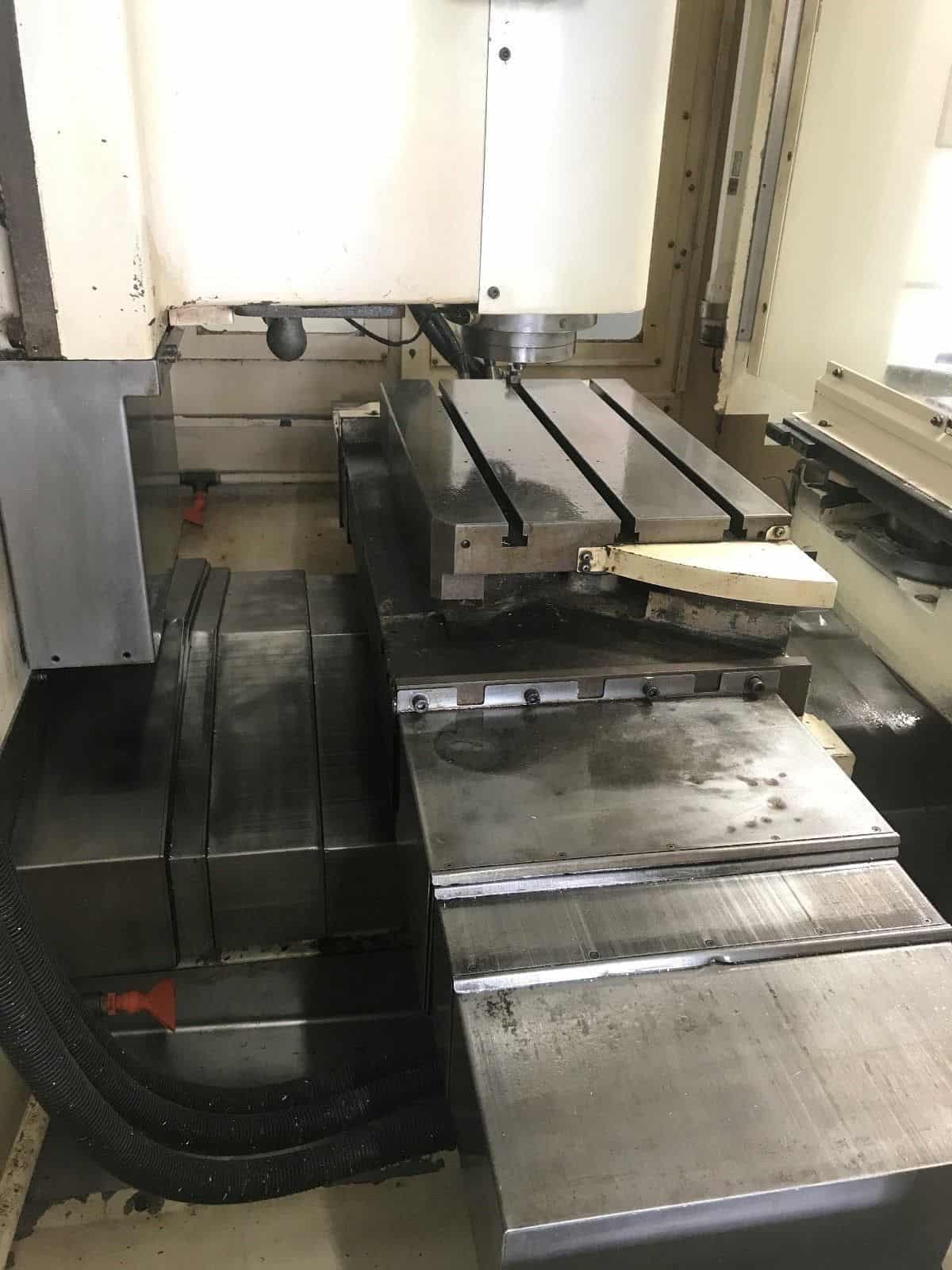

Table:
- Length: 22″
- Width: 14″
- Max Weight on Table: 220 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 20 – 15,000 RPM
- Spindle Power: 15 HP
-
Feed rates:
- Rapid X,Y & Z: 1969/1417 inch/P.M
- Cutting Feedrate: 1417″ inch/ P.M
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 3.1″
- Tool Change Time: 1.7 Second
-

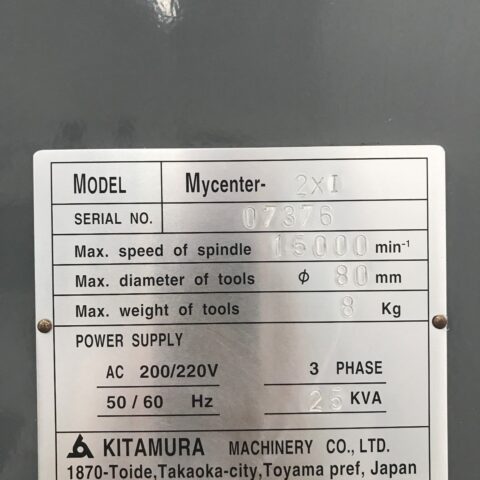

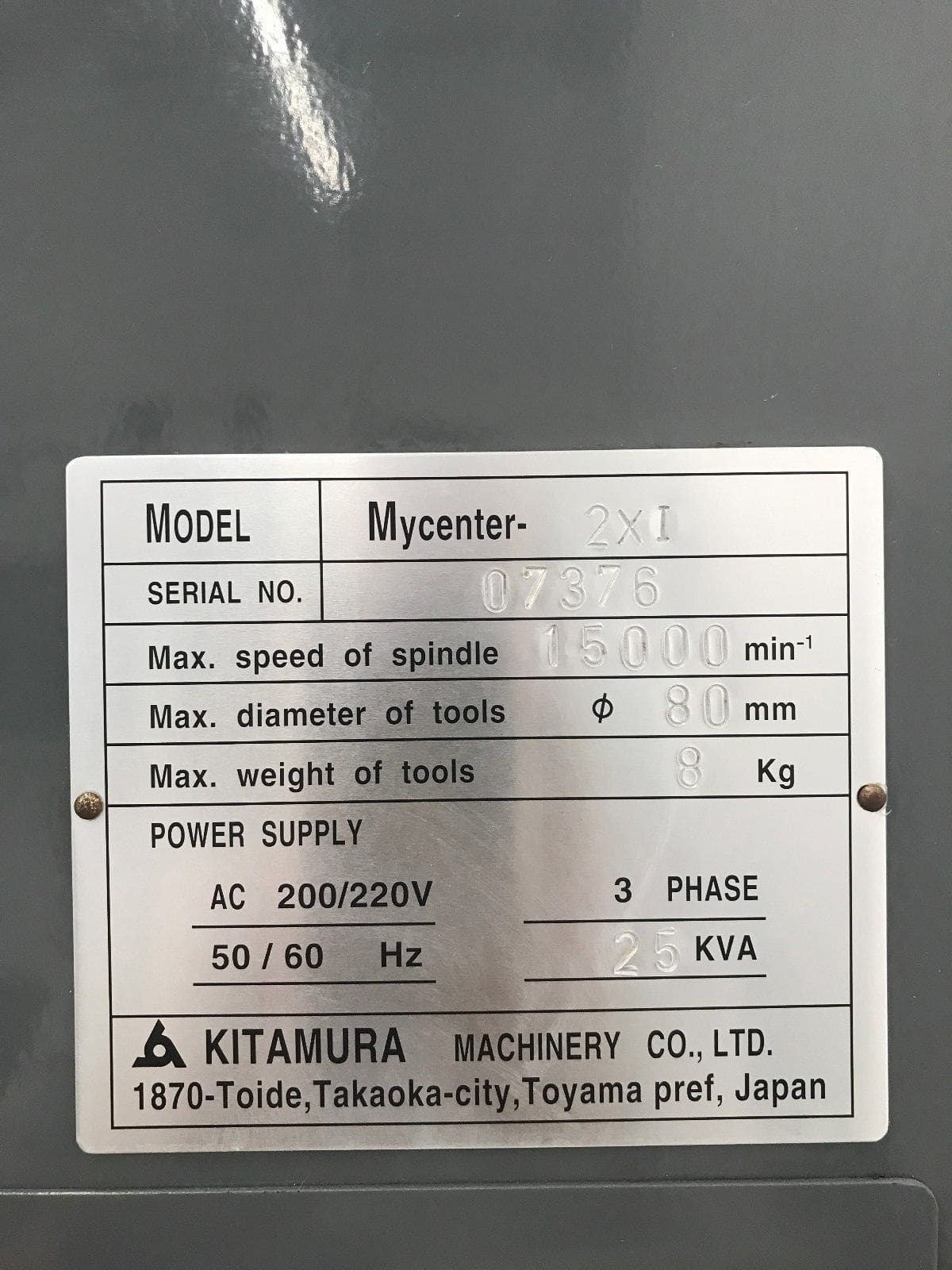

General:
- Air Required: 80 psi, 4 scfm
- Power: 25kva / 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 110 x 90 x 110″ High
- Weight: 11500 lbs
