*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

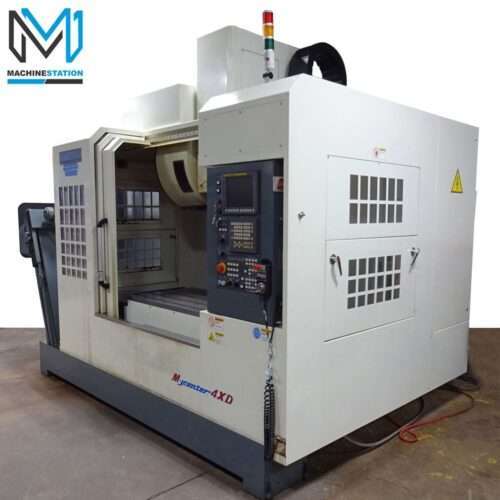

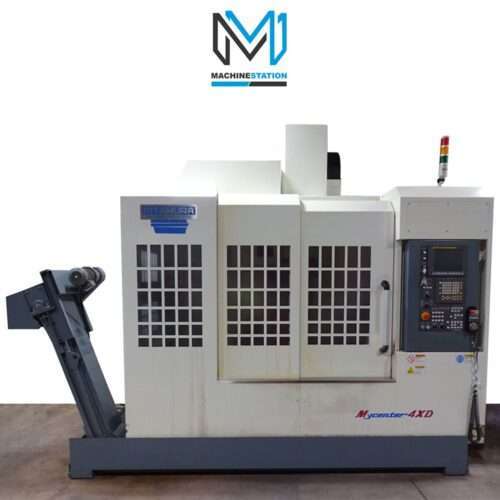

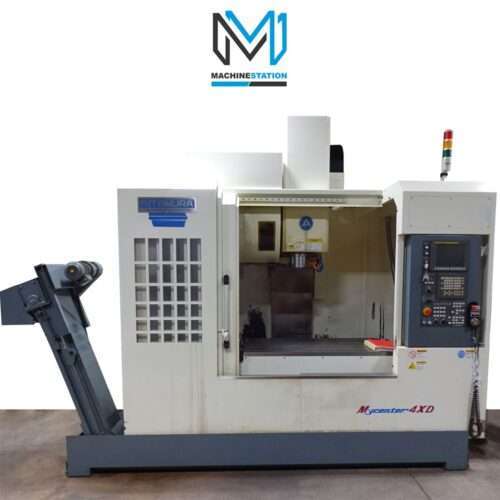

| Make: | Kitamura |
| Model: | Mycenter 4XD |
| Year: | 2013 |
| Cutting Time: | 7346 Hours Only |
| Equipped With: |
|---|

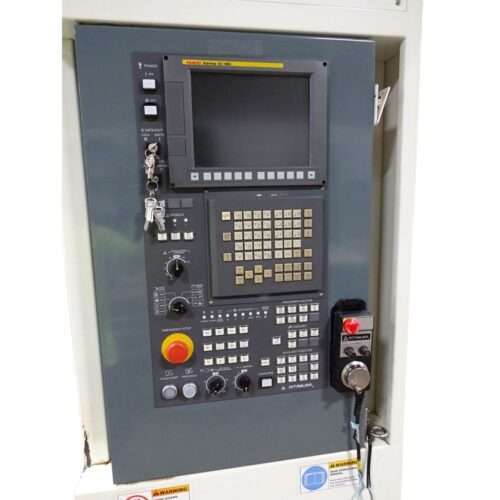

| Fanuc Oi-MD Series CNC Control |
| 30 Automatic tool changer |
| 12,000 RPM High Torque Spindle |
| 35 HP High Torque Spindle Motor |
| 1417 IPM Fast Rapid Traverse Rate |
| Through Spindle Coolant? |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |

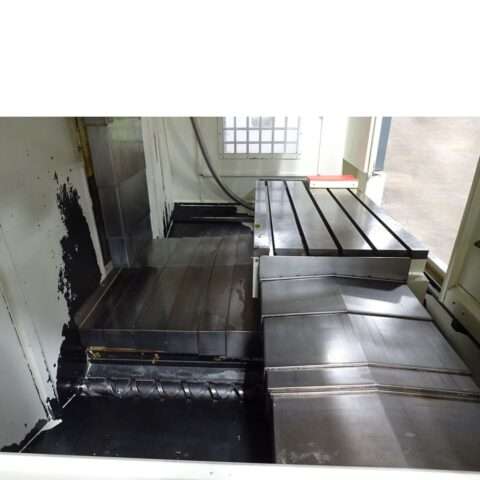

| Telescopic Way Covers |

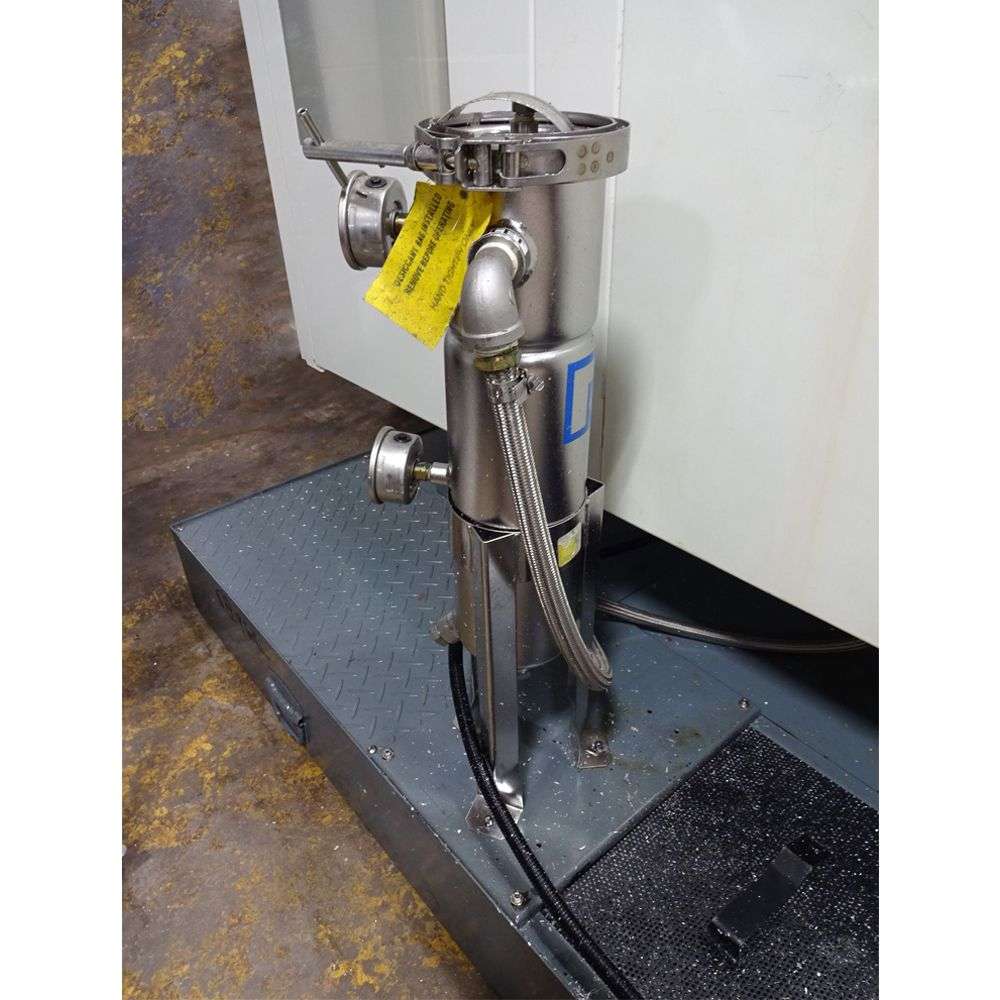

| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 43″ |
| Y-Axis: 24″ |
| Z-Axis: 24″ |
| Spindle Nose to Table (Min.-Max):3.93″-28″ |

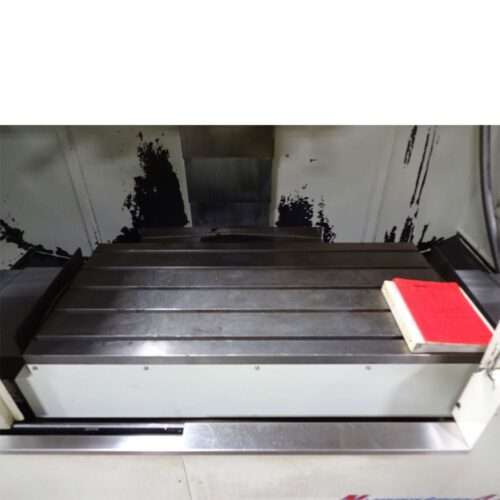

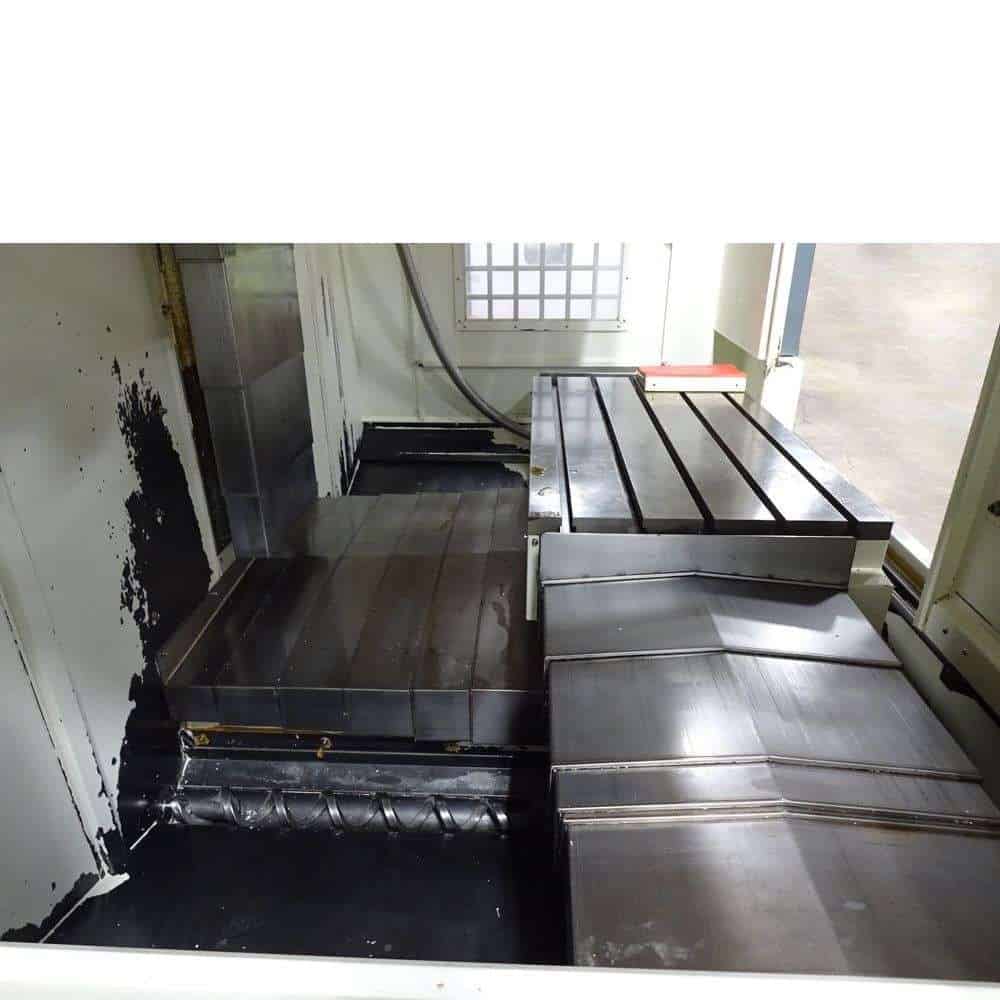

| Table: |
|---|
| Length: 50.0″ |
| Width: 25.2″ |
| Max Weight on Table: 2545 lbs |

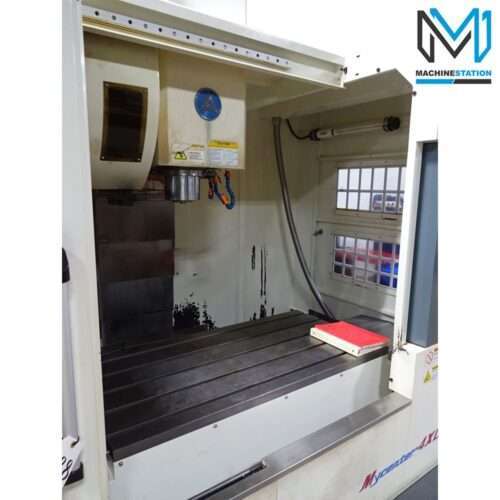

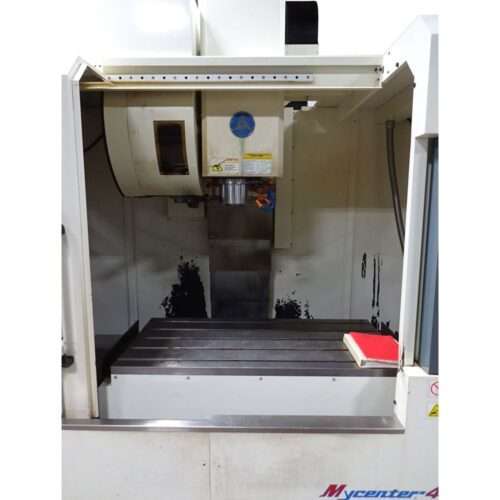

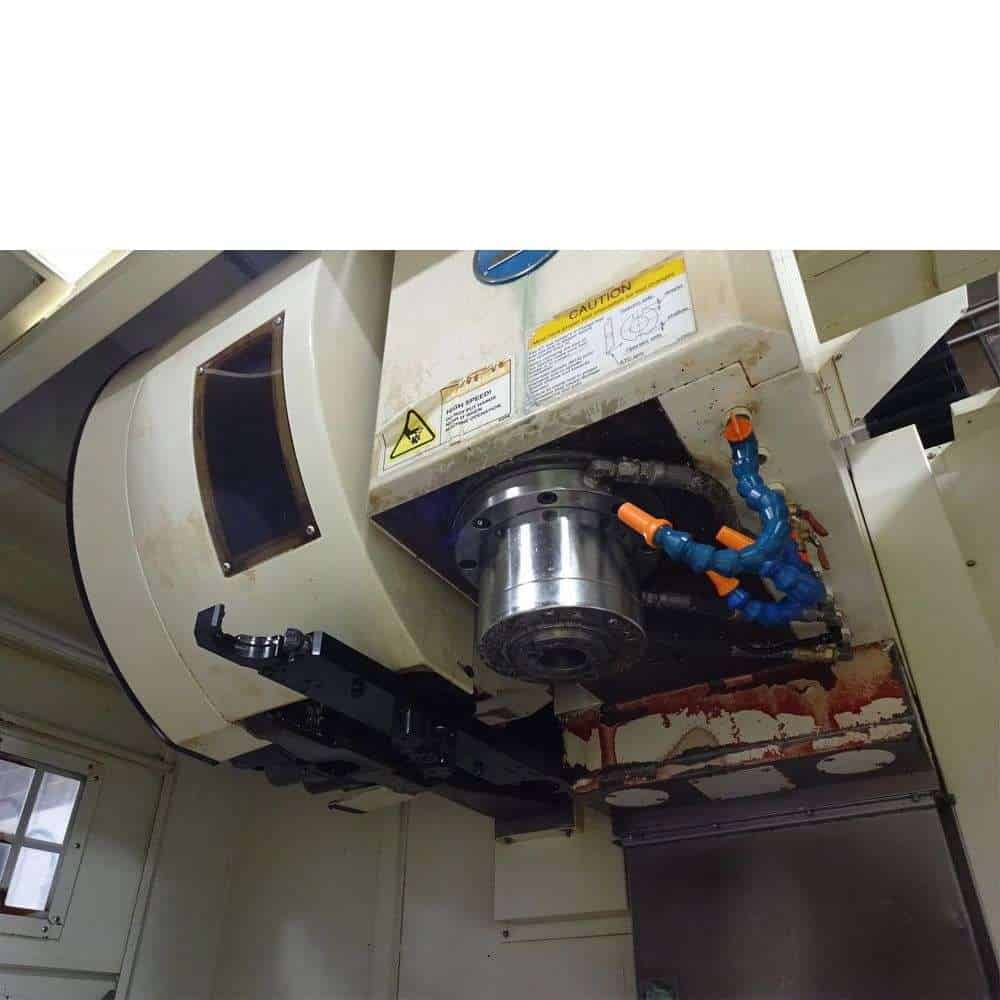

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 35 HP |

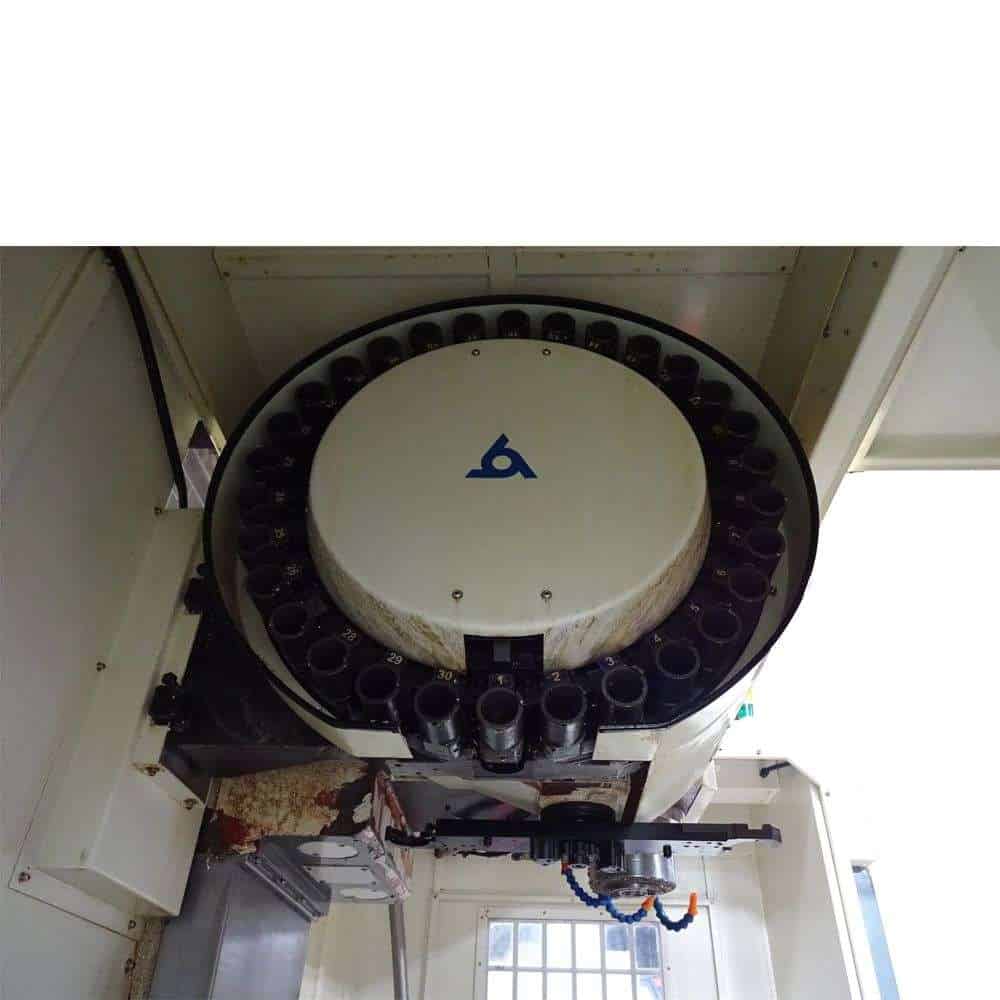

| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 30 Station Side Mounted |
| Tool Weight: 15.5 Ibs |
| Max Tool Length: 9.45″ |
| Max Tool Dia.:5.90″ |
| Feed Rates: |
|---|
| Rapid Traverse Rates X & Y Axis:1417 IPM |
| Rapid Traverse Rates Z Axis:1181 IPM |
| Cutting Feedrate X, Y & Z Axis: 787 IPM |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v/ 3-Phase, 35Kva |
| Overall Dimensions: 120″ x 88″ x 115″ High |
| Weight: 16,000 lbs |
