*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | Mycenter-HX400iF |
| Features: |
|---|
| Fanuc Series 16i-MB CNC Control |
| Full 4th-Axis B-Axis Rotary Table |
| 2-Station Automatic Pallet Changer |
| (2) 15.75″ Pallets |
| 150-Position Automatic Tool Changer |
| 20,000 RPM High-Speed Spindle |
| CAT 40 Spindle Taper |
| Chip Conveyor |
| Coolant System |
| Full Machine Enclosure |
| Travels: |
|---|
| X-Axis Travel: 28.9″ |
| Y-Axis Travel: 24.0″ |
| Z-Axis Travel: 24.0″ |
| B-Axis: Full 4th-Axis Rotary |
| X/Y/Z Rapid Traverse: 1,969 IPM |

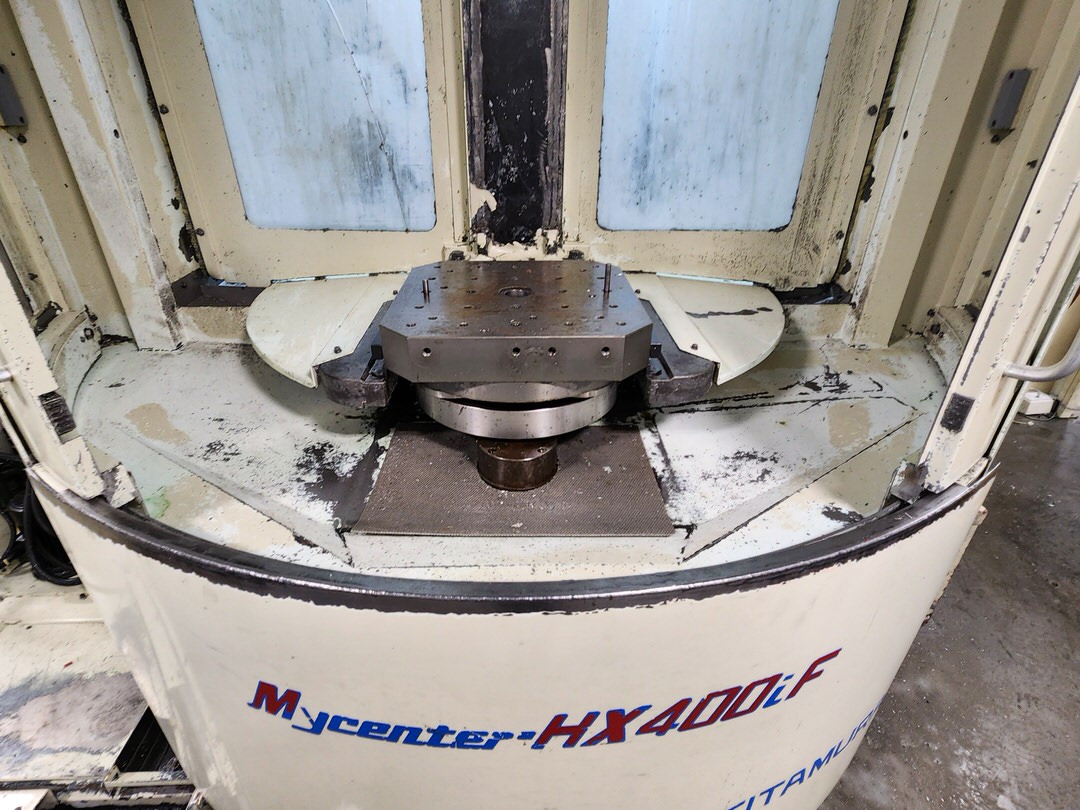

| Pallet: |
|---|
| Pallet Size: 15.75″ × 15.75″ |
| Number of Pallets: 2 |
| Maximum Workpiece Diameter: 25″ |
| Maximum Workpiece Height: 37.8″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Taper: CAT 40 |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 150 Tools |
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs |
| Tool-to-Tool Change Time: 1.0 Second |

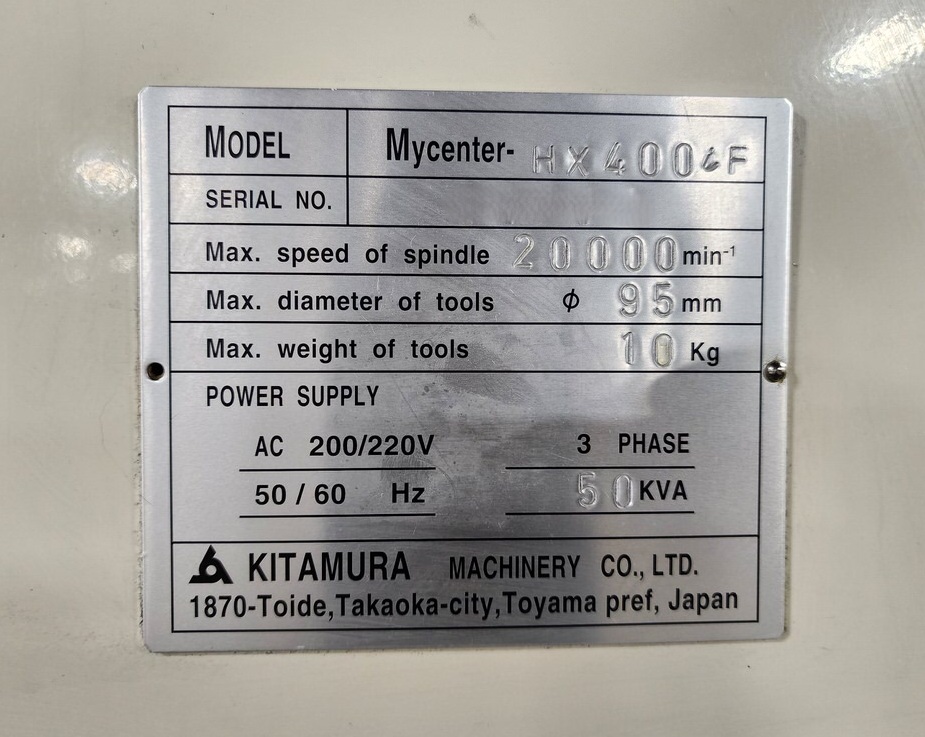

| Electrical: |
|---|
| Power Supply: AC 200/220 V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 50 kVA |
| General: |
|---|
| Cutting Time: 41,924 Hours |
| Machine Dimensions (Approx.): 157″ × 100″ × 125″ |
| Machine Weight (Approx.): 28,743 lbs |
