*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

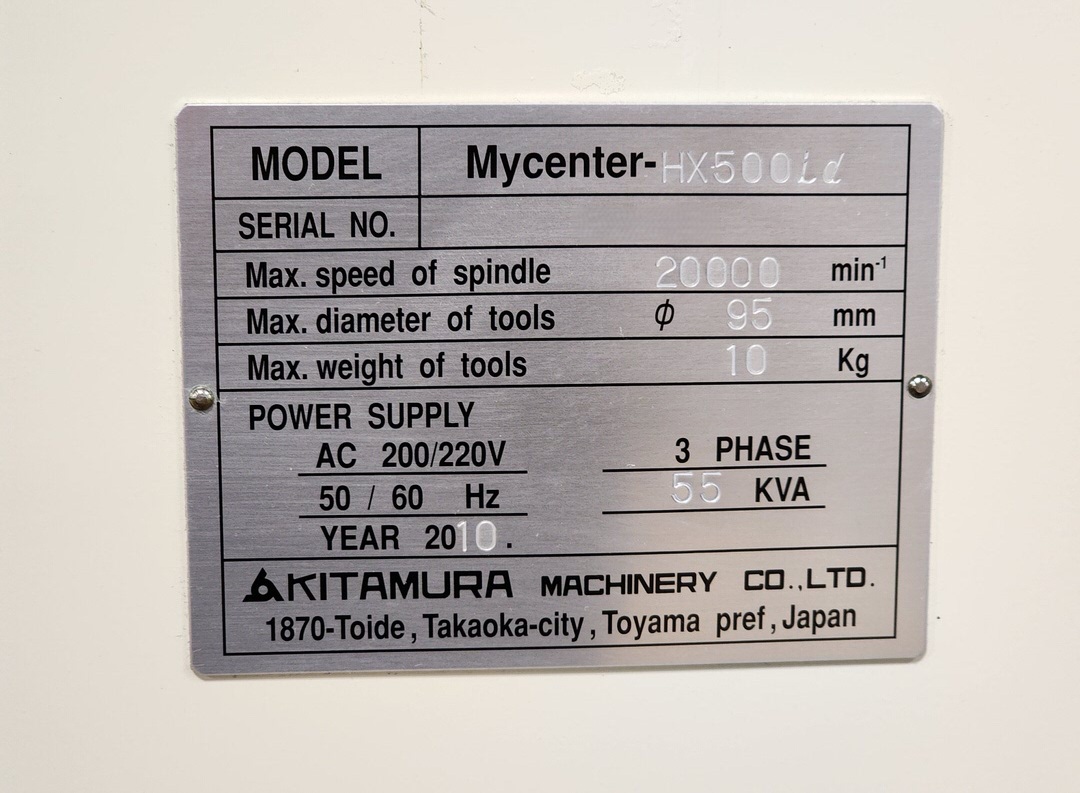

| Make: | Kitamura |
| Model: | Mycenter-HX500iD |
| Year: | 2010 |
| Features: |
|---|
| Fanuc Series 16i-MB CNC Control |
| Full 5-Axis Machining Capability |

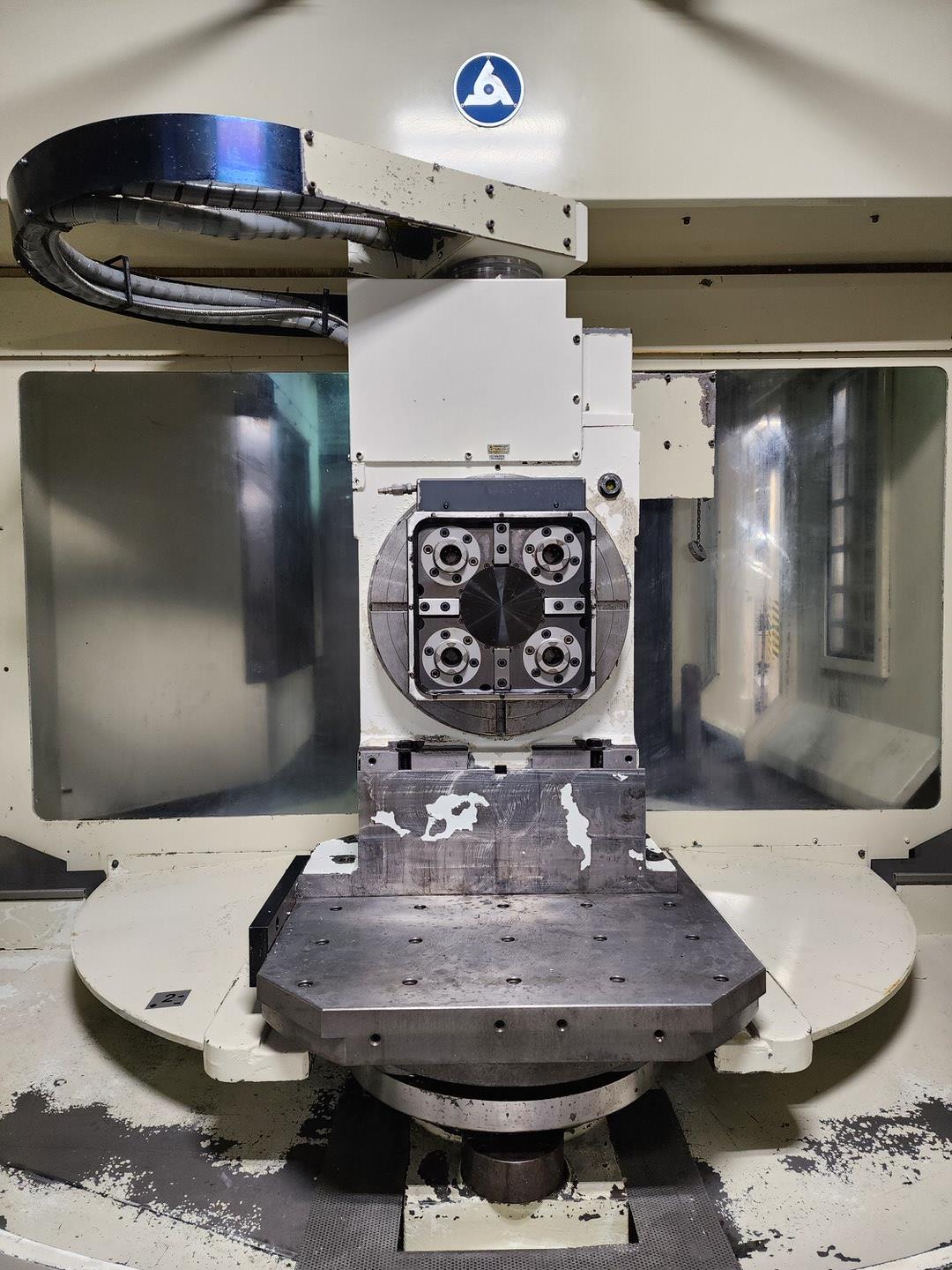

| B-Axis Rotary Pallet/Table |
| C-Axis Rotary Workholding System |
| Dual Pallet Changer |
| 20,000 RPM High-Speed Spindle |
| Automatic Tool Changer |
| Through-Spindle / High-Pressure Coolant System |
| Chip Conveyor |
| Full Machine Enclosure |
| Travels: |
|---|
| X-Axis Travel: 34.25″ |
| Y-Axis Travel: 27.95″ |
| Z-Axis Travel: 25.98″ |
| Rapid Traverse X/Y/Z: 1,969 IPM |
| Pallet: |
|---|
| Pallet Size: 19.75″ × 19.75″ |
| Pallet Changer: Dual Pallet |
| Maximum Pallet Load: 2,200 lbs |
| Spindle: |
|---|
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Taper: CAT 40 |
| Automatic Tool Changer: |
|---|
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs |
| Electrical: |
|---|
| Power Supply: AC 200/220 V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 55 kVA |
| General: |
|---|
| Country of Manufacture: Japan |
| Machine Dimensions (Approx.): 178″ × 110″ × 130″ |
| Machine Weight (Approx.): 44,000 lbs |
