Samsung SL25B/500 CNC Turning Center - 10" Chuck, 30 HP, Fanuc 0i-TD

Samsung SL25B/500 CNC Turning Center – 10″ Chuck, 30 HP, Fanuc 0i-TD

SKU 11410

Make/Model Samsung SL25B/500

Control Fanuc 0i-TD

Video On Request

Out of stock

SKU:	11410
Make/Model:	Samsung SL25B/500
Control:	Fanuc 0i-TD
Video:	On Request

SKU: 11410

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Samsung
Model No.:	SL25B/500
Machine Type:	CNC Turning Center

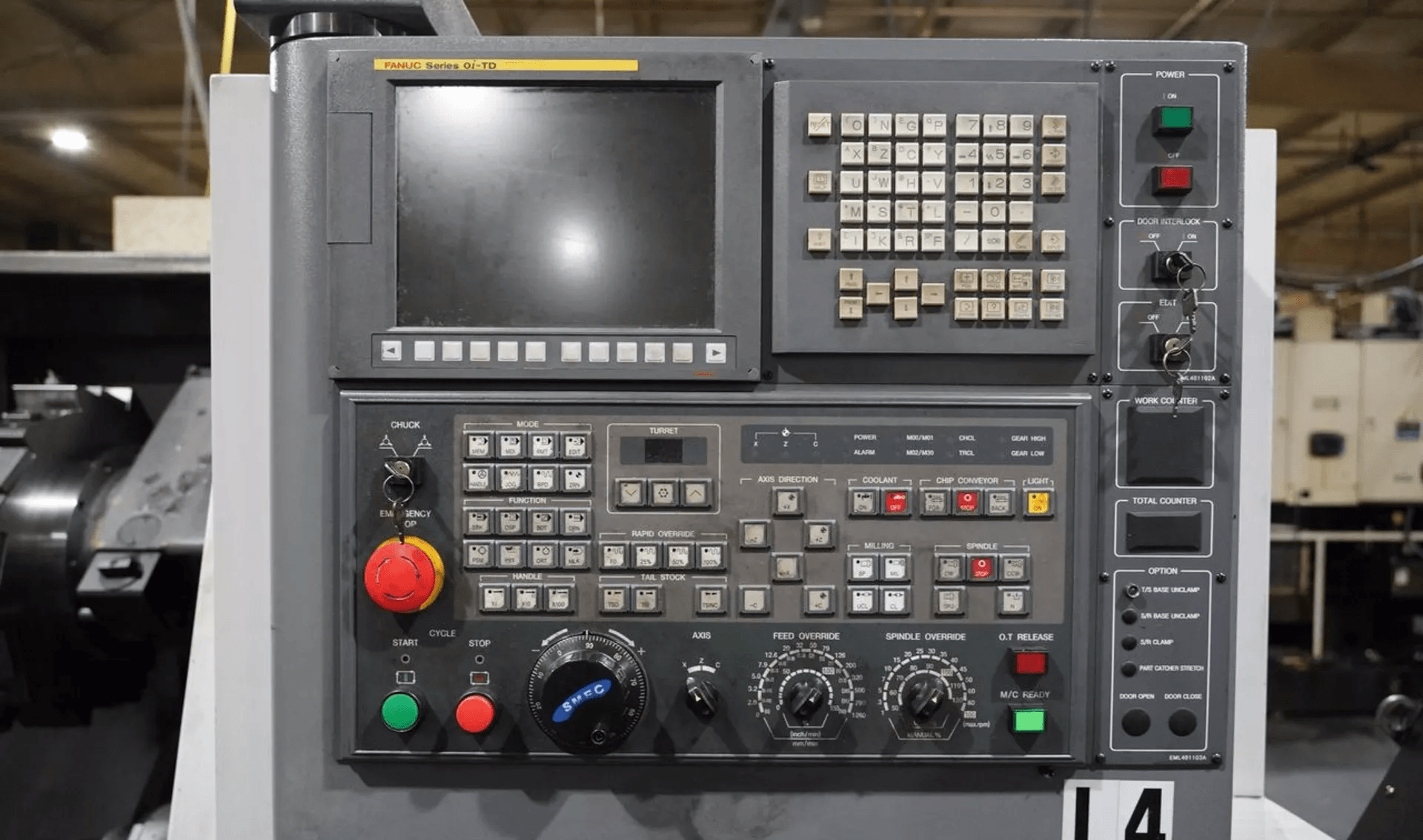

Control:	Fanuc Series 0i-TD
Country of Origin:	South Korea

Equipped With:
10″ 3-Jaw Hydraulic Chuck

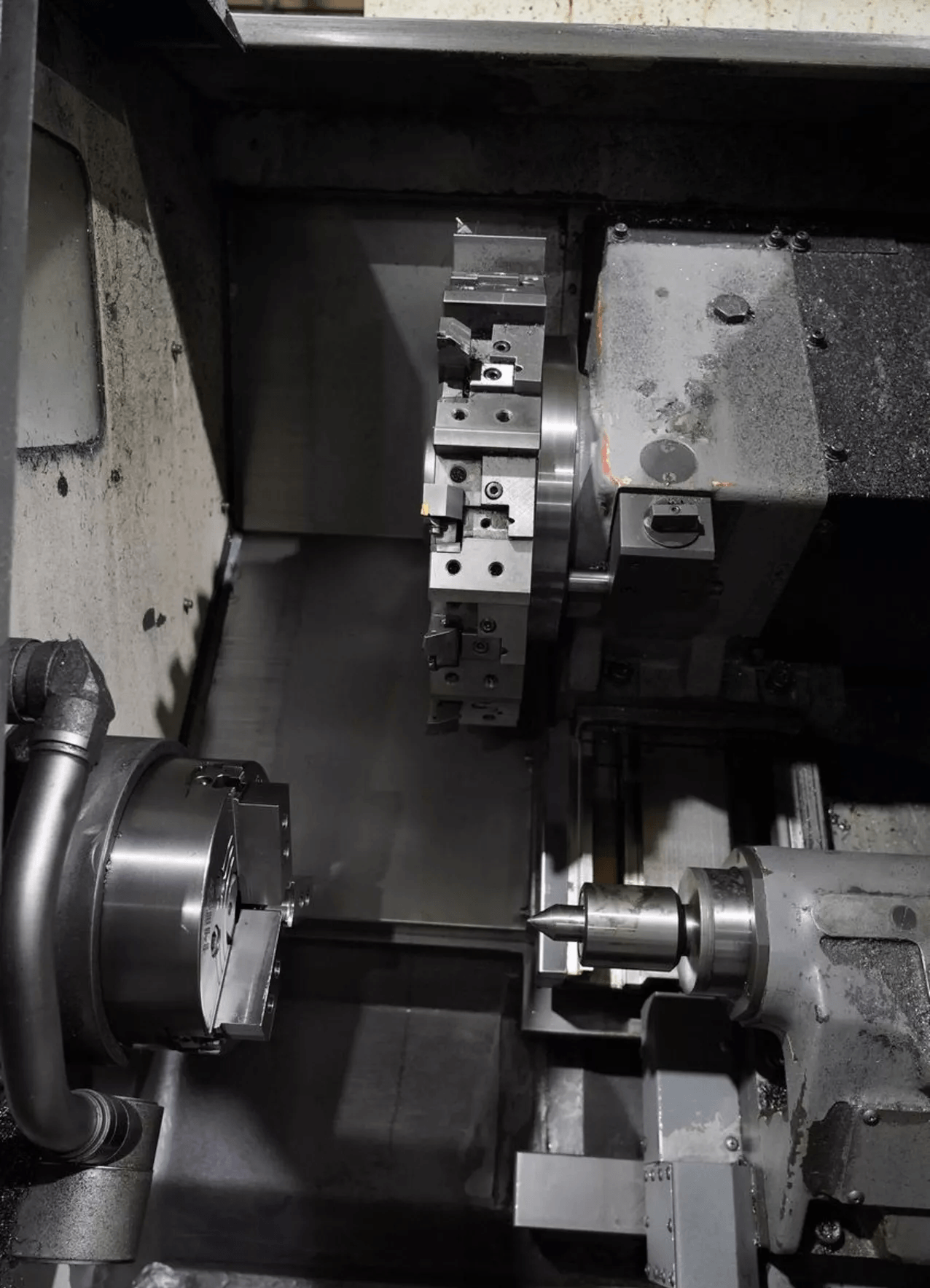

12-Station Turret

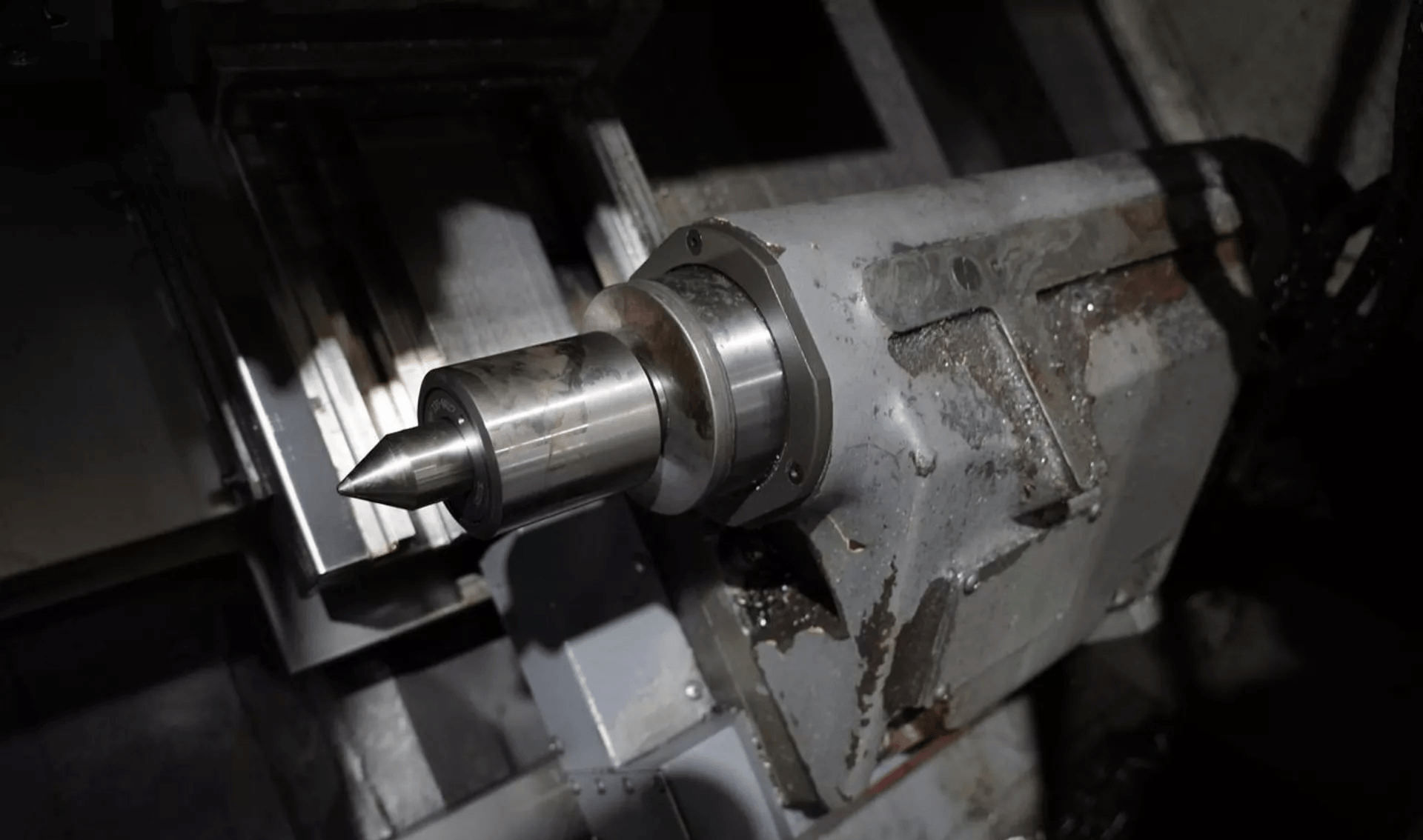

Tailstock
Sung Woo Chip Conveyor
Foot Pedal
Coolant System
Full Enclosure

Capacity:
Max Swing: 20.47″
Bar Capacity: 3″

Travels:
X-Axis Travel: 8.66″
Z-Axis Travel: 23.23″

Spindle:
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP

Tooling:
Turret Capacity: 12 Stations

Feed Rates:
Rapid Traverse (X): 709 IPM
Rapid Traverse (Z): 945 IPM

General:
Power Source: 220V, 3-Phase, 50/60 Hz (39 kVA)
Machine Dimensions (L x W x H): 188″ x 68″ x 72″
Machine Weight: 11,000 lbs

Equipped With:
254 mm 3-Jaw Hydraulic Chuck
12-Station Turret
Tailstock
Sung Woo Chip Conveyor
Foot Pedal
Coolant System
Full Enclosure

Capacity:
Max Swing: 520 mm
Bar Capacity: 76 mm

Travels:
X-Axis Travel: 220 mm
Z-Axis Travel: 590 mm

Spindle:
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP

Tooling:
Turret Capacity: 12 Stations

Feed Rates:
Rapid Traverse (X): 709 IPM
Rapid Traverse (Z): 945 IPM

General:
Power Source: 220V, 3-Phase, 50/60 Hz (39 kVA)
Machine Dimensions (L x W x H): 4,775 mm x 1,727 mm x 1,829 mm
Machine Weight: 11,000 lbs

Categories	CNC Lathes & Turning Centers
Make	Samsung
Model	SL25B/500
