*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Tormach |
| Model: | 1100M |
| Year: | 2021 |
| Features: |
|---|
| Tormach PathPilot CNC Control |
| Automatic Tool Changer (ATC) |
| 4th Axis |
| 1100M+ Servo Upgrade Kit |
| Active Probe Upgrade Kit |
| Full Machine Enclosure |
| Coolant System |
| Tooling and Accessories Included |
| Travels: |
|---|
| X-Axis Travel: 18″ |
| Y-Axis Travel: 11″ |
| Z-Axis Travel: 16.25″ |
| Spindle Nose to Table: 18″ |
| Spindle Centerline to Column: 11″ |
| Table: |
|---|
| Table Size: 34″ × 9.5″ |
| Number of T-Slots: 3 |
| T-Slot Size: 5/8″ |
| Maximum Table Load: 500 lbs |
| Spindle: |
|---|
| Spindle Power: 2 HP |
| Maximum Spindle Speed: 7,500 RPM |
| Spindle Taper: R8 |
| Automatic Tool Changer: |
|---|
| Type: Automatic Tool Changer (ATC) |

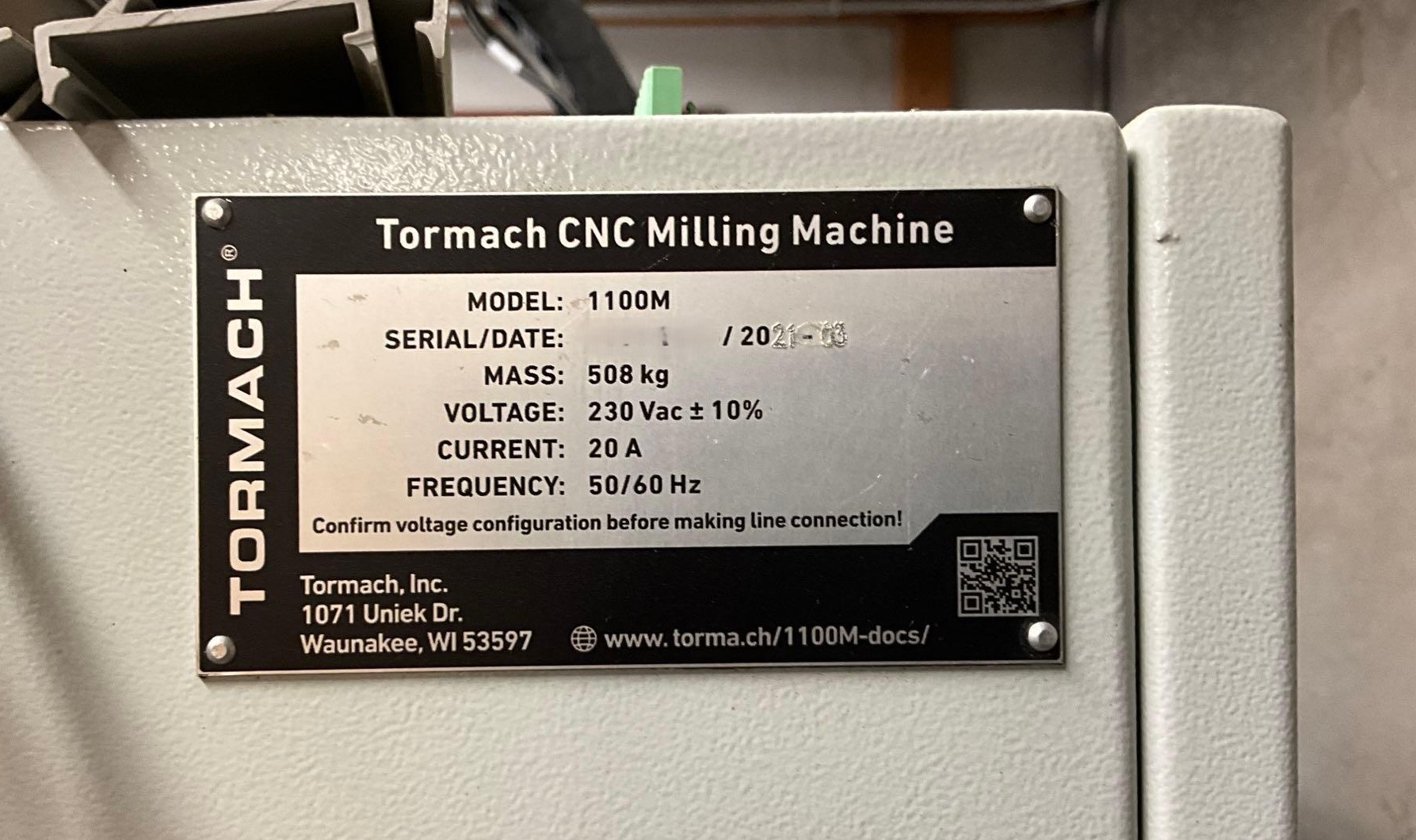

| Electrical: |
|---|
| Voltage: 230 VAC ±10% |
| Current: 20 A |
| Frequency: 50/60 Hz |
| General: |
|---|
| Machine Dimensions (Approx.): 69″ × 56.5″ × 96″ |
| Machine Weight (Approx.): 1,600 lbs |
