Yama Seiki GLS-1500L CNC Turning Center

$36,000.00

Qty =

Video

Product Description

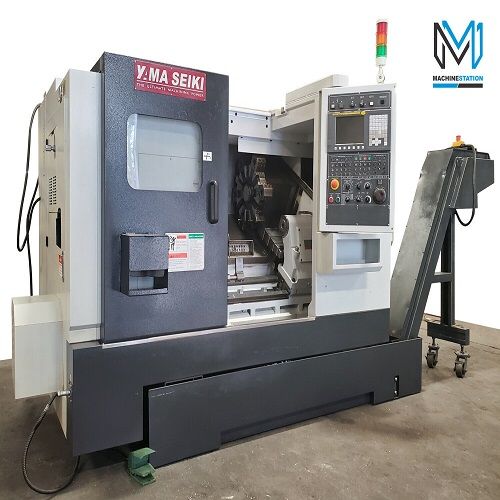

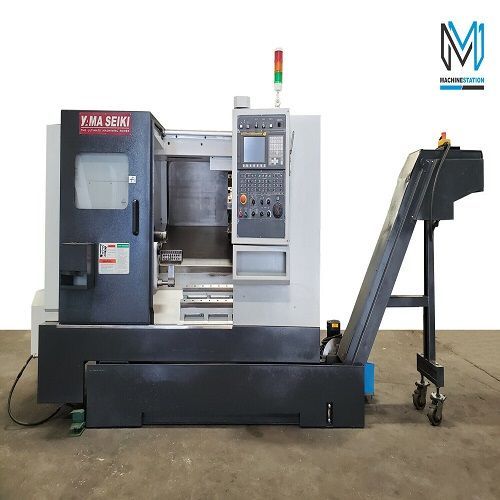

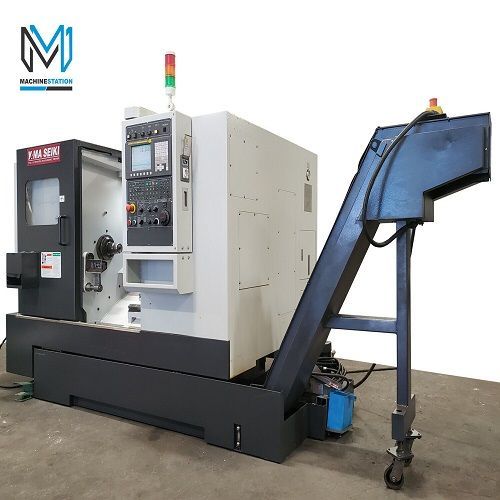

YAMA SEIKI GLS-1500L CNC TURNING CENTER LONG BED LATHE
SKU # 2244
Make: YAMA SEIKI
Model No.: GLS-1500L
Serial # 98H248
Year: 2014/2016

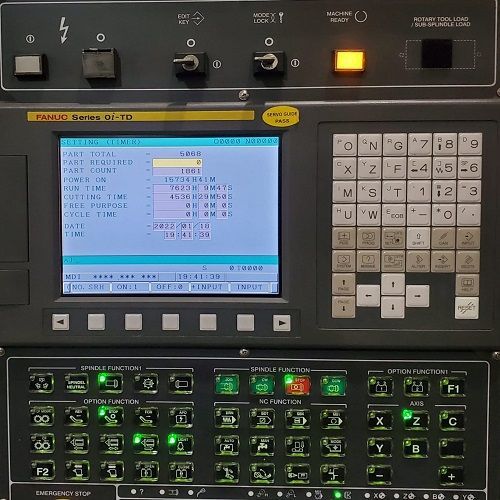

Cutting Time: 7623 Hours
Condition: Very Good

All specifications are approximations, and are subject to verification.

Equipped With:

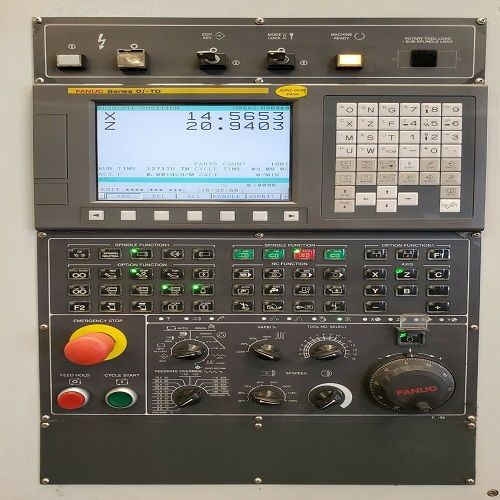

Fanuc 0i-TD CNC Control
Long Bed Machine
Collet Chuck (6″-8″ Capable)
A2-5, 6000 RPM Spindle
Parts Catcher
Rigid Tapping
Spindle Orientation

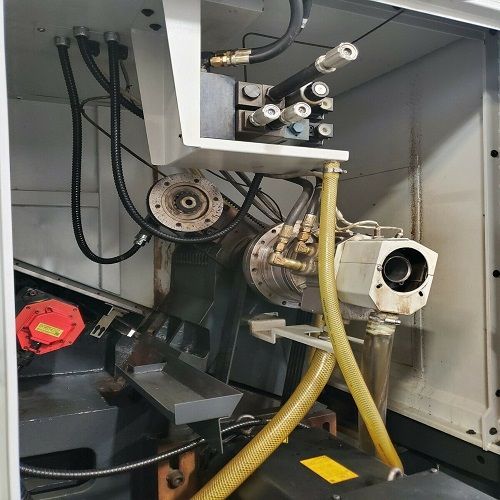

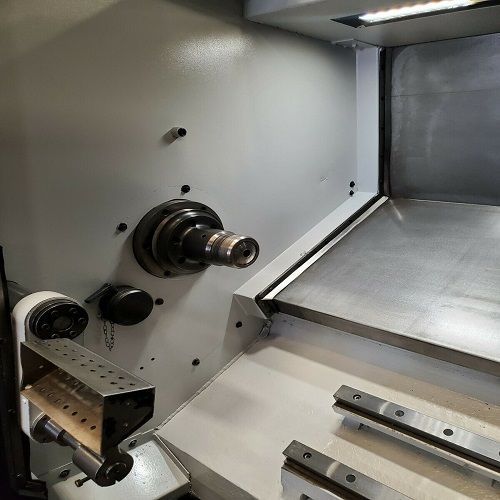

Hydraulic Programmable Tailstock
PCMCIA Card Interface
USB Port

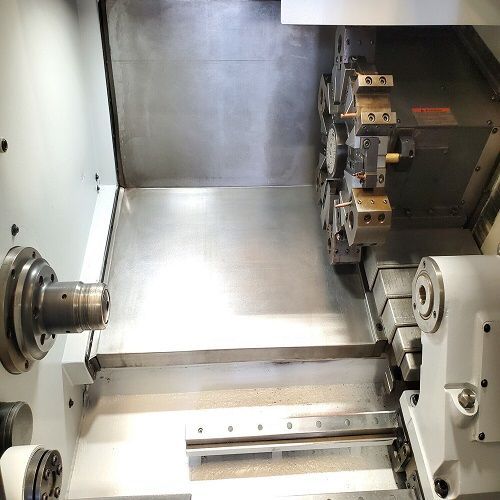

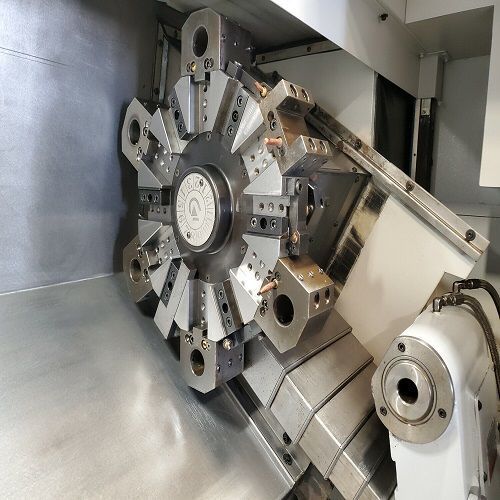

12 Station Automatic Turret
Foot Switch
Coolant System

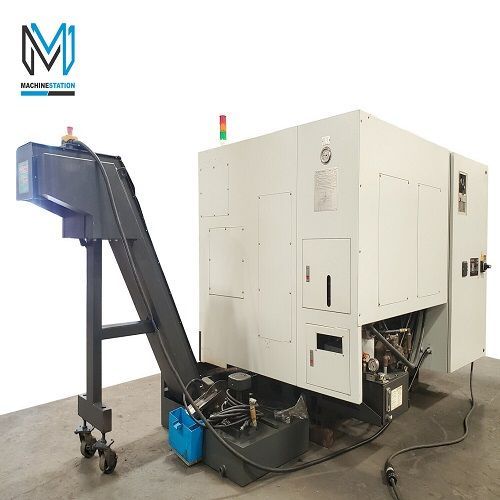

Chip conveyor

Specifications:
Capacity:
Max Turning Diameter: 15.35″
Max Turning Length: 24.8″
Max Bar Capacity: 2″
Swing Over Bed: 22.05″
Distance Between Centers: 26.5”

Travel:
X Axis Travel: 9.1″
Z Axis Travel: 24.8″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4″
Spindle Speed: 6000 RPM
Spindle Motor: 20 hp

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Size: 1″

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 19.69″
Tailstock Quill Dia.: 2.75″
Tailstock Quill Travel: 5.9″

General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 103″ x 71″ x 69″ High
Weight: 7,936 lbs

“No Charges for loading at list Price”

Comes as shown in pictures..
