All specifications are approximations and are subject to verification.
-

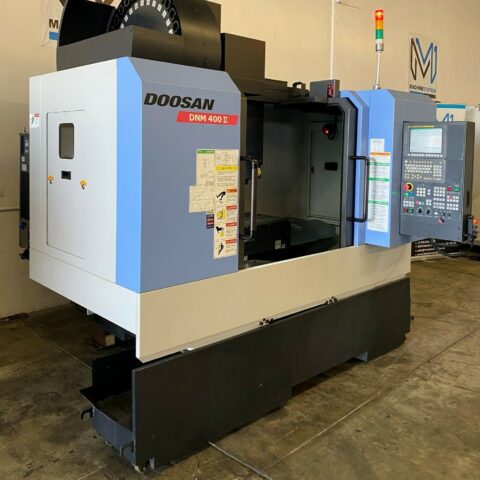

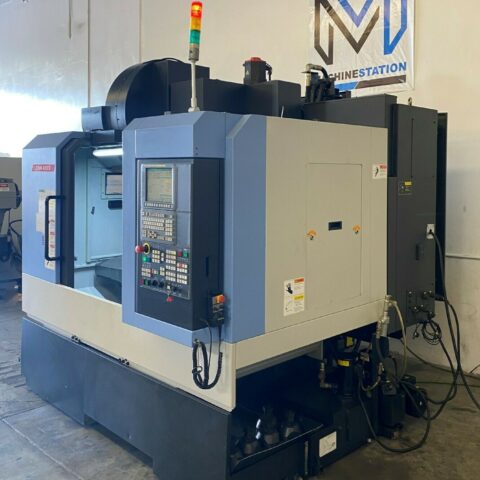

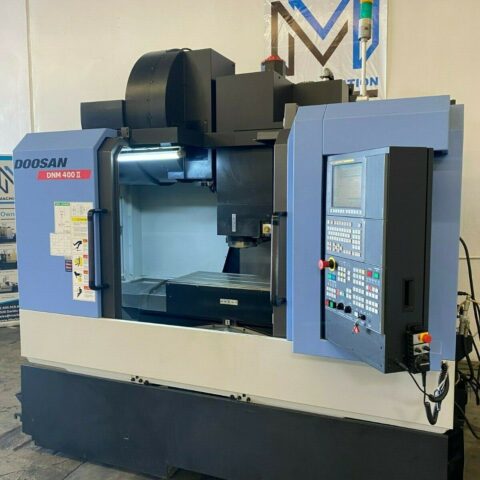

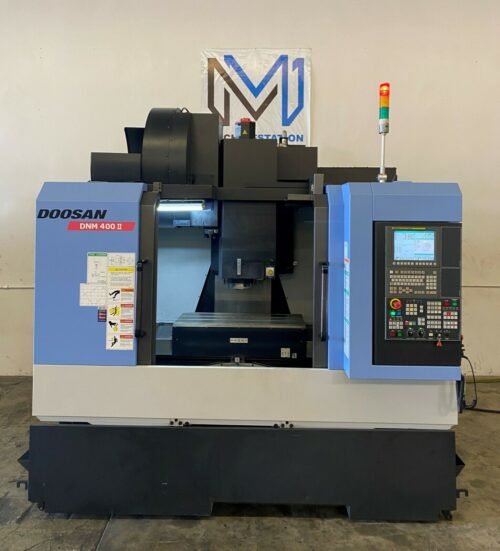

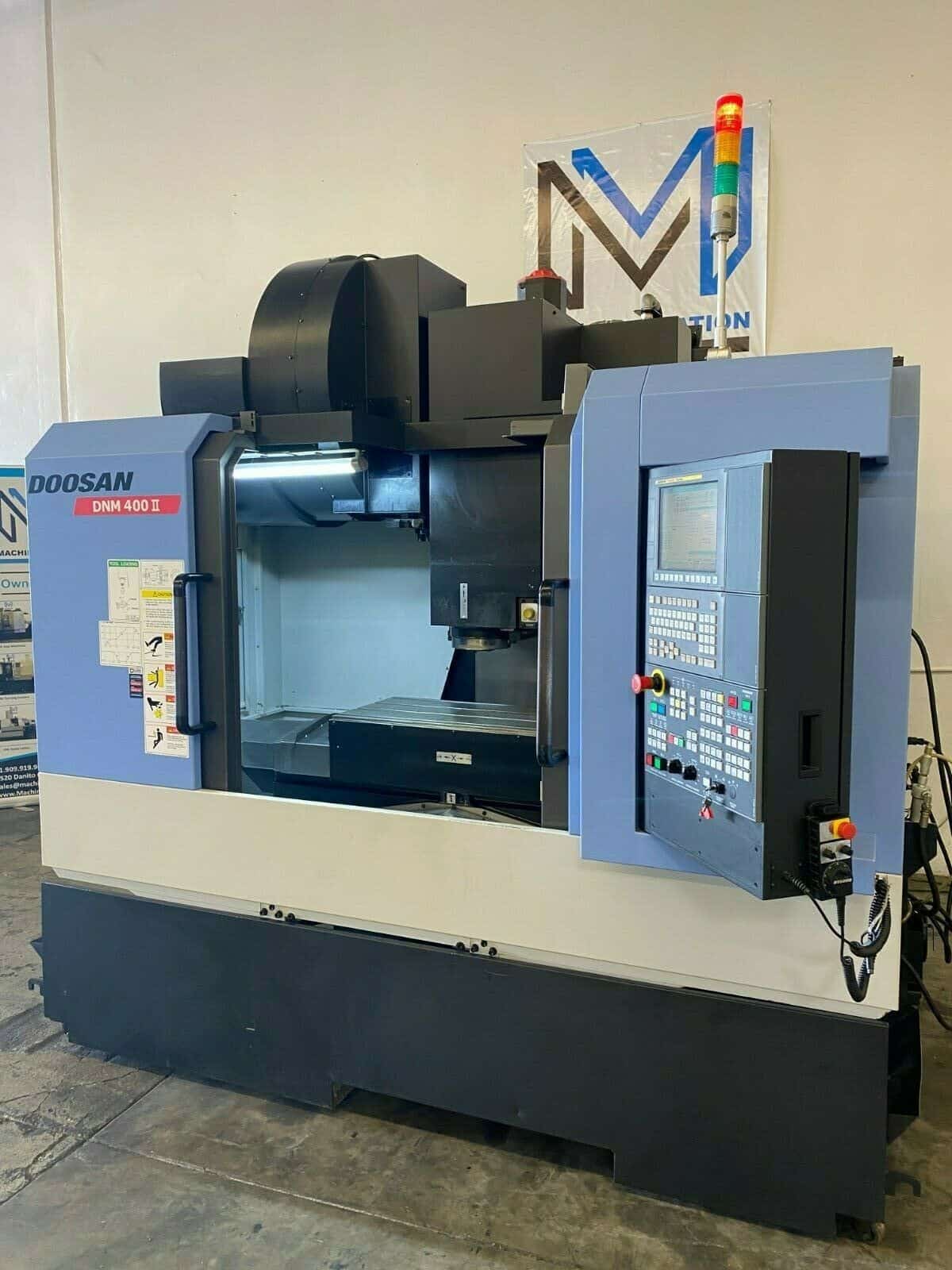

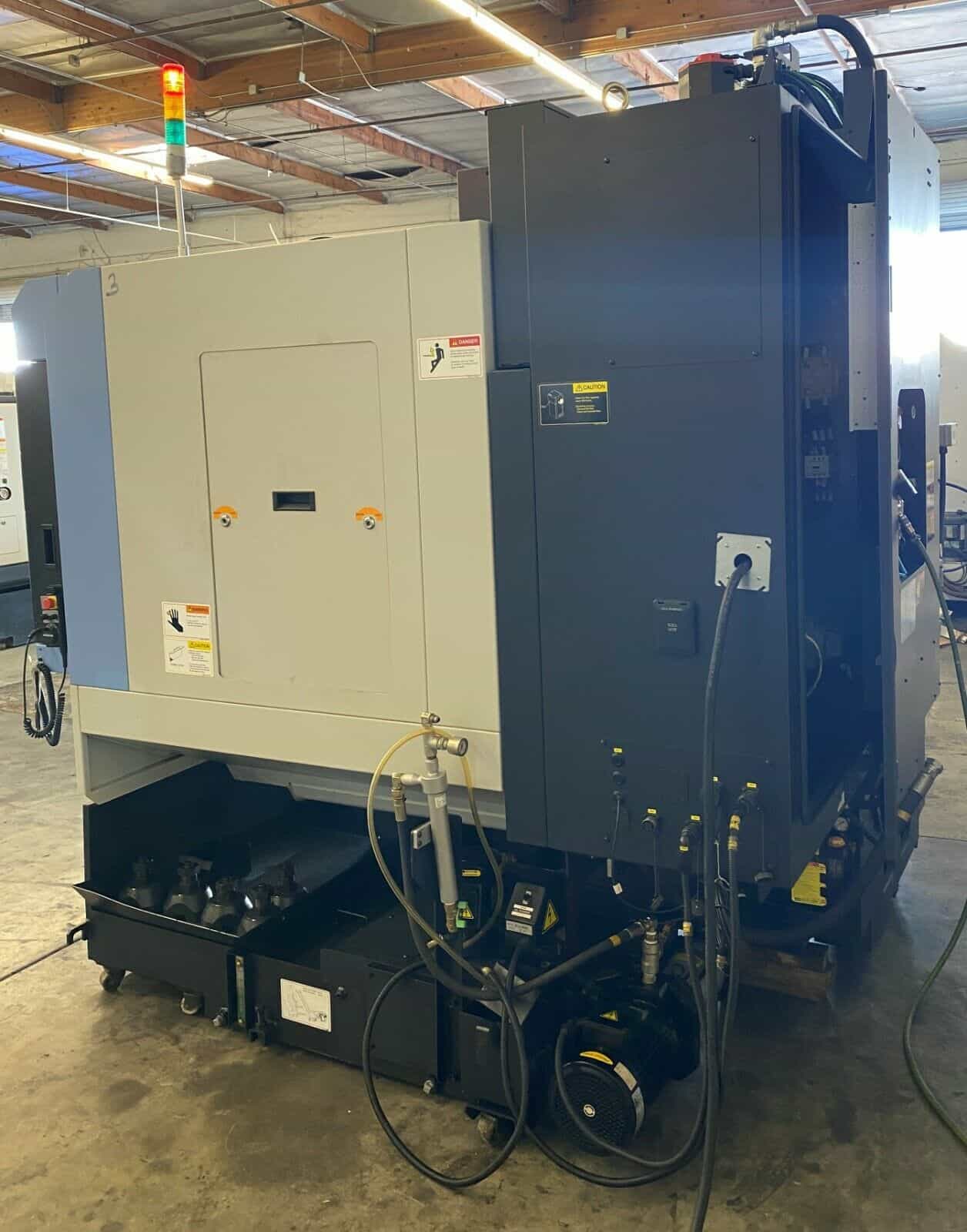

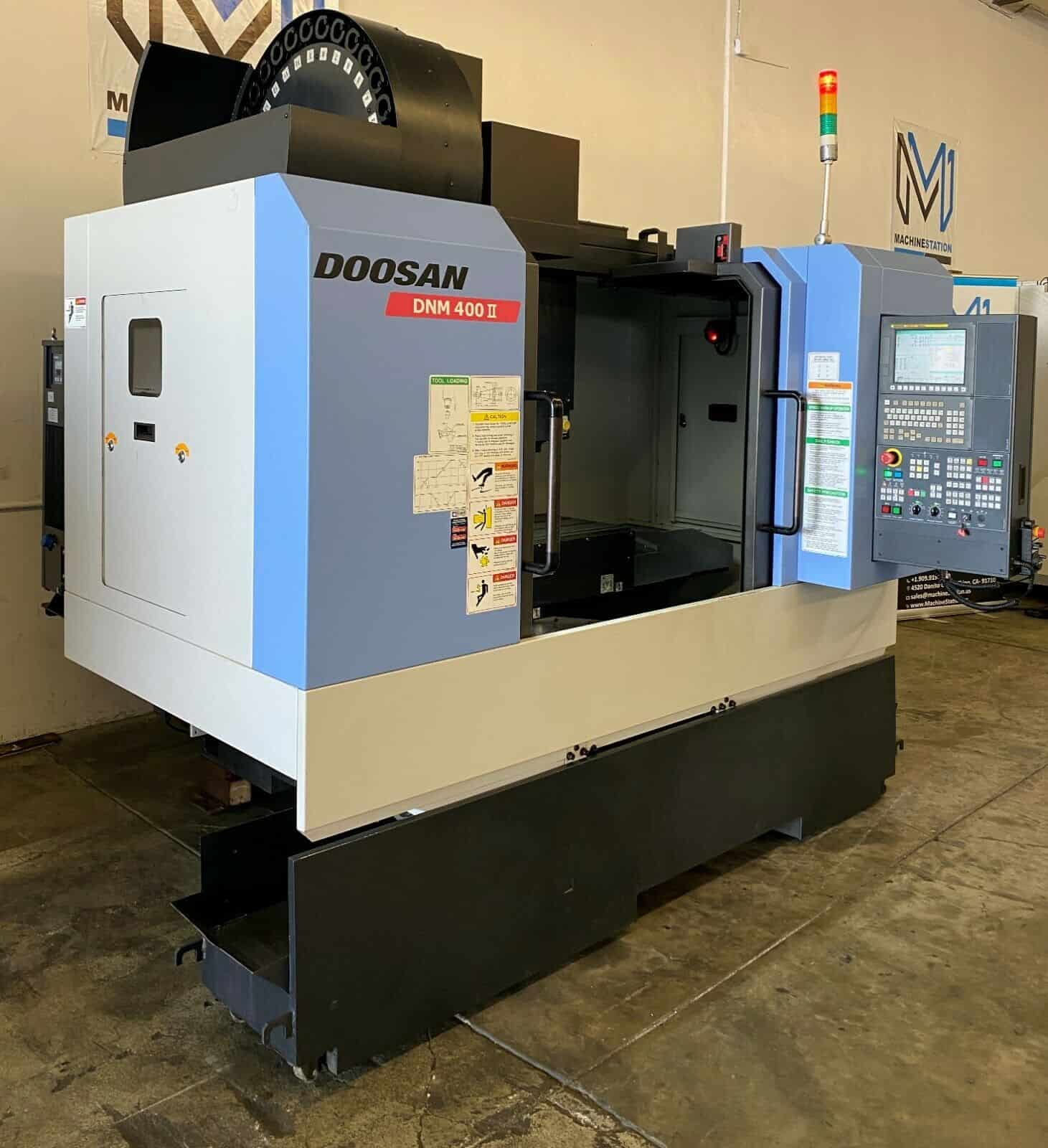

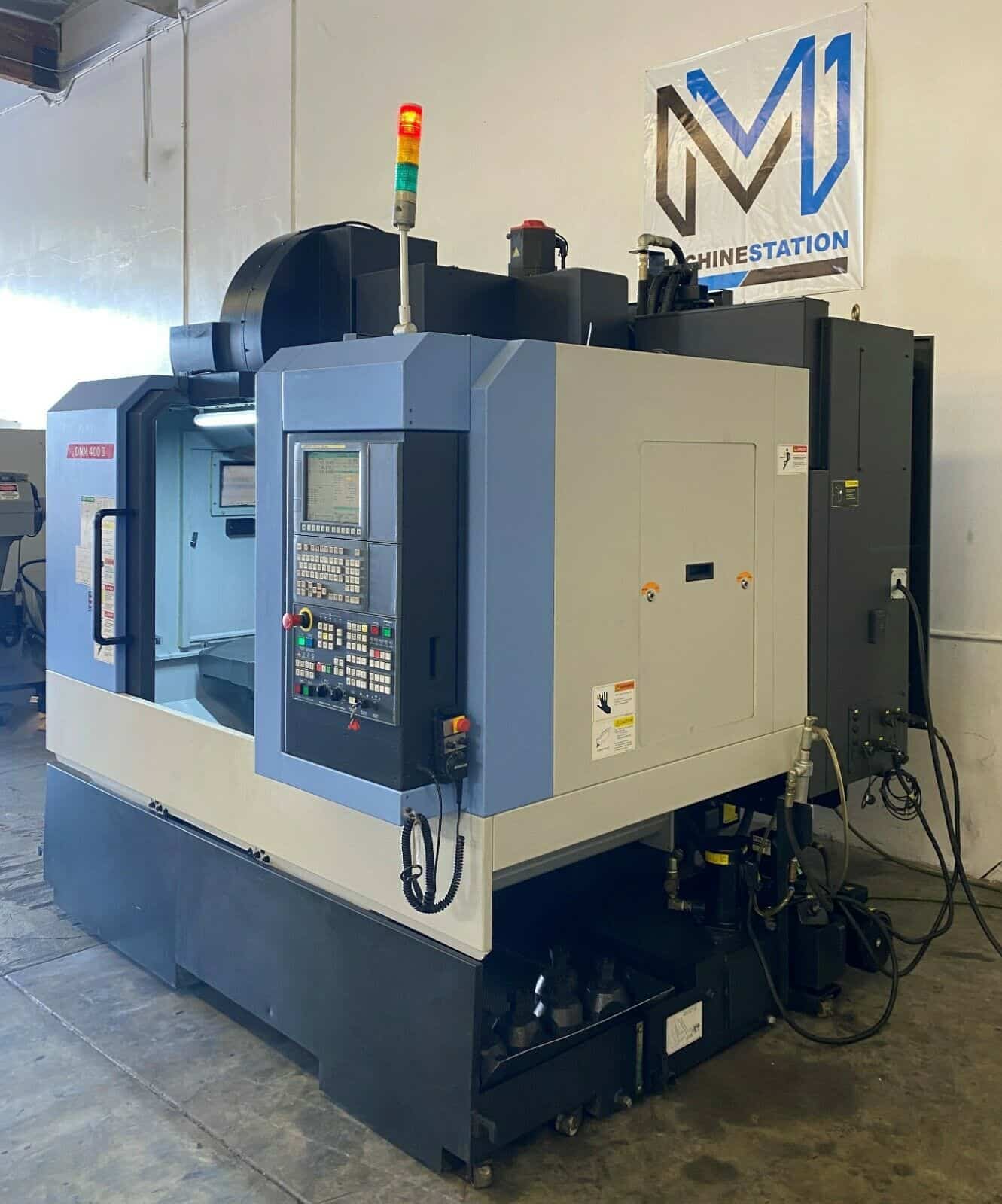

Daewoo Doosan DNM-400II Features:

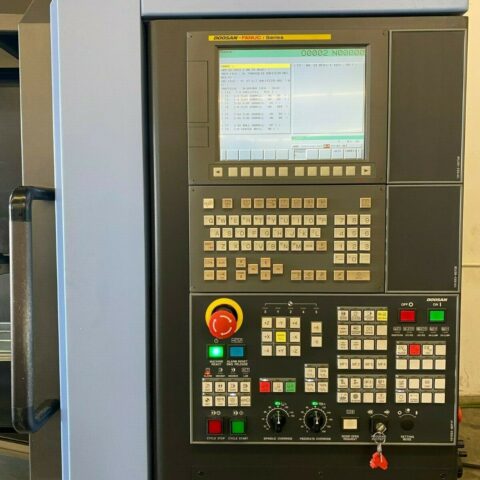

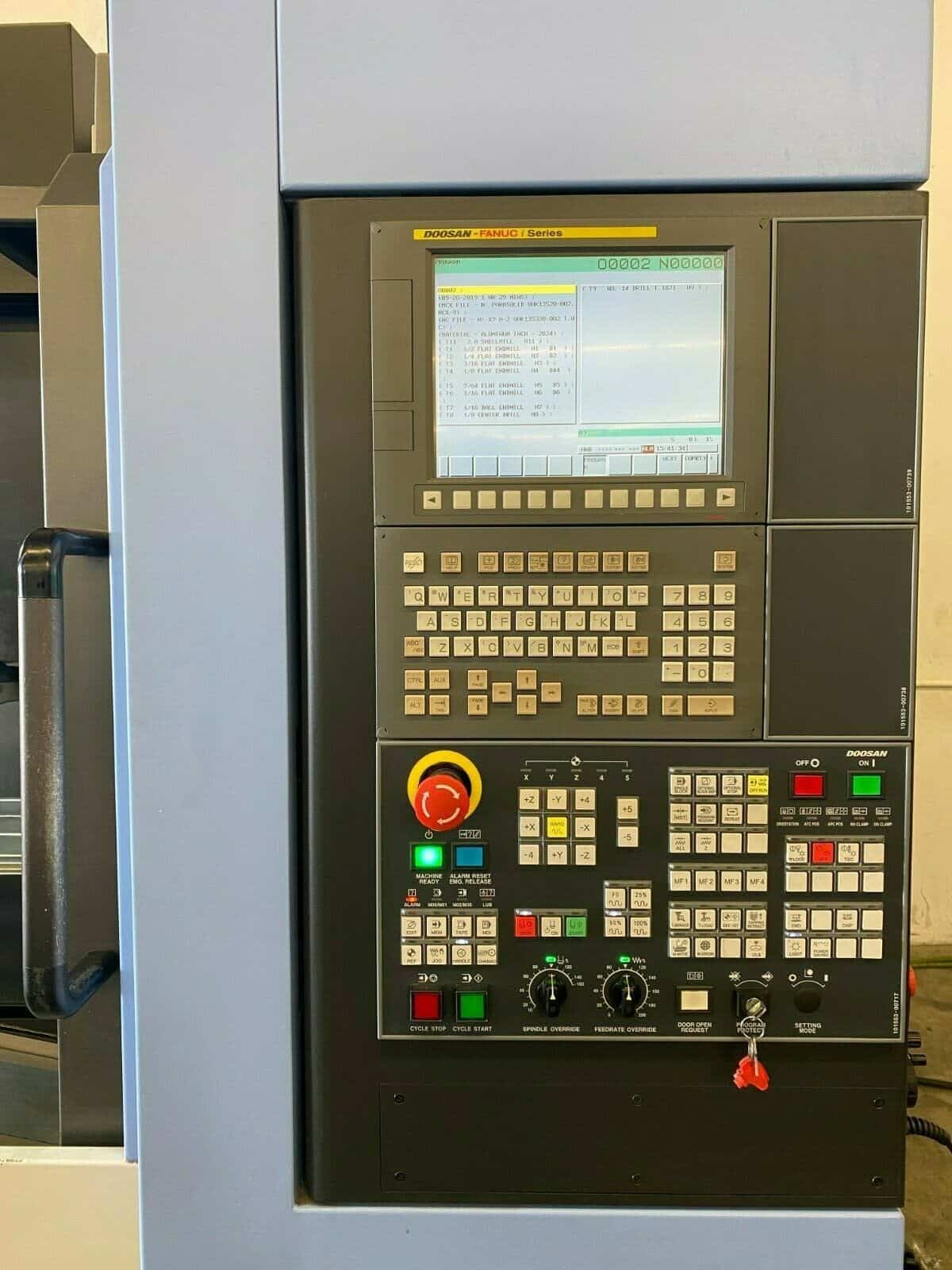

- Doosan Fanuc Oi-series CNC Control
- Through Spindle Coolant
- 8,000 RPM Big Plus Spindle
- USB Drive
- Wireless Probing Ready
- 1417 Inch Per Min Rapids
- PCMCIA Card Slot
- MPG Control
- Rigid Tapping
- Spindle Orientation

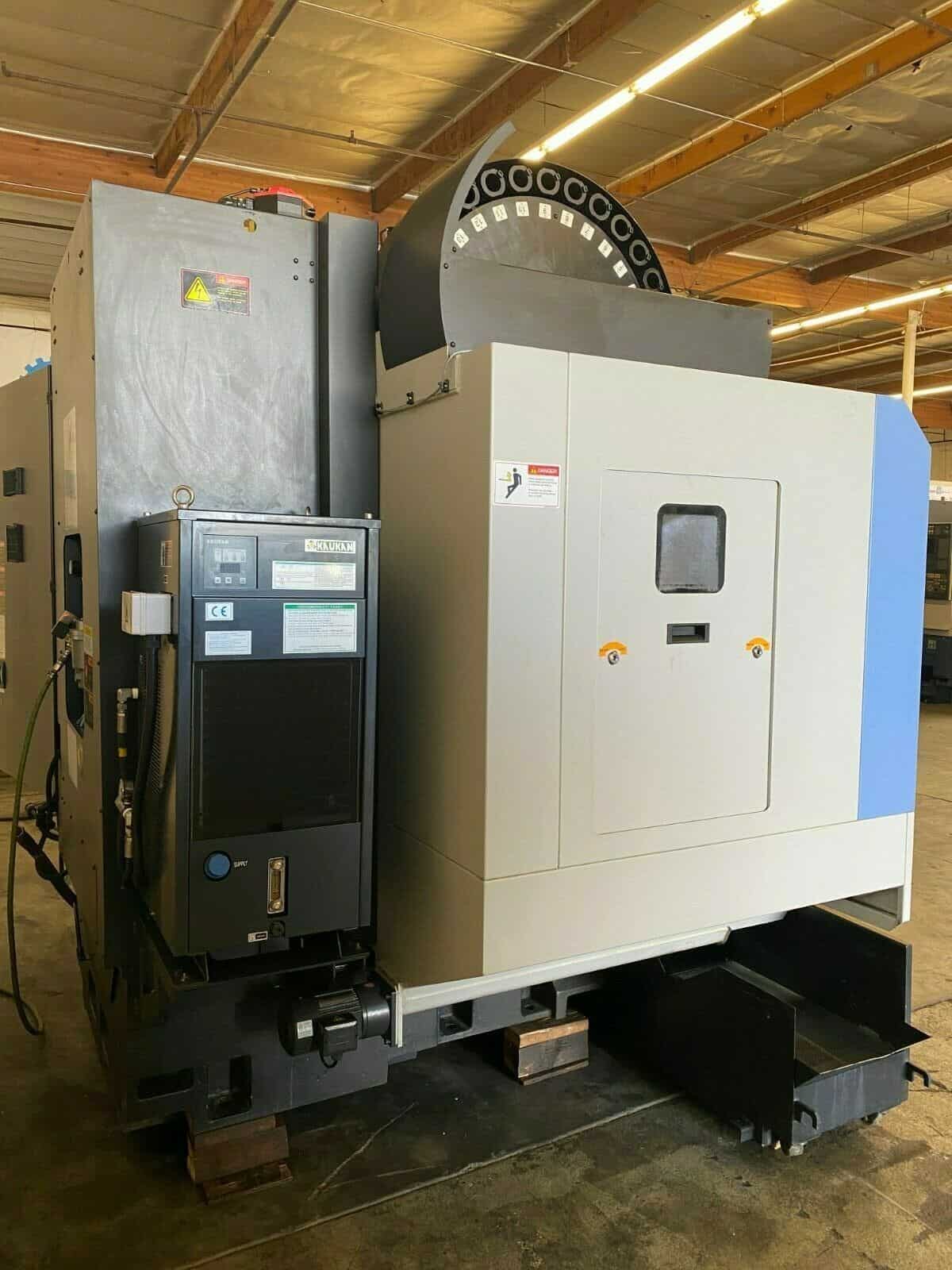

- 30 Automatic high speed tool changer
- High Pressure Flood Coolant
- Telescopic way covers

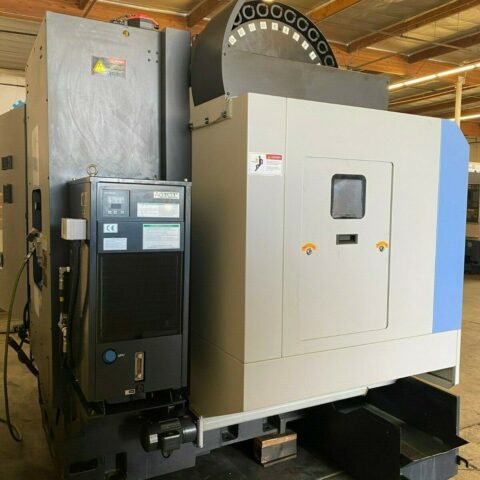

- Spindle Chiller Unit

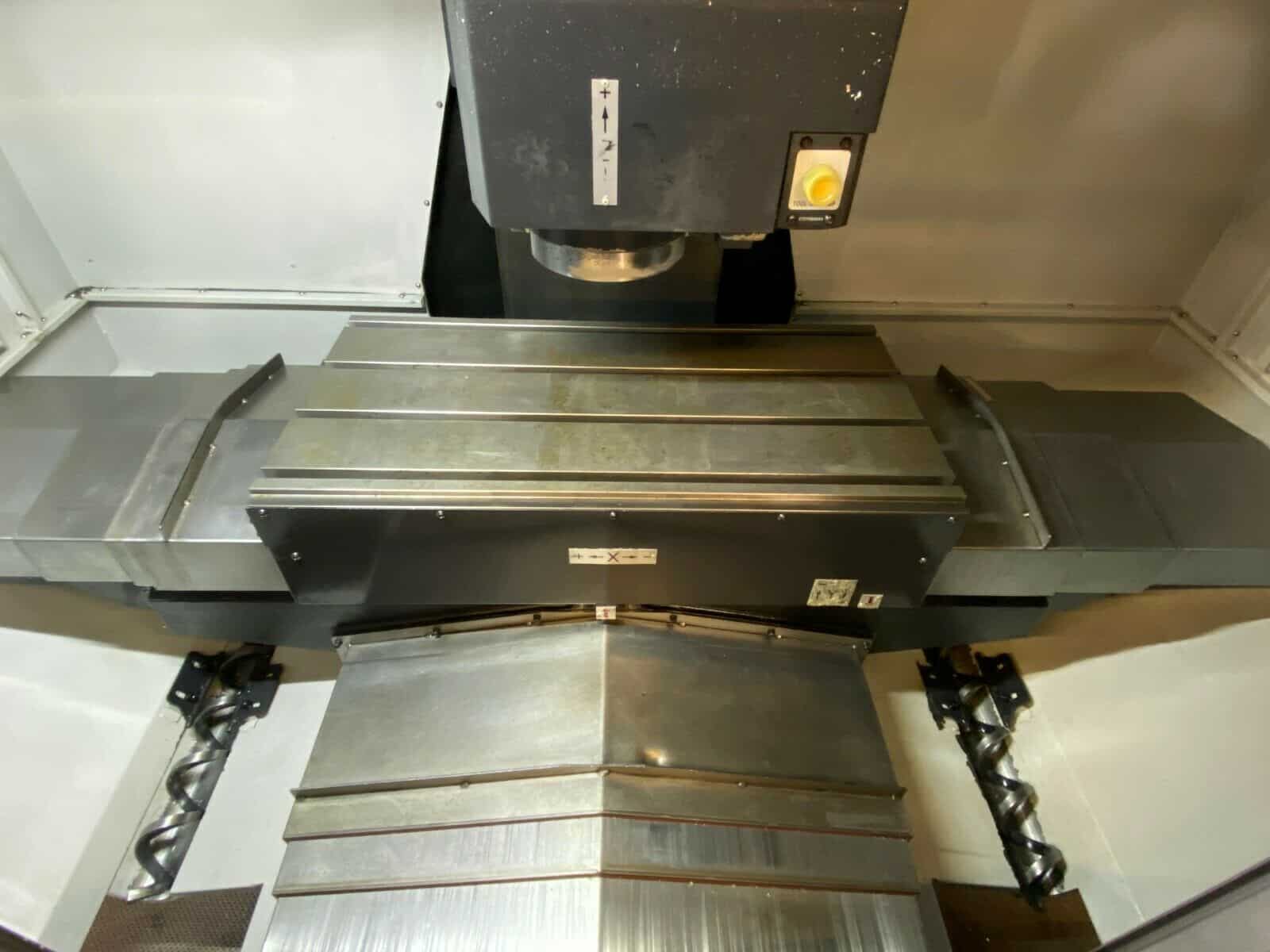

- Dual Chip augers
- Levelling Pads
- Brand New Chip Conveyor
-
Daewoo Doosan DNM-400II Specifications:
- Travels:
- X-Axis: 30.2″
- Y-Axis: 17.1″
- Z-Axis: 20.1″
- Spindle Nose to Table (Min.- Max.): 5.91″ – 24.25
-

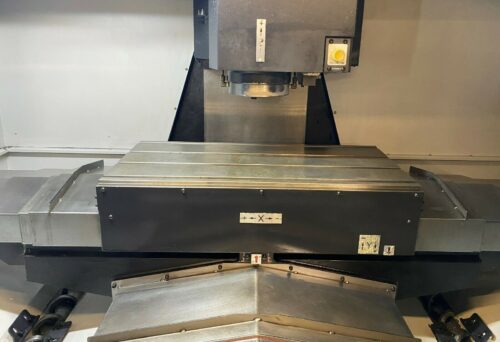

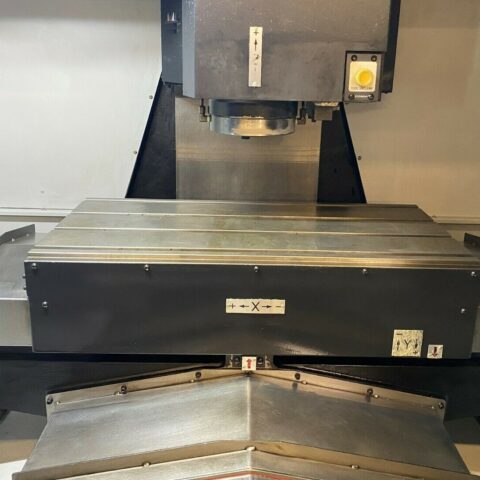

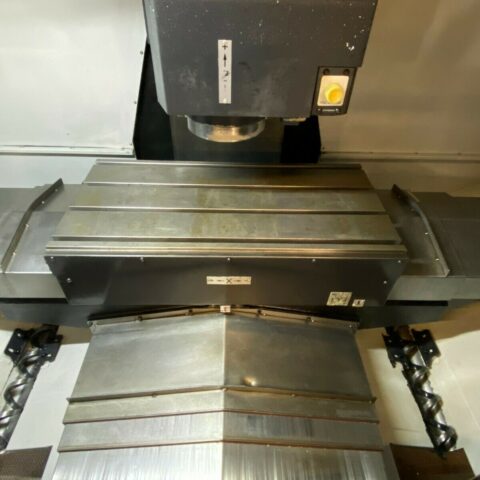

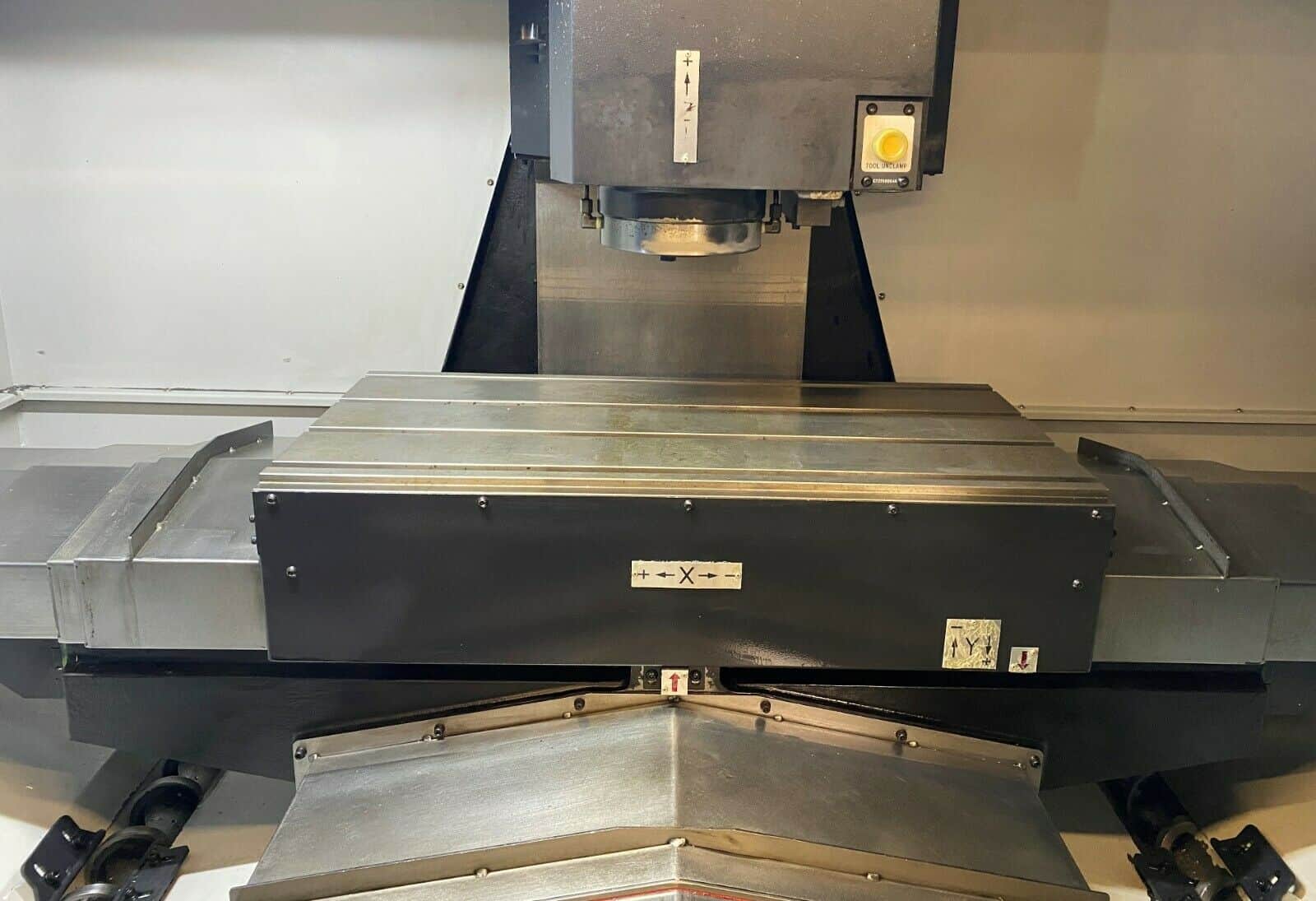

Table:
- Length: 36.2″
- Width: 17.37″
- Number of Std T-Slots: 4
- T-Slot Width: 5/8″
- Max Weight on Table: 1300 lbs
-

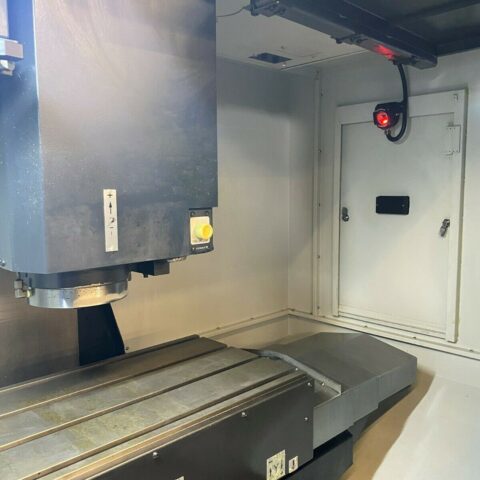

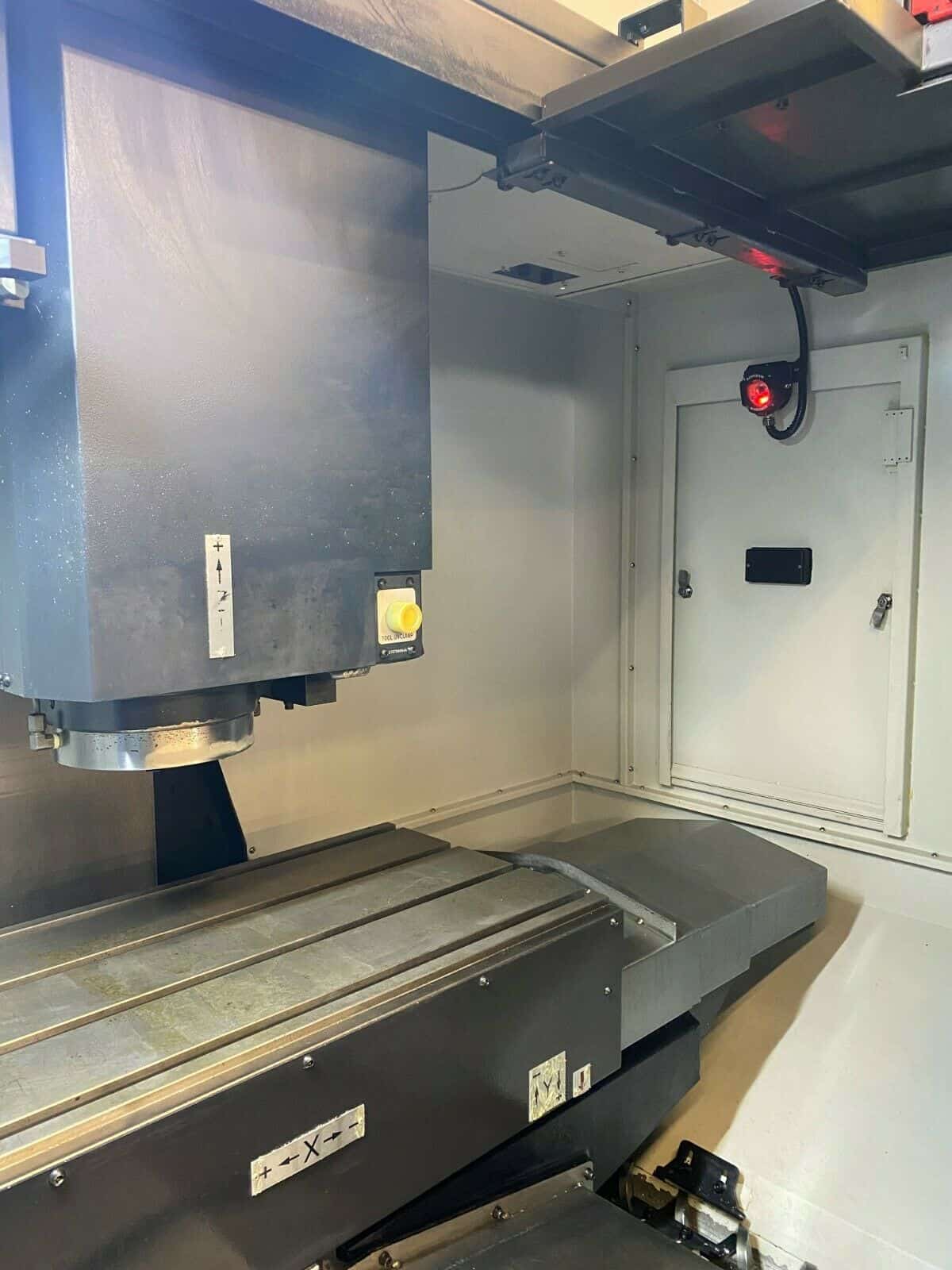

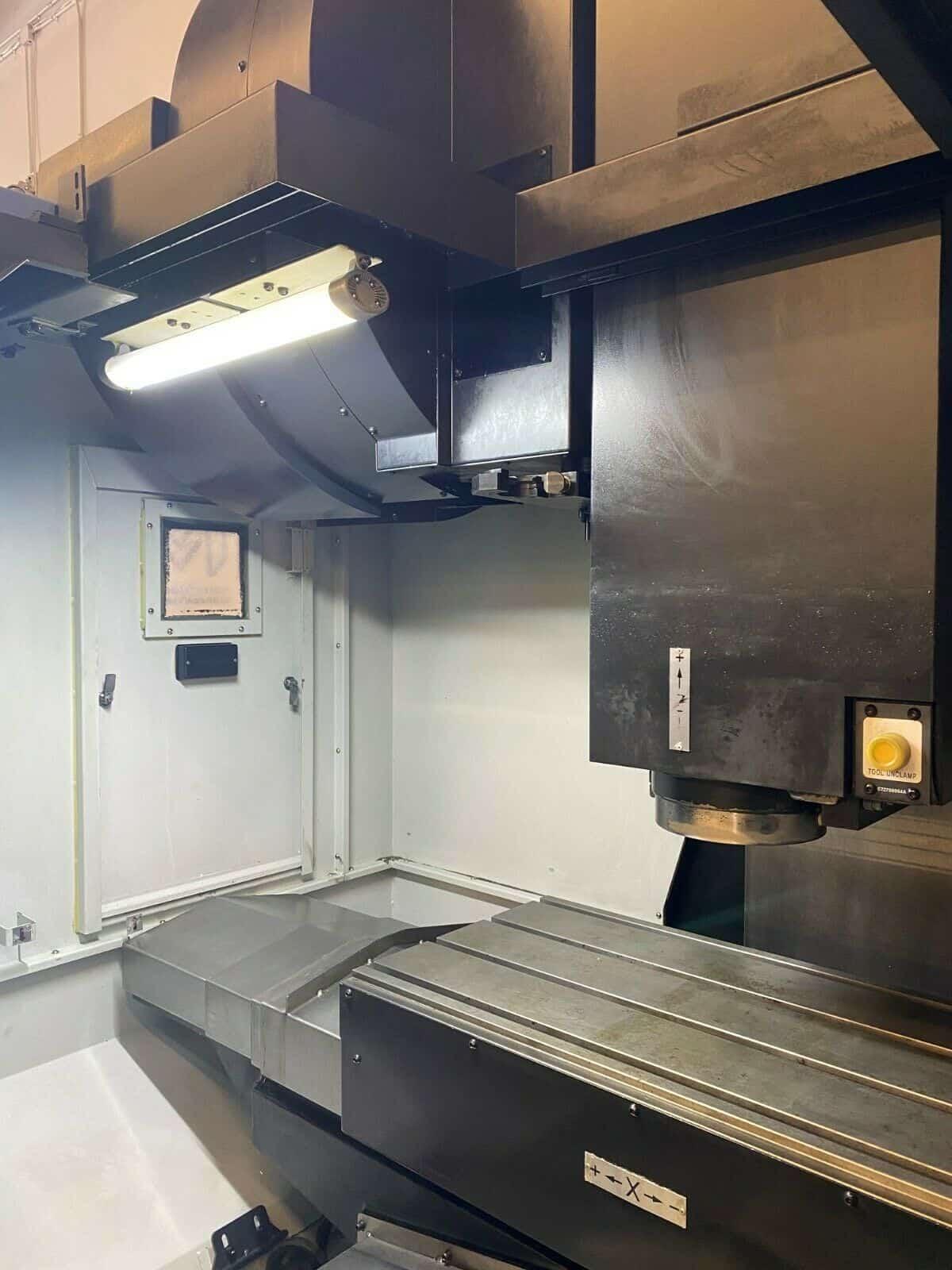

Spindle:
- Spindle: Taper Size: 40
- Speed Range: 0 – 8,000 RPM
- Spindle Type: Belt Drive
- Spindle Power: 20 HP
-
Automatic Tool Changer:
- Capacity: 30
- Tool Weight: 17.6 lbs
- Max Tool Dia: 3.54″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.3 Seconds
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 35 kva / 3-Phase
- Overall Dimensions: 120″ x 100″ x 110″ High
- Weight: 12500 lbs
