*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | TM-1 |
| Year: | 2005 |
| Machine Type: | CNC Toolroom Mill |
| CNC Control: | Haas CNC Control |
| Equipped With: |
|---|
| Haas CNC Control |
| T-Slot Table |
| Manual Tool-Changing Setup |
| Spindle Head |
| Coolant Hose/Nozzle |
| Chip Splash Guards |
| Operator Control Panel with Handwheel |
| Emergency Stop |
| Chip Protection |
| Table: |
|---|
| Table Type: T-Slot Table |
| Table Length: 47.8″ |
| Table Width: 10.5″ |
| Number of T-Slots: 3 |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 16″ |
| Spindle Nose to Table: 4″–20″ |
| X/Y/Z-Axis Rapid Traverse: 200 IPM |
| Spindle: |
|---|
| Spindle Taper: CT40 |
| Maximum Spindle Speed: 4,000 RPM |
| Spindle Power: 7.5 HP |

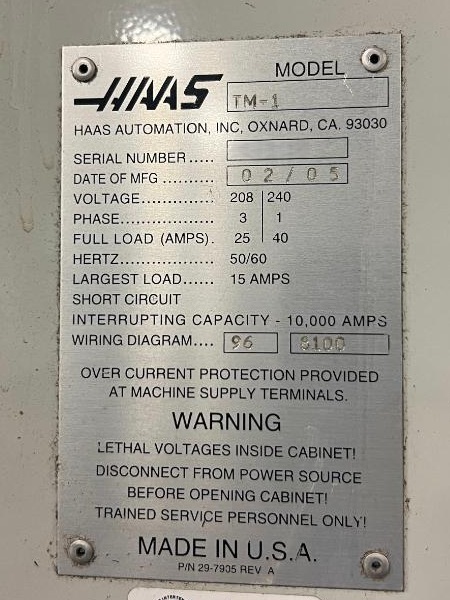

| Electrical: |
|---|
| Voltage: 208/240 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Full Load: 25 A at 208 V |
| General: |
|---|
| Machine Weight (Approx.): 4,440 lbs |
