*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

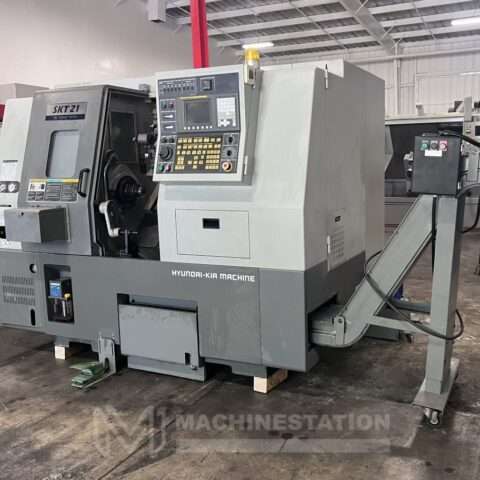

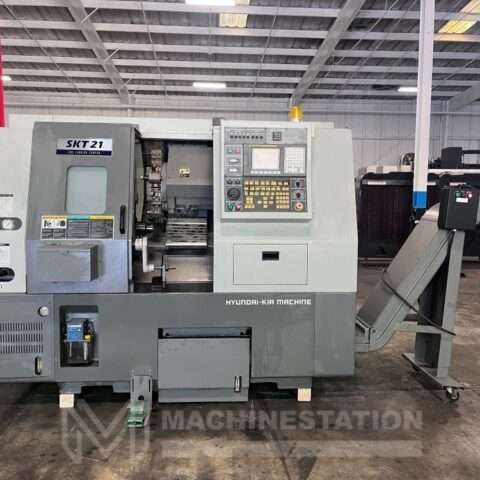

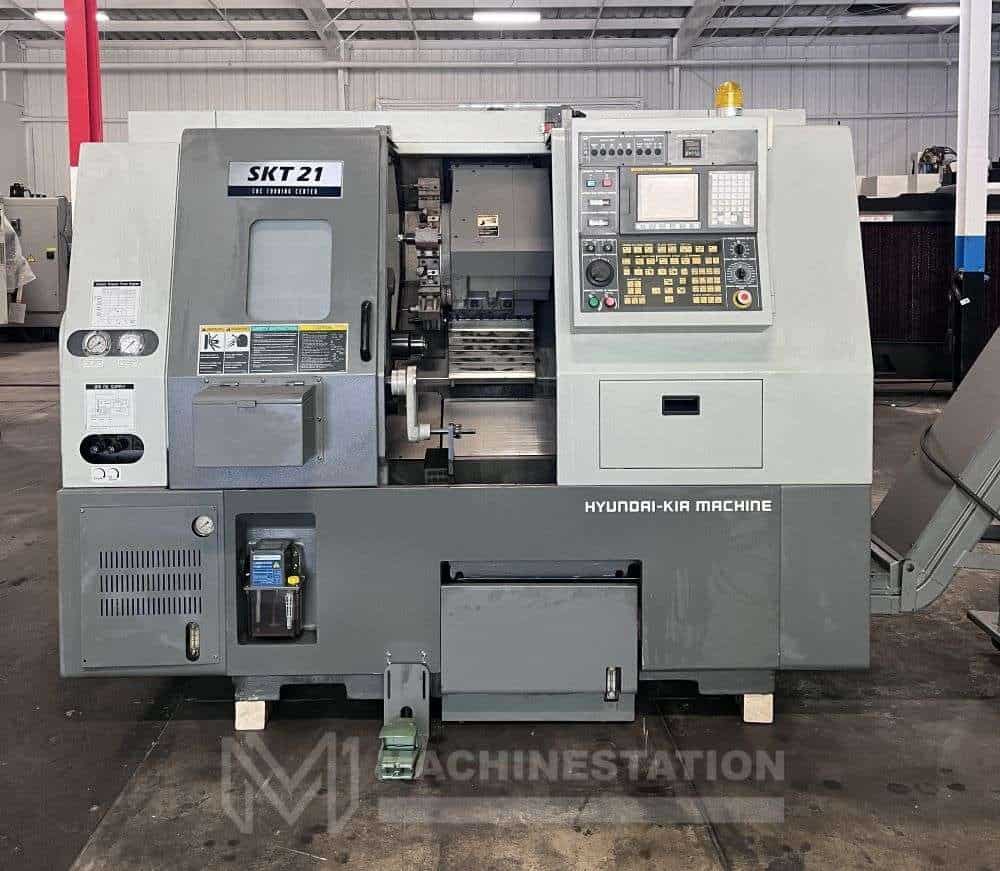

| Make: | Hyundai Kia |

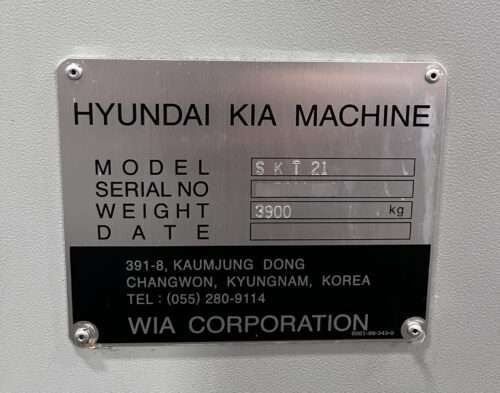

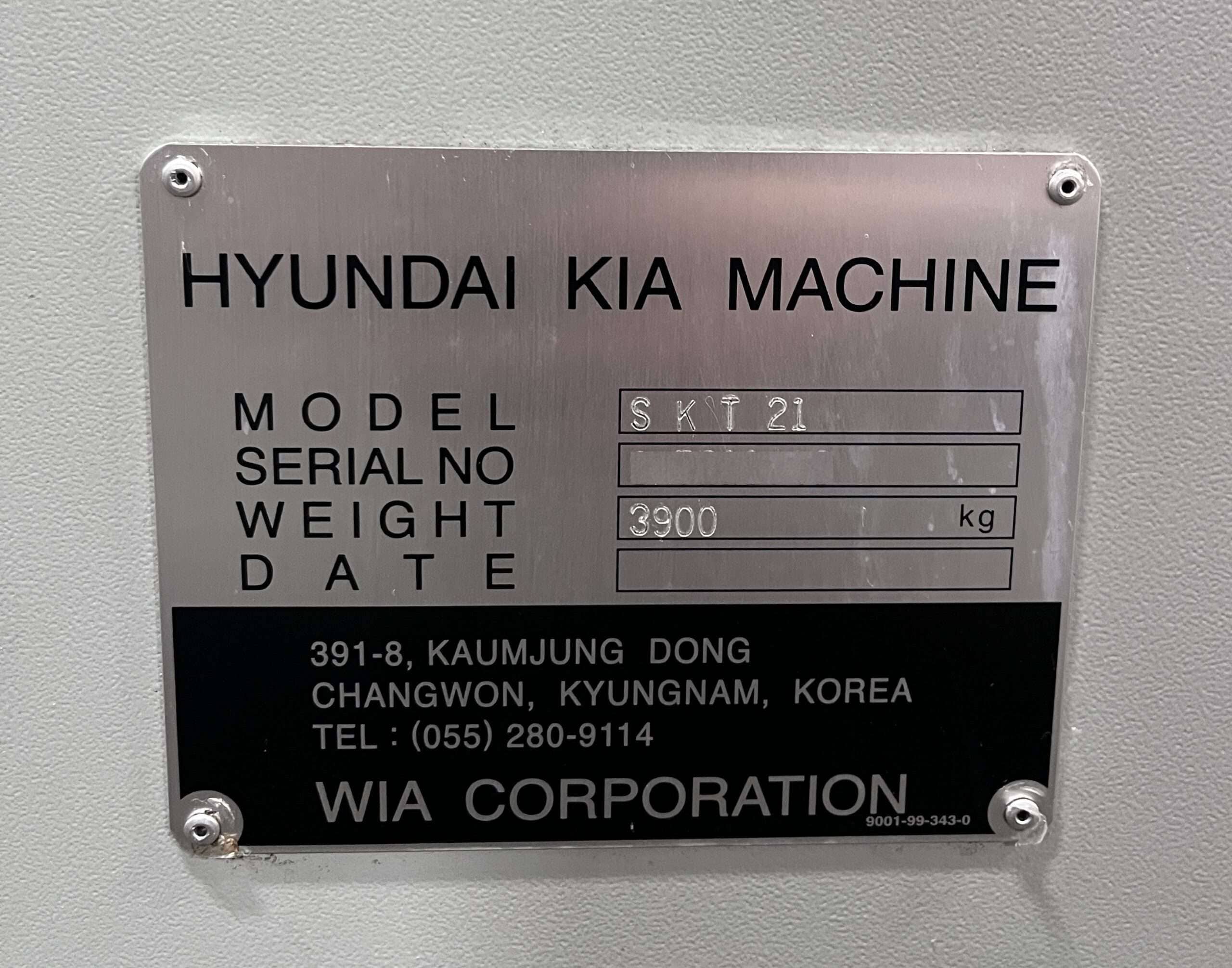

| Model: | SKT-21 |
| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

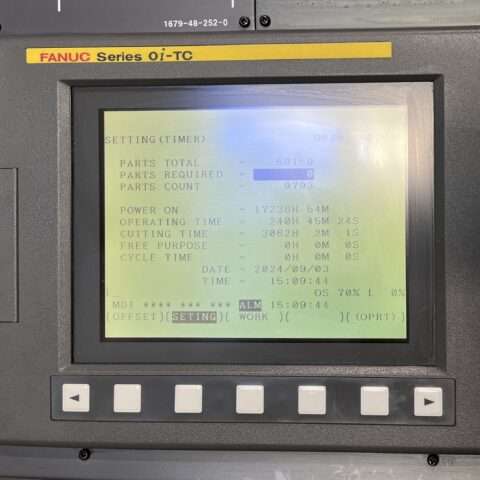

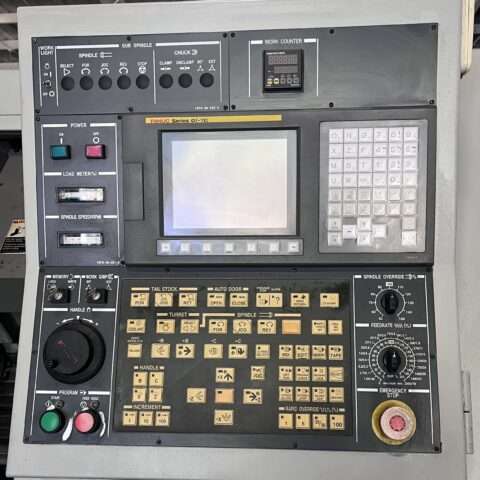

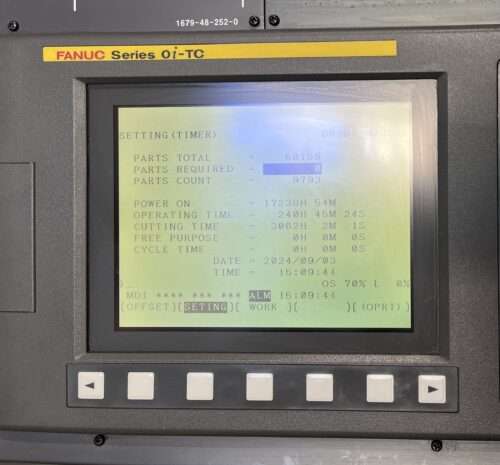

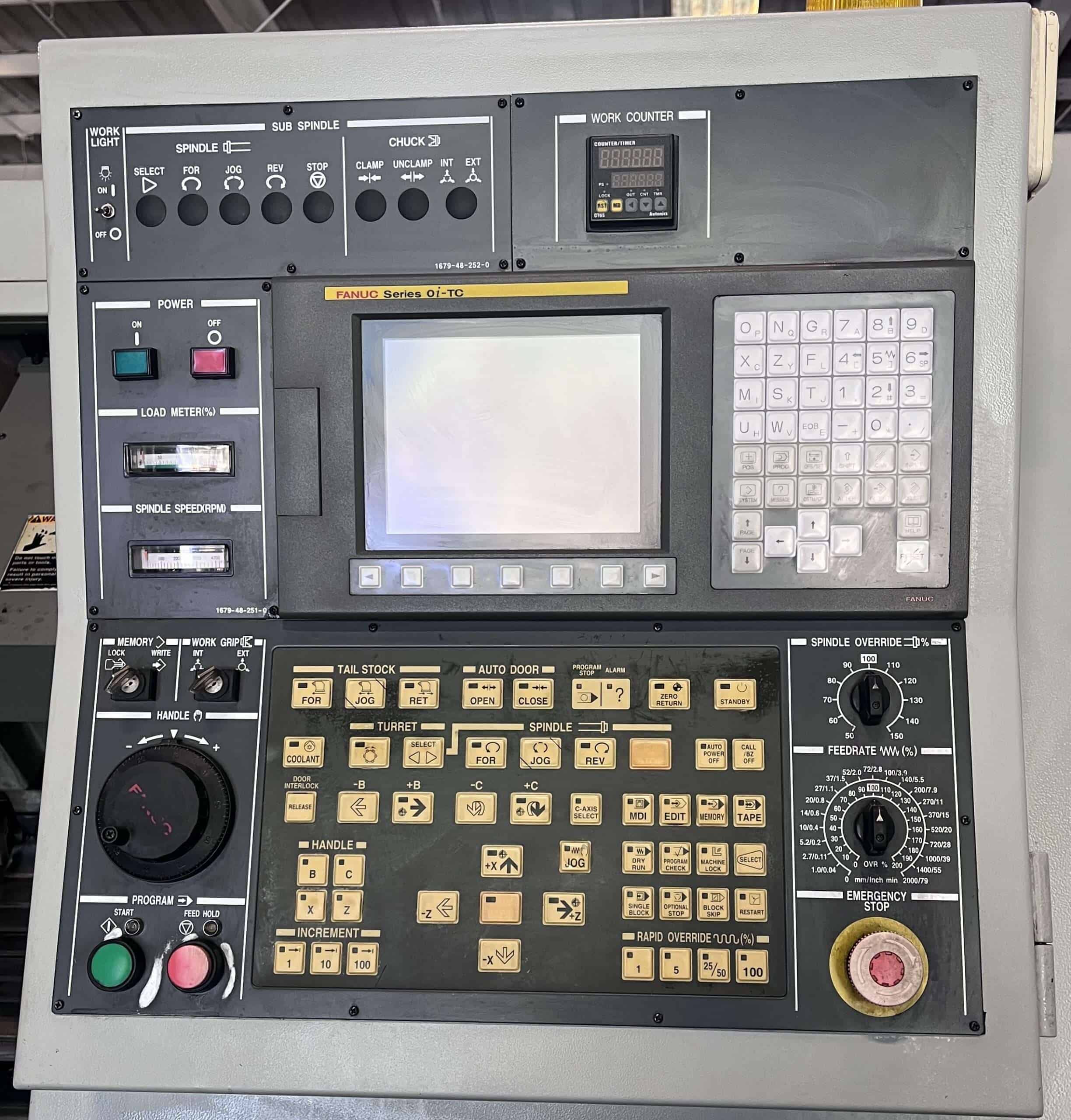

- Fanuc 0i-TC CNC Control

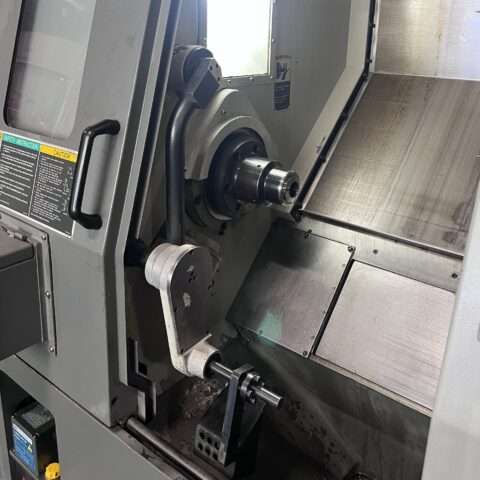

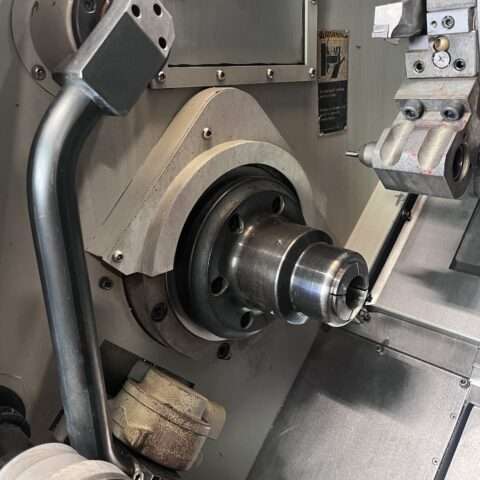

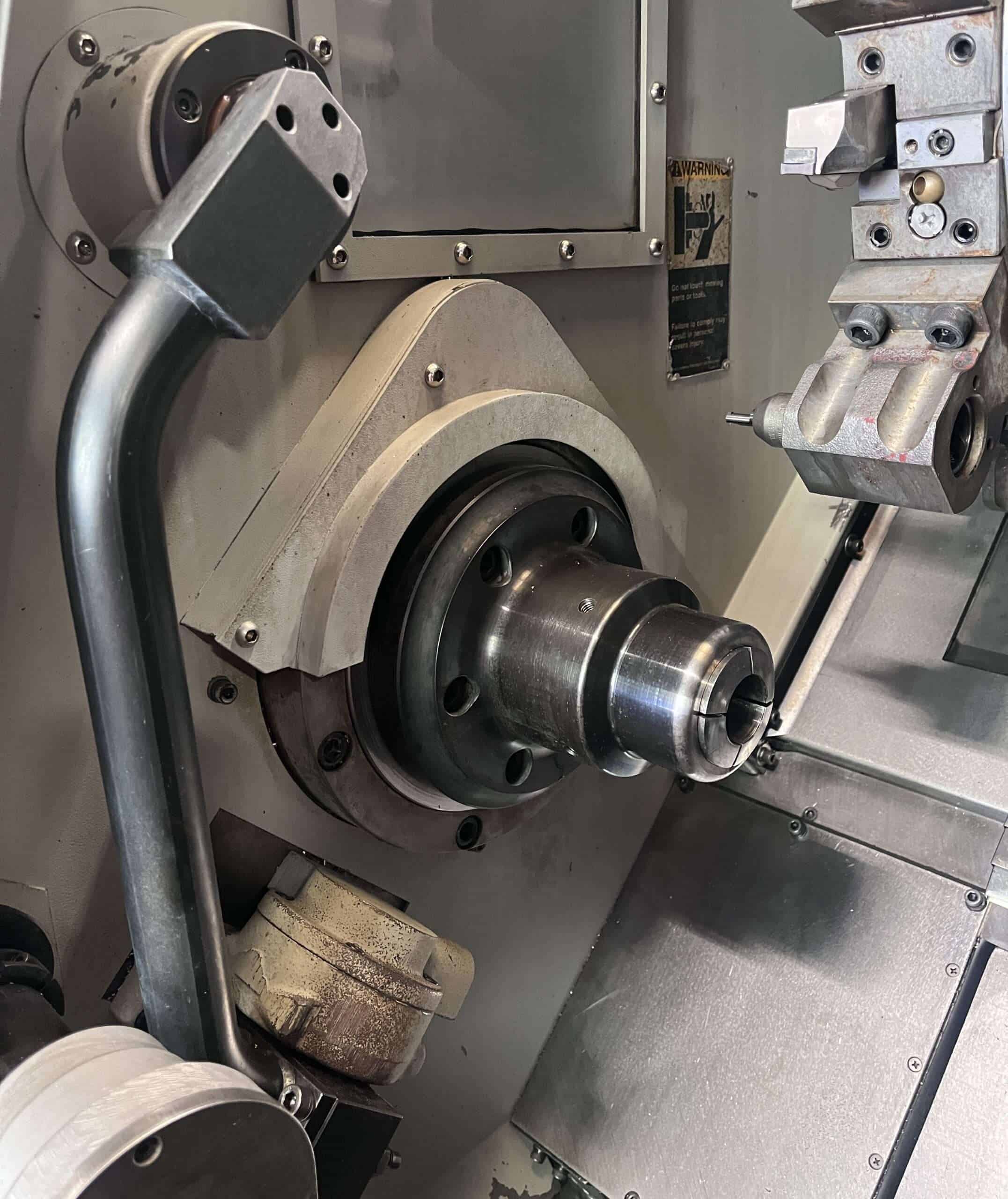

- Collet Chuck ( 8″ Chuck Capable)
- A2-6, 4000 RPM Spindle

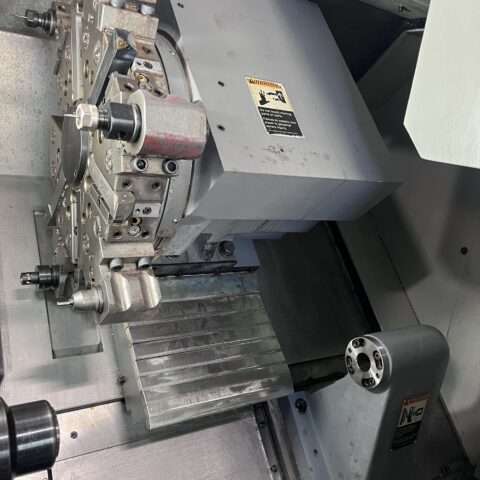

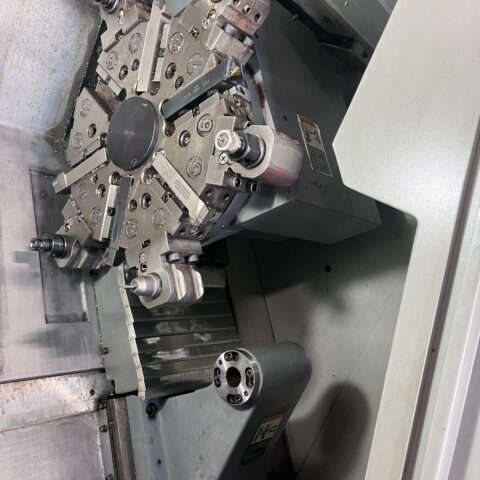

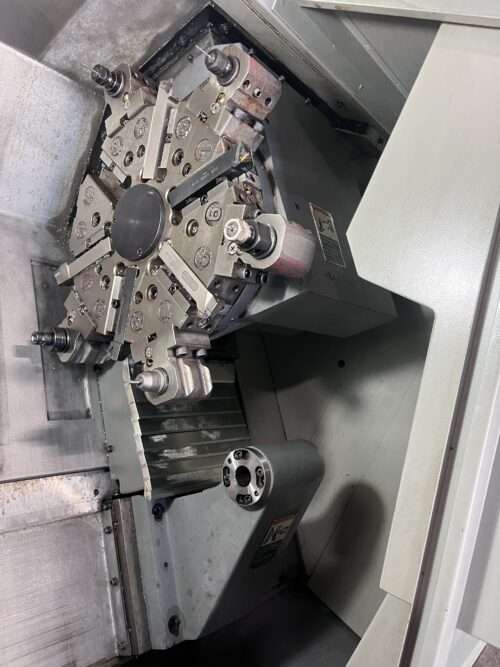

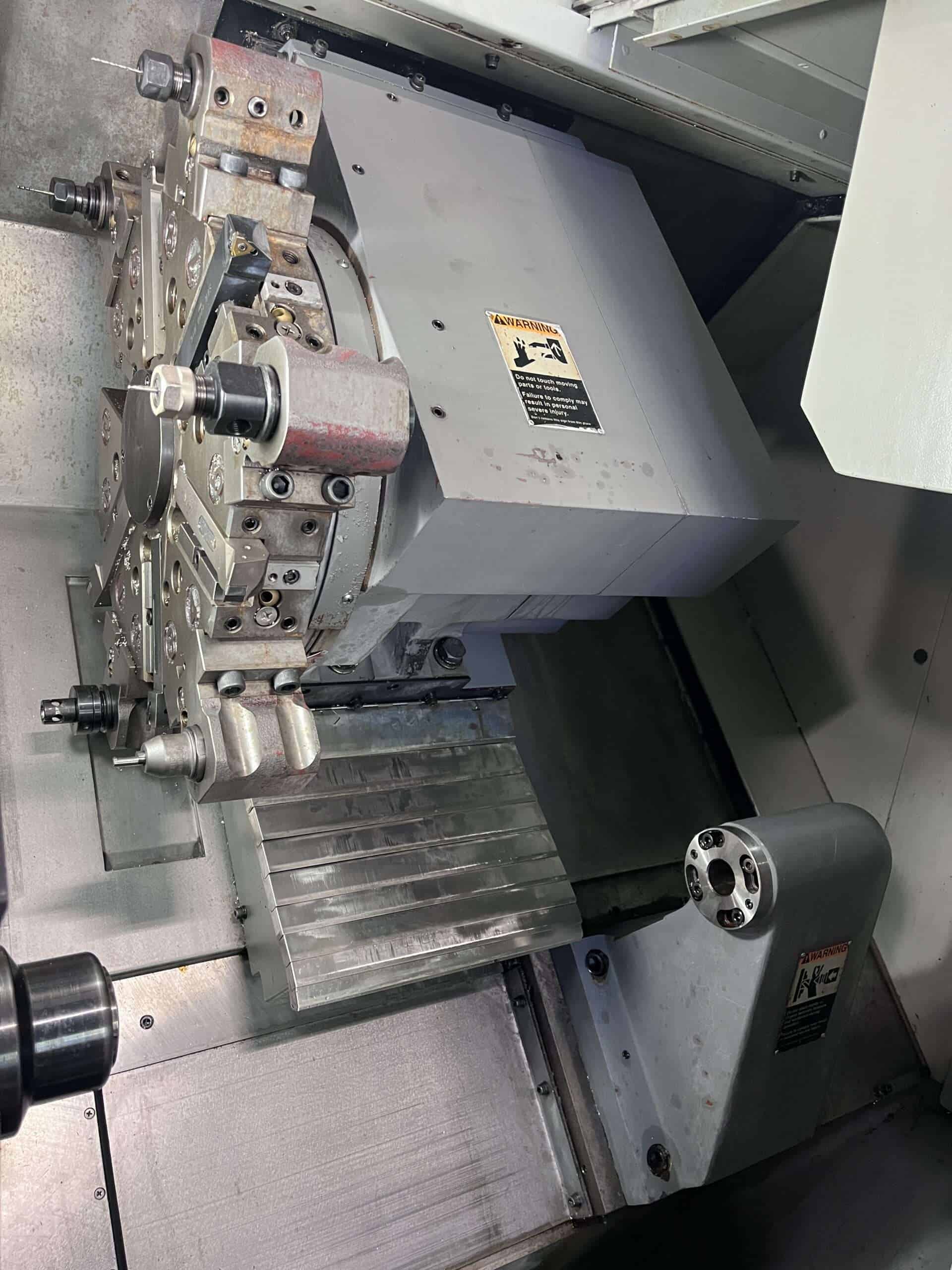

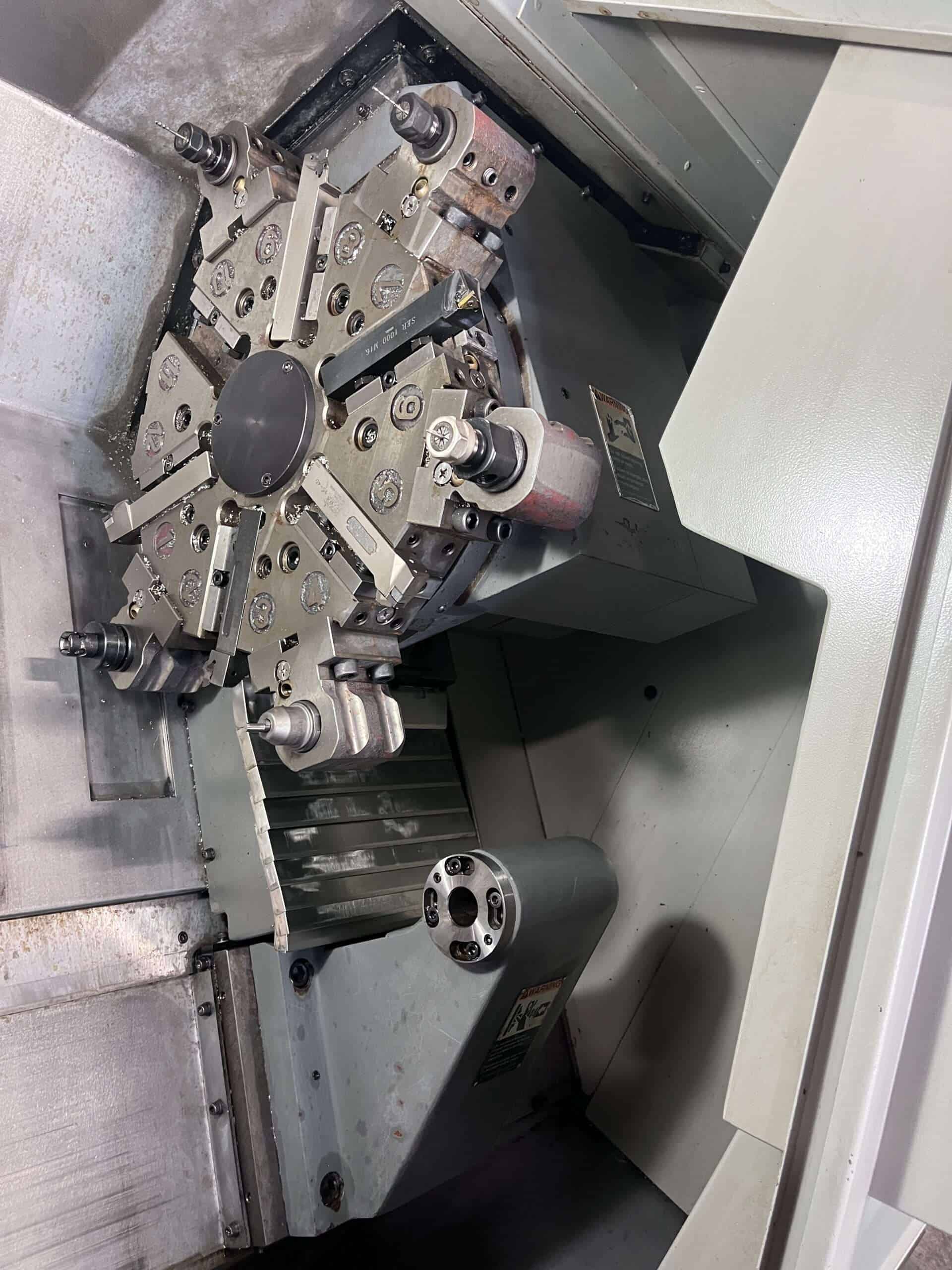

- 12 Station Automatic Turret
- Parts Catcher

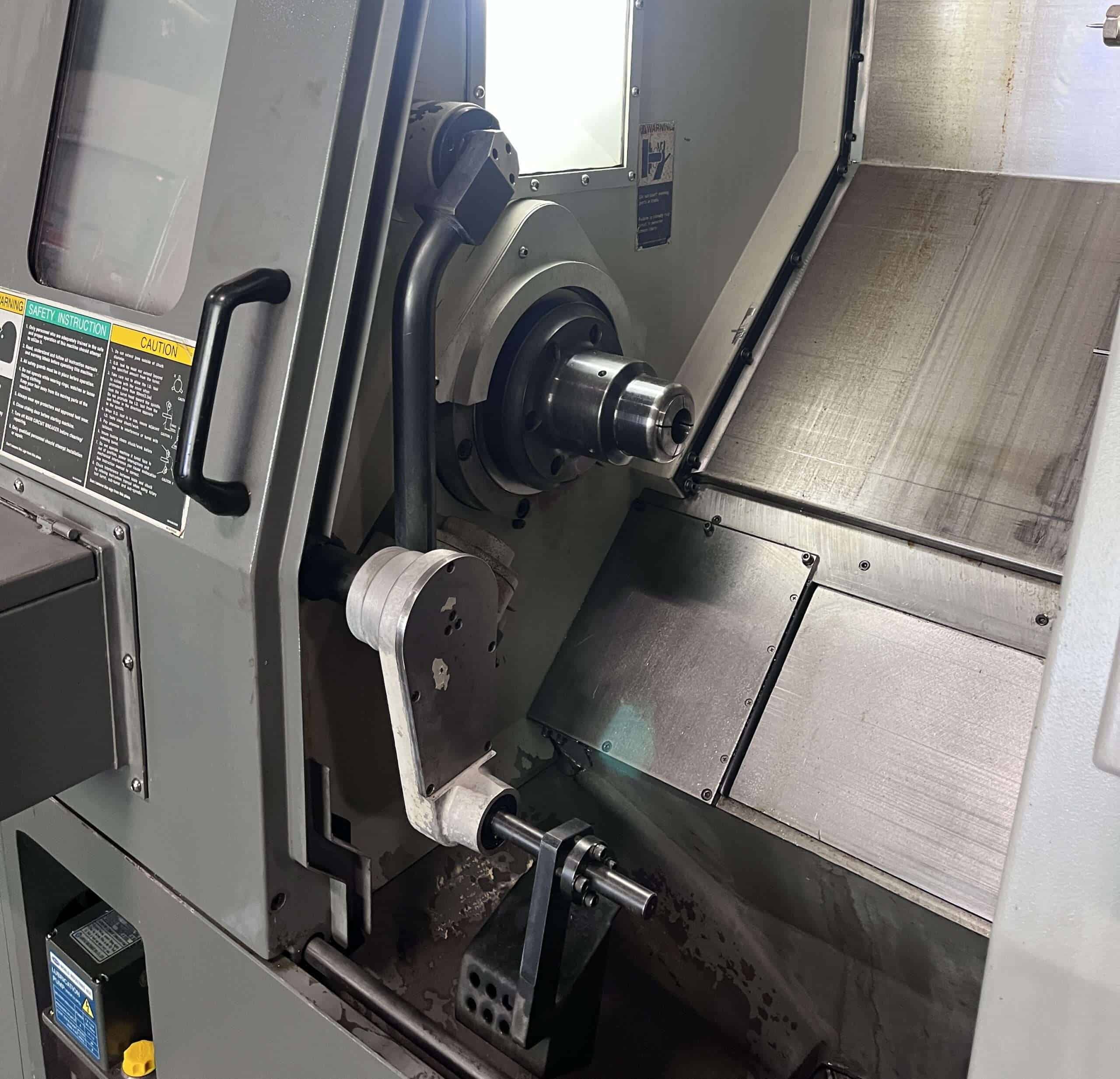

- Tool Presetter
- Rigid Tapping
- Spindle Orientation

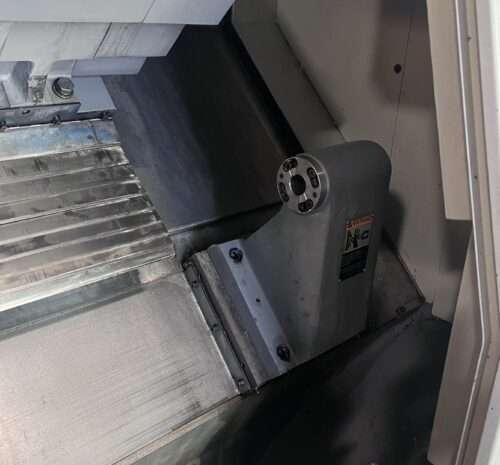

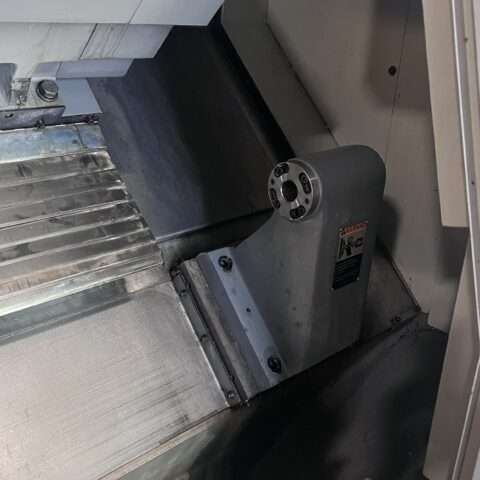

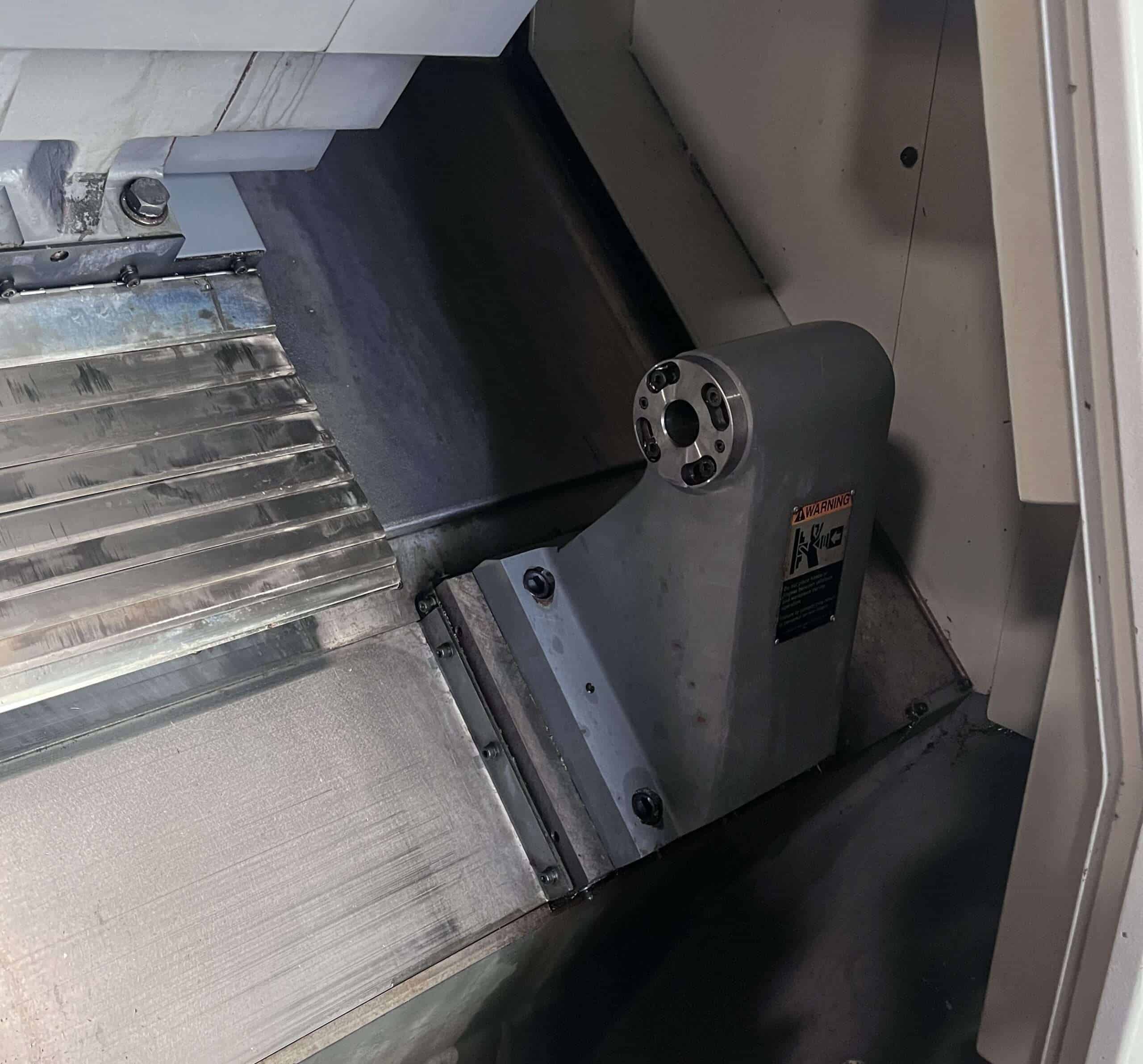

- Hydraulic Programmable Tailstock
- PCMCIA Card Interface
- USB Port
- Foot Switch
- Coolant System

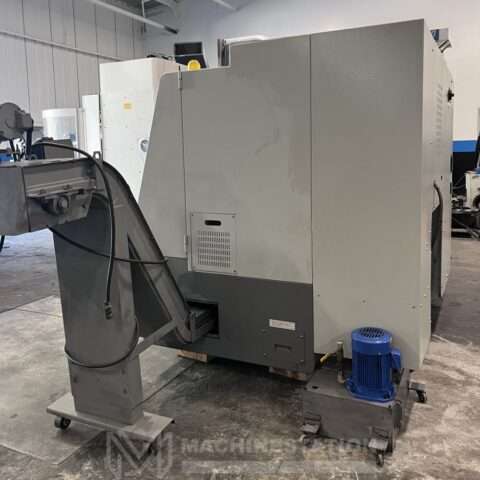

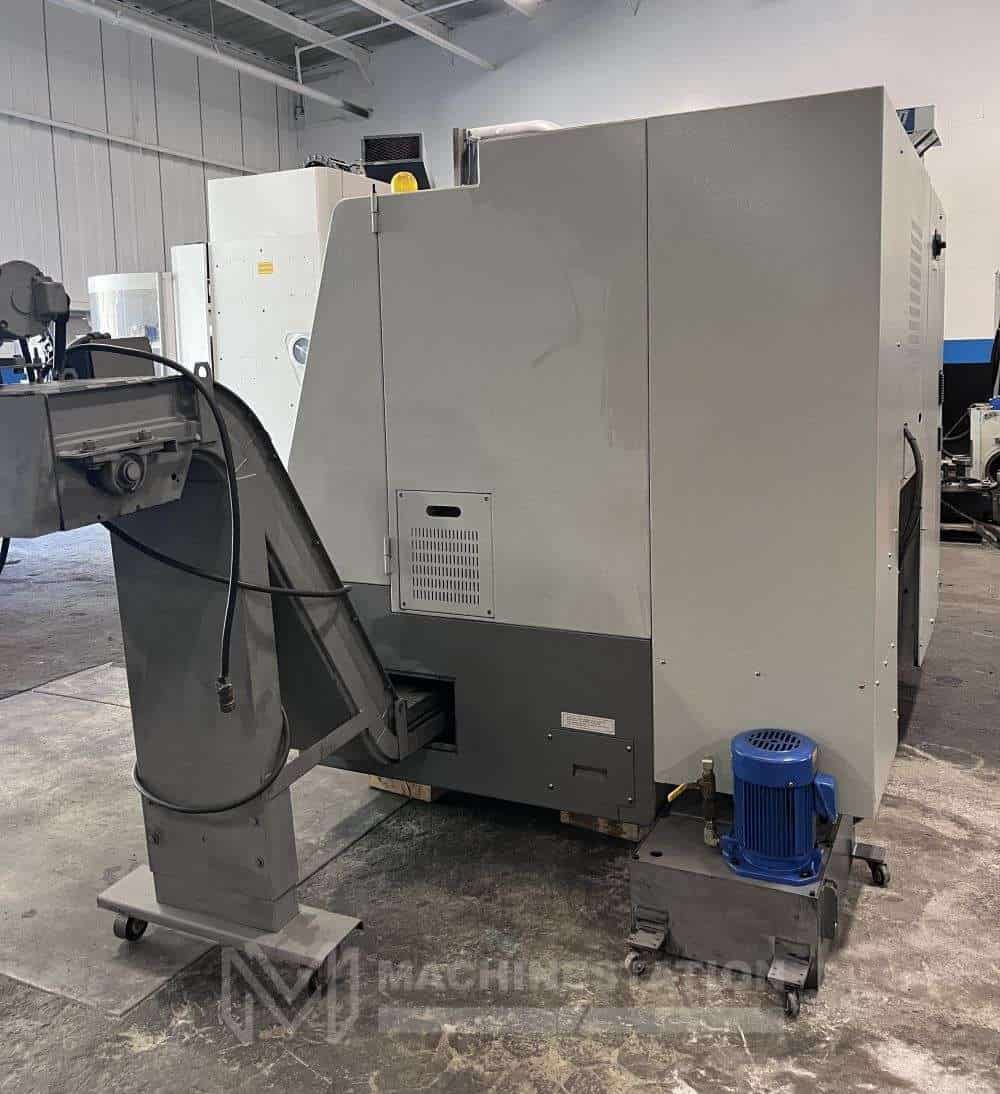

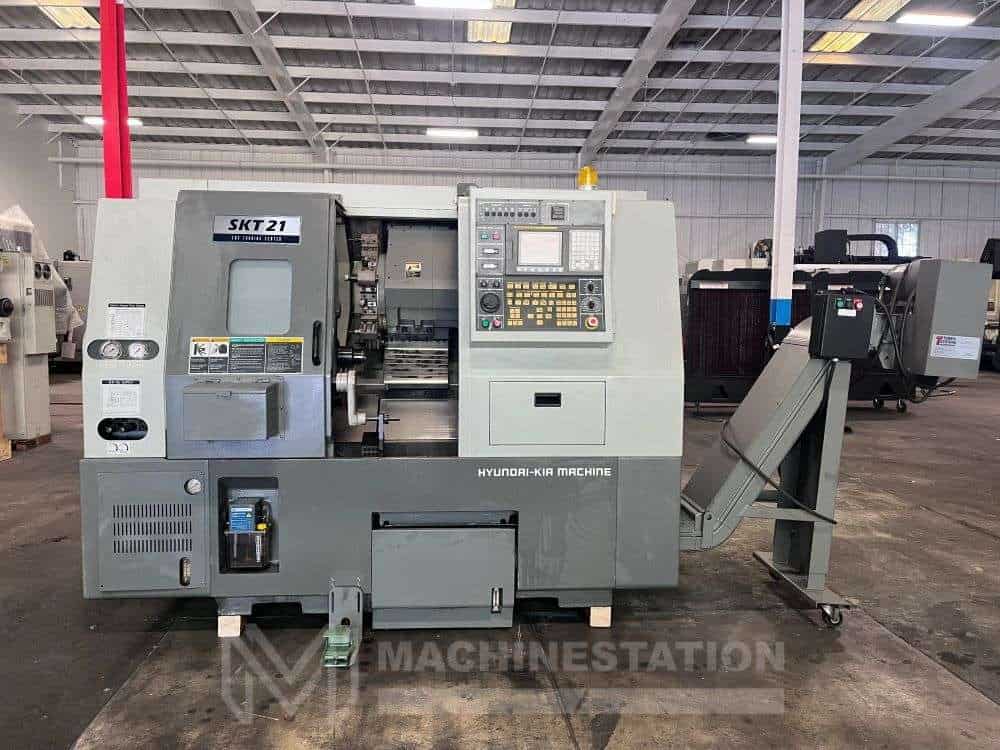

- Chip conveyor
- Automatic Lubrication System
- Books & Manuals

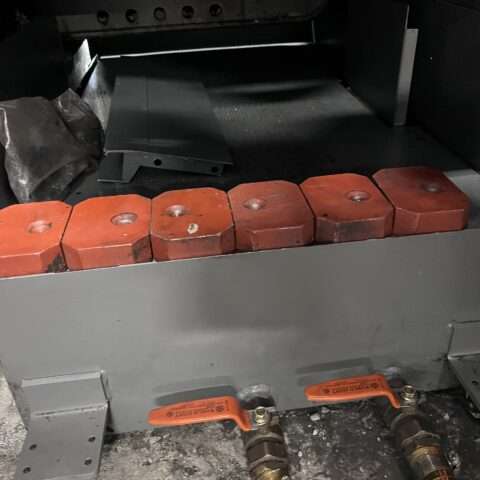

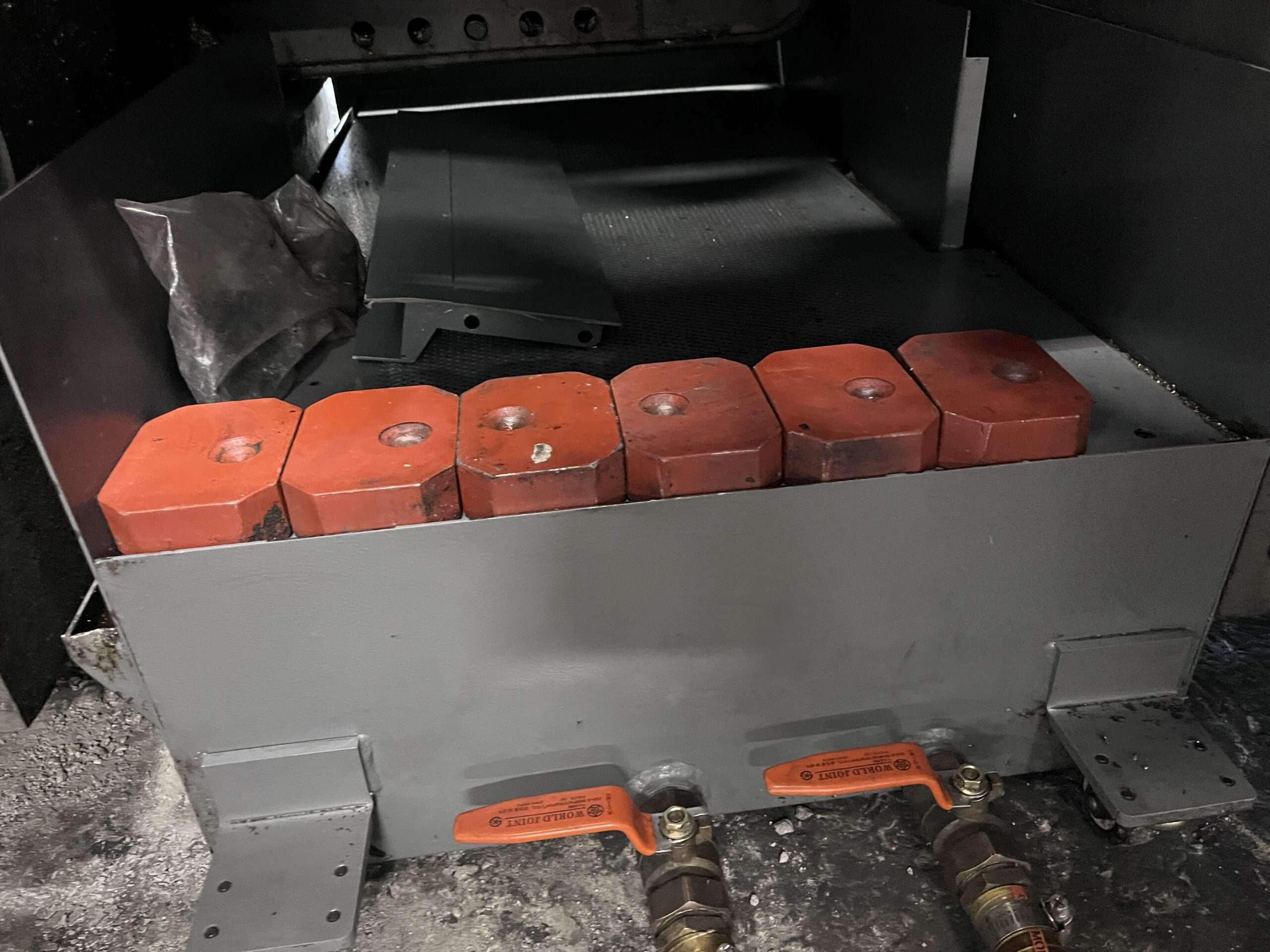

- Levelling Pads
|
| Capacity: |
|---|
- Max Turning Diameter: 13.80″
- Max Turning Length: 16.14″
- Max Bar Capacity: 2.56″
- Swing Over Bed: 21.65″
- Max Swing Over Slide: 13.80″
|
| Travels: |
|---|
- X Axis Travel: 8.70″
- Z Axis Travel: 16.92″
- Rapid Traverse X Axis: 1417 IPM
- Rapid Traverse Z Axis: 1417 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Bore: 2.90″
- Spindle Speed: 4000 RPM
- Spindle Motor: 20 hp
|
| Turret: |
|---|
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
|
| Tailstock: |
|---|
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.75″
- Tailstock Quill Travel: 3.15″
|
| General: |
|---|
- Power: 25 kva, 220v / 3-Phase
- Overall Dimensions: 94.68″ x 64.96″ x 73.62″ High

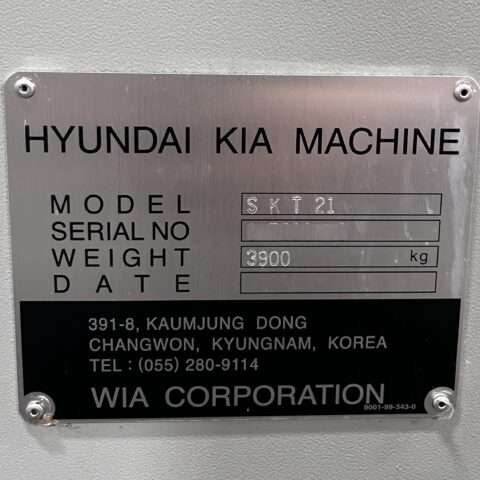

- Weight: 8,600 lbs
|
