*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai WIA |
| Model: | KF-5600C |
| Year: | 2019 |
| Condition: | Used – Good |
| Machine Type: | 4-Axis CNC Vertical Machining Center |

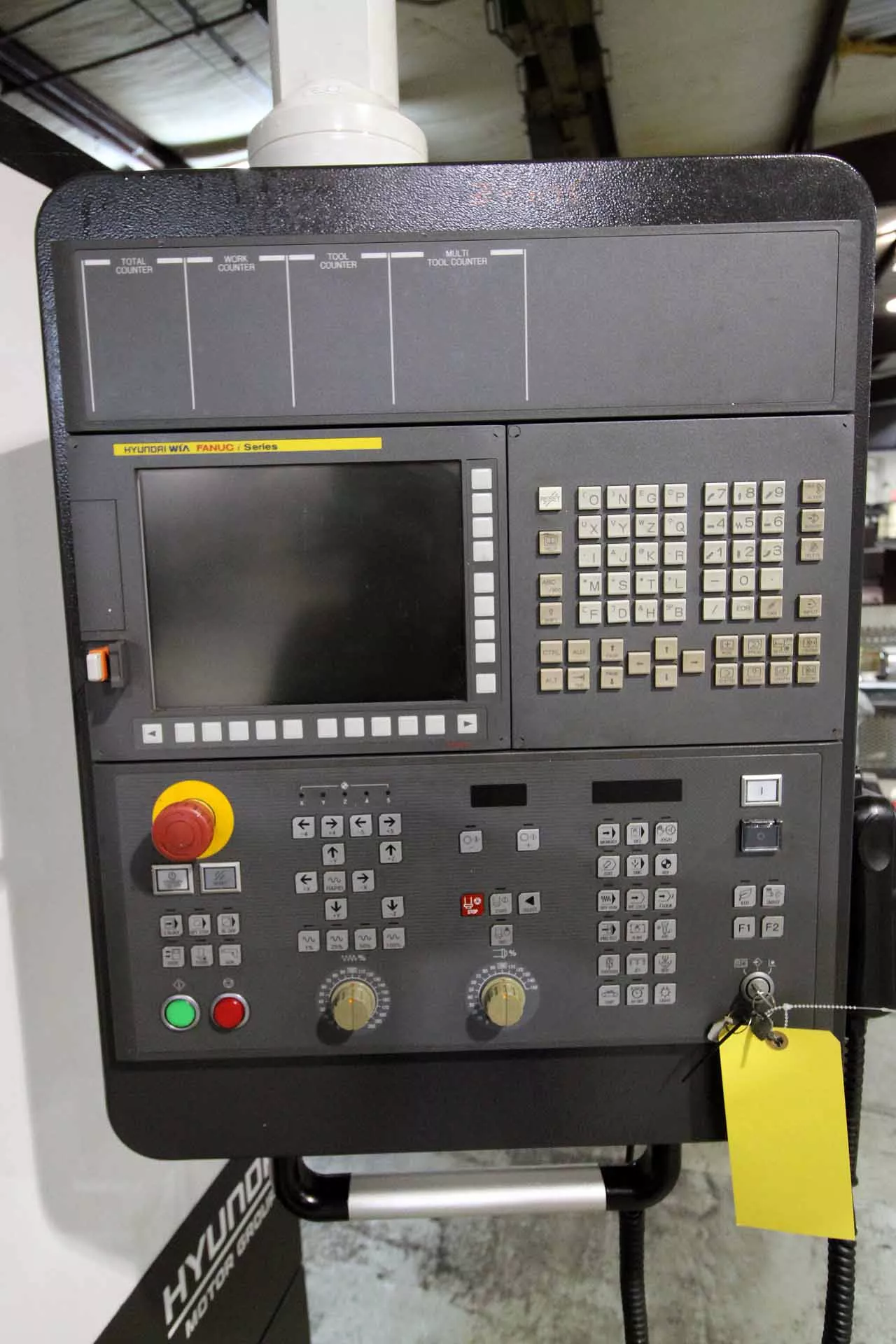

| Control: | Fanuc i-Series CNC Control |
| Country of Origin: | South Korea |
| Features: |
|---|
| Fanuc i-Series CNC Control |
| Nikken 4th Axis with 8″ 3-Jaw Chuck |

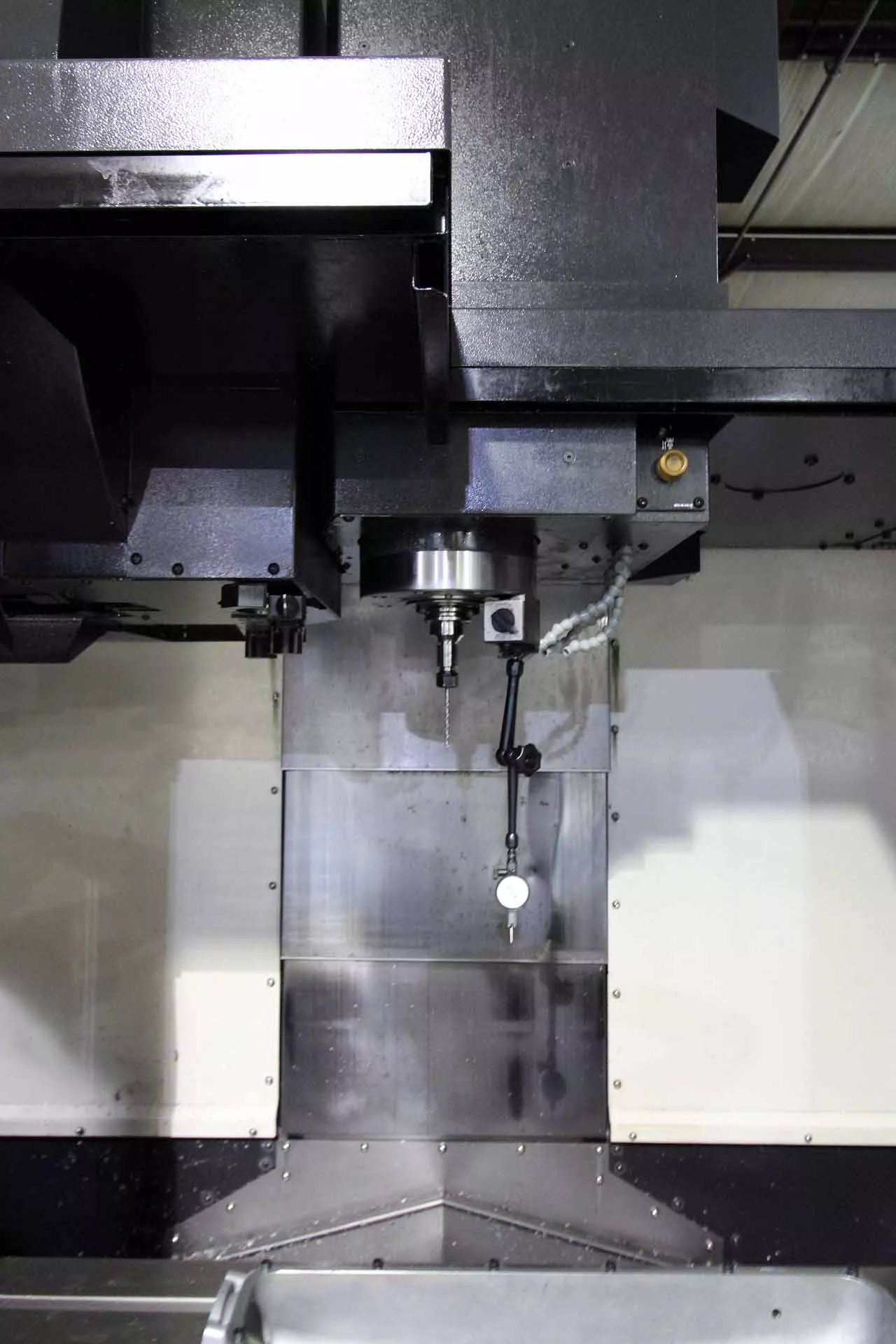

| 12,000 RPM Spindle |
| CAT 40 Spindle Taper |
| 30 Position Automatic Tool Changer |
| Renishaw Probe System |
| Tool Touch-Off System |
| High-Pressure Through Spindle Coolant |
| Jet Master Coolant System |
| Coolant Chiller |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|

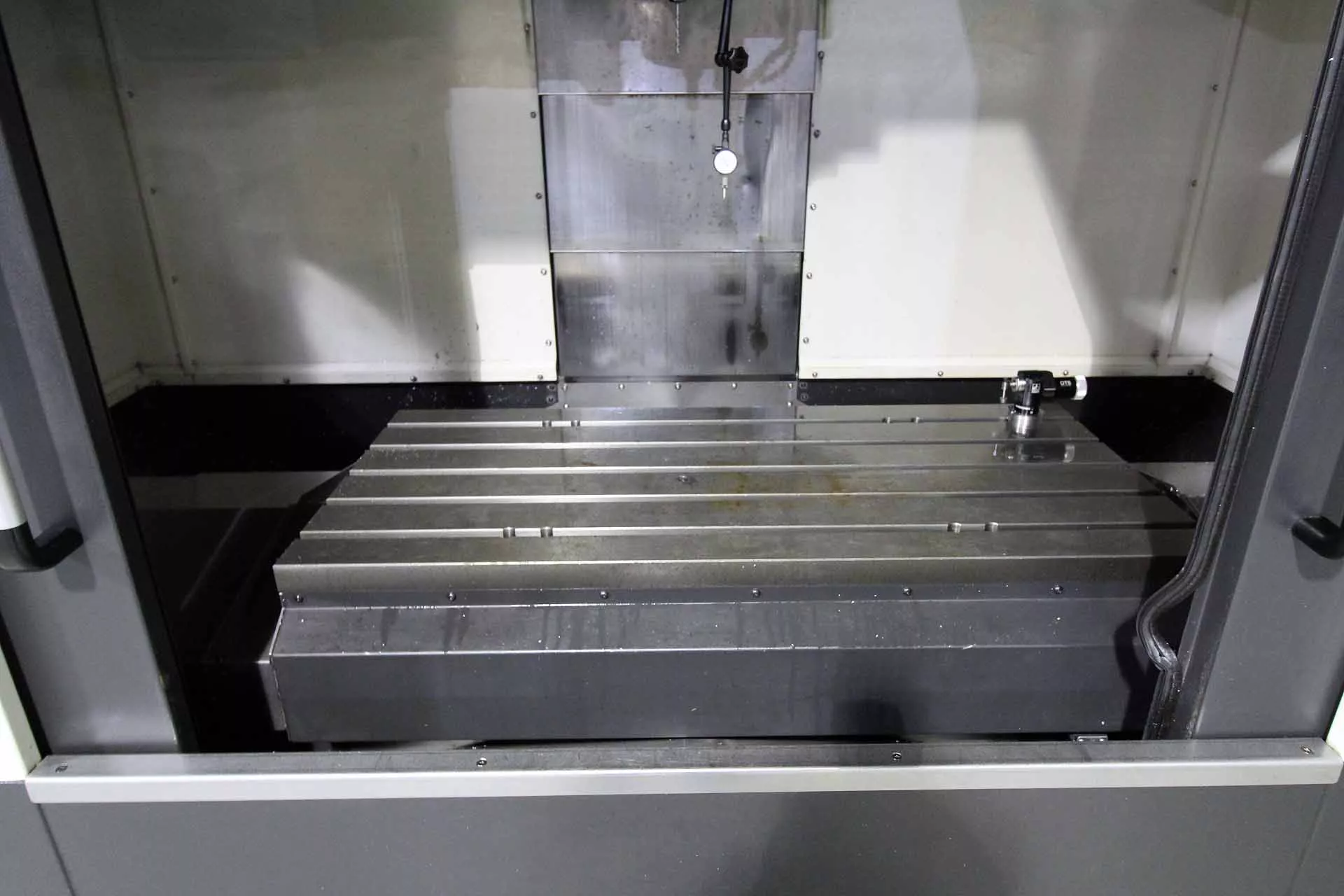

| Table Size: 49.2″ x 22″ |
| Maximum Table Load: Approx. 2,200 lbs |
| 4th Axis Chuck Size: 8″ |
| Travels: |
|---|
| X-Axis Travel: 43.3″ |
| Y-Axis Travel: 22″ |
| Z-Axis Travel: 25″ |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 25 HP |
| Coolant Through Spindle: High Pressure |
| Automatic Tool Changer: |
|---|
| Automatic Tool Changer Capacity: 30 Tools |
| Tool Change Type: Automatic |
| Tool Holder Type: CAT 40 |

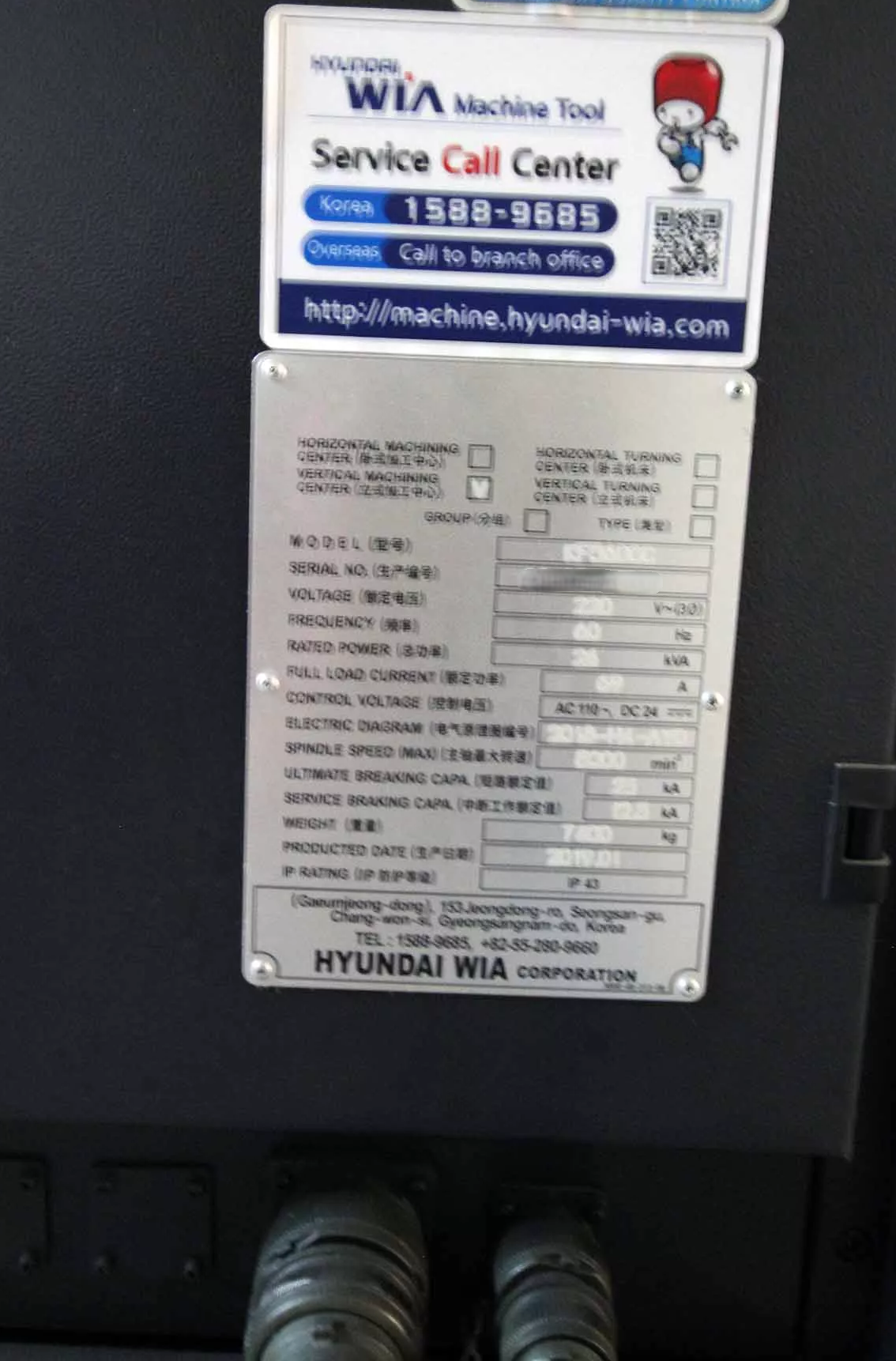

| Electrical: |
|---|
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Connected Load: Approx. 40 kVA |
| General: |
|---|
| Machine Weight: Approx. 17,000 lbs |
| Machine Dimensions: Approx. 130″ x 110″ x 115″ |
