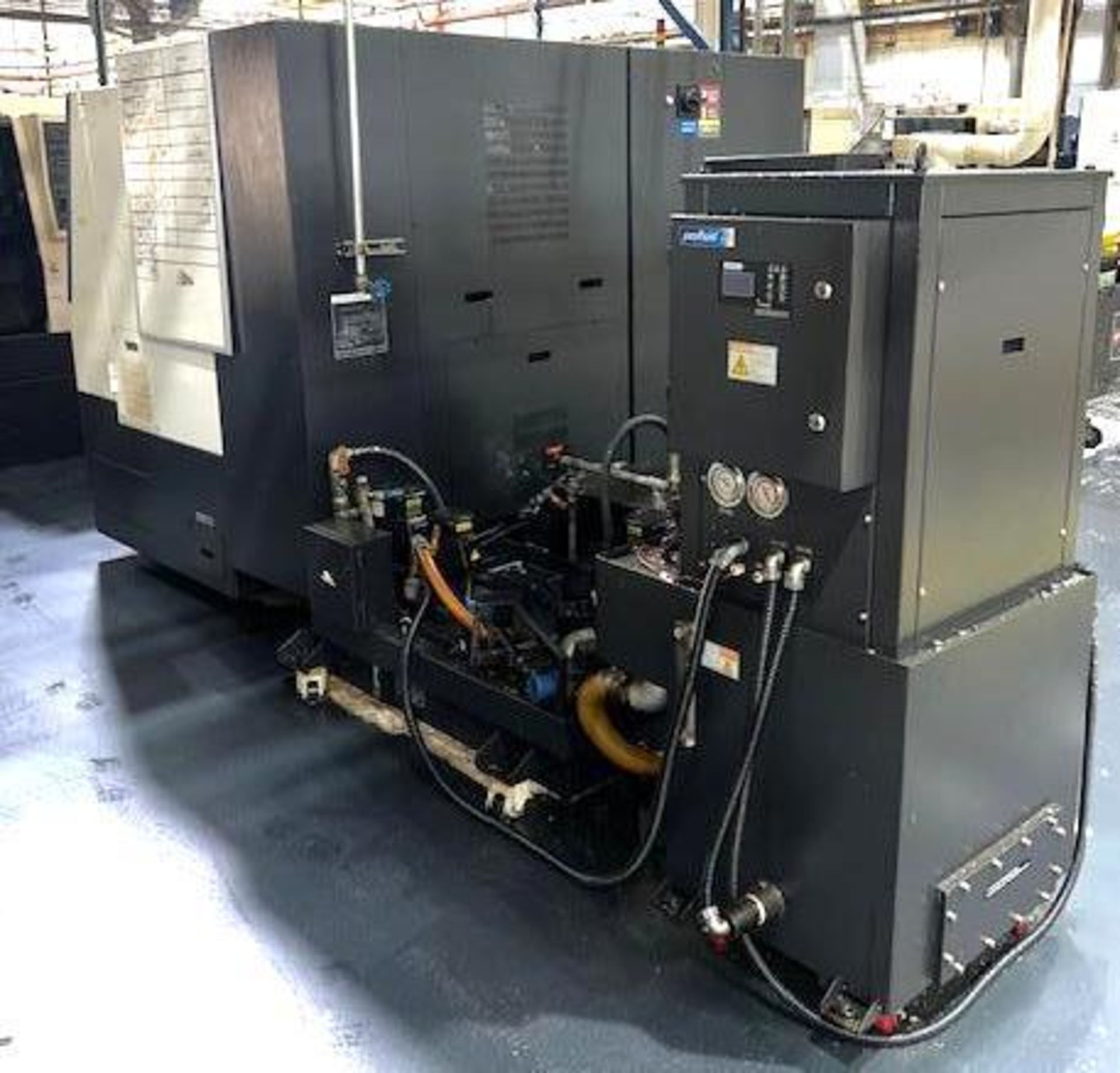

Hyundai Wia L-200SY (3)

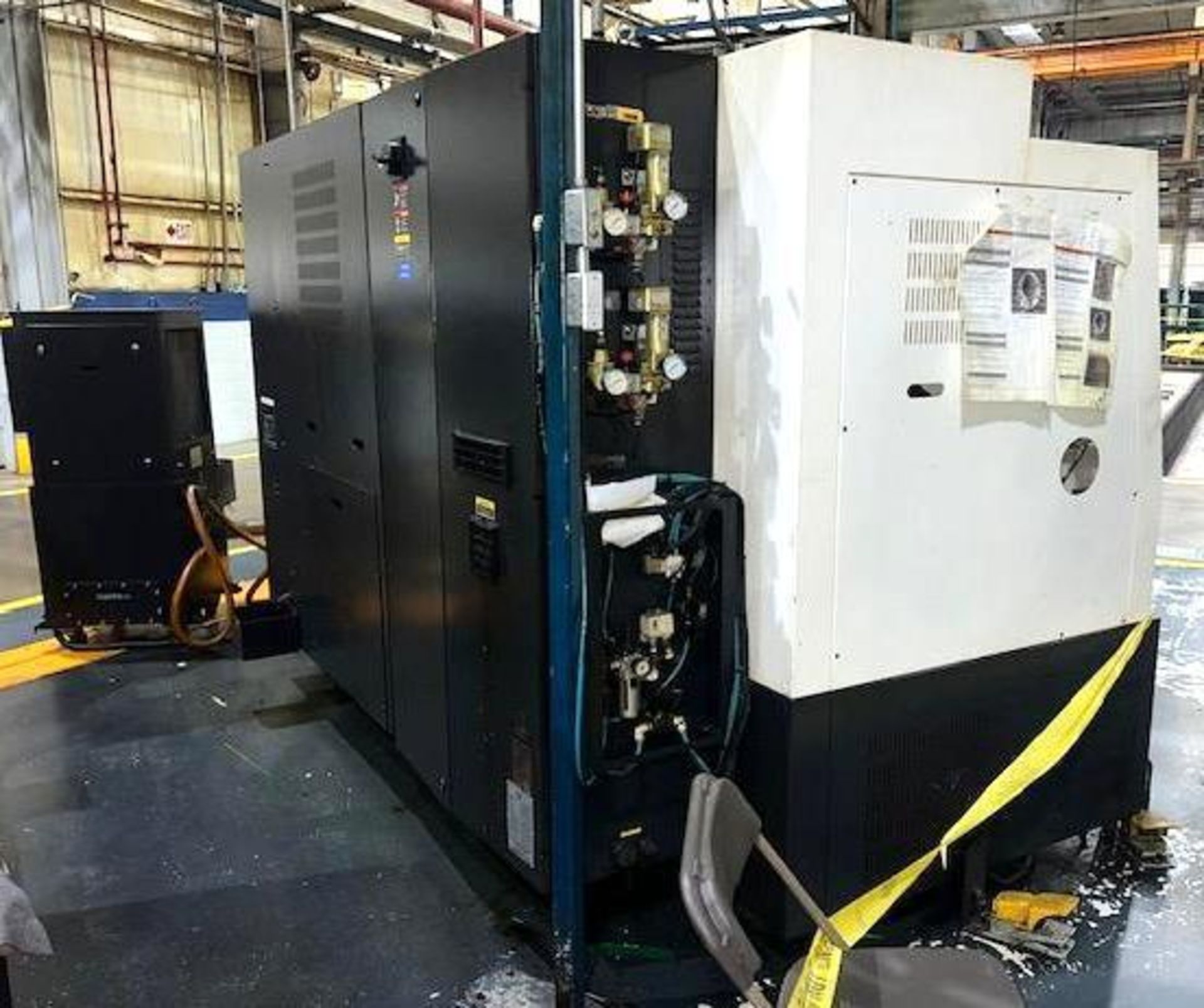

Hyundai Wia L-200SY (4)
Hyundai Wia L-200SY (5)

Hyundai Wia L-200SY CNC Lathe Turning Center – 2012

SKU 11131
Make/Model Hyundai WIA L-200SY
Year 2012
Condition Used - Good
Video On Request
Out of stock
SKU: 11131
Make/Model: Hyundai WIA L-200SY
Year: 2012
Condition: Used – Good
Video: On Request
SKU: 11131

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hyundai WIA
Model: L-200SY
Year: 2012
Condition: Used- Good
Machine Type: CNC Turning Center with Y-Axis & Live Tooling
Country of Origin: South Korea
Key Features:
  • CNC Turning Center with Y-Axis Capability
  • Live Tooling for Milling, Drilling & Tapping
  • Sub-Spindle (SY Version) for Complete Part Machining
  • High-Torque Main & Sub Spindles
  • Servo-Driven Turret
  • Rigid Box-Type Cast Iron Bed Construction
  • Full Enclosure with Safety Interlocks
  • Automatic Central Lubrication System
  • Flood Coolant System
  • Chip Conveyor Ready
  • Designed for High-Accuracy Production Turning
Travels & Axis Specifications:
  • X-Axis Travel: Approx. 8.7″ (220 mm)
  • Y-Axis Travel: ±2.0″ (±50 mm)
  • Z-Axis Travel: Approx. 20.5″ (520 mm)
  • C-Axis: Full Contouring on Main & Sub Spindles
Workholding / Capacity:
  • Main Spindle Chuck Size: 8″
  • Sub-Spindle Chuck Size: 6″
  • Maximum Turning Diameter: Approx. 13.4″ (340 mm)
  • Maximum Turning Length: Approx. 20.5″ (520 mm)
  • Bar Capacity: Approx. 2.0″ (51 mm)
Spindles:
  • Main Spindle
  • Spindle Nose: A2-6
  • Maximum Spindle Speed: 4,000 RPM
  • Spindle Motor Power: Approx. 20 HP (15 kW)
  • Sub-Spindle
  • Spindle Nose: A2-5
  • Maximum Spindle Speed: Approx. 5,000 RPM
  • Full C-Axis Interpolation
Live Tooling:
  • Live Tool Speed: Approx. 4,000 RPM
  • Live Tool Motor Power: Approx. 5.5 HP
  • Axial & Radial Live Tool Capability
  • Y-Axis Interpolation for Complex Milling
Turret / Tooling:
  • Turret Type: Servo-Driven Turret
  • Number of Stations: 12
  • Live Tool Stations: 12 (Selectable)
  • High-Speed Servo Indexing
Feedrates & Rapids:
  • Rapid Traverse (X / Z): Approx. 1,180 IPM (30 m/min)
  • Rapid Traverse (Y): Approx. 470 IPM (12 m/min)
  • High-Precision AC Servo Drives
Coolant System:
  • Flood Coolant System
  • Coolant Nozzle at Turret
  • Coolant Tank with Filtration
  • High-Pressure Coolant (HPC) Ready (Optional)
Chip Management:
  • Slant-Bed Design for Excellent Chip Flow
  • Chip Conveyor Interface
  • Side or Rear Chip Conveyor (Option Dependent)
CNC Control:
  • Fanuc CNC Control (Commonly Fanuc 0i-TD / 0i-TF)
  • Color LCD Display
  • Full C & Y Axis Control
  • Rigid Tapping
  • Custom Macro & High-Speed Machining Functions
  • Ethernet / RS-232 / USB Support (Option Dependent)
Electrical & Utilities:
  • Power Supply: 220 V / 3-Phase
  • Frequency: 60 Hz
  • Rated Power: 26 kVA
  • Full Load Current: 67 A
  • Control Voltage: AC 110 V / DC 24 V
  • Ultimate Breaking Capacity: 50 kA
  • Service Breaking Capacity: 25 kA
Machine Dimensions & Weight:
  • Approx. Machine Weight: 4,600 kg (≈10,140 lbs)
  • Compact Footprint Slant-Bed Design
Key Features:
CNC Turning Center with Y-Axis Capability Live Tooling for Milling, Drilling & Tapping Sub-Spindle (SY Version) for Complete Part Machining High-Torque Main & Sub Spindles Servo-Driven Turret Rigid Box-Type Cast Iron Bed Construction Full Enclosure with Safety Interlocks Automatic Central Lubrication System Flood Coolant System Chip Conveyor Ready Designed for High-Accuracy Production Turning
Travels & Axis Specifications:
X-Axis Travel: Approx. 221 mm (220 mm) Y-Axis Travel: ±51 mm (±50 mm) Z-Axis Travel: Approx. 521 mm (520 mm) C-Axis: Full Contouring on Main & Sub Spindles
Workholding / Capacity:
Main Spindle Chuck Size: 203 mm Sub-Spindle Chuck Size: 152 mm Maximum Turning Diameter: Approx. 340 mm (340 mm) Maximum Turning Length: Approx. 521 mm (520 mm) Bar Capacity: Approx. 51 mm (51 mm)
Spindles:
Main Spindle Spindle Nose: A2-6 Maximum Spindle Speed: 4,000 RPM Spindle Motor Power: Approx. 20 HP (15 kW) Sub-Spindle Spindle Nose: A2-5 Maximum Spindle Speed: Approx. 5,000 RPM Full C-Axis Interpolation
Live Tooling:
Live Tool Speed: Approx. 4,000 RPM Live Tool Motor Power: Approx. 5.5 HP Axial & Radial Live Tool Capability Y-Axis Interpolation for Complex Milling
Turret / Tooling:
Turret Type: Servo-Driven Turret Number of Stations: 12 Live Tool Stations: 12 (Selectable) High-Speed Servo Indexing
Feedrates & Rapids:
Rapid Traverse (X / Z): Approx. 1,180 IPM (30 m/min) Rapid Traverse (Y): Approx. 470 IPM (12 m/min) High-Precision AC Servo Drives
Coolant System:
Flood Coolant System Coolant Nozzle at Turret Coolant Tank with Filtration High-Pressure Coolant (HPC) Ready (Optional)
Chip Management:
Slant-Bed Design for Excellent Chip Flow Chip Conveyor Interface Side or Rear Chip Conveyor (Option Dependent)
CNC Control:
Fanuc CNC Control (Commonly Fanuc 0i-TD / 0i-TF) Color LCD Display Full C & Y Axis Control Rigid Tapping Custom Macro & High-Speed Machining Functions Ethernet / RS-232 / USB Support (Option Dependent)
Electrical & Utilities:
Power Supply: 220 V / 3-Phase Frequency: 60 Hz Rated Power: 26 kVA Full Load Current: 67 A Control Voltage: AC 110 V / DC 24 V Ultimate Breaking Capacity: 50 kA Service Breaking Capacity: 25 kA
Machine Dimensions & Weight:
Approx. Machine Weight: 4,600 kg (≈10,140 lbs) Compact Footprint Slant-Bed Design
