*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hyundai WIA |
| Model No.: |
VX500 |
| Year of Manufacture: |
2015 |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |
Fanuc Control |
| Country of Origin: |
Korea |
| Capacity: |
| Table Size: ~47.2″ x 19.7″ |
| Table Load Capacity: ~1,200 kg |
| Max Workpiece Height: ~24″ |
| Travels: |
| X-Axis Travel: ~40.2″ |
| Y-Axis Travel: ~20.1″ |
| Z-Axis Travel: ~24.0″ |
| Spindle: |
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: ~20 HP |
| Tool Changer: |
| Tool Capacity: 24 ATC |
| Tool Type: CAT 40 |
| General: |

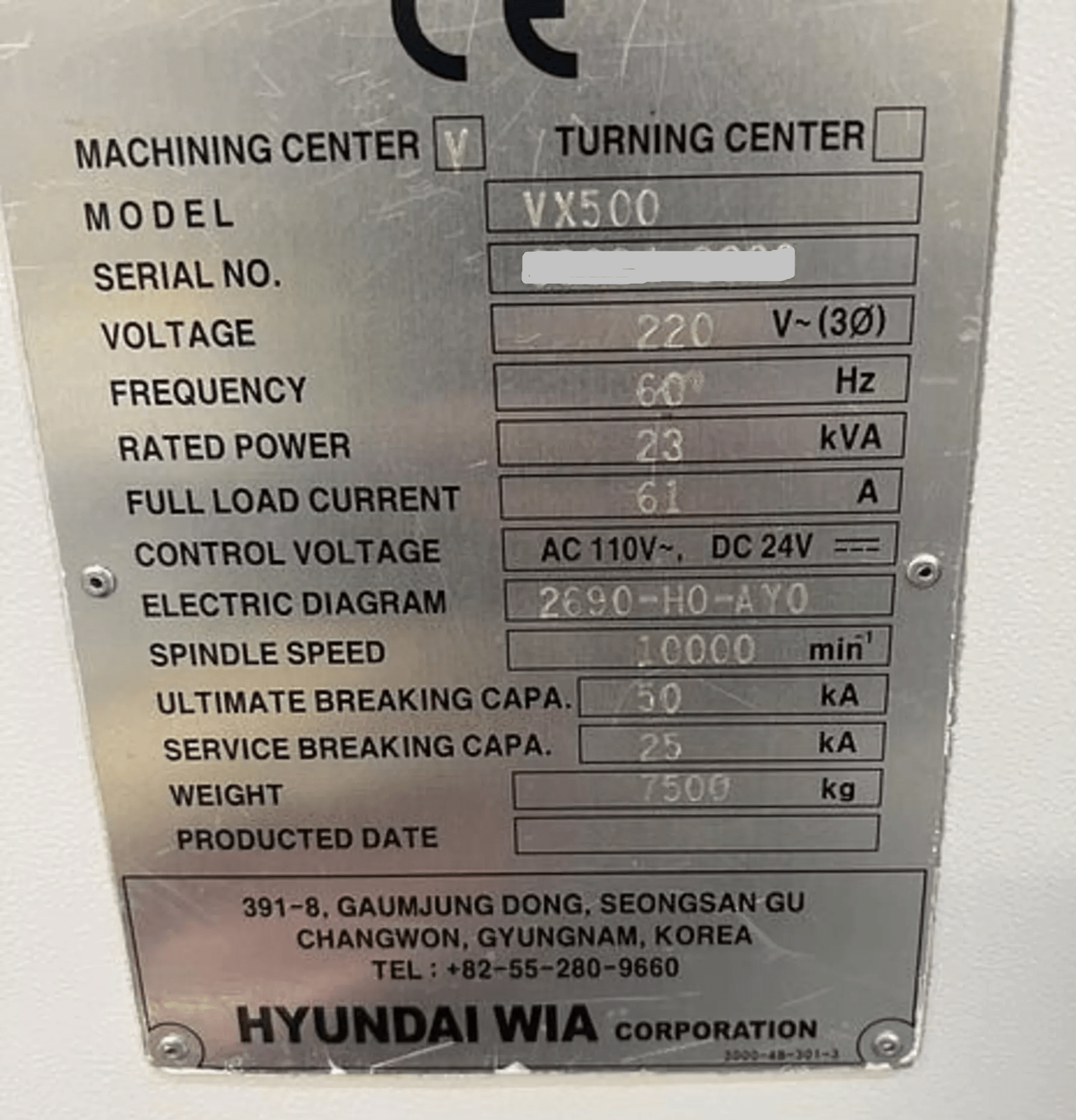

| Power Requirement: 220V / 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 23 kVA |
| Full Load Current: 61 A |
| Machine Weight: ~7,500 kg |
| Equipped With: |
| Fanuc CNC Control |
| 24 Station Automatic Tool Changer |
| Coolant System |
| Chip Management System |
| Work Light |
| Full Enclosure |
| Operator Control Panel |
