*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

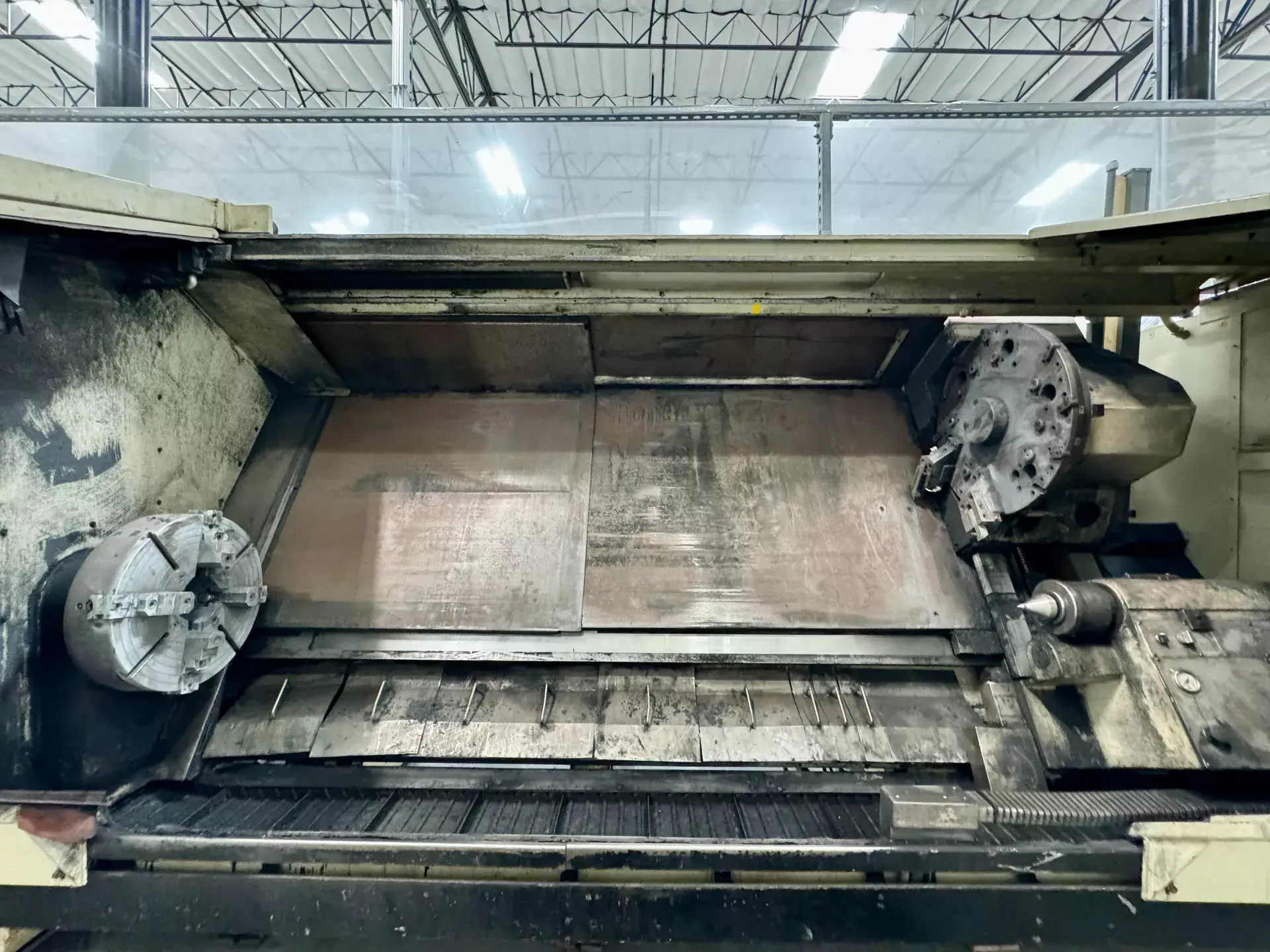

| Make: | LeBlond Makino |
| Model: | Baron-60 |
| Year: | 1998 |
| Condition: | Used – Good |
| Machine Type: | CNC Lathe / Turning Center |

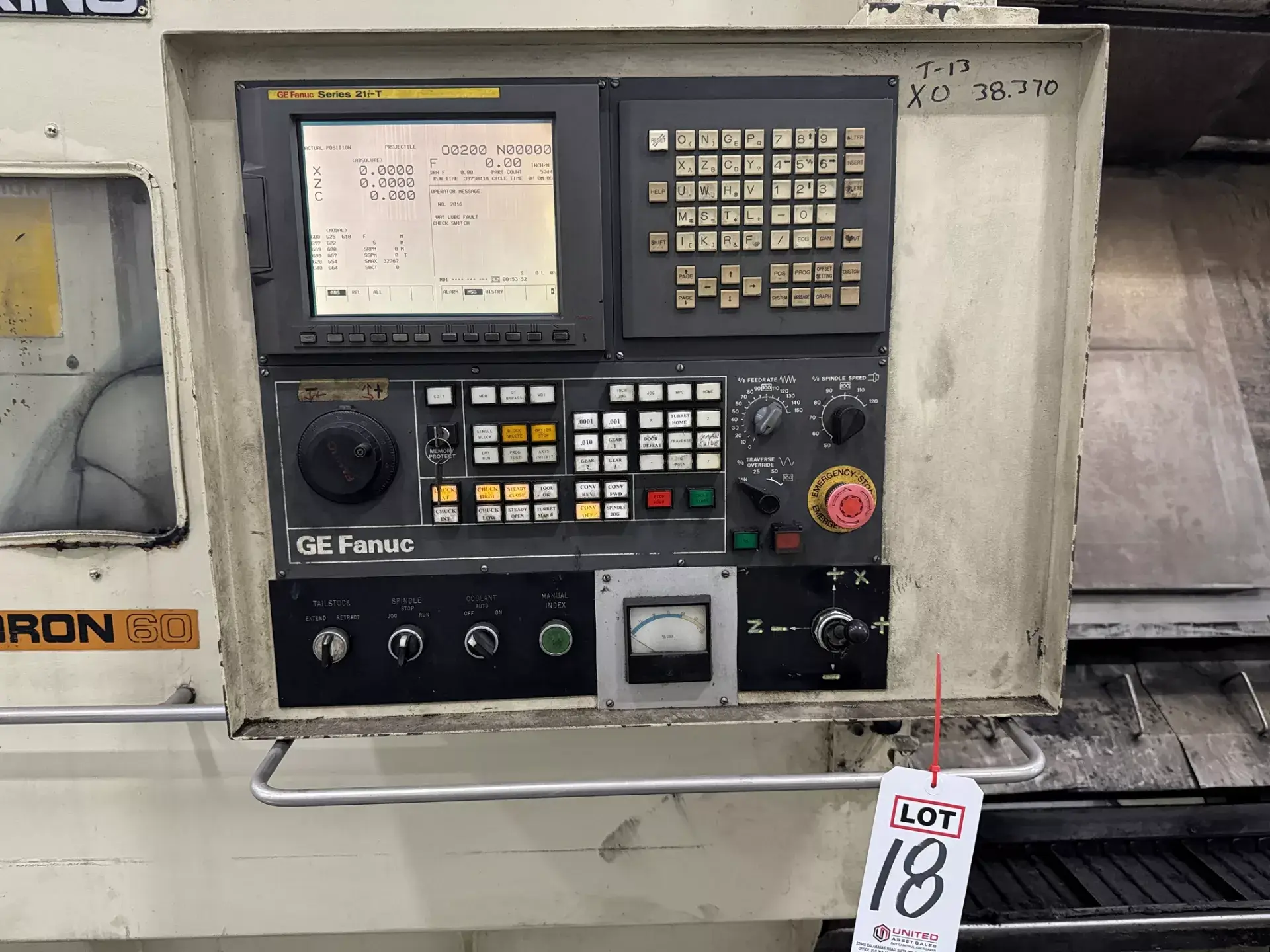

| Control: | GE Fanuc Series 21i-T CNC Control |
| Equipped With: |
|---|
| GE Fanuc Series 21i-T CNC Control System |
| 24″ 3-Jaw Hydraulic Chuck Unit |
| Jorgensen Heavy Duty Lift-Up Chip Conveyor |
| Torit Dust Collector / Mist Extraction System |
| Programmable Heavy Duty Tailstock Assembly |
| 10-Station Heavy Duty Turret System |
| Slanted Bed Design for Efficient Chip Management |
| Fully Enclosed Safety Splash Guarding & Enclosure |
| Solid Steel Hardened & Ground Box Ways |
| Automatic Centralized Lubrication System |
| Flood Coolant System with High-Capacity Tank & Pump |
| Capacity: |
|---|
| Swing Over Bed: 29.5″ |
| Maximum Machining Diameter: 25.6″ |
| Maximum Machining Length: 120″ |
| Chuck Size: 24″ |
| Bar Capacity: 4.62″ |
| Travels: |
|---|
| X-Axis Travel: 27″ |
| Z-Axis Travel: 120″ |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.62″ |
| Spindle Motor: 50 HP |
| Spindle Speed: 1,500 RPM |
| Turret: |
|---|
| Tool Capacity: 10-Station Turret |
| Turret Index Time: 0.8 Seconds |
| Tailstock: |
|---|
| Tailstock Body Travel: 110″ |
| Tailstock Quill Taper: MT #5 |
| Tailstock Quill Travel: 6.0″ |
| General: |
|---|
| Air Required: 85 psi |

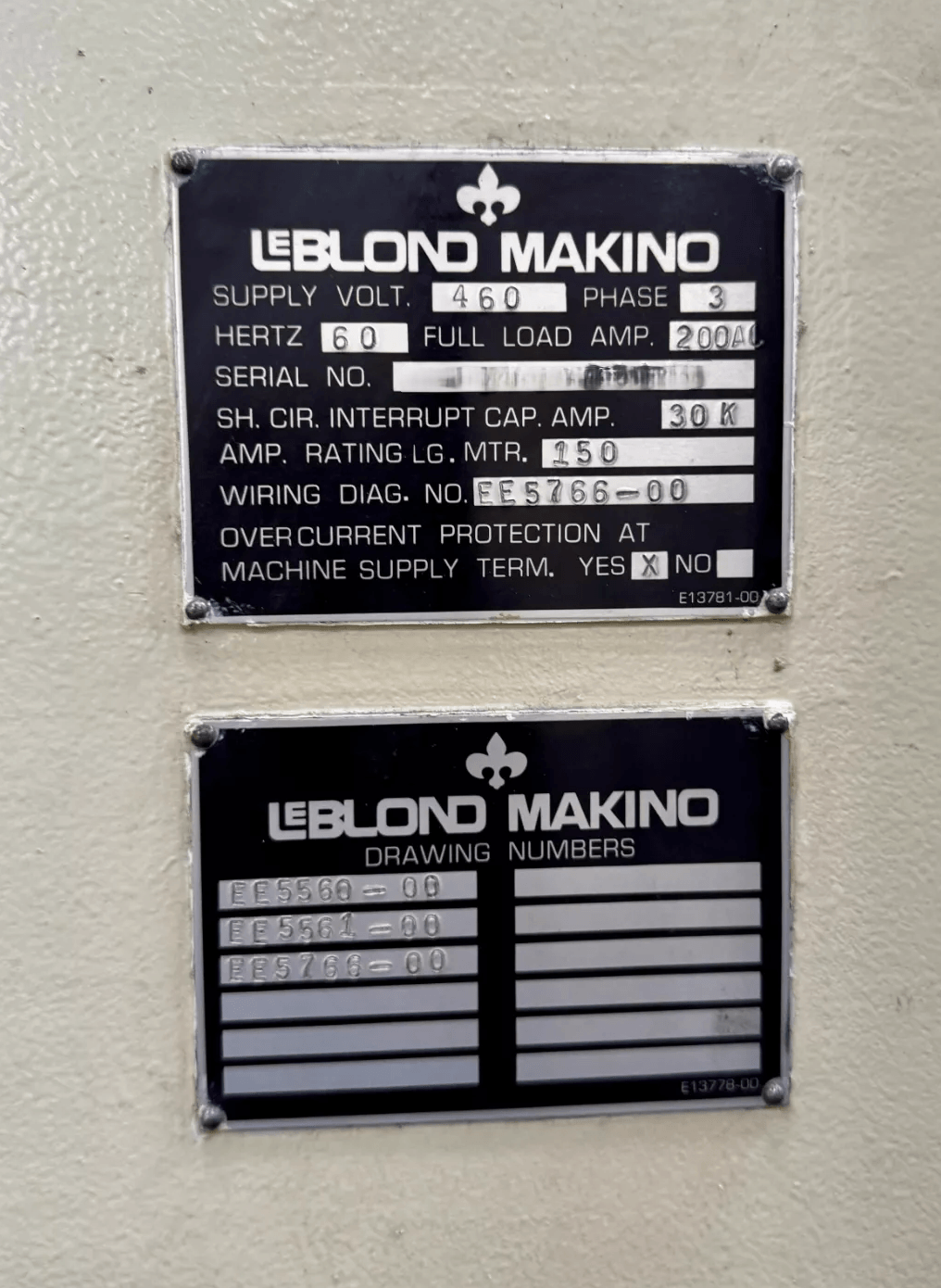

| Power: 460v / 60 Hz / 3-Phase / 200 FLA |
| Overall Dimensions: 265″ L x 96″ W x 94″ High Approx. |
| Weight: 31,500 lbs. Approx. |
