*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | LeBlond Makino |
| Model: | FNC74 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Control: | GE Fanuc 0M |
| Features: |
|---|
| GE Fanuc 0M CNC Control |
| Hand Wheel / Manual Pulse Generator |
| 20-Station Automatic Tool Changer |
| CAT-40 Taper Spindle |
| Oil Cooler |
| Coolant System |
| Enclosed Work Area |
| Chip Tray |
| Travels: |
|---|
| X-Axis Travel: 27.56″ |
| Y-Axis Travel: 17.72″ |
| Z-Axis Travel: 17.72″ |
| Table: |
|---|
| Table Size: Approx. 35.4″ × 17.7″ |
| Maximum Table Load: 2,200 lbs |
| Spindle Nose to Table: 7.875″ – 25.625″ |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 7,000 RPM |
| Spindle Motor: 10 HP AC |
| Spindle Cooling: Oil Cooler |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 20 Stations |
| Tool Taper: CAT-40 |
| Tool Change Time: 3 Seconds |
| Feed Rates: |
|---|
| Rapid Traverse X/Y: 710 IPM |
| Rapid Traverse Z: 472 IPM |
| Cutting Feedrate: 0.004 – 157 IPM |
| General: |
|---|

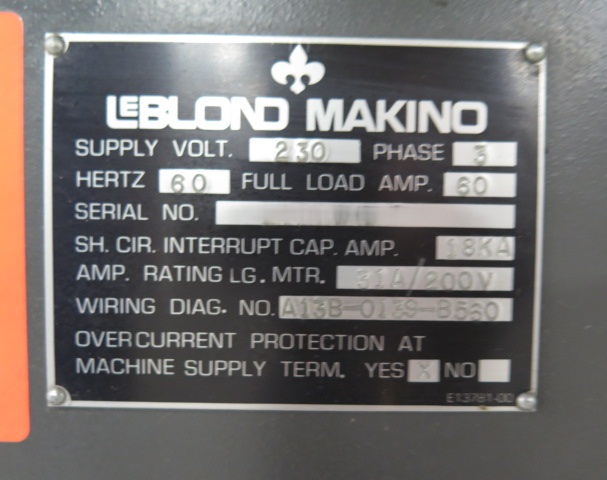

| Electrical: 230 V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 98″ L × 134″ W × 103″ H |
| Machine Weight (Approx.): 13,000 lbs |
