*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

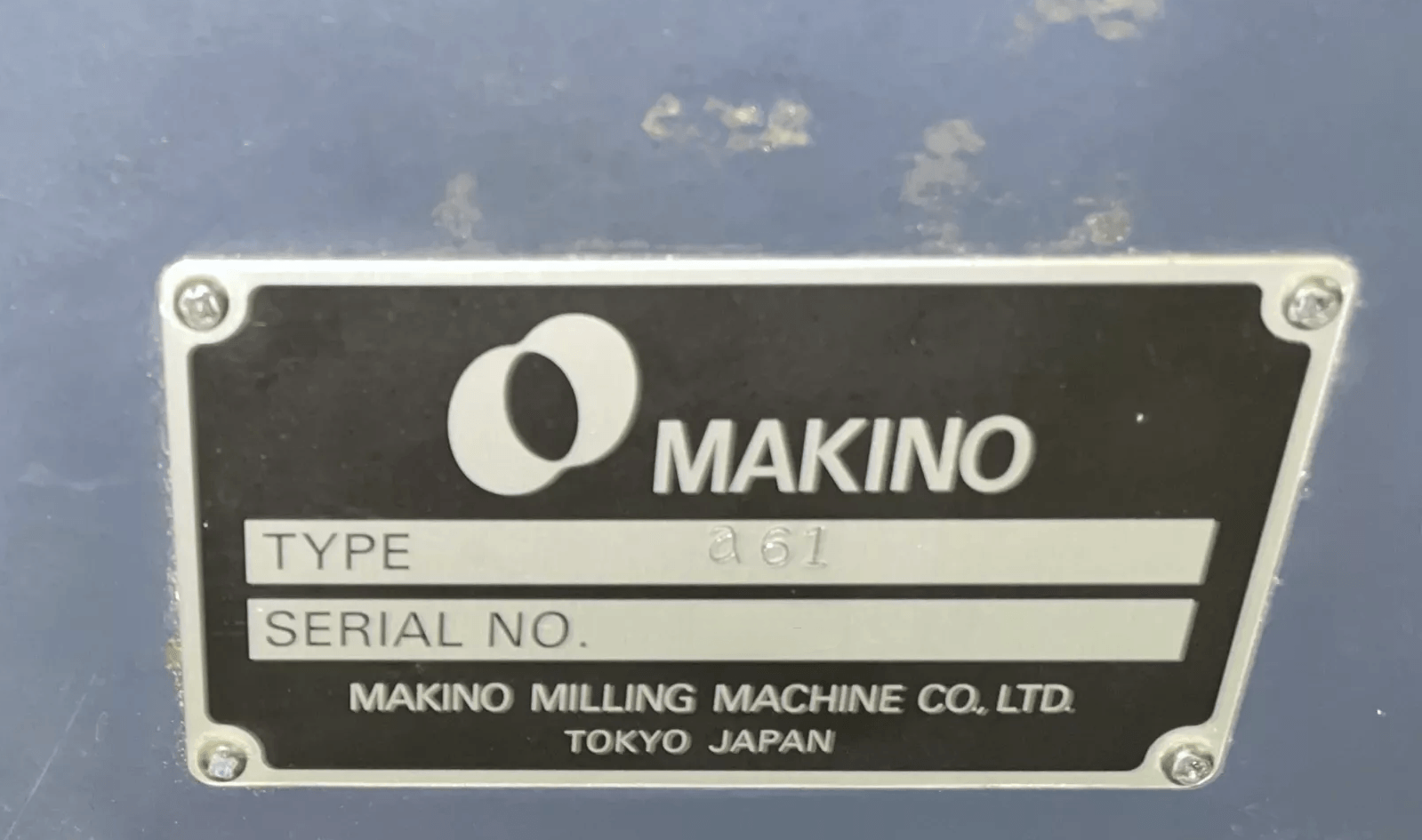

| Make: | Makino |
| Model No.: | A61 |
| Year: | 2006 |
| Condition: | Used |

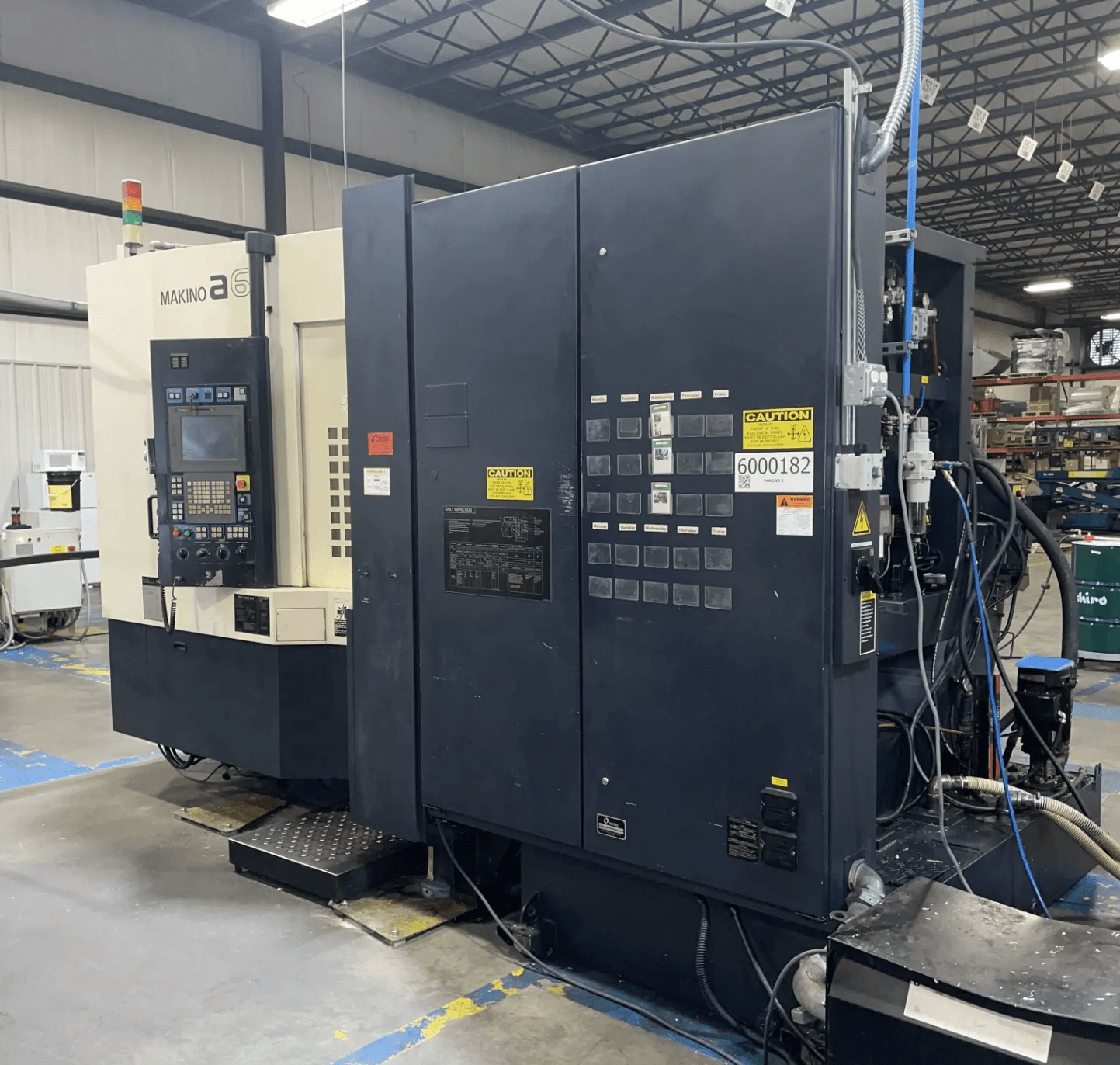

| Machine Type: | CNC Horizontal Machining Center |

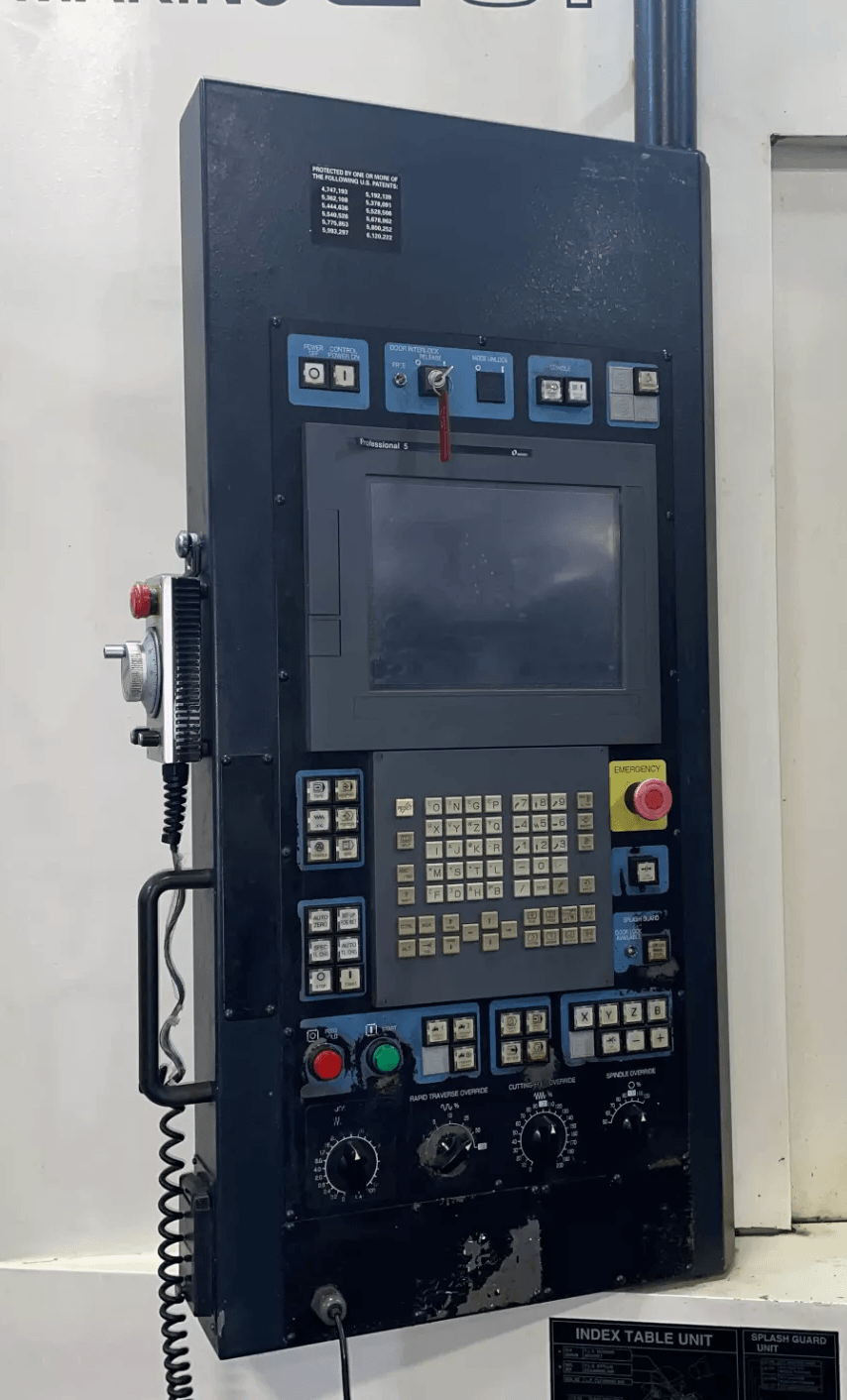

| Control: | Makino Professional 5 CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Makino Professional 5 CNC Control |
| CAT 40 Spindle Taper |
| Automatic Tool Changer |
| Chip Blaster High-Pressure Coolant System |
| Full Enclosure |
| Pallet Changing System |
| High-Speed Machining Capability |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Operator Pendant Control |
| Horizontal Spindle Configuration |
| Travels: |
|---|
| X-Axis Travel: 28.7″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 28.7″ |
| Pallet/Table: |
|---|
| Pallet Size: 19.7″ x 19.7″ |
| Max Pallet Load Capacity: 1,100 Lbs |
| Pallet Indexing: 1° Increment |
| Number of Pallets: 2 |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 14,000 RPM |
| Spindle Motor: 30 HP |
| Tool Changer: |
|---|
| Automatic Tool Changer |
| Tool Capacity: 60 Tools |
| General: |
|---|
| Machine Weight: Approx. 28,000 Lbs |
| Machine Dimensions: Approx. 190″ x 120″ x 120″ |
