*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

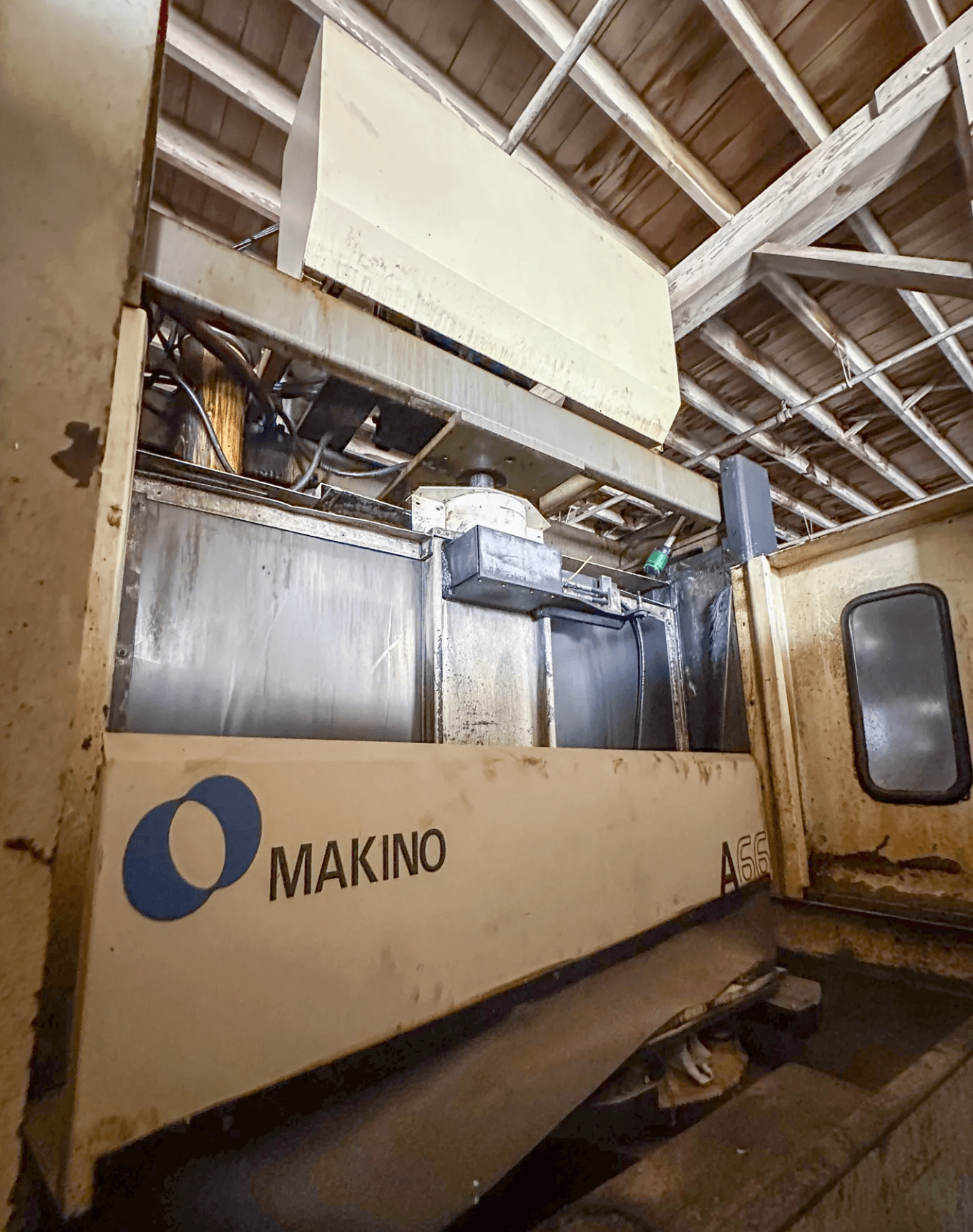

| Make: | Makino |
| Model No.: | A66 |
| Machine Type: | CNC Horizontal Machining Center |

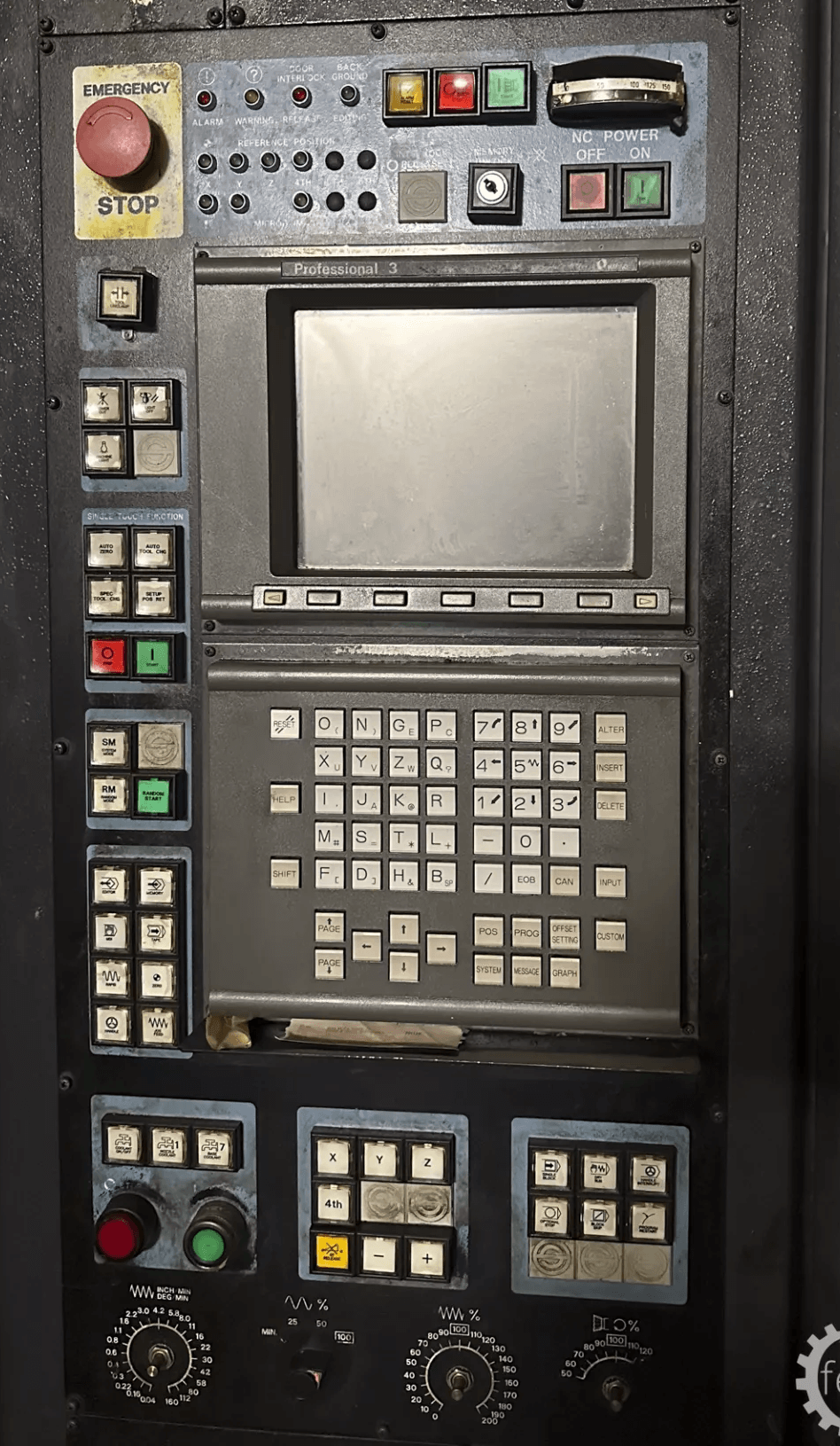

| Control: | Fanuc / Makino Professional CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Fanuc / Makino Professional CNC Control |
| Automatic Pallet Changer (2 Pallet) |
| 40-Station Automatic Tool Changer |
| High-Speed Spindle |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 29.9″ |
| Y-Axis Travel: 28.0″ |
| Z-Axis Travel: 31.5″ |
| Spindle: |
|---|
| Spindle Speed: 14,000 RPM |
| Spindle Taper: CAT40 / BT40 |
| Spindle Motor: 30 HP |
| Table / Pallet: |
|---|
| Pallet Size: 15.75″ x 15.75″ |
| Number of Pallets: 2 |
| Max Pallet Load: 880 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 2,362 IPM |
| Electrical: |
|---|
| Voltage: 480V |
| Phase: 3 |
| Frequency: 60 Hz |
| Full Load Current: 78 Amps |
| General: |
|---|
| Air Required: 90 – 100 PSI |
| Power: 480V / 78 FLA / 3-Phase |
| Overall Dimensions: 120″ x 100″ x 110″ High |
| Weight: 26,000 lbs (Approx.) |
