Hyundai WIA F400-1

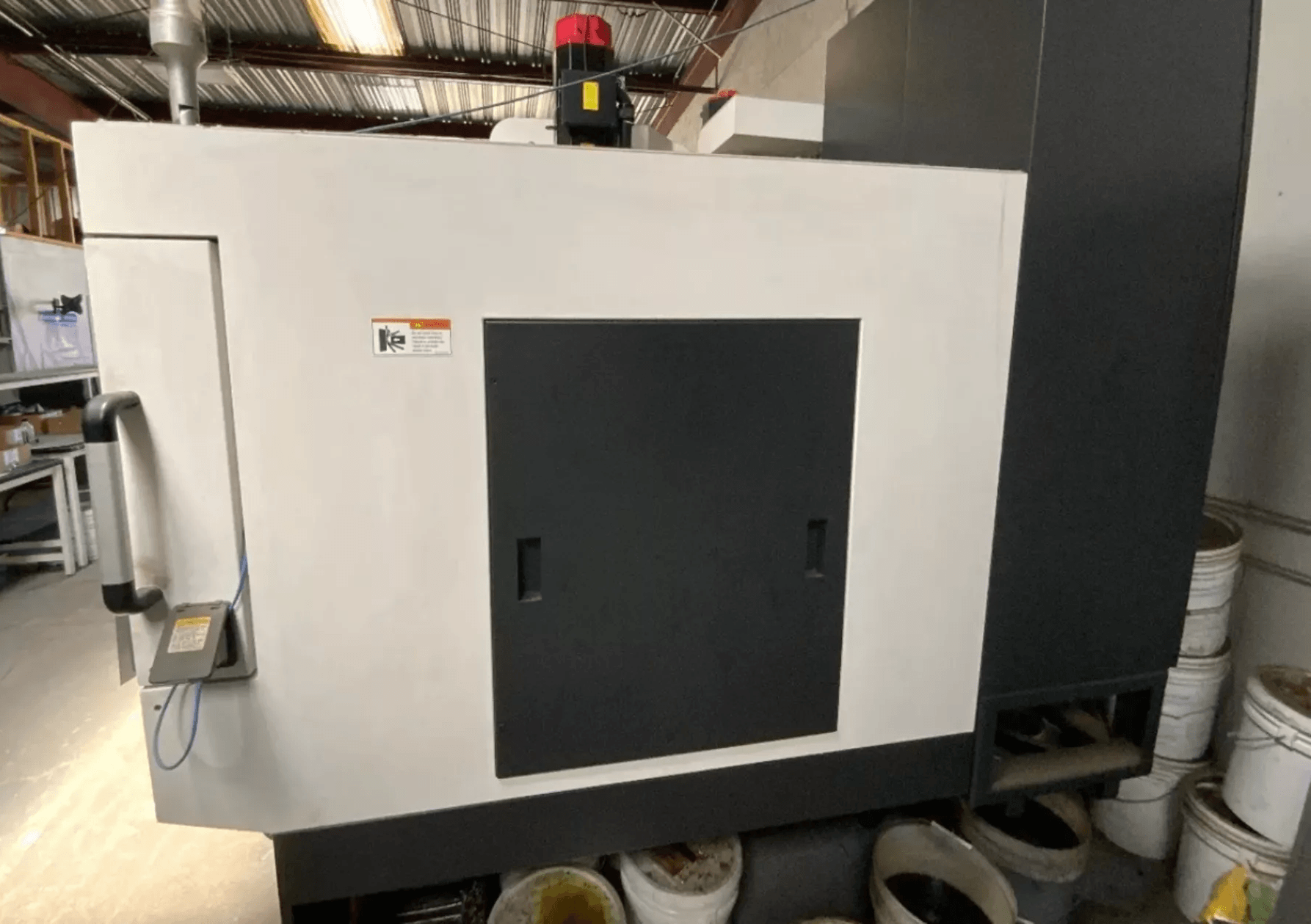

Hyundai WIA F400-2

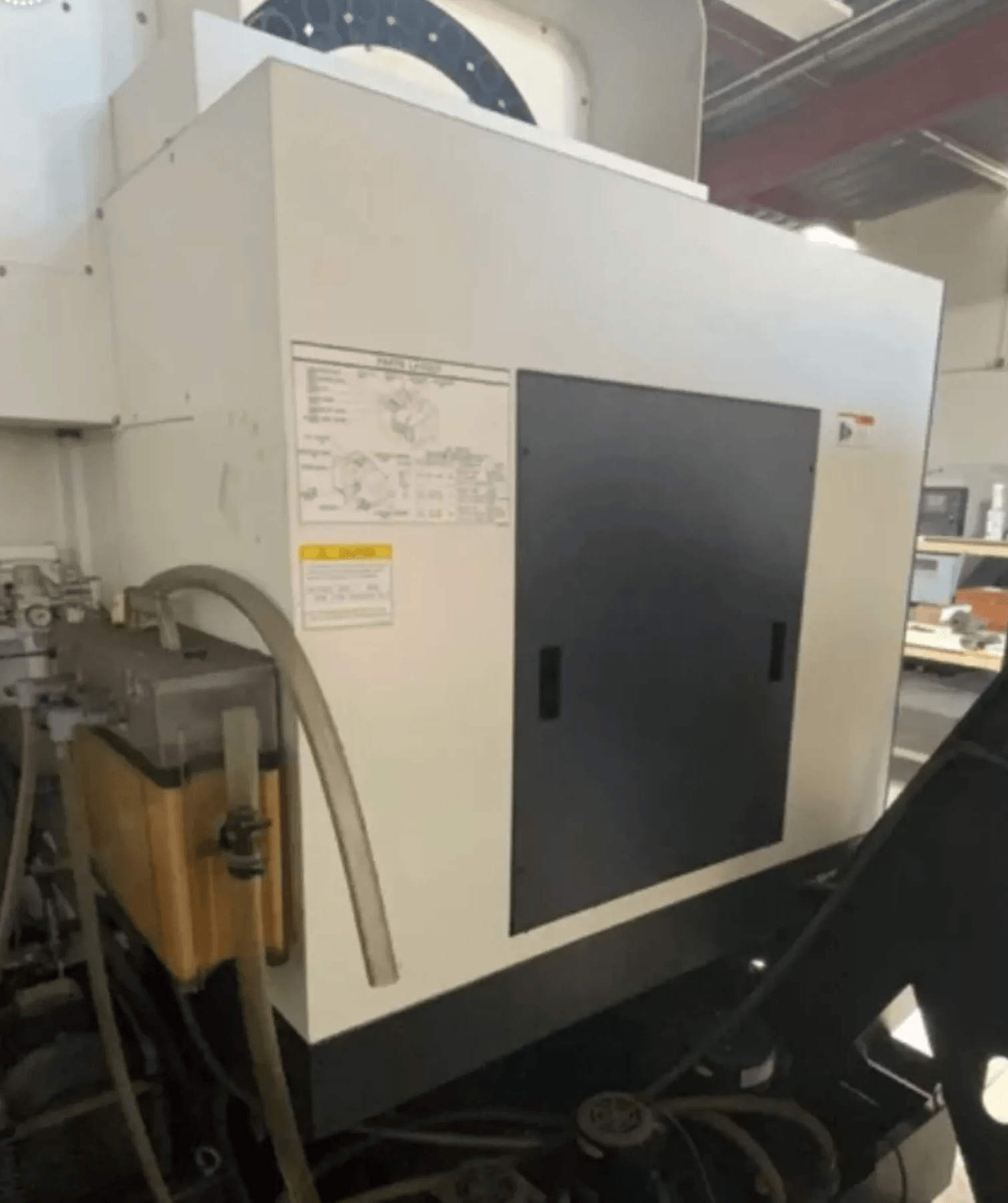

Hyundai WIA F400-3

Hyundai WIA F400 CNC Vertical Machining Center

SKU 11473
Make/Model Hyundai WIA F400
Year 2016
Video On Request
Out of stock
SKU: 11473
Make/Model: Hyundai WIA F400
Year: 2016
Video: On Request
SKU: 11473

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hyundai WIA
Model No.: F400
Year: 2016
Machine Type: CNC Vertical Machining Center
Control: Fanuc i Series CNC Control
Country of Origin: South Korea
Features:
Fanuc i Series CNC Control
CAT 40 Big Plus Spindle
12,000 RPM Spindle
High Pressure Through-Spindle Coolant
24 Station Side Mount Automatic Tool Changer
Chip Conveyor
Rigid Tapping
Coolant System
Fully Enclosed Splash Guard
Automatic Lubrication System
Programmable Coolant Nozzle
Linear Guideways
High-Speed Machining Capability
Travels:
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Table:
Table Size: 39.4″ x 18.1″
Max Table Load: 1,100 Lbs
Spindle:
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Tool Changer:
Tool Capacity: 24 Station
Tool Changer Type: Side Mount Automatic Tool Changer
General:
Machine Weight: Approx. 13,000 Lbs
Machine Dimensions: Approx. 110″ x 95″ x 105″
Travels:
X-Axis Travel: 762 mm
Y-Axis Travel: 508 mm
Z-Axis Travel: 508 mm
Table:
Table Size: 1,001 mm x 460 mm
Max Table Load: 1,100 Lbs
Spindle:
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Tool Changer:
Tool Capacity: 24 Station
Tool Changer Type: Side Mount Automatic Tool Changer
General:
Machine Weight: Approx. 13,000 Lbs
Machine Dimensions: Approx. 2,794 mm x 2,413 mm x 2,667 mm
CategoriesCNC Vertical Machining Center
MakeHyundai Wia
ModelF400
  • Fanuc i Series CNC Control
  • CAT 40 Big Plus Spindle
  • 12,000 RPM Spindle
  • High Pressure Through-Spindle Coolant
  • 24 Station Side Mount Automatic Tool Changer
  • Chip Conveyor
  • Rigid Tapping
  • Coolant System
  • Fully Enclosed Splash Guard
  • Automatic Lubrication System
  • Programmable Coolant Nozzle
  • Linear Guideways
  • High-Speed Machining Capability
Hyundai WIA F400-1Hyundai WIA F400-2Hyundai WIA F400-3
