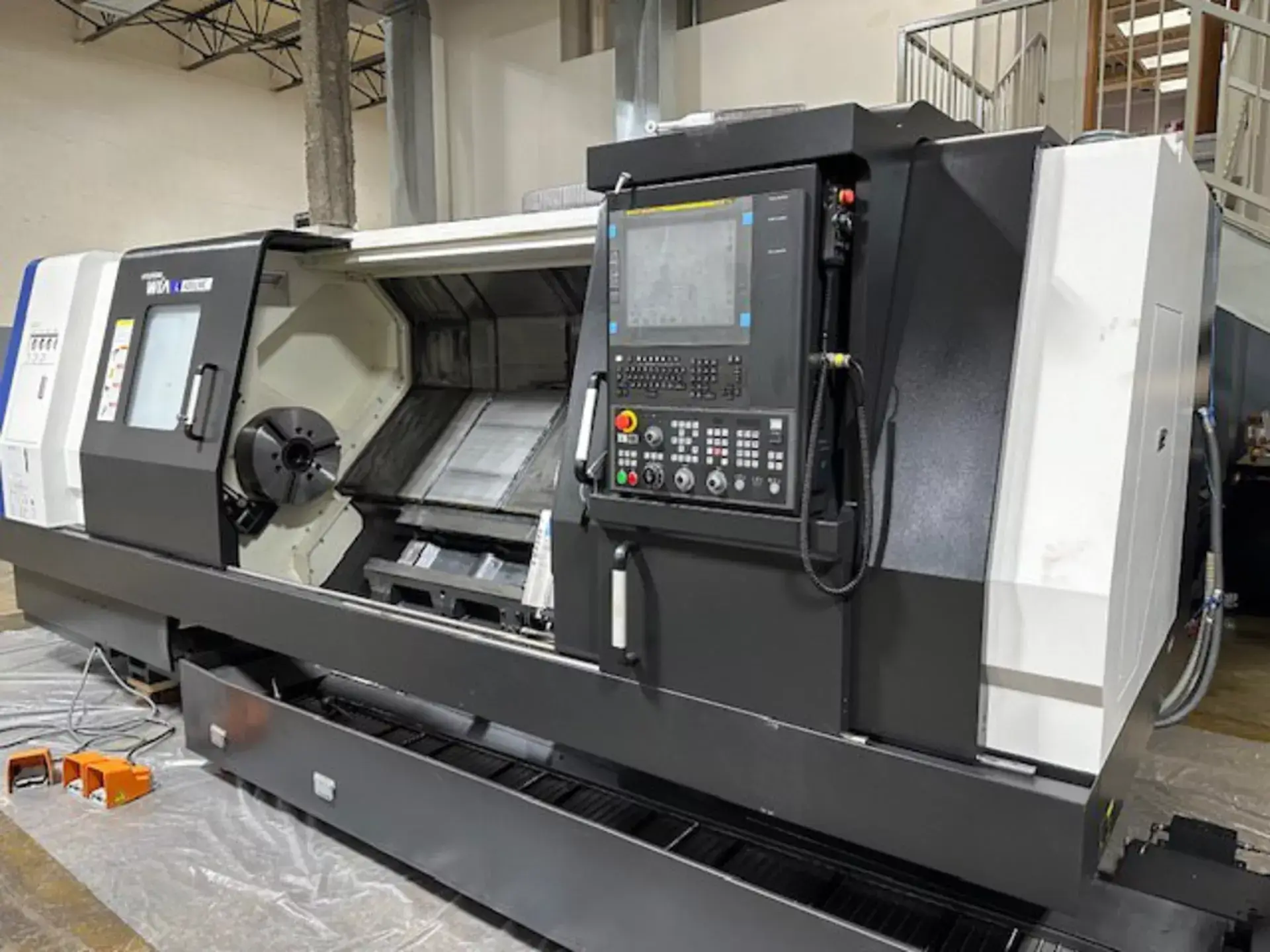

Hyundai WIA L400LMC CNC Turning Center – 2022 Fanuc i Series, Live Tooling, C Axis
SKU
11329
Make/Model
Hyundai WIA L400LMC
Year
2022
Video
On Request
Out of stock
| SKU: | 11329 |
| Make/Model: | Hyundai WIA L400LMC |
| Year: | 2022 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai WIA |
| Model: | L400LMC |
| Year: | 2022 |
| Machine Type: | CNC Turning Center (Lathe) |
| CNC Control: | FANUC i Series Smart Plus Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| 18″ 3-Jaw Hydraulic Chuck |
| 12 Station Live Tooling Turret |
| C-Axis (.001° Indexing) |
| 4,000 RPM Live Tooling |
| (1) I.D Rotary Holder |
| (1) O.D Rotary Holder |
| 10 HP Rotary Tool Motor |
| 11″ SMW AUTOBLOCK Hydraulic Steady Rest (1.18″ – 11″) |
| Tool Setter |
| Programmable Tailstock |
| Coolant Tank and Pumps |
| Capacity: |
|---|
| Swing Over Bed: 28.5″ |
| Max Turning Diameter: 22″ |
| Max Machining Length: 82.7″ |
| Spindle Bore: 5.1″ |
| Bar Capacity: 4.6″ |
| Travel: |
|---|
| X Axis Travel: 12.6″ |
| Z Axis Travel: 86.6″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 2,000 RPM |
| Spindle Nose: A2-11 |
| Spindle Motor: 50 HP |
| Gear Range: 2 Speed |
| Turret: |
|---|
| Type: Live Tooling Turret |
| Capacity: 12 Station |
| Tailstock: |
|---|
| Type: Programmable |
| Tailstock Taper: MT #5 |
| Quill Diameter: 5.9″ |
| Quill Travel: 5.9″ |
| Tailstock Travel: 82.7″ |
| General: |
|---|
| Air Required: 100 PSI Approx. |
| Power: 220V / 3-Phase / 50/60 Hz |
| Overall Dimensions: ~220″ x 100″ x 95″ High |
| Weight: ~24,000 lbs |
| Cutting Hours: 630 Hours |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | Hyundai, Hyundai Wia |
| Model | L400LMC |
