*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | Mycenter HX250i |
| Features: |
|---|
| Yasnac CNC Control |

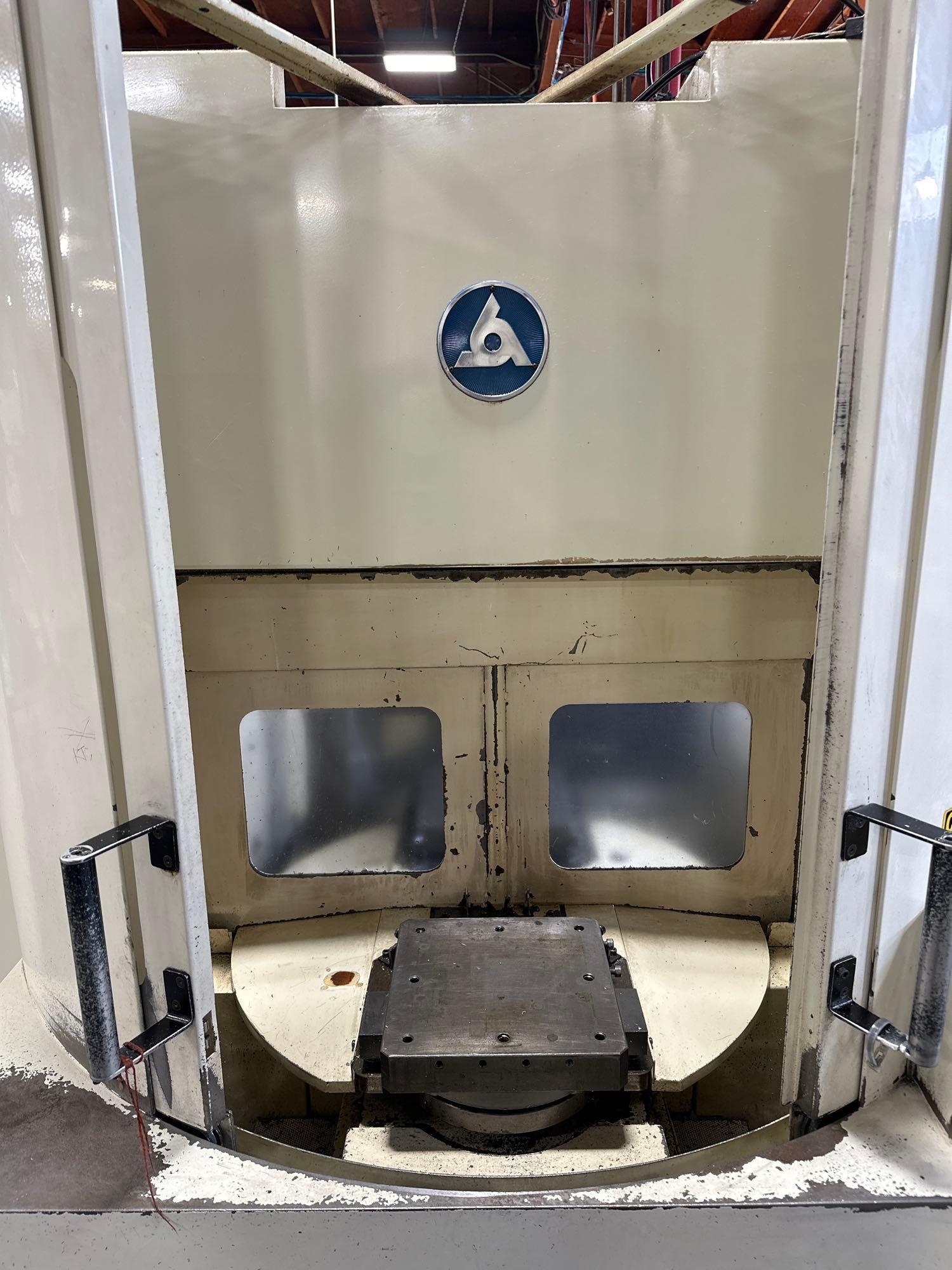

| Automatic Pallet Changer (APC) |
| (2) 10″ Pallets |

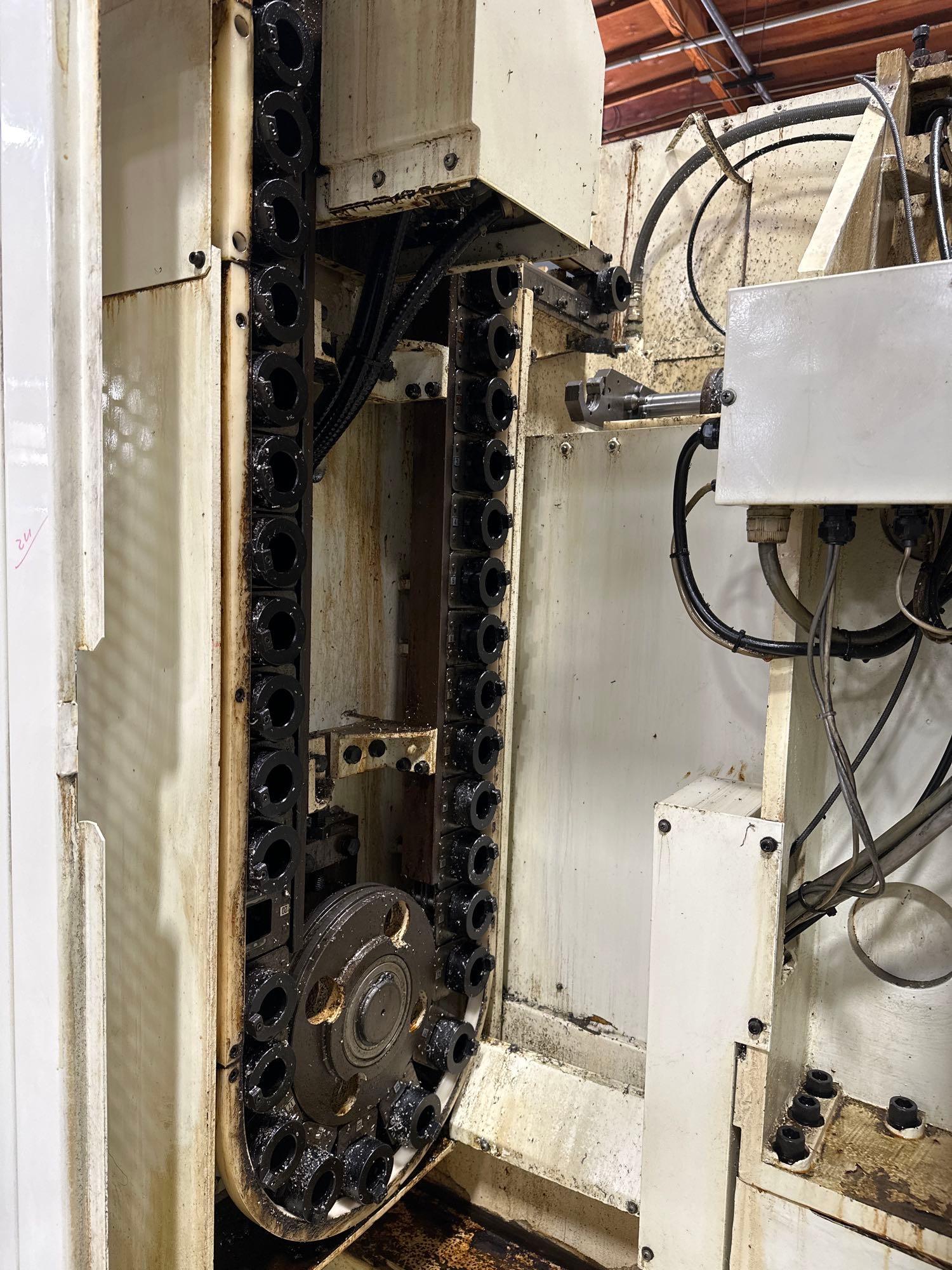

| 40-Station Automatic Tool Changer |
| 15,000 RPM High-Speed Spindle |
| CAT 40 Spindle |
| Full Machine Enclosure |
| Coolant System |
| Chip Conveyor |
| Work Light |
| Capacity: |
|---|
| Pallet Size: 10″ × 10″ |
| Number of Pallets: 2 |
| Maximum Workpiece Diameter: 15.7″ |
| Maximum Workpiece Height: 19.7″ |
| Maximum Workpiece Weight: 220 lbs |
| Travels: |
|---|
| X-Axis Travel: 20.1″ |
| Y-Axis Travel: 20.1″ |
| Z-Axis Travel: 20.1″ |
| B-Axis: 360° (1° Indexing) |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 40 Tools |
| Maximum Tool Diameter: 1.97″ |
| Maximum Tool Weight: 4.4 lbs |
| Maximum Tool Length: 7.9″ |
| Tool Selection: Random Bi-Directional |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,417 IPM |
| Cutting Feed Rate: 0.04 – 787 IPM |

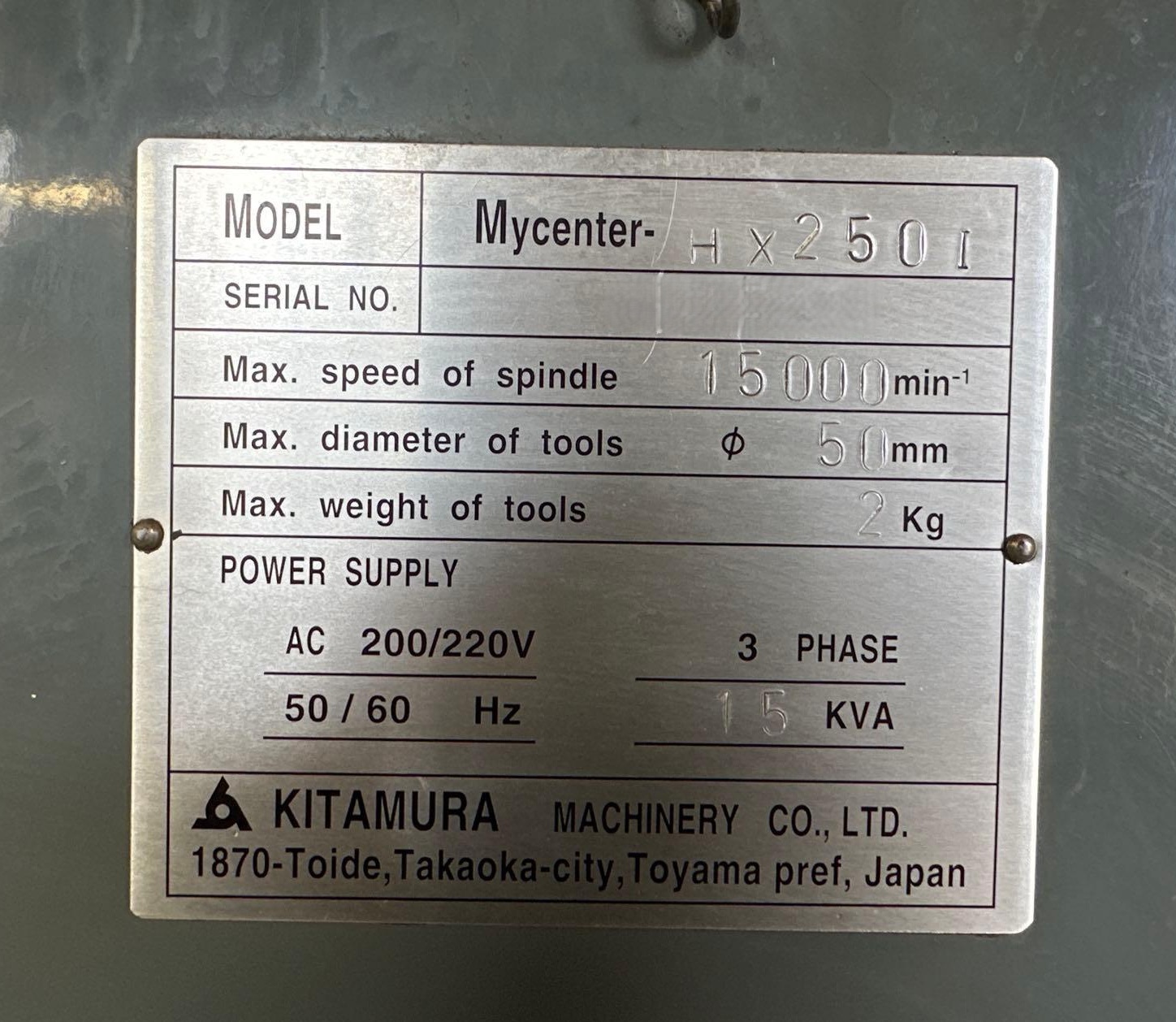

| Electrical: |
|---|
| Power Supply: AC 200/220 V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Connected Load: 15 kVA |
| General: |
|---|
| Country of Manufacture: Japan |
| Machine Dimensions (Approx.): 112″ × 90″ × 103″ |
| Machine Weight (Approx.): 13,200 lbs |
